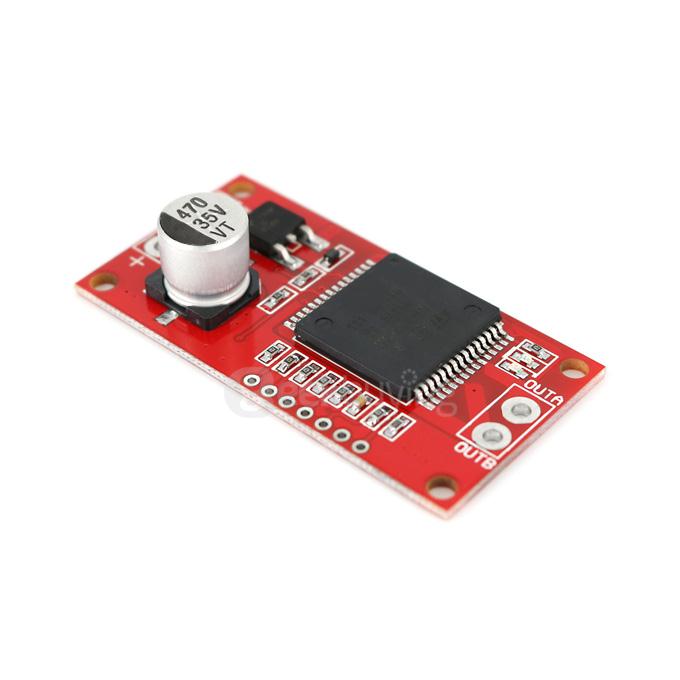

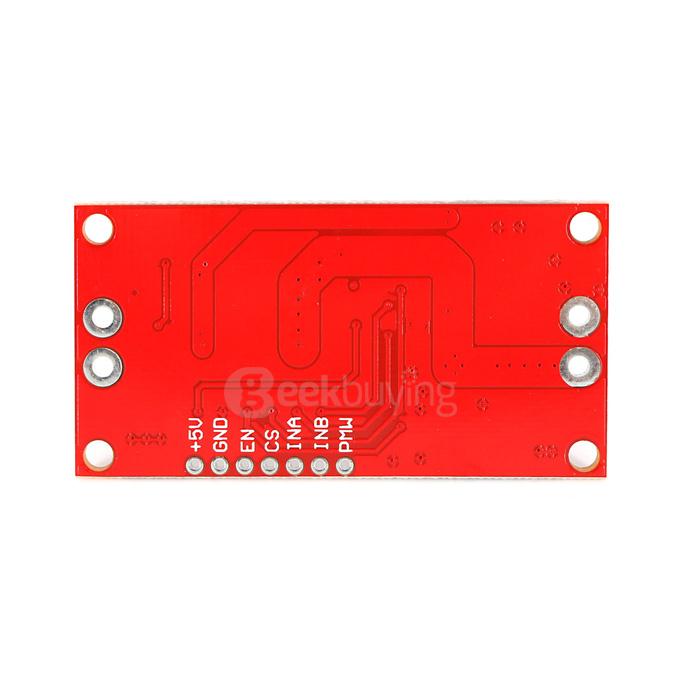

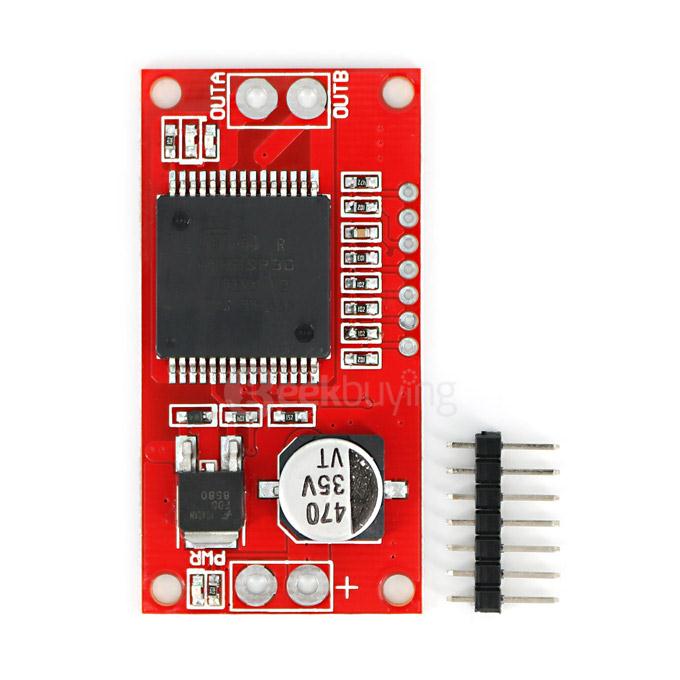

30A High Current Single Motor Driver Module Full-bridge Driver for Arduino

Item Code: 360987 Write a review
Price:
  • 6.79
Reg. Price:
  • USD 15.24   Save: 55%

12item(s) added

View Cartor Continue Shopping>>
QTY :
Add to Cart
Bulk order rebate
389

Shipping: in 2-7 business days FREE SHIPPING

jb_year Ask a question Price Match

  • Description
  • Reviews
  • Q&A

Highlights

  • Thermal shutdown
  • Undervoltage and Overvoltage shutdown
  • Great for DIY and smart car projects
  • This is high-current and full-bridge driver module for single motor. The power supply and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires.

Specification

General
Type Single Motor Driver Module
Driver Chip VNH2SP30
Voltage Motor supply voltage: 5.5-16VDC
Logic level voltage: 5V
Current Peak drive current: 30A
Continuous drive current: 5A (default), 14A (need to enhance heat dissipation)
Maximum PWM Frequency 20 kHz
Note When using this board in extreme high-demand applications it may be necessary to improve thermal performance with a heat-sink or fan and to solder the wires directly to the board instead of using a screw terminal. However, when using the board at currents up to 6A the chips will barely become noticeably warm.
Package Contents
1 x 30A motor driver module
1 x English User manual
