General |
Product Description |
4CH 960H HDMI Onvif DVR NVR |
Operation System |
Embedded Linux |
Video Compression |
H.264 |
Video |
Video System |
PAL/NTSC Switch Selectable |
Video Input |
4CH BNC Interface |
Video Output |
1CH BNC Interface |
HD Output |
HDMI (1920*1080) |
VGA Output |
(1920*1080,1440*900,1280*1024,1280*720,1024*768 Selectable) |
Audio |
Input |
8* RCA Interface |
Output |
1* RCA Interface |
Remote Access |
Cloud System For Remote Access, NO Port Mapping |
Recording Mode |
Schedule, Manual, Motion Detection Alarm |
Backup |
Flash Drive / USB HDD / Network |
Hard Drive Interface |
3.5 inch SATA II Interface (Up to 3T Hard Disk) |
Frame Rate |
Main Stream: 1~25 FPS |
Video Playback |
CIF/DI/960H/720P/1080P Recording Playback |
Mulitiplex Operation |
Live Display/Record/Playback/Backup/Network Transmit |
Ethernet Interface |
1*RJ-45 10M/100M |
USB Interface |
3*USB Interface |
Web Browser |
Supports IE Browser/CMS Software Monitoring |
Network Service |
TCP/IP, UDP, HTTP, DDNS, SMTP, LAN, DHCP |
Onvif Protocol |
Onvif 2.0 |
Mobile phone |
IPhone, IPad, Android Remote View |
System requirement |
Windows XP/Vista/Windows 7/Windows 8 |
Power Supply |
100V~240V 47Hz~63Hz |
Working Temperature |
-10ºC—55ºC |
Working Humidity |
10%--90% |

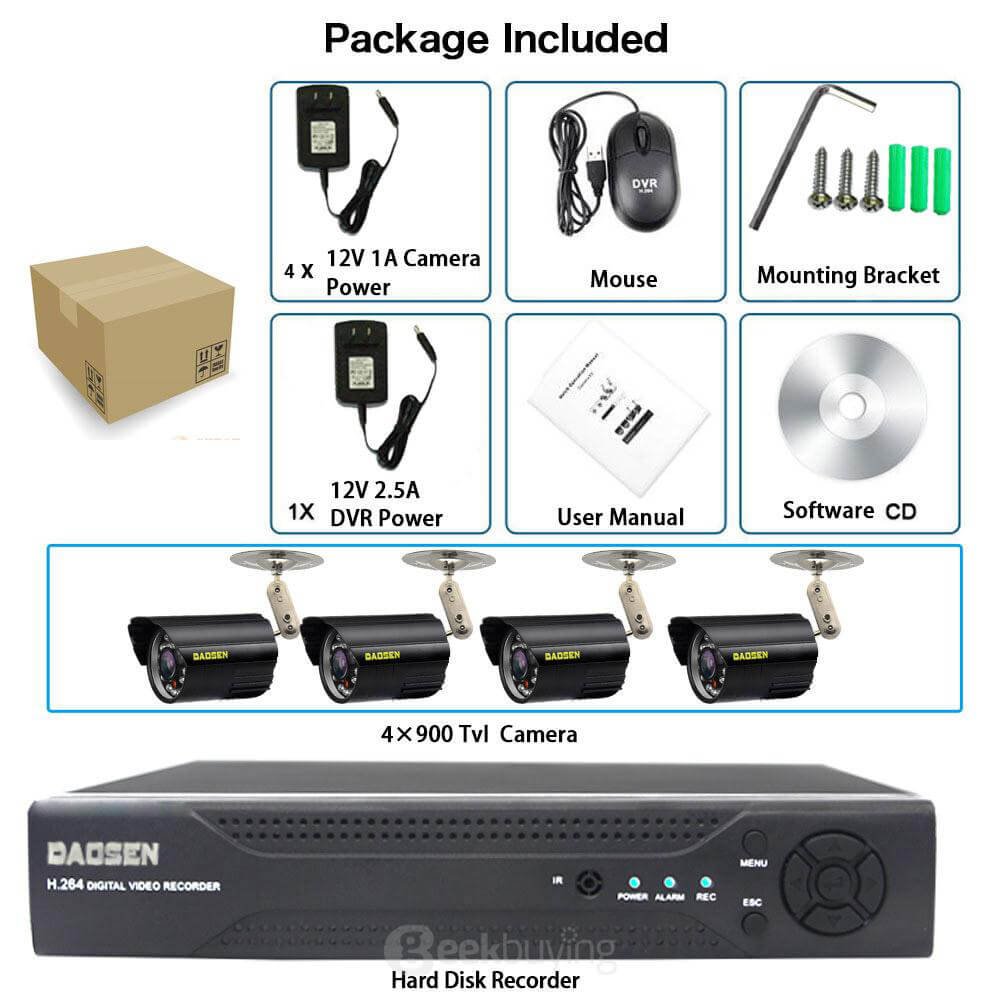

Accessories Included |
User Manual/ CD Disk/ Mouse / Power Supply |
Camera Specifications: |
Image Sensor |
Image Sensor Type |
CMOS |
Sensor Size |
1/4 Inch |
Signal System |
PAL |
Horizontal Resolution |
900 TV Lines |
Lens |
3.6mm |
Minimum Illumination |
0.1LUX/F1.2 |
Day/Night |
IR-CUT |
Waterproof |
IP66 |
Camera Features |
IR Led |
24 pcs |
IR Irradiation Distance |
10m~20m |
S/N Ratio |
> 48dB |
Video Output |
1.0Vp-p/75Ω BNC |
White Balance |
Automatic |
Backlight Compensation |
Automatic |
Shutter Speed |
Automatic electronic shutter 1/60-1/100000 Sec |
Physical Environment |
Power Supply |
12V DC |
Material |
Metal Shell |
Application |
Outdoor/Indoor |
Connector |
BNC, DC |
Operating Temperature |
-10°~ 50°C (14°F~122°F) |
humidity |
Below 90%RH |
