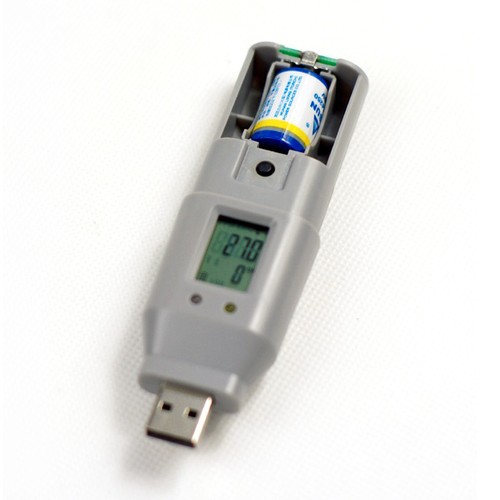

BTH01 Two Channel Humidity Temperature Meter Dew Point Data Logger USB Interface LCD with Analysis Software DGraphTM

Item Code: 322936 (1 Reviews)
Price:
  • 66.39
Reg. Price:
  • USD 95.65   Save: 31%

12item(s) added

View Cartor Continue Shopping>>
QTY :
Add to Cart
Bulk order rebate
93083

Shipping: in 2-7 business days FREE SHIPPING

jb_year Ask a question Price Match

  • Description
  • Reviews
  • Q&A

Highlights

  • l USB interface directly communicate with PC for setup and data download
  • l User can set access password for data logger
  • l User can name each channel and enable/disable specified channel freely
  • l LED alarm enable/disable, LED alarm hold enable/ disable and alarm limit settings for all channels via
  • DGraphTM
  • l User can input formula to customize compound graph from selected logging data
  • l User can create and customize new unit easily and freely for all measurement parameters
  • l Logging status indication via red/green LED and battery status indication via yellow LED
  • l Start logging method: Immediately, Button, Delayed

Measurement



Relative Humidity



Measurement range



0~100%RH



Accuracy(Typ.)Figure 1





+-3%RH





Resolution



0.1%RH typically



Long Term Drift



<0.5%RH per year



Temperature



Measurement range



-35~80C(-31~176F)



Accuracy(Typ.)Figure 2



+-0.3C(+-0.5F)



Resolution



0.1C / 0.2F



Long Term Drift



Negligible



General



Number of Channels



Double Channels (One for humidity and the other for temperature)



User can enable/disable any channels when setup via

DGraphTM



Memory Capacity



64KBytes(Total 32,000 readings for all channels)



Sample Rate



Can be selected from 10 seconds to 12 hours



Start Method



Immediately, Start by button, and Start at date&time



Stop Method



Stop when memory full, overwrite when memory full, and stop until specified number of sample points



finished



Sample Mode



Instant(default), average, maximum and minimum



This will decide how to dispose data at idle time between a sample interval



Button



Software config to start logging bybutton, or clear and reset LED alarm when LED alarm is hold



LED



Red&green LED: Logger Status indication(Include Delay to Start, Logging, Alarm, Finished)



(Sofware can disable this two LED for saving power)



Yellow LED: Low battery indication



Alarm



User programmable high or low alarm limit for each channel(If necessary)



LED alarm and hold



Communication



Direct USB connection



Need to install the driver provided on CD



PC Software



DGraphTM software and USB driver required (Included on CD)



(Compatible with Windows XP, Windows Vista, Windows 7&8(32 bit & 64bit Versions))



Use these software to setup, download, view graph and analyse data



Power Supply



User replaceable 1/2AA 3.6V Lithium Battery 1200mAh



NOTE: USB interface can supply power directly if necessary



Battery Life



Approx. 2 Years @ 1 Minute Sample Rate



Approx. 4 Years @ 10 Minute Sample Rate



Approx. 8 Years without any sample task



NOTE: It also Depends on ambient temperatures and using of LEDs



Operating Range



0 to 100%RH  -35 to 80C(-31 to 176F)



Storage Range



Recommended: 20 to 60%RH  10 to 50C(50 to 122F)



Case Material



ABS, TPU, PC



Dimentions



123mm×37mm×23mm(4.8"×1.5"×0.9")



Weight



Approx. 90 grams(3.19 oz)



Mounting



Mounting bracket (Optional) or locking eyelet



Standard Compliance

IP66 RoHS



322936322936322936322936322936

What's in the box?

  • 1 x Temperature Tool
  • 1 x User Manual
