Highlights

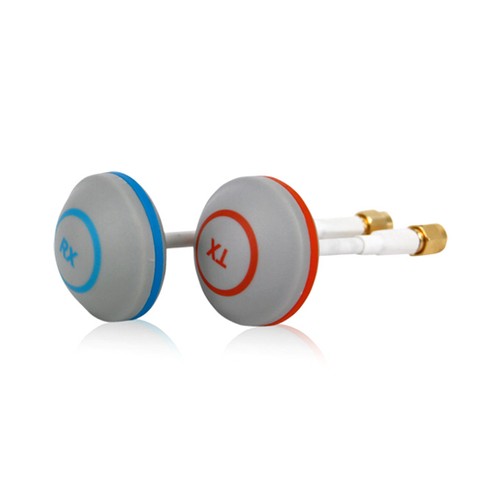

- TxA is a circular-polarized omni antenna with three lobes
- RxA is a circular-polarized omni antenna with four lobes
- Greatly Increase Range and All Direction Reception
- Boscam makes good quality FPV System, they want them to work even better so they made this Cloud Spirit Antenna. Inside the
- mushroom, Tx side splits at 120 degrees and Rx side splits at 90 degrees, don't put them on the wrong side! Both are designed to cover full 360 degrees, so you don't get any blind spot in the sky. They look a bit strange, but the clover leaf design really solve problems like we have on old TVs, like color shift and double vision... if you were using the ordinary black antenna and having those problems, try this mushroom, it makes a huge difference! Besides, this design increase efficiency of the system, you will get longer range than those single antennas.
Specification
| General | |
|---|---|
| Type | Antenna |
| Model | Boscam SKY |
| Quantity | 1 Piece |
| Gain | TxA 1.1dBi RxA 1.4dBi |
| SWR | 1.2.:1, Tuned for 5645-5945Mhz |
| Connector | Straight SMAh |
| Polarization | RHCP,Right Hand Circular Polarization |
| Size/Weigt | Length: TxA 78.5mm RxA 98.8mm Weight: TxA10.3g; RxA 11.5g |
| Package Contents | |
| 1 x TxA Petals Clover Mushrooms Antenna | |
| 1 x RxA Petals Clover Mushrooms Antenna | |
