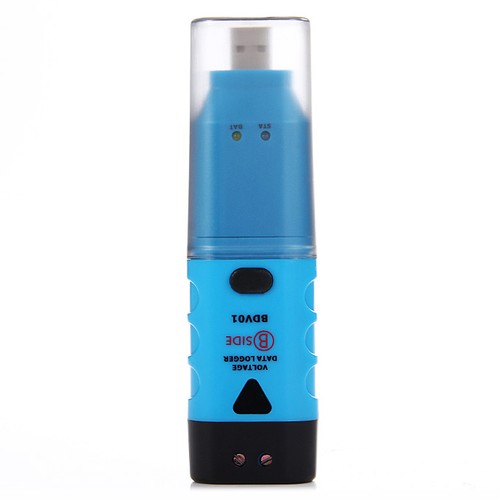

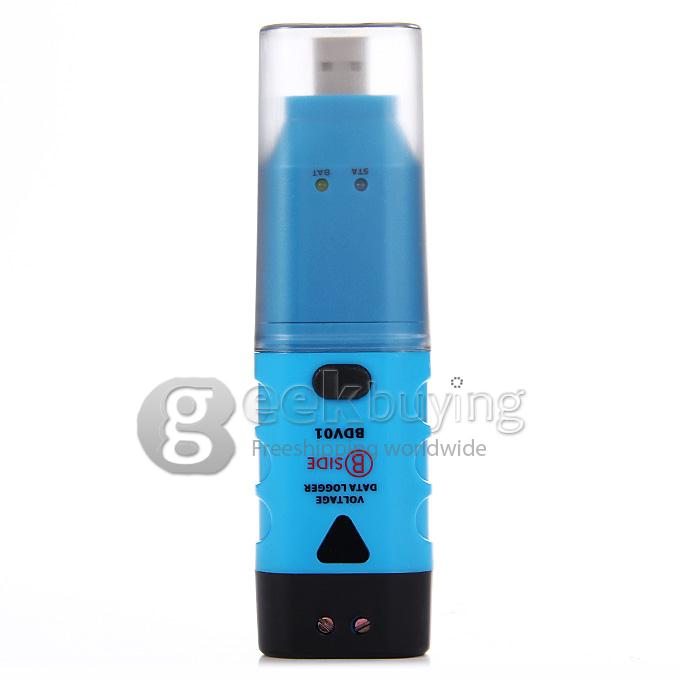

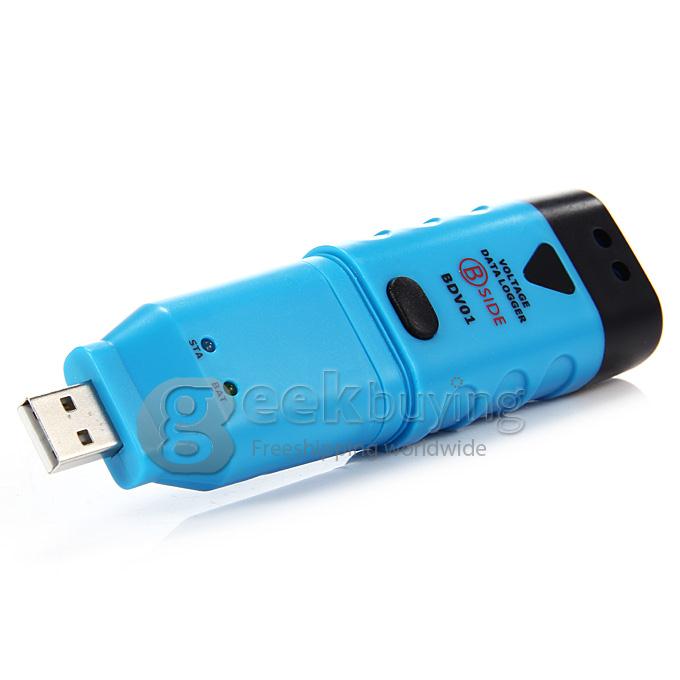

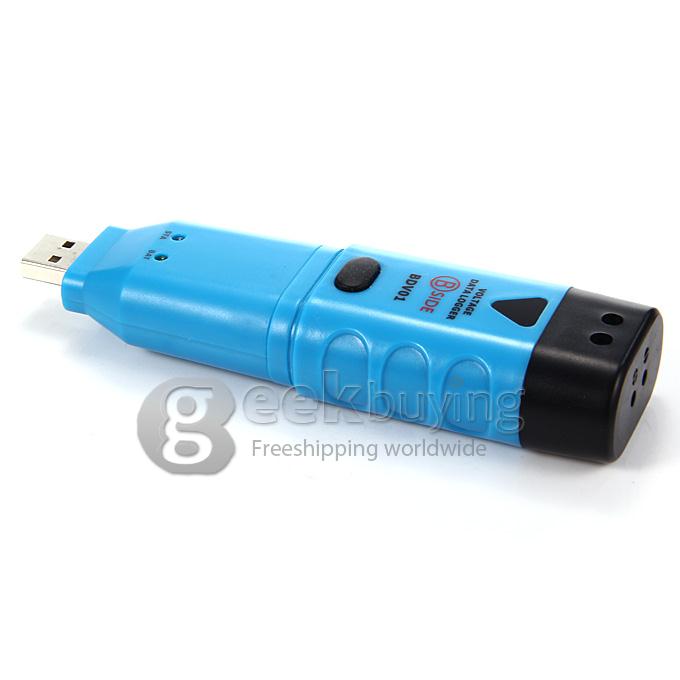

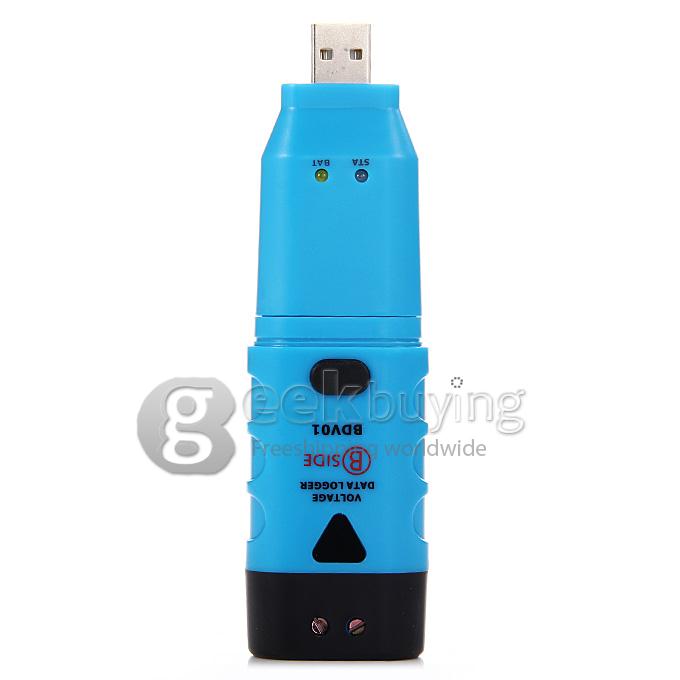

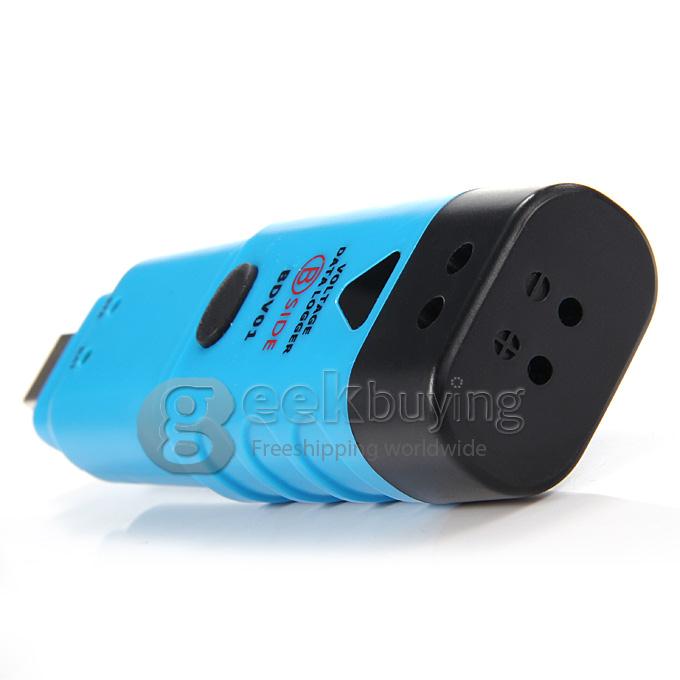

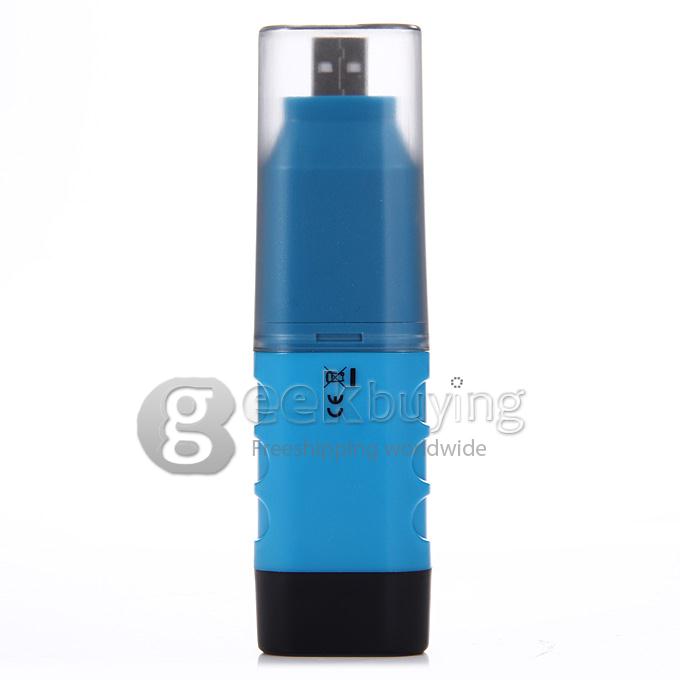

Bside BDV01 DC Voltage Data Logger USB 0-30V Resolution 64KBytes1 Sec Samp LED Alarm

Ship to:
United States
Select the desired shipping method
Shipping Company Estimated Delivery Time Shipping Cost
*Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.
0 item(s) added
View CartContinue Shopping

Highlights

  • ?USB interface directly communicate with PC for setup and data download
  • ?User can set access password for data logger
  • ?User can name each channel and enable/disable specified channel freely
  • ?LED alarm enable/disable, LED alarm hold enable/ disable and alarm limit settings for all channels via DGraphTM
  • ?User can input formula to customize compound line
  • ?User can create and customize new unit easily and freely
  • ?Logging status indication via red/green LED and battery status indication via yellow LED
  • ?Start logging method: Immediately, Button, Delayed
  • ?User can input two point calibration value for each channel when setup
  • ?Replaceable lithium battery and logged datas are not lost if battery exhausted

Specification

Brand Bside
Model BDV01
Measurement range 0 to 30V
Resolution 0.04V
LCD NO
Memory Capacity 64KBytes
Sample Rate 1sec. to 12hr.
Start Method Immediately, Start by button, and Start at date&time
Stop Method Stop when memory full, overwrite when memory full, stop by button and stop until specified number of sample points finished
Sample Mode Instant(default), average, maximum and minimum
This will decide how to dispose data at idle time between a sample interval
Button Software config to start logging bybutton, or clear and reset LED alarm when LED alarm is hold
LED Red&green LED: Logger Status indication(Include Delay to Start, Logging, Alarm, Finished)
(Sofware can disable this two LED for saving power)
Yellow LED: Low battery indication
Alarm User programmable high or low alarm limit for each channel(If necessary)
LED alarm and hold
Communication Direct USB connection
Need to install the driver provided on CD
PC Software DGraphTM software and USB driver required (Included on CD)
(Compatible with Windows XP, Windows Vista, Windows 7&8(32 bit & 64bit Versions))
Use these software to setup, download, view graph and analyse data

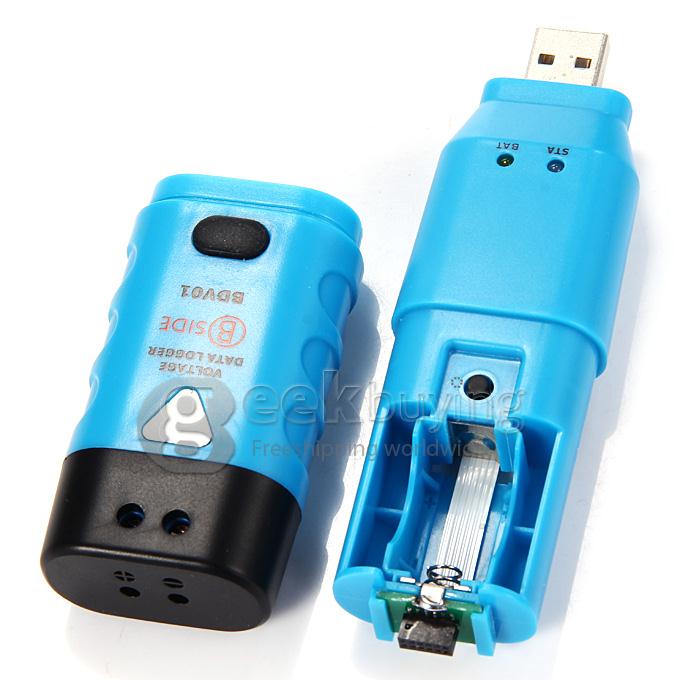

Power Supply User replaceable 1/2AA 3.6V Lithium Battery 1200mAh (not included)
NOTE: USB interface can supply power directly if necessary
Battery Life Approx. 3 Years @ 1 Minute Sample Rate
NOTE: It also Depends on using of LEDs
Operating Range 0 to 100% RH  -35 to 80°C(-31 to 176°F)
Storage Range Recommended: 20 to 60% RH  10 to 50°C(50 to 122°F)
Case Material ABS
Standard Compliance CE
Dimentions 130mm×37mm×23mm(5.1"×1.5"×0.9")
Weight Approx. 56 grams(2.01oz)

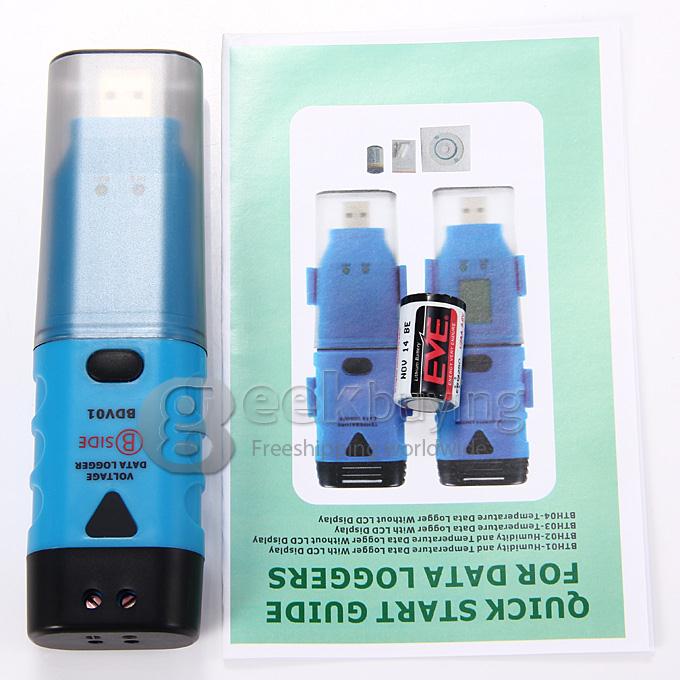

Package content 1 x Data logger
1 x Software CD
1 x Quick start guide
