Highlights

  • Trip-Out Current measurement
  • Trip-Out Time measurement
  • Contact Voltage Measurement
  • Loop Resistance (RL) measurement
  • 100 groups of test results can be stored

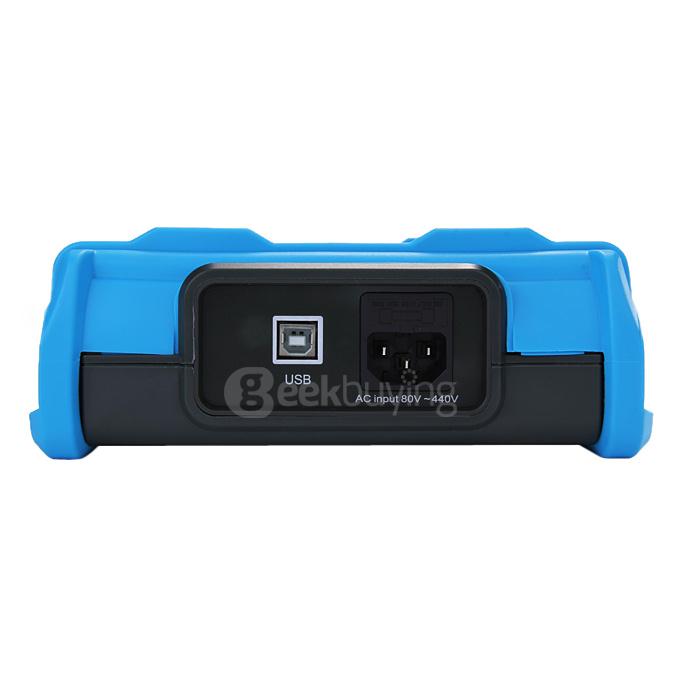

  • Data stored in host machine can be transmitted to PC via a USB2.0 interface

Specification

General
Model ALP01
Quantity 1 Piece
Specification
AC Voltage Measurement 0V 440V
Frequency Measurement 45Hz 65Hz, DC
Multiplying Power of Measurement Current 0.5, 1 and 5A
Standard/Selective Type Current Measurement Lever 10, 30, 100, 300, 500mA
Power Supply 6x 1.5V AA batteries
Storage Elevation 12,000m
Usage Elevation 2,000m CAT III 600V; 3000 CAT II 600V
Dimensions & Weight (Main Product)
Dimension 185*145*70mm
Weight 870g

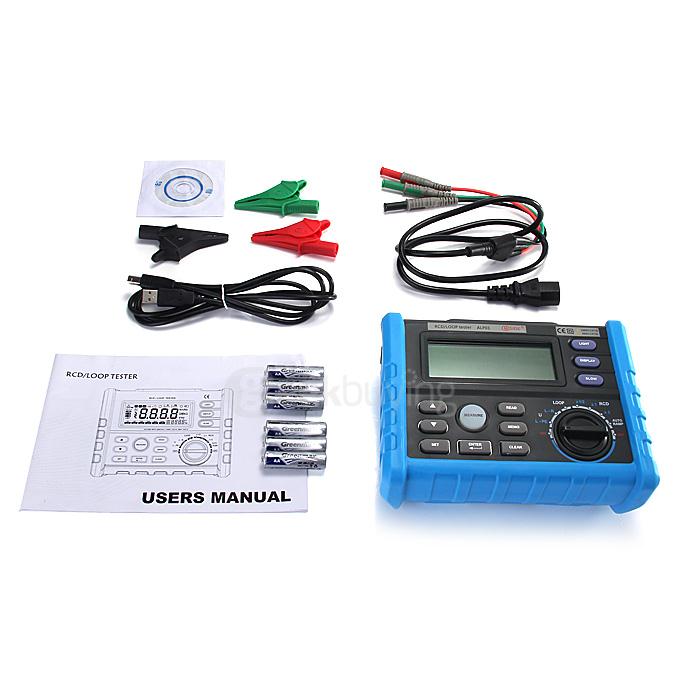

Package Contents
1*Tester

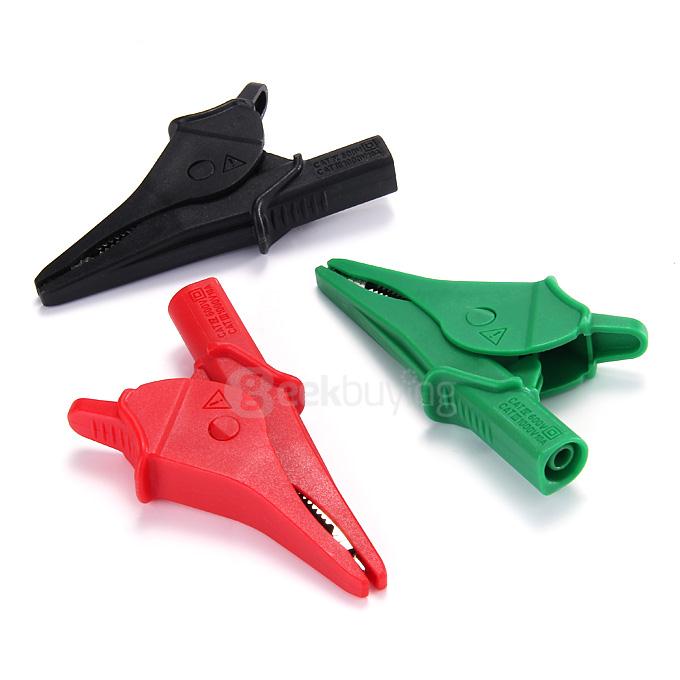

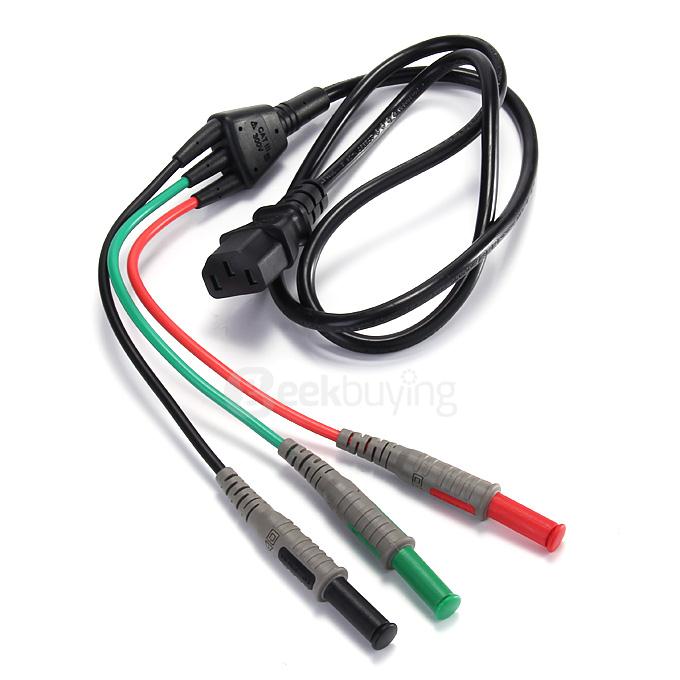

1*Accessory kit
1*Manual
6*Batteries

Trip-out time

χ1300ms ( slow 500ms)

χ540ms(slow 150ms)

±3ms

0.1ms

Trip-out current

(0.2-1.1)

±0.1

0.05

Contact voltage

0-99.9V

±(10% +0.2V

0.01, 0.1V

Alternating voltage

0-440V

±(3% +3V)

1V

Frequency

DC, 45-65Hz

±1Hz

1Hz

Loop resistance

0-2000 Ω

±(10% +0.2 Ω)

0.1Ω

Test current

0.5

±(10% +10d)

0.05

Multiplying power of test current

x0.5, x1, x5





Current level

10,30,100,300,500





Trigger phase angle

0 or 180 degrees
