Cubietruck Expansion Board DVK570 with UART0 I2C TVIN TVOUT LINEIN USB UART SPI ZigBee ONE-WIRE Various Interfaces

Item Code: 335948 Write a review
Price:
  • 19.99
Reg. Price:
  • USD 36.71   Save: 46%

12item(s) added

View Cartor Continue Shopping>>
QTY :  Sold Out
Bulk order rebate
94374

Shipping: in 2-7 business days FREE SHIPPING

jb_year Ask a question Price Match

  • Description
  • Reviews
  • Q&A

Highlights

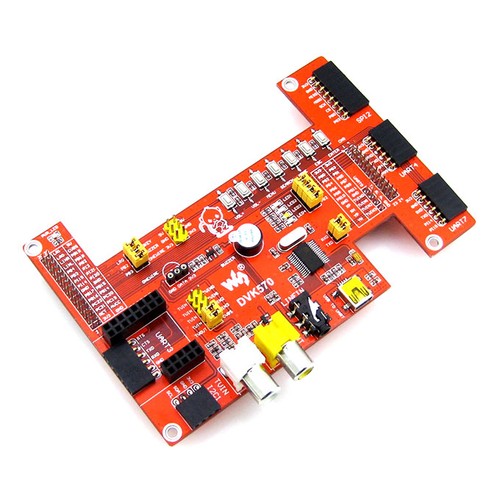

  • DVK570 is an expansion board designed for Cubietruck, integrates various components and interfaces for connecting external accessory boards. It's ideal for Cubietruck evaluation and development.

Specification

 DVK570 Product introduction

  1. 1.Cubietruck connector
  2. 2.UART0 interface: for connecting serial debugging module
  3. 3.I2C interface: easily connects to I2C modules such as PCF8563 RTC Module, MAG3110 Board, etc.
  4. 4.TVIN interface: video input
  5. 5.TVOUT interface: video CVBS output, for connecting display devices like TV
  6. 6.LINEIN interface: audio input
  7. 7.USB interface: USB TO UART (PL2303TA)
  8. 8.UART interface: easily connects to UART modules such as RS485 Board (3.3V), GPS module, etc.
  9. 9.SPI interface: easily connects to SPI modules such as AT45DBXX Dataflash, etc.
  10. 10.ZigBee connector: for connecting ZigBee modules like Core2530, supports working with ZB501
  11. 11.ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
  12. 12.5V/3.3 V power input/output: usually used as power output, also common-grounding with other user board
  13. 13.PL2303TA: onboard USB TO UART convertor
  14. 14.12M crystal: for PL2303TA
  15. 15.Buzzer
  16. 16.User LEDs: 4 colorful LEDs
  17. 17.Power indicator
  18. 18.AD keys: 7 common Android keys
  19. 19.ONE-WIRE jumper
  20. 20.Buzzer jumper
  21. 21.AD Keysjumper
  22. 22.User LEDs jumper
  23. 23.TVIN jumper
  24. 24.TVOUT jumper
  25. 25.UART0 jumper
