| Quadcopter |
Speed
Max Ascent Speed: S-mode: 6 m/s P-mode: 5 m/s
Max Descent Speed: S-mode: 4 m/s; P-mode: 3 m/s
Max Speed S-mode: 45 mph (72 kph); A-mode: 36 mph (58 kph); P-mode: 31 mph (50 kph)
Max Tilt Angle: S-mode: 42°; A-mode: 35°; P-mode: 25°
Max Angular Speed: S-mode: 250°/s; A-mode: 150°/s
Max Service Ceiling Above Sea Level: 19685 feet (6000 m)
Max Wind Speed Resistance: 10 m/s
Operation
Max Flight Time: Approx. 30 minutes
Operating Temperature Range: 32° to 104°F (0° to 40°C)
Satellite Positioning Systems: GPS/GLONASS
Hover Accuracy Range
Vertical: ±0.1 m (with Vision Positioning); ±0.5 m (with GPS Positioning)
Horizontal: ±0.3 m (with Vision Positioning); ±1.5 m (with GPS Positioning)
VISION SYSTEM

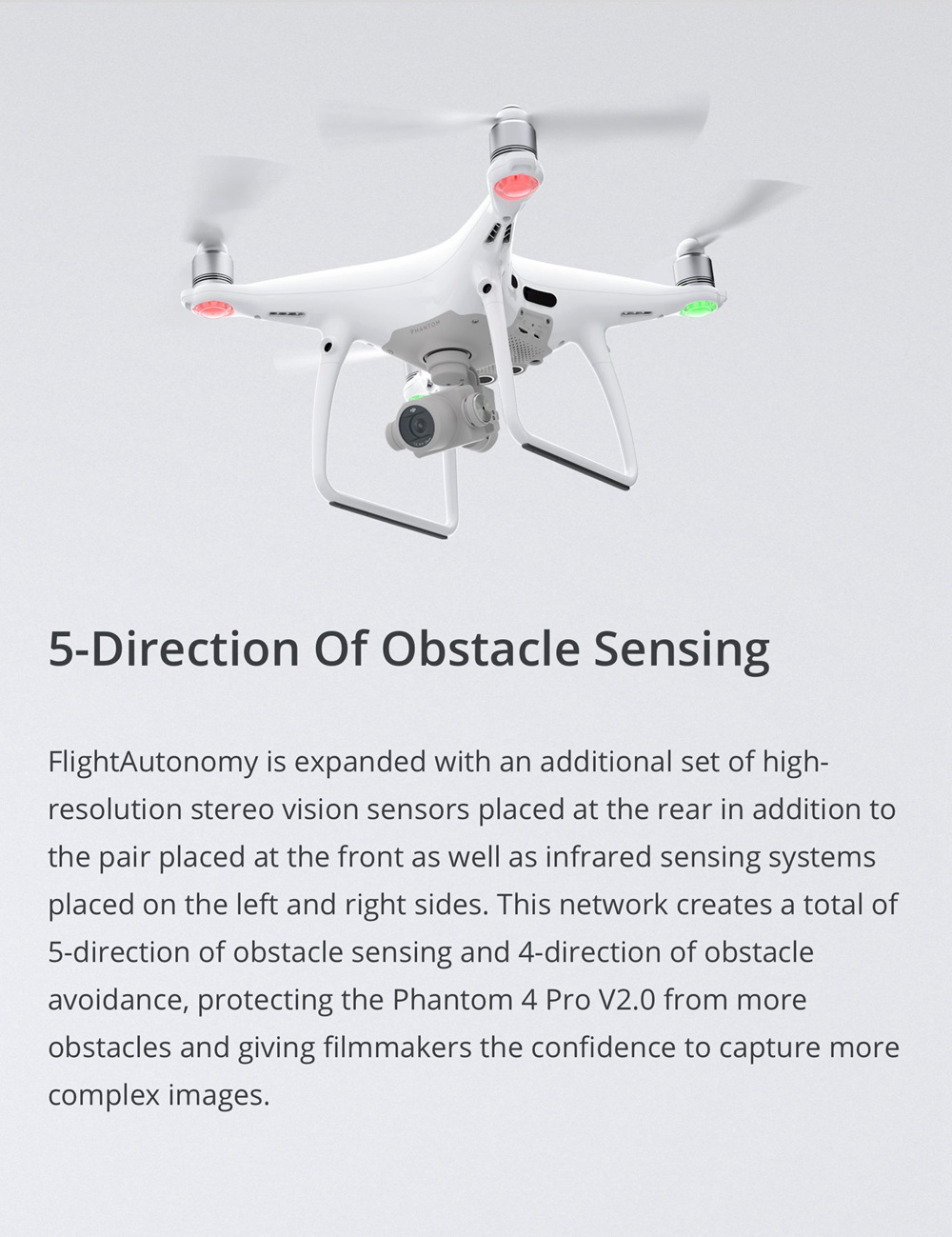

Vision System: Forward Vision System, Backward Vision System, Downward Vision System
Velocity Range: ≤31 mph (50 kph) at 6.6 ft (2 m) above ground
Altitude Range: 0 - 33 feet (0 - 10 m)
Operating Range: 0 - 33 feet (0 - 10 m)
Obstacle Sensory Range: 2 - 98 feet (0.7 - 30 m)
FOV Forward: 60°(Horizontal), ±27°(Vertical), Backward: 60°(Horizontal), ±27°(Vertical), Downward: 70°(Front and Rear), 50°(Left and Right)
Measuring Frequency Forward: 10 Hz, Backward: 10 Hz, Downward: 20 Hz
Operating Environment: Surface with clear pattern and adequate lighting (lux>15)
CAMERA

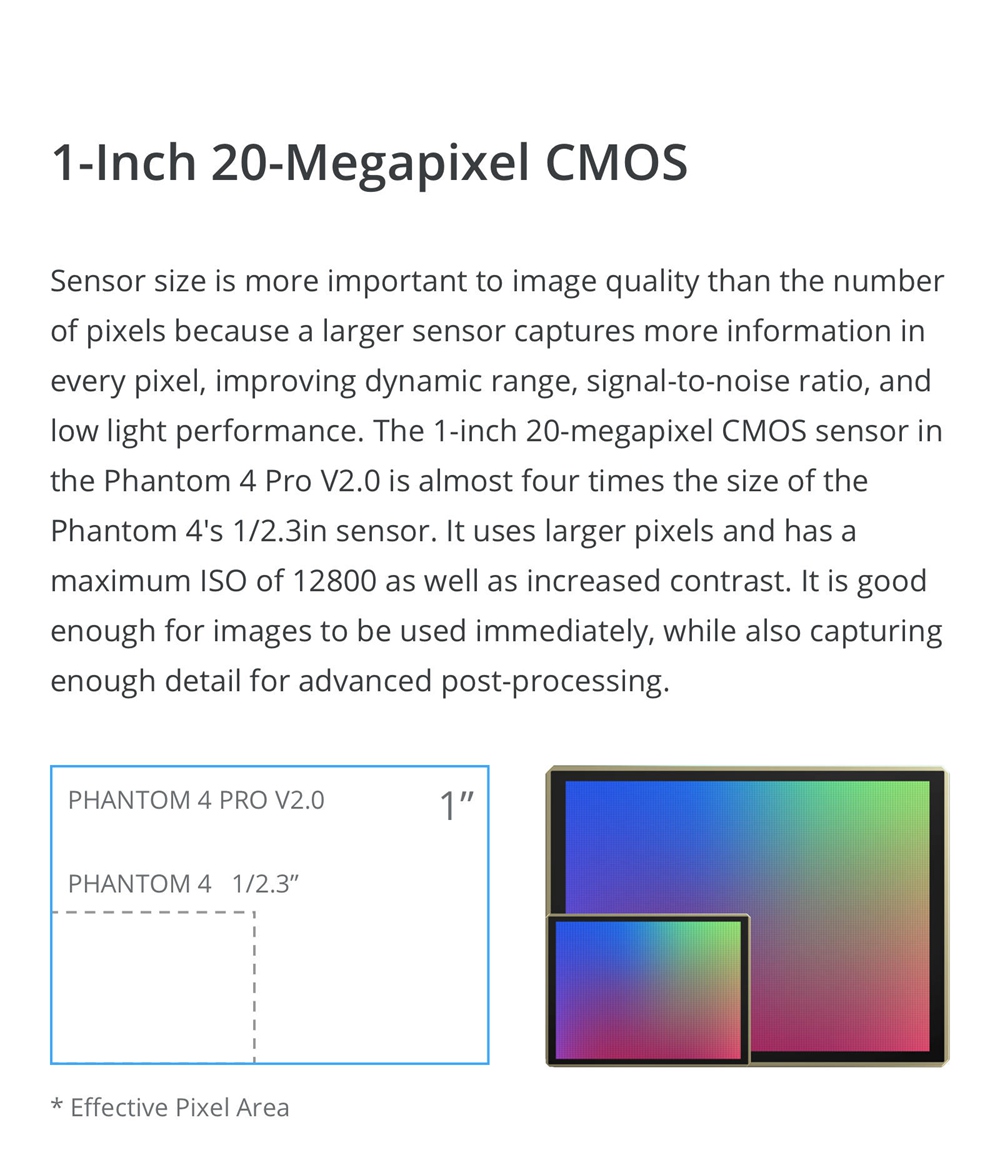

Sensor: 1" CMOS
Effective pixels: 20M

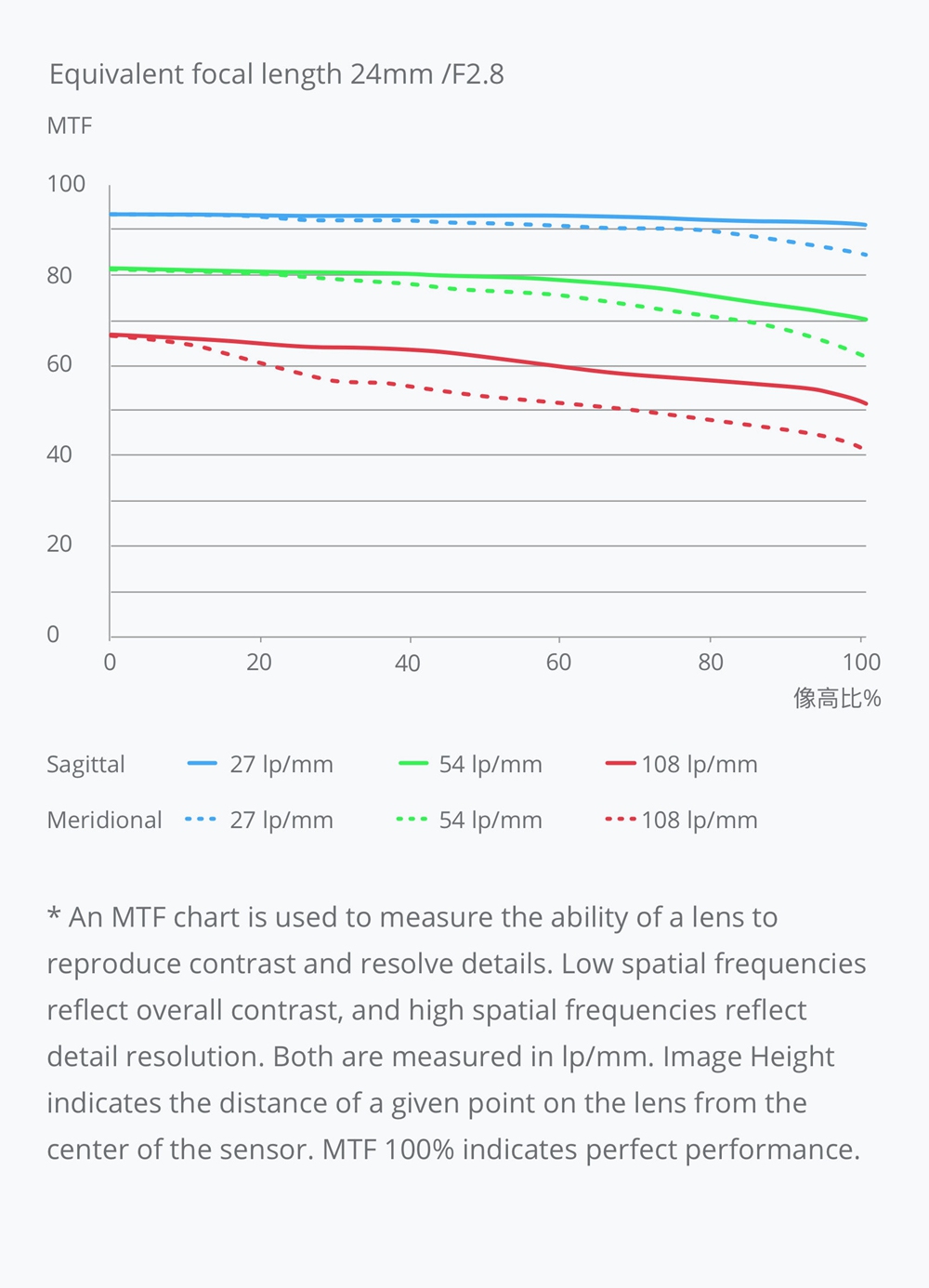

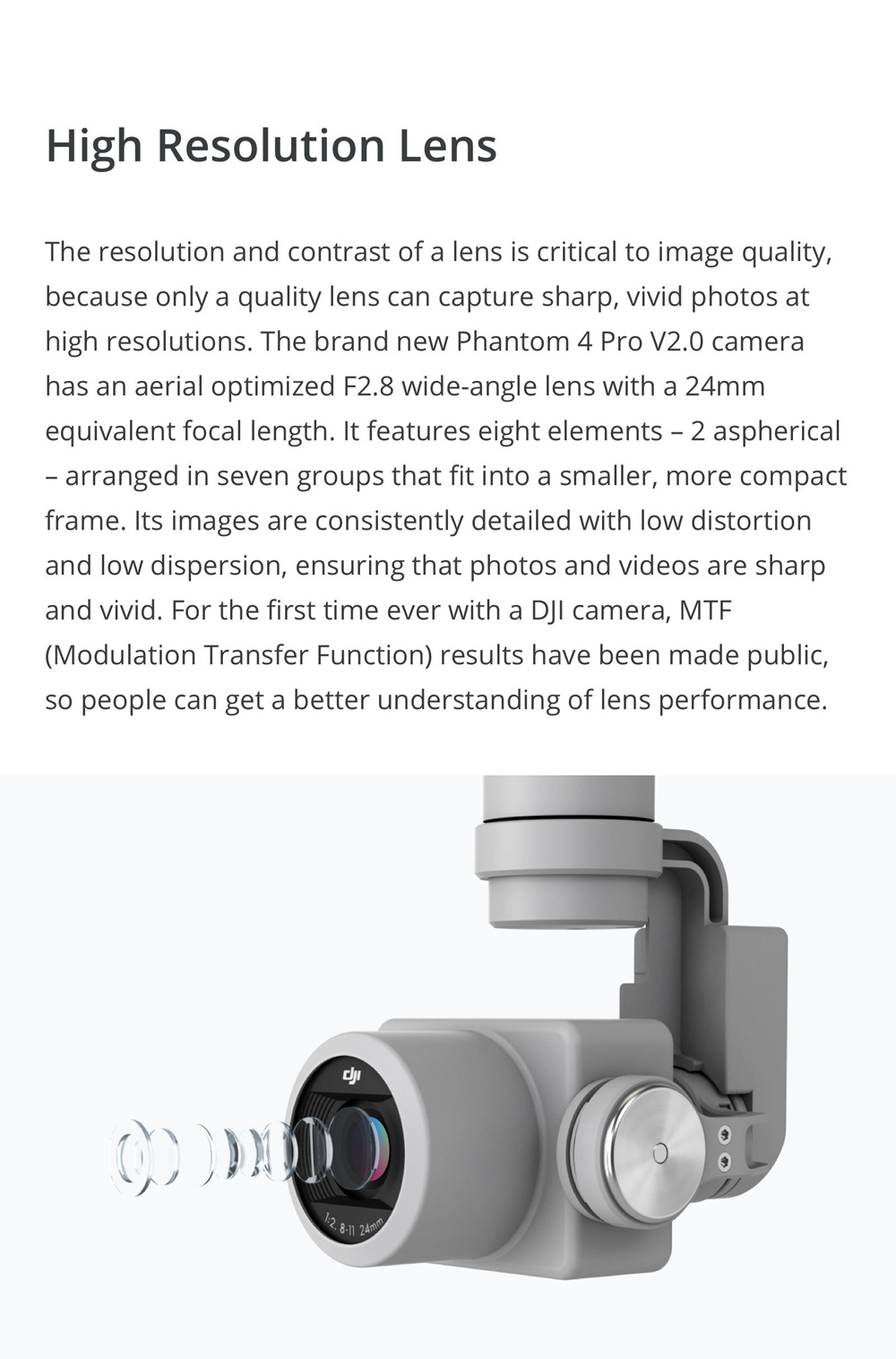

Lens: FOV 84° 8.8 mm/24 mm (35 mm format equivalent) f/2.8 - f/11 auto focus at 1 m - ∞

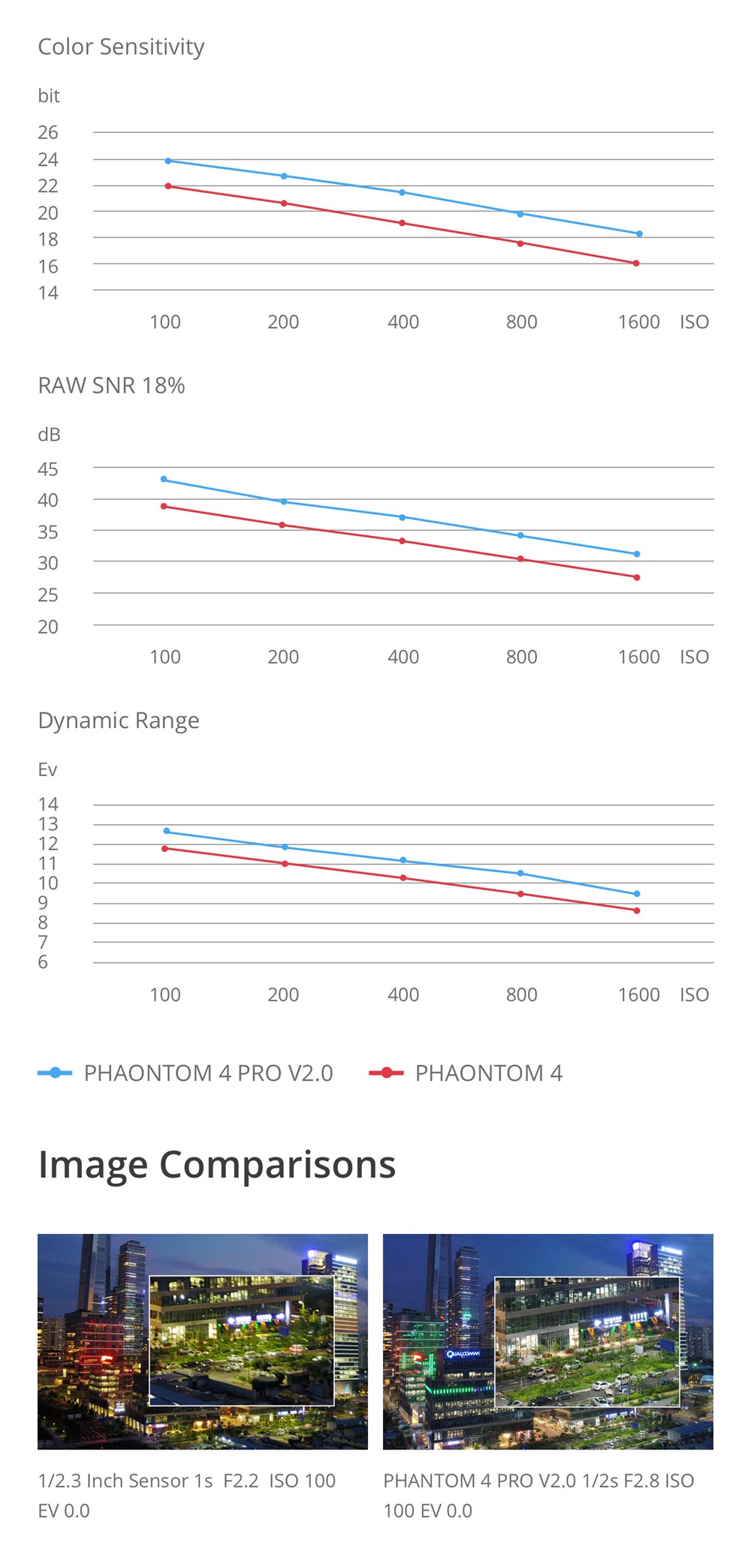

ISO Range
Video: 100 - 3200 (Auto), 100 - 6400 (Manual), Photo: 100 - 3200 (Auto), 100- 12800 (Manual)

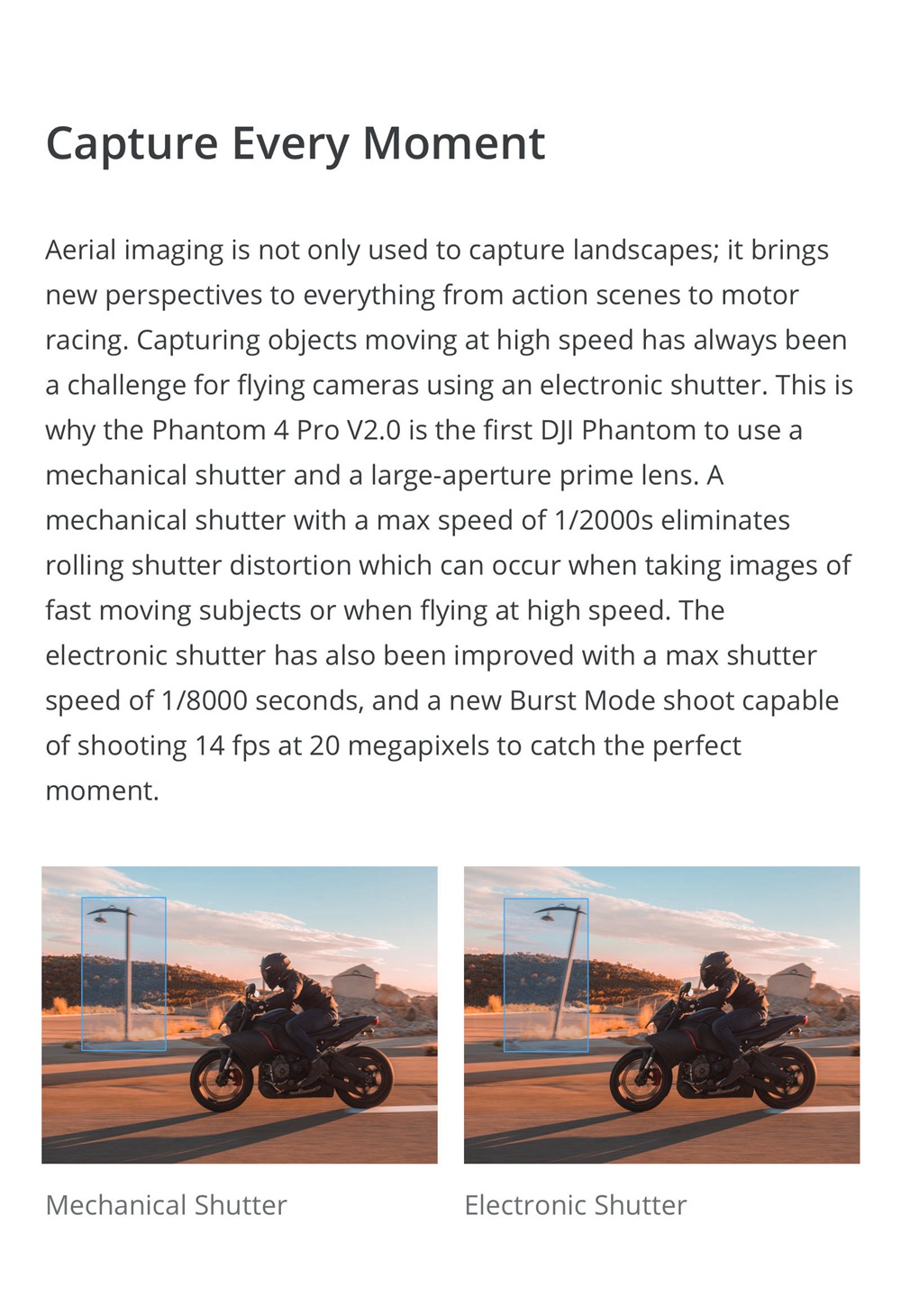

Mechanical Shutter Speed: 8 - 1/2000 s
Electronic Shutter Speed: 8 - 1/8000 s
Image Size 3:2 Aspect Ratio: 5472 × 3648, 4:3 Aspect Ratio: 4864 × 36481, 6:9 Aspect Ratio: 5472 × 3078
PIV Image Size: 4096×2160(4096×2160 24/25/30/48/50p),3840×2160(3840×2160 24/25/30/48/50/60p), 2720×1530(2720×1530 24/25/30/48/50/60p), 1920×1080(1920×1080 24/25/30/48/50/60/120p), 1280×720(1280×720 24/25/30/48/50/60/120p)
Still Photography Modes: Single Shot
Burst Shooting: 3/5/7/10/14 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
Interval: 2/3/5/7/10/15/20/30/60 s

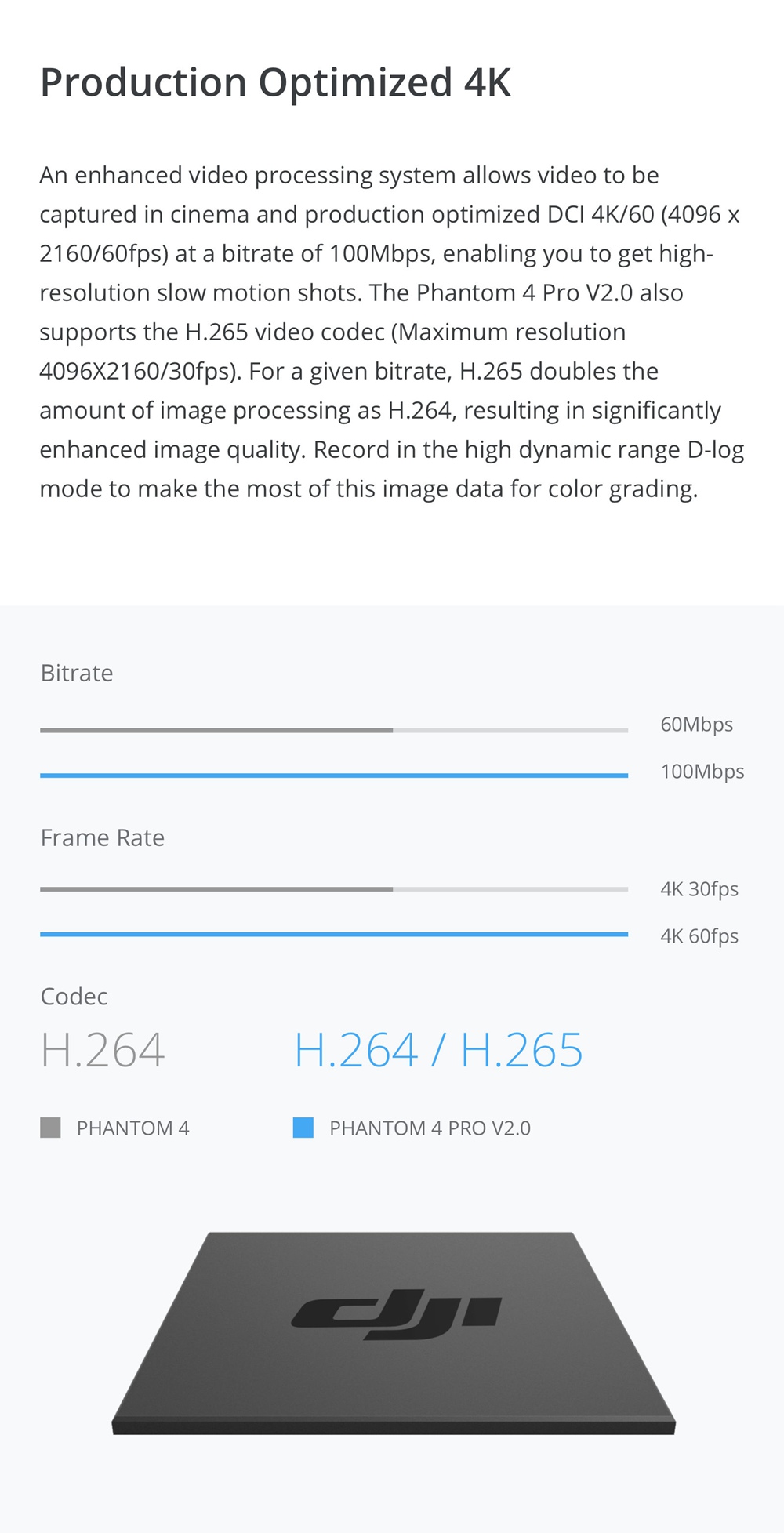

Video Recording Modes
H.265
C4K:4096×2160 24/25/30p @100Mbps
4K:3840×2160 24/25/30p @100Mbps
2.7K:2720×1530 24/25/30p @65Mbps
2.7K:2720×1530 48/50/60p @80Mbps
FHD:1920×1080 24/25/30p @50Mbps
FHD:1920×1080 48/50/60p @65Mbps
FHD:1920×1080 120p @100Mbps
HD:1280×720 24/25/30p @25Mbps
HD:1280×720 48/50/60p @35Mbps
HD:1280×720 120p @60Mbps
H.264
C4K:4096×2160 24/25/30/48/50/60p @100Mbps
4K:3840×2160 24/25/30/48/50/60p @100Mbps
2.7K:2720×1530 24/25/30p @80Mbps
2.7K:2720×1530 48/50/60p @100Mbps
FHD:1920×1080 24/25/30p @60Mbps
FHD:1920×1080 48/50/60 @80Mbps
FHD:1920×1080 120p @100Mbps
HD:1280×720 24/25/30p @30Mbps
HD:1280×720 48/50/60p @45Mbps
HD:1280×720 120p @80Mbps
Max Video Bitrate: 100 Mbps
Supported File Systems: FAT32 (≤32 GB); exFAT (>32 GB)
Photo: JPEG, DNG (RAW), JPEG + DNG
Video: MP4/MOV (AVC/H.264; HEVC/H.265)
Supported SD Cards: Micro SD, Max Capacity: 128GB, Write speed ≥15MB/s, Class 10 or UHS-1 rating required
Operating Temperature Range: 32° to 104°F (0° to 40°C)
REMOTE CONTROLLER
Operating Frequency: 2.400 - 2.483 GHz and 5.725 - 5.850 GHz
Max Transmission Distance: 2.400 - 2.483 GHz (Unobstructed, free of interference), FCC: 4.3 mi (7 km) , CE: 2.5 mi (4 km)
,SRRC: 2.5 mi (4 km), 5.725 - 5.850 GHz (Unobstructed, free of interference), FCC: 4.3 mi (7 km), CE: 1.2 mi (2 km), SRRC: 3.1 mi (5 km)
Operating Temperature Range: 32° to 104°F (0° to 40°C)
Battery: 6000 mAh LiPo 2S
Transmitter Power (EIRP): 2.400 - 2.483 GHz, FCC: 26 dBm, CE: 20 dBm, SRRC: 20 dBm, MIC: 17 dBm, 5.725 - 5.850 GHz
FCC: 26 dBm,CE: 14 dBm, SRRC: 20 dBm, MIC: -
Operating Current/Voltage: 1.2 A@7.4 V
Video Output Port: GL300K: HDMI, GL300L: USB

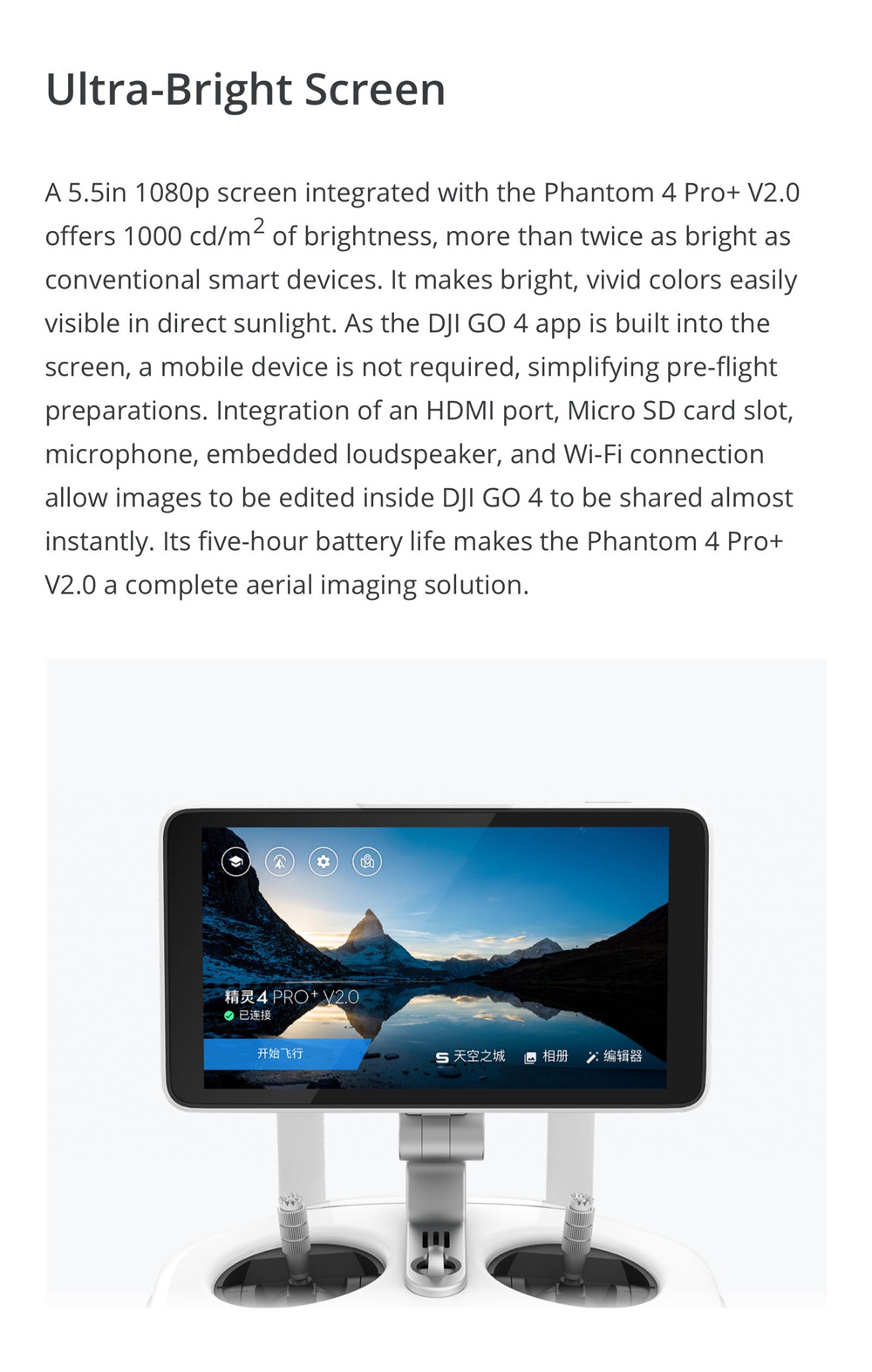

Mobile Device Holder: GL300K: Built-in display device (5.5 inch screen, 1920x1080, 1000 cd/m2, Android system, 4 GB RAM+16 GB ROM) , GL300L: Tablets and smart phones
GIMBAL
Stabilization: 3-axis (pitch, roll, yaw)
Controllable Range: Pitch: -90°to +30°
Max Controllable Angular Speed Pitch: 90°/s
Angular Vibration Range: ±0.02°

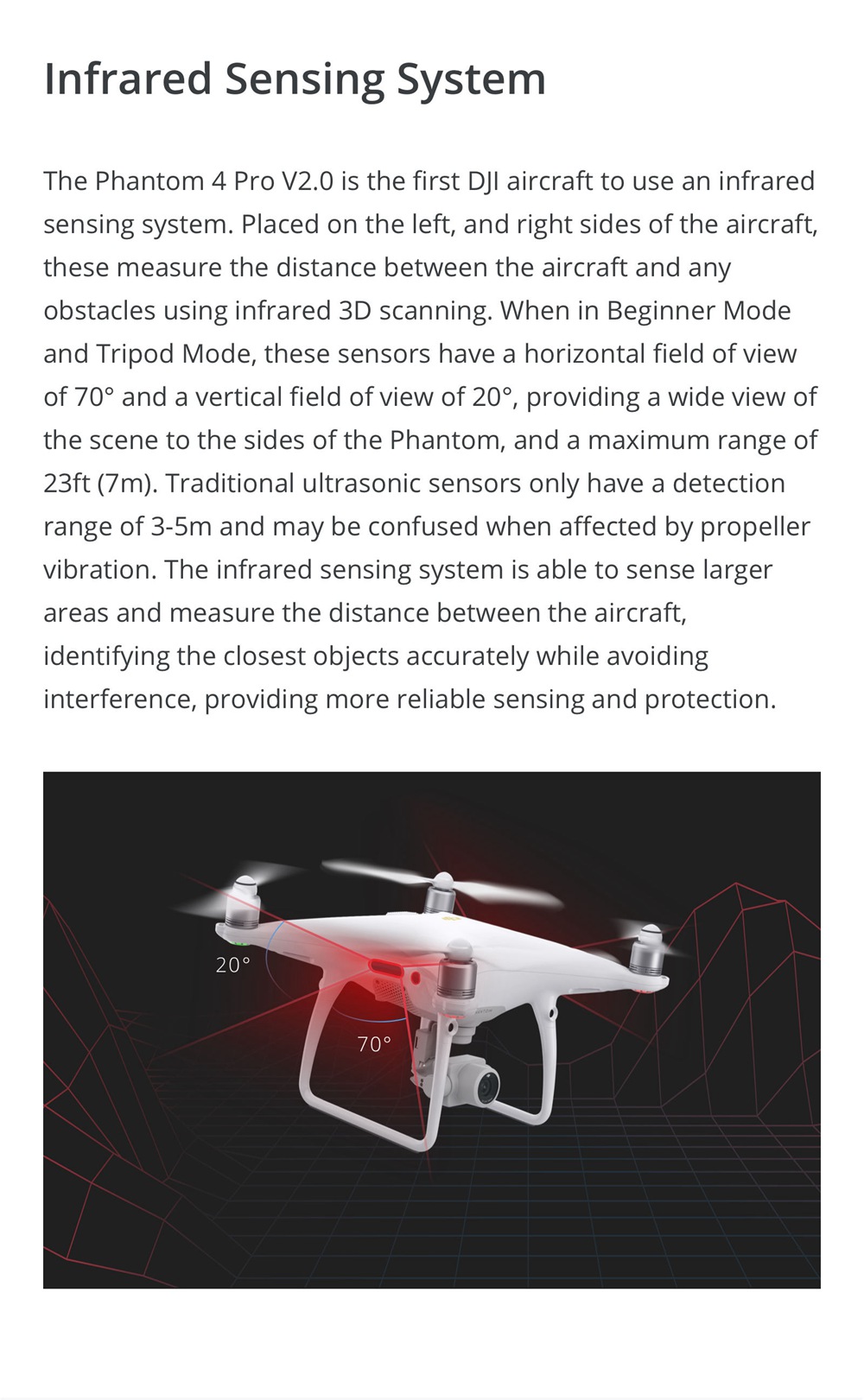

INFRARED SENSING SYSTEM
Obstacle Sensory Range: 0.6 - 23 feet (0.2 - 7 m)
FOV: 70° (Horizontal), ±10° (Vertical)
Measuring Frequency: 10 Hz
Operating Environment: Surface with diffuse reflection material, and reflectivity > 8% (such as wall, trees, humans, etc.)

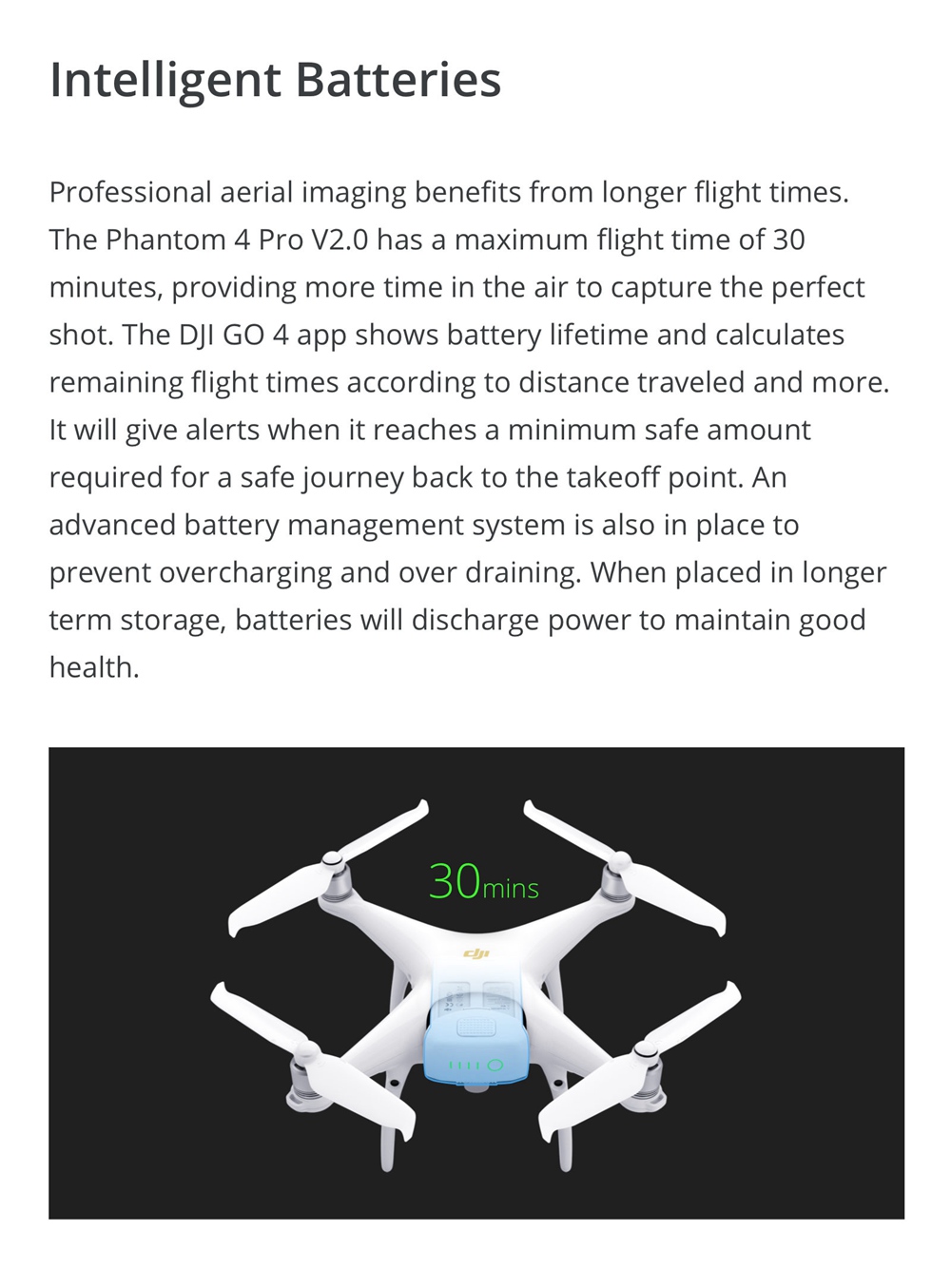

INTELLIGENT FLIGHT BATTERY
Capacity: 5870 mAh
Voltage: 15.2 V
Battery Type: LiPo 4S
Energy: 89.2 Wh
Net Weight: 468 g
Charging Temperature Range: 41° to 104°F (5° to 40°C)
Max Charging Power: 160 W
CHARGER
Voltage: 17.4 V
Rated Power: 100 W
APP / LIVE VIEW
Mobile App: DJI GO 4
Live View Working Frequency: 2.4 GHz ISM, 5.8 GHz ISM
Live View Quality: 720P @ 30fps, 1080P @ 30fps
Latency Phantom 4 Pro V2.0: 220 ms (depending on conditions and mobile device) , Phantom 4 Pro + V2.0: 160 - 180 ms
Required Operating Systems: iOS 9.0 or later, Android 4.4.0 or later
|
