There is no bind pin designed, the receiver has an "auto-bind" procedure. When switch on, receiver tries to bind with transmitter for about 3s (led is blinking). If receiver find a transmitter (must be also in bind mode) then it records transmitter identifier and works with it. If it can't bind with a transmitter then is retrieves previously bind transmitter identifier and works with it. This way, you save an extra pin and just need to bind only once. After bind procedure, If reception is ok then led if on, if no reception at all led if off, if reception if bad led is blinking randomly.
This receiver is designed with failsafe function. Bridge the safe mode learn contact will record CH1-CH8 current position and the receiver will out put the recorded positions when it is in failsafe mode.
|Size/Weight||Net Weight: 2g
|Applicability||Flysky T6, TH9X, I6
Gun-type remote control: Flysky GT2B, GT3, GT3B, GT3C etc.
ER9X,OPENTX, Walkera D7E, D10 with Deviation firmware and A7105 module etc.

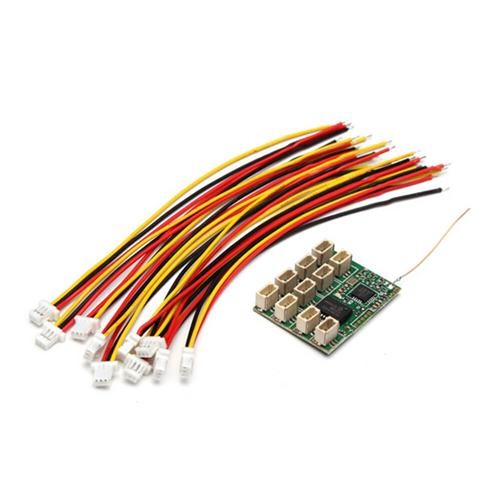

|1 x FLYSKY 2.4G Ultra Miniature 8CH Receiver|
|10 x 1mm JST Plug with cable|
