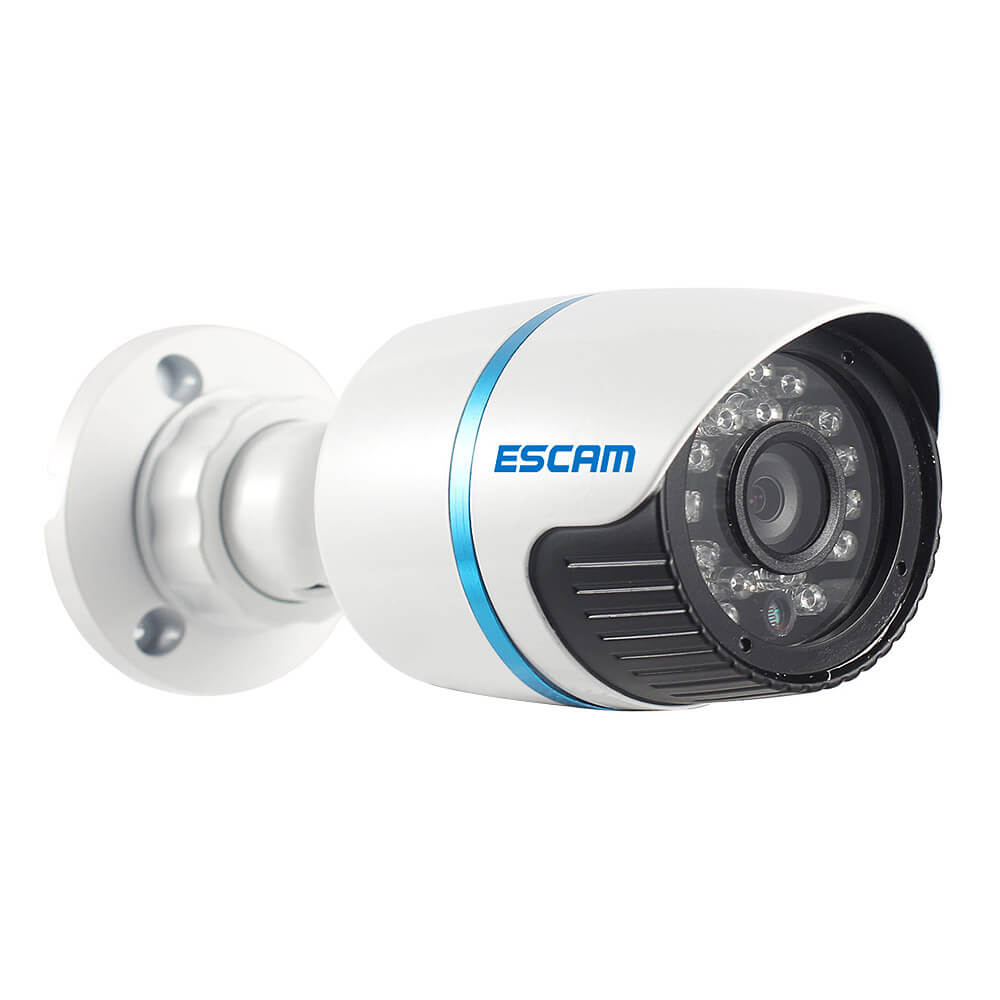

General |

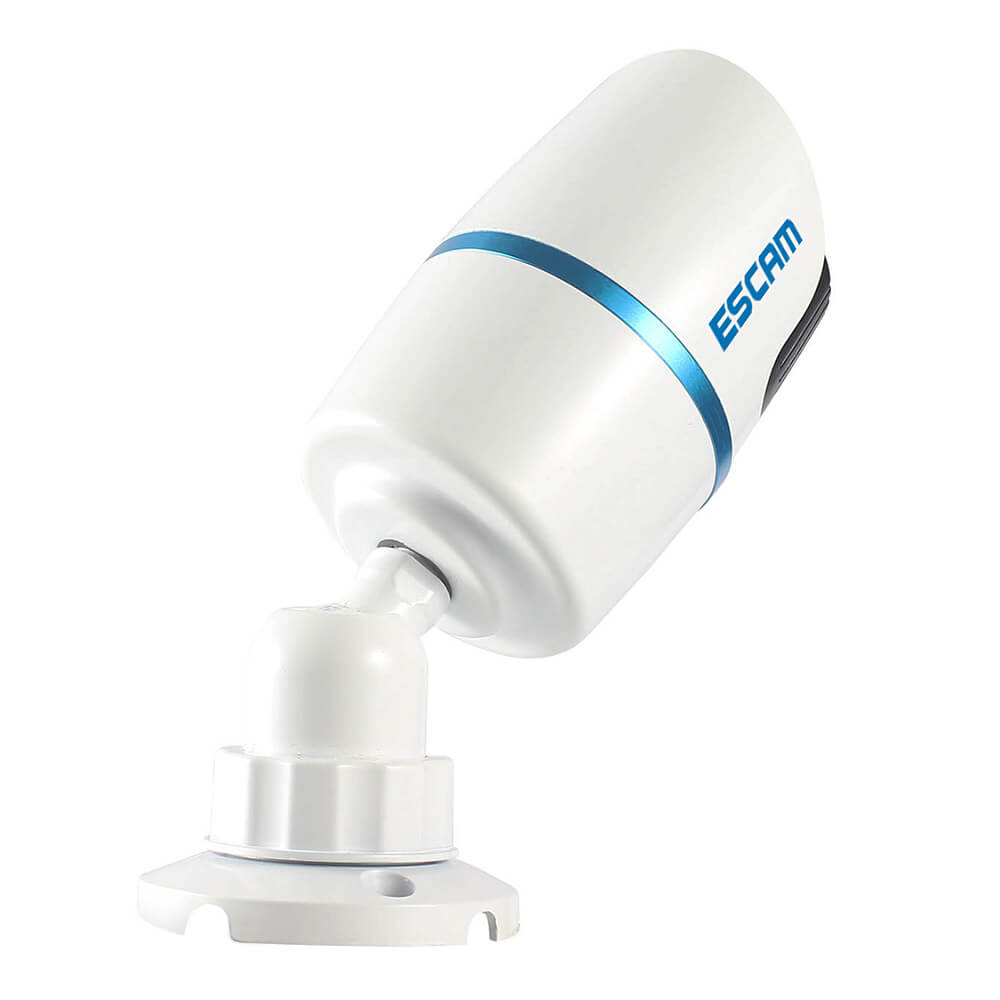

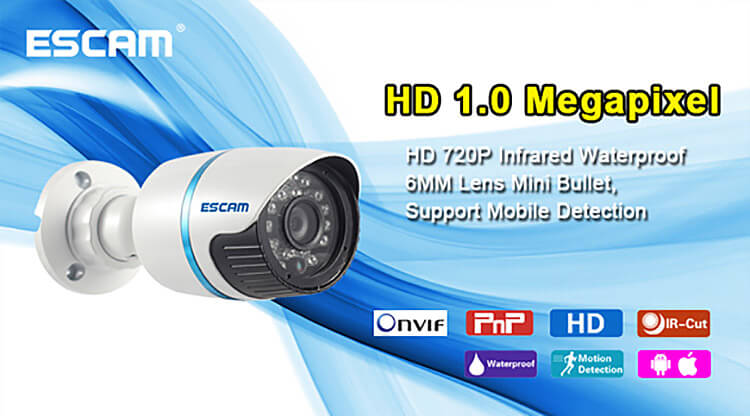

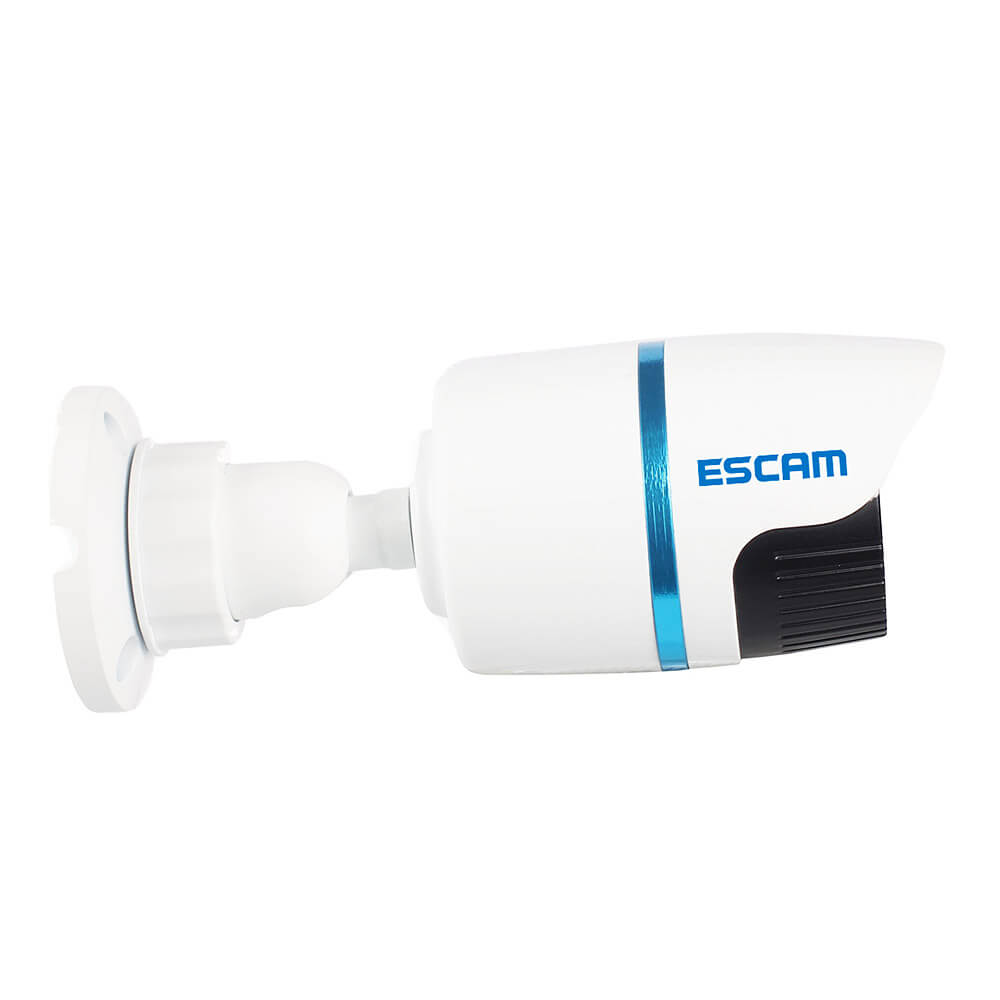

Brand |
Escam |
Model |
Q630M |
Quantity |
1 Piece |
Color |
White |
Specification |
Certification |
CE FCC RoHS |

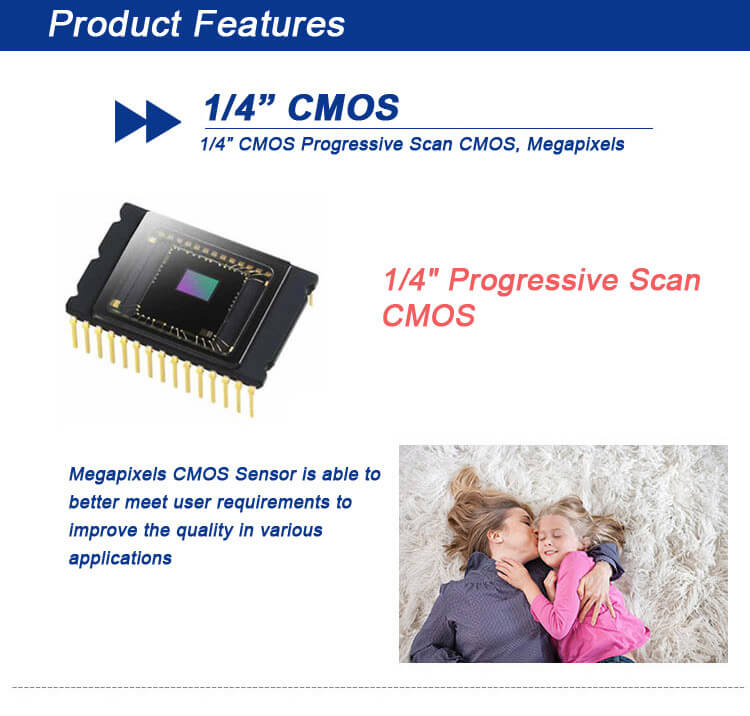

Image Sensor |
1/4” 1Megapixel progressive scan CMOS |
Effective Pixels |
1280(H)x720(V) |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual 1/3(4)~1/10000s |
Min. Illumination Color |
0. 1Lux, B/W: 0.01Lux ; 0Lux(IR on) |
S/N Ratio |
More than 50dB |
Video Output |
N/A |

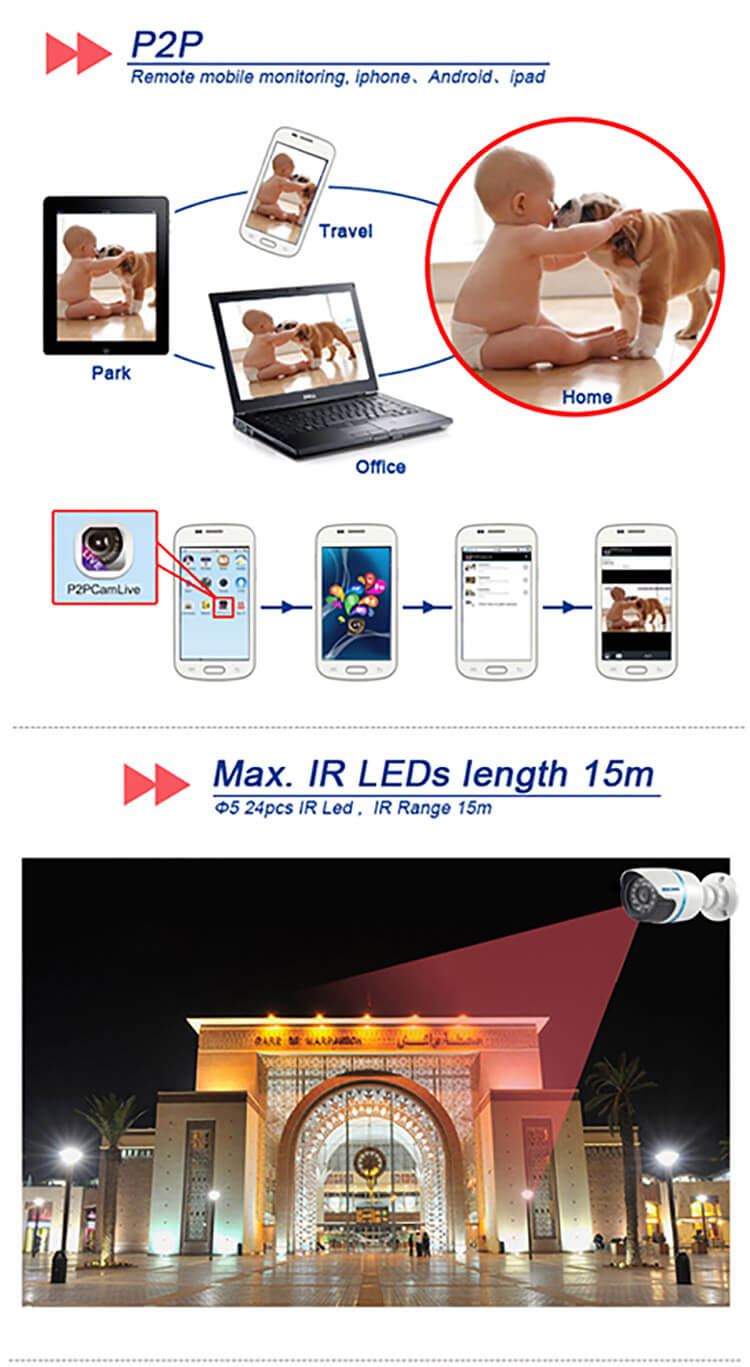

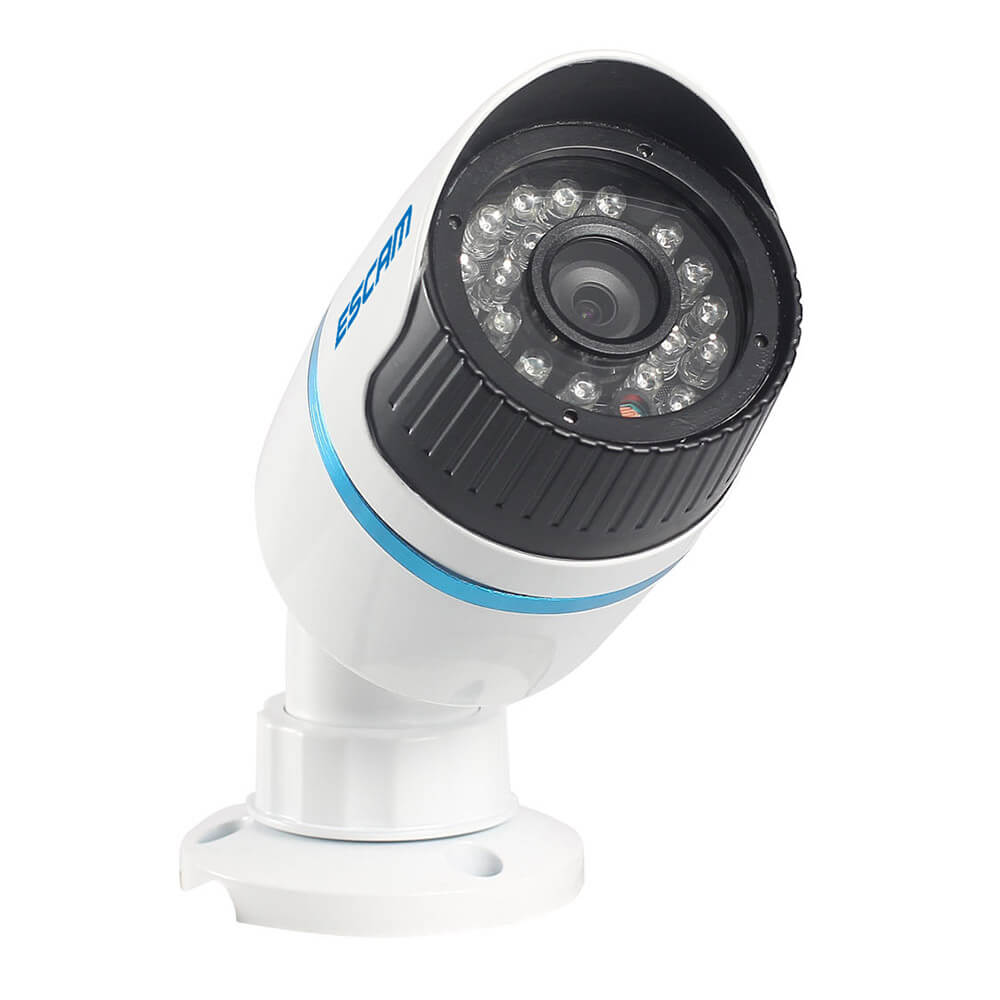

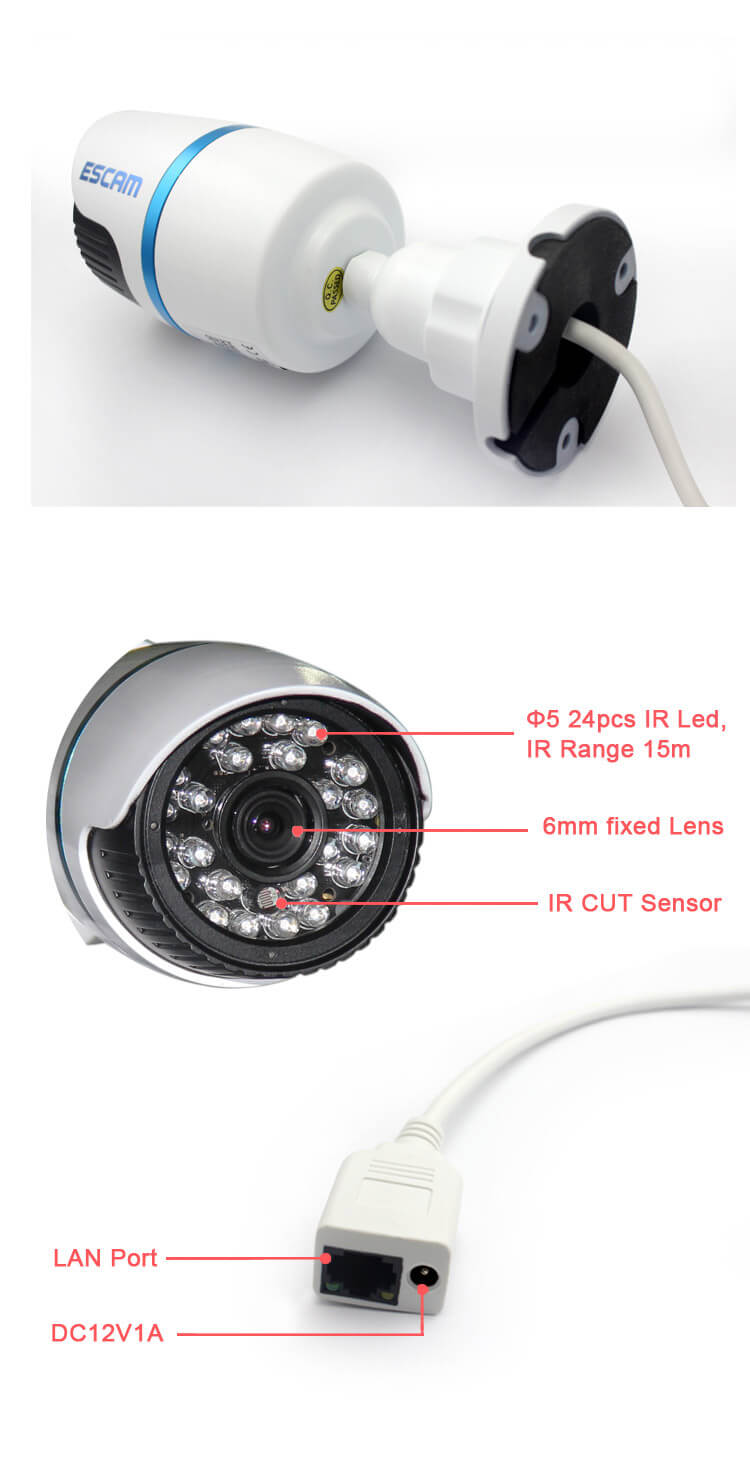

Max. IR LEDs Length |
Dia.5 24pcs IR Leds |
IR range |
15M |

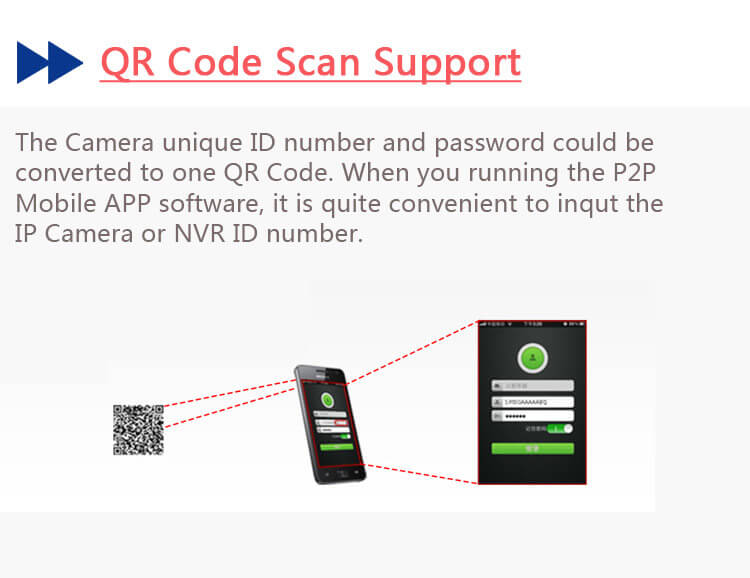

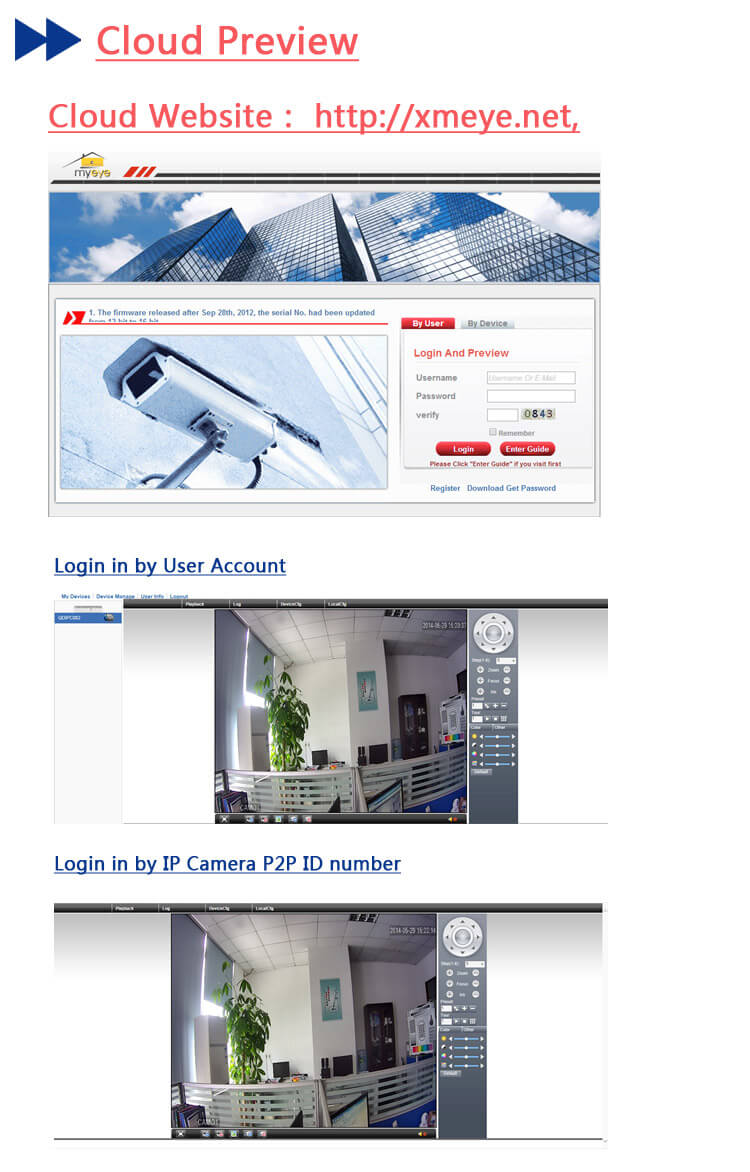

P2P and PnP |
Yes |
White Balance |
Auto |
Gain Control |
Auto/Manual |
Noise Reduction |
2D |

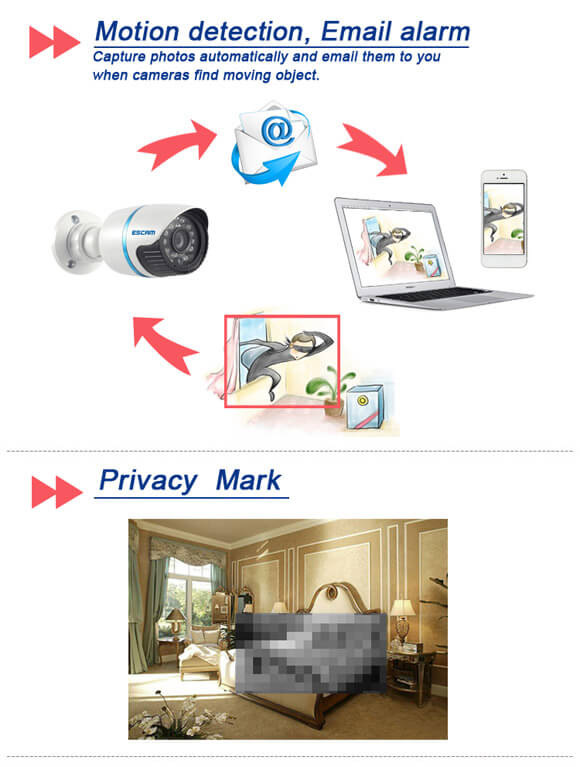

Privacy Masking |
Up to 4 areas |
Privacy Masking |
YES |
Focal Length |
6mm |
Max Aperture |
F1.6 |
Focus Control |
Manual |
Angle of View H |
Q630M |
Lens Type |
39.8° |
Mount Type |
MTV mount (Interchangeable Lens) |

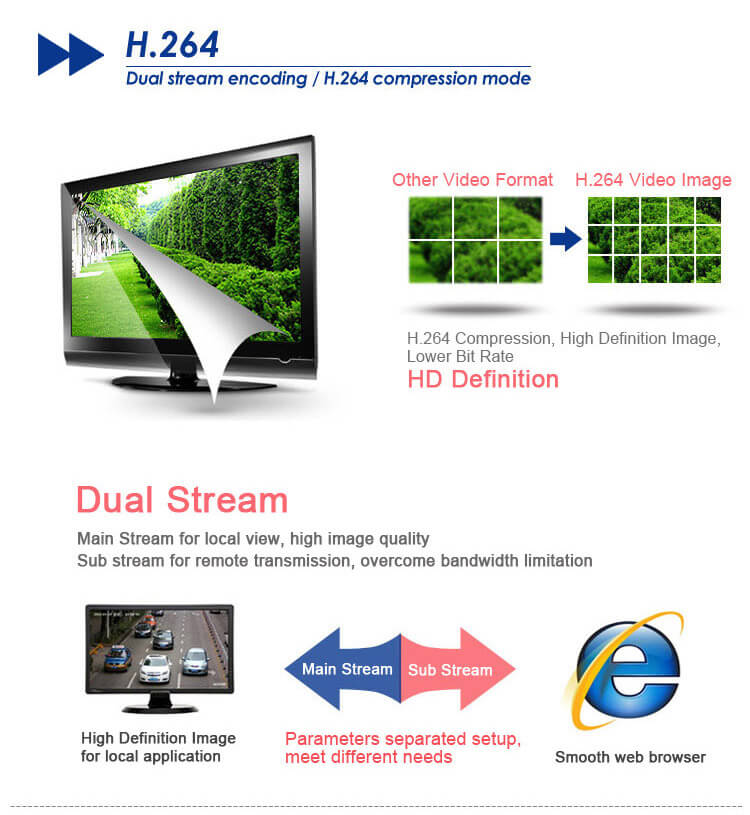

Compression |
H.264 |
Frame Rate |
Main Stream HD 720P (1280*720) 25fps Sub Stream VGA 640*360 25FPS |
Bit Rate |
32-4096Kbps,Supports CBR/VBR |
Network |

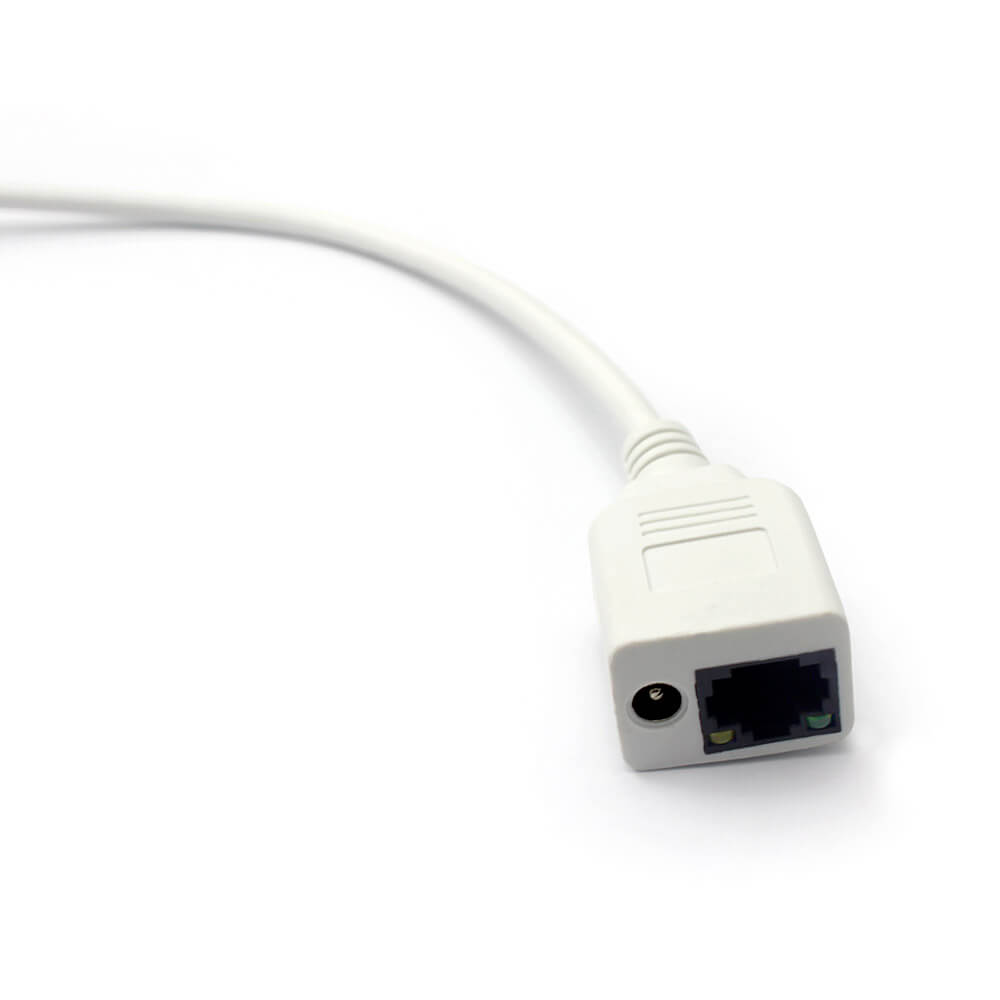

Ethernet RJ-45 (10/100Base-T) |
WiFI |
N/A |
Protocol |
TCP/IP , UDP , RTP , RTSP , RTCP , HTTP , DNS , DDNS , DHCP , NTP , SMTP , UPNP ONVIF ONVIF Ver. 2.0 |
Max. User Access |
10 users |
Computer system |
Windows xp/windows7/windows 8 |

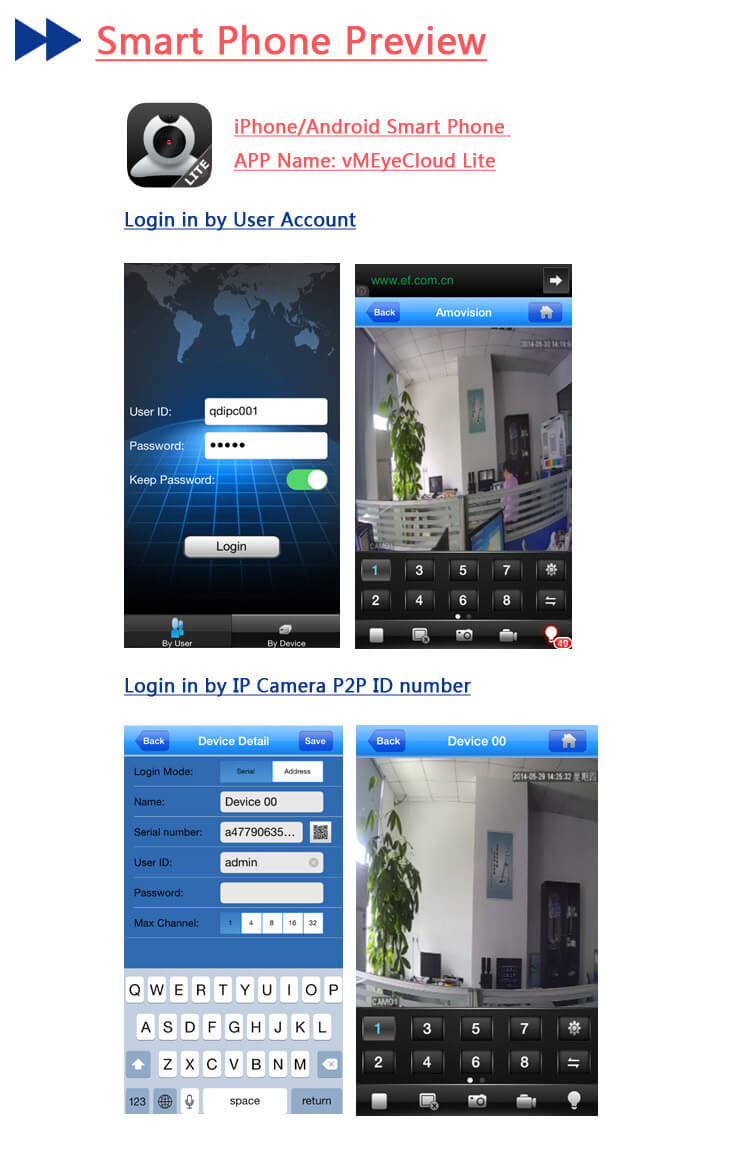

Smart Phone |
iPhone, Android |

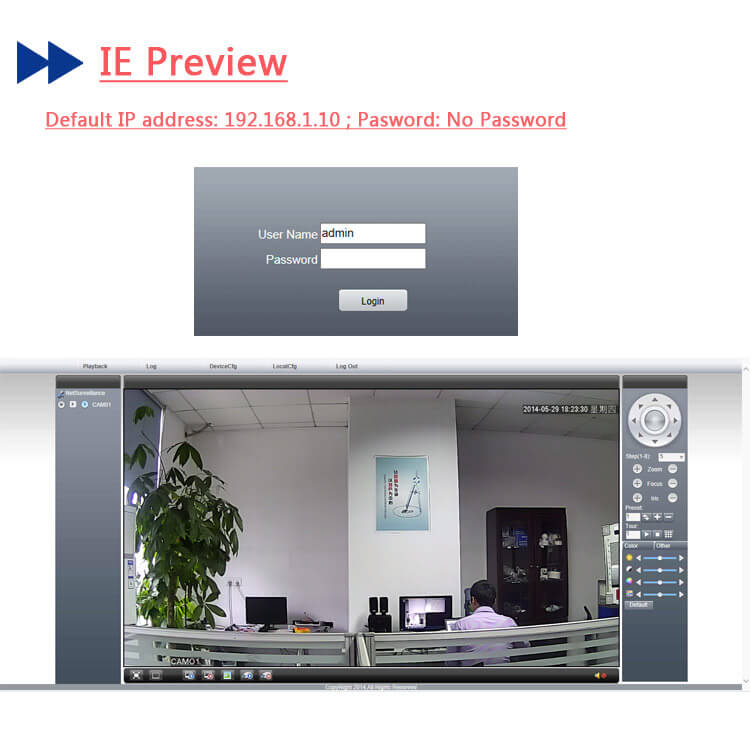

Browser |
IE6.0~10.0 google 30.0.1599.59 firefox 25.2.1 safari 5.1.7 |
Email |
gmail; yahoo; 163.com ; qq.com |
Auxiliary Interface |
N/A |
Power Supply |
DC12V |
Power Consumption |
<6W |
Working Environment |
-10°C~+60°C, 10%~90% |

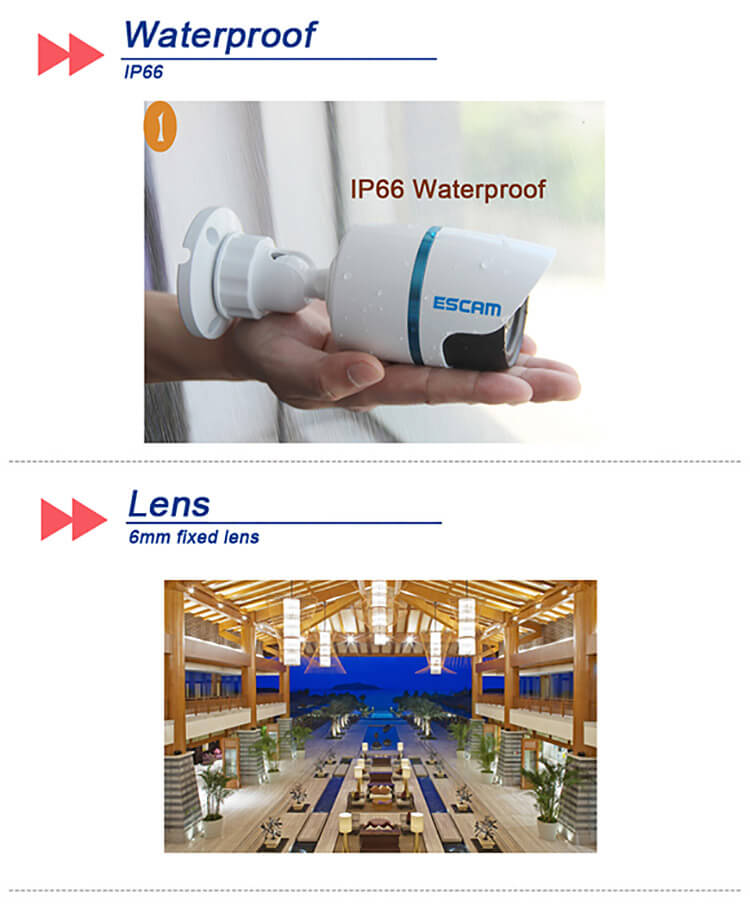

Ingress Protection |
IP66 |
Dimensions & Weight (Main Product) |

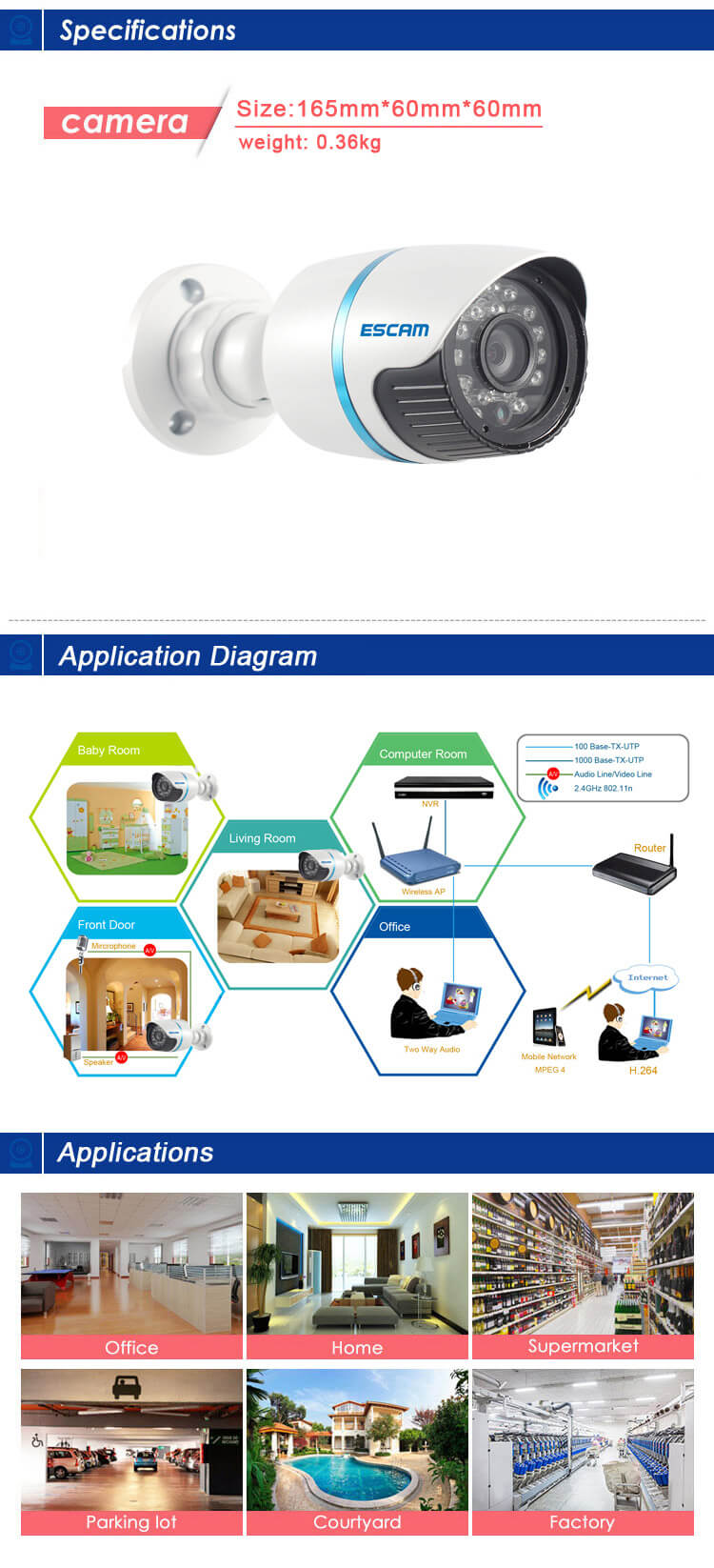

Product Dimension |
165 mm (L) * 60 mm (W) * 60mm (H) |
Product Weight |
0.36 KG |

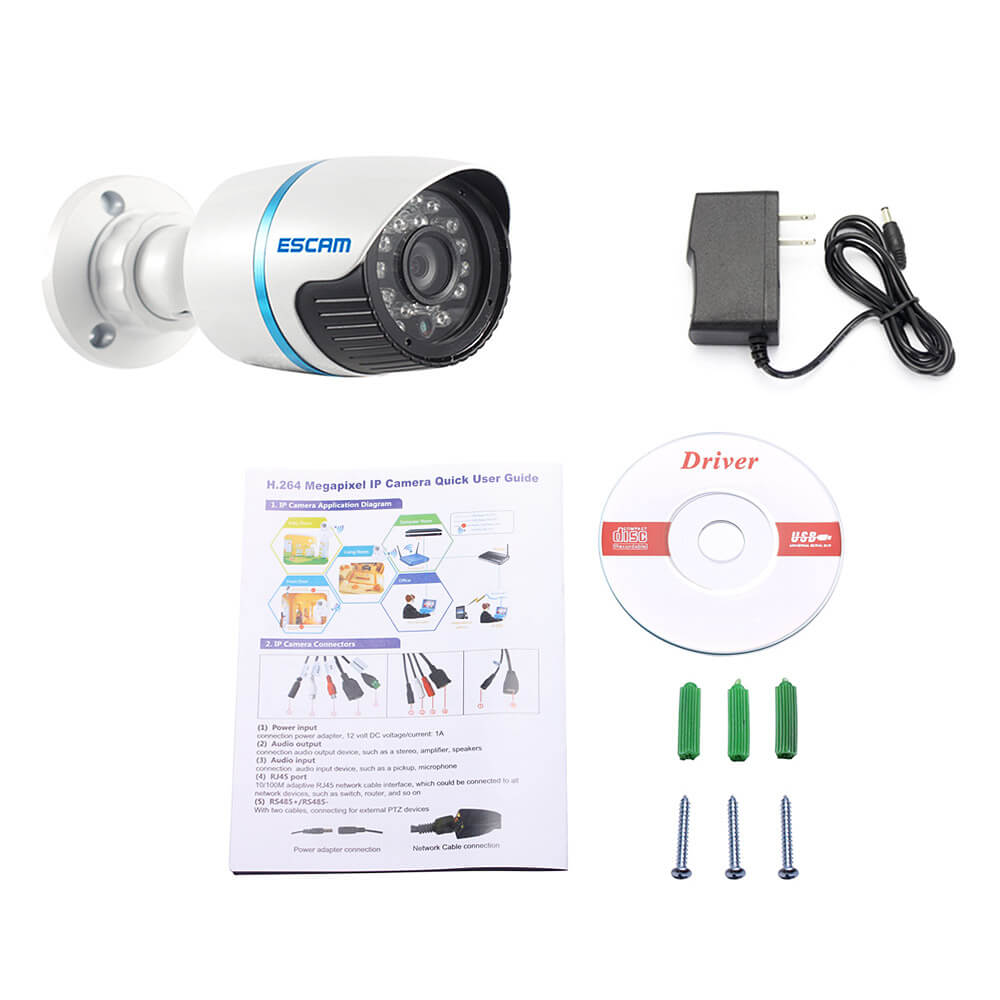

Package Contents |
1 x ESCAM Security Camera |
1 x Power Supply |
1 x English Manual |
1 x Pack of screws |
