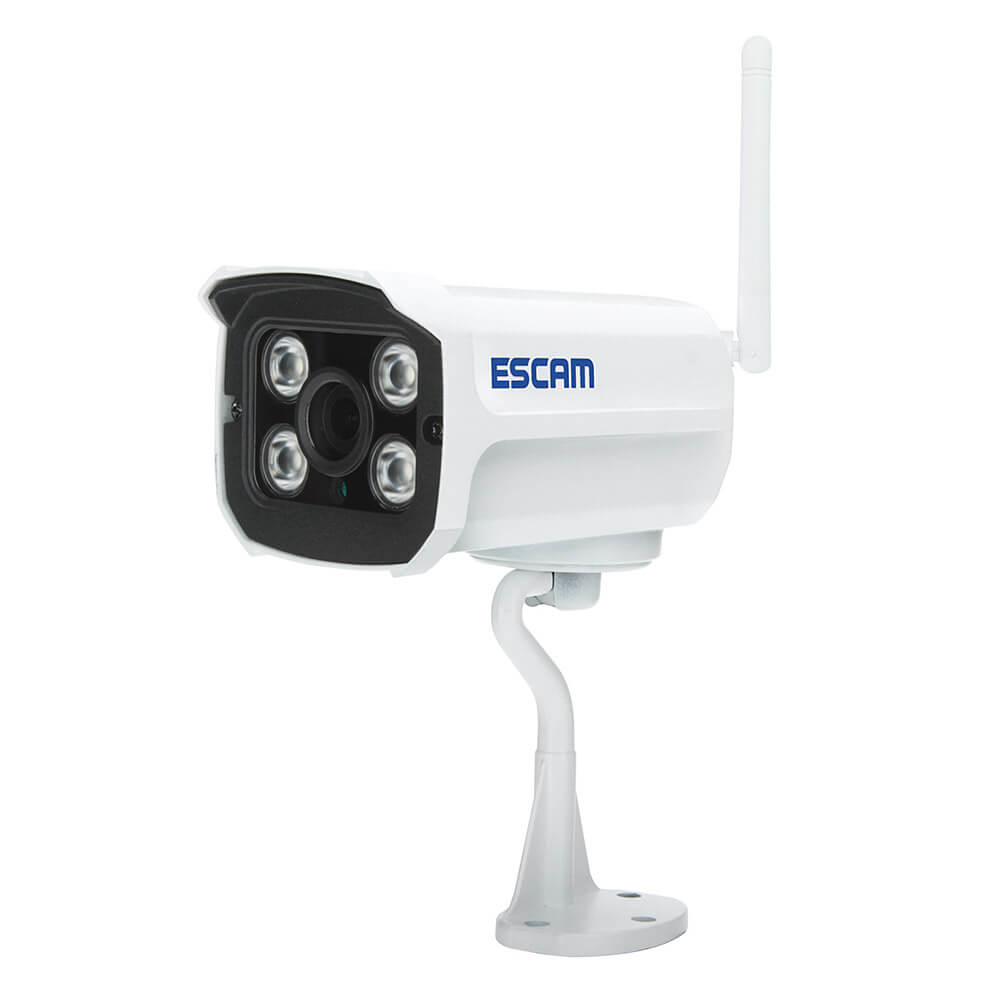

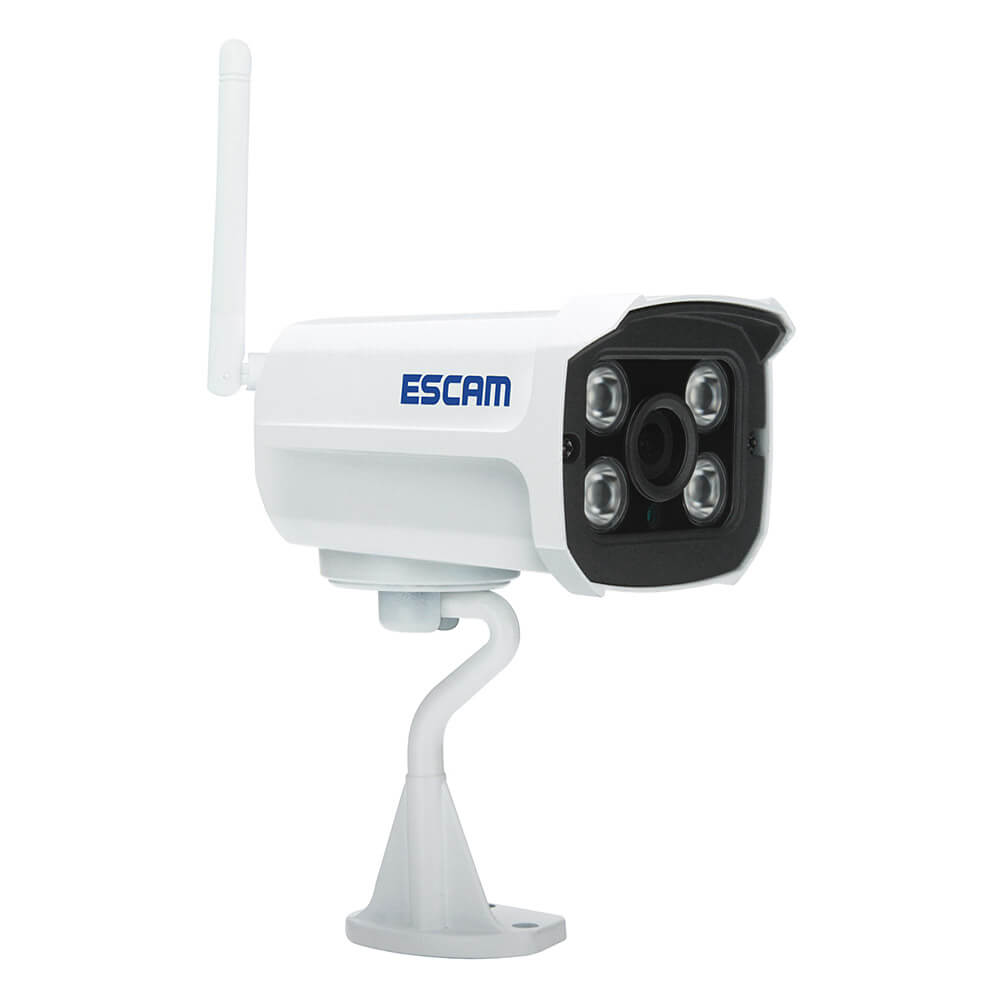

General |
Brand |
Escam |
Model |
QD900 |
Quantity |
1 Piece |
Color |
White |
Specification |
Certification |
CE FCC RoHS |

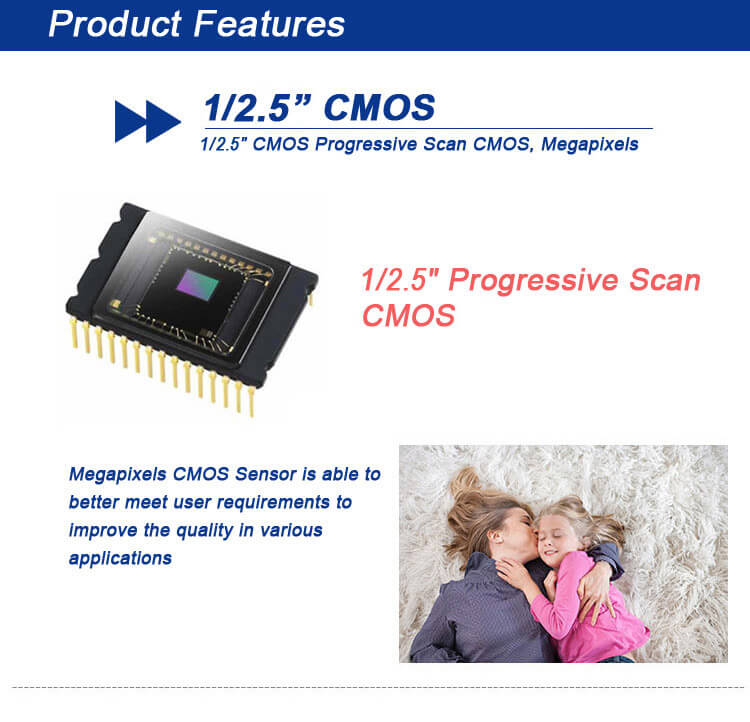

Image Sensor |
1/2.5”Megapixel progressive scan CMOS |
Effective Pixels |
1920(H)×1080(V) |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual 1/3(4)~1/10000S |
Min. Illumination Color |
0. 1Lux/F1.2, B/W: 0.01Lux/F1.2,0Lux (IR on) |
S/N Ratio |
More than 50dB |
Video Output |
N/A |
Max. IR LEDs Length |
15m |
White Balance |
Auto |
Gain Control |
Auto/Manual |
Noise Reduction |
2D |

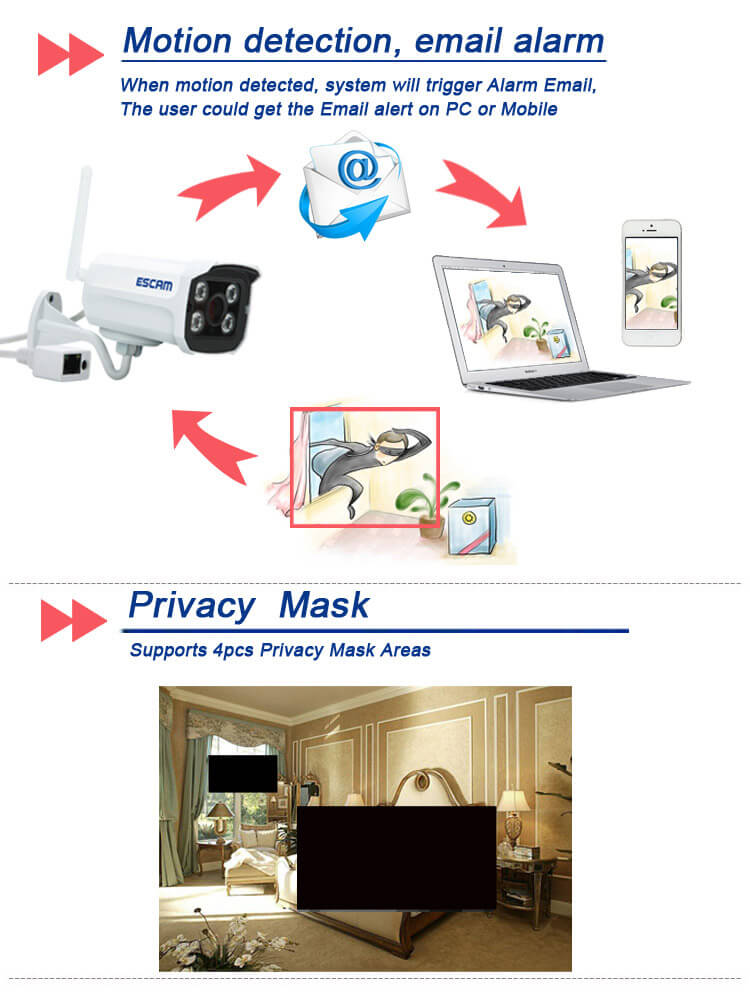

Privacy Masking |
YES |

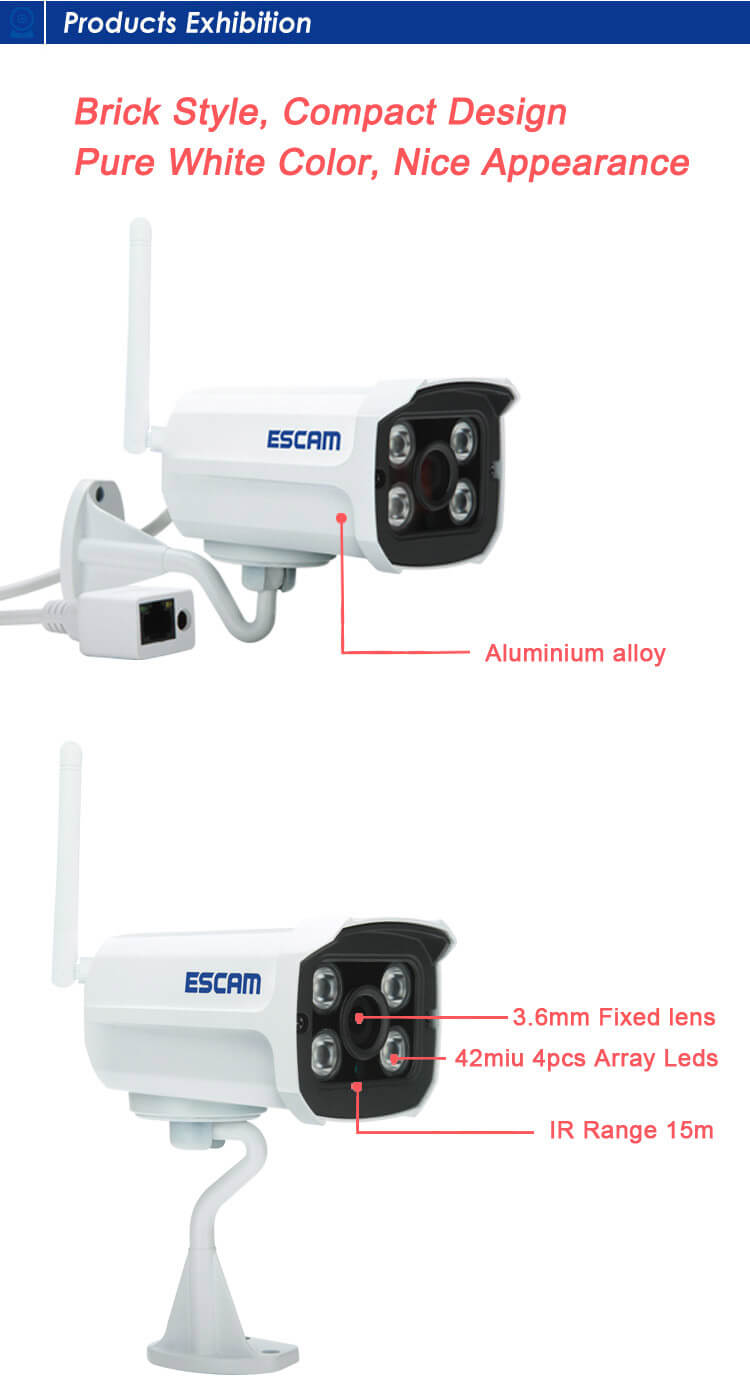

Focal Length |
3.6mm |
Max Aperture |
F1.6 |
Focus Control |
Manual |
Angle of View H |
75.7° |
Lens Type |
Fixed lens |
Mount Type |
MTV mount (Interchangeable Lens) |
Compression |

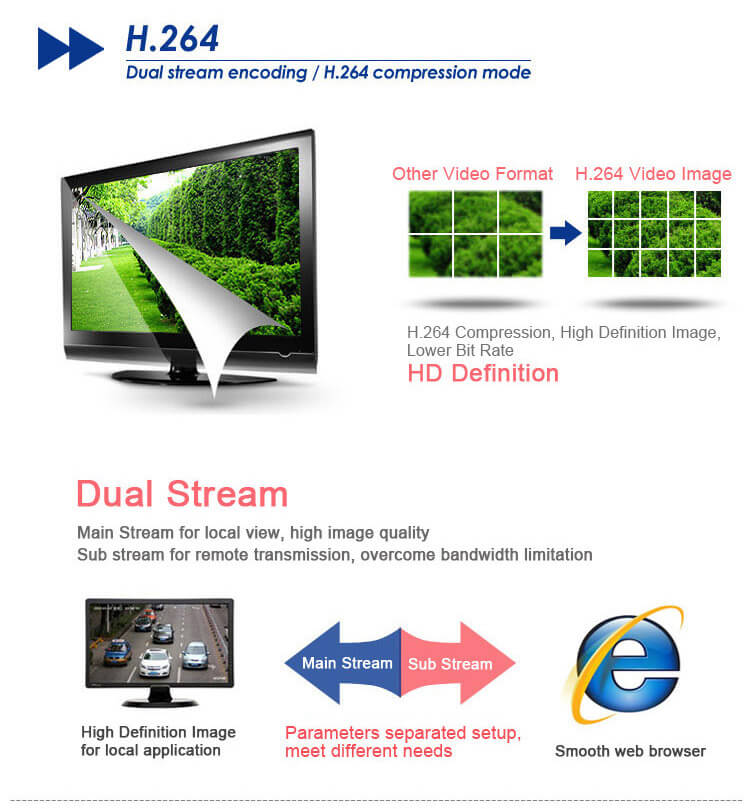

H.264 MTV Main Profile |
Frame Rate |
Main Stream 1080P(1920*1080) 15fps Sub Stream 1080P(1920*1080) 15fps |
Bit Rate |
128-8192Kbps,Supports CBR/VBR |
Compression |
N/A |
Interface |
N/A |

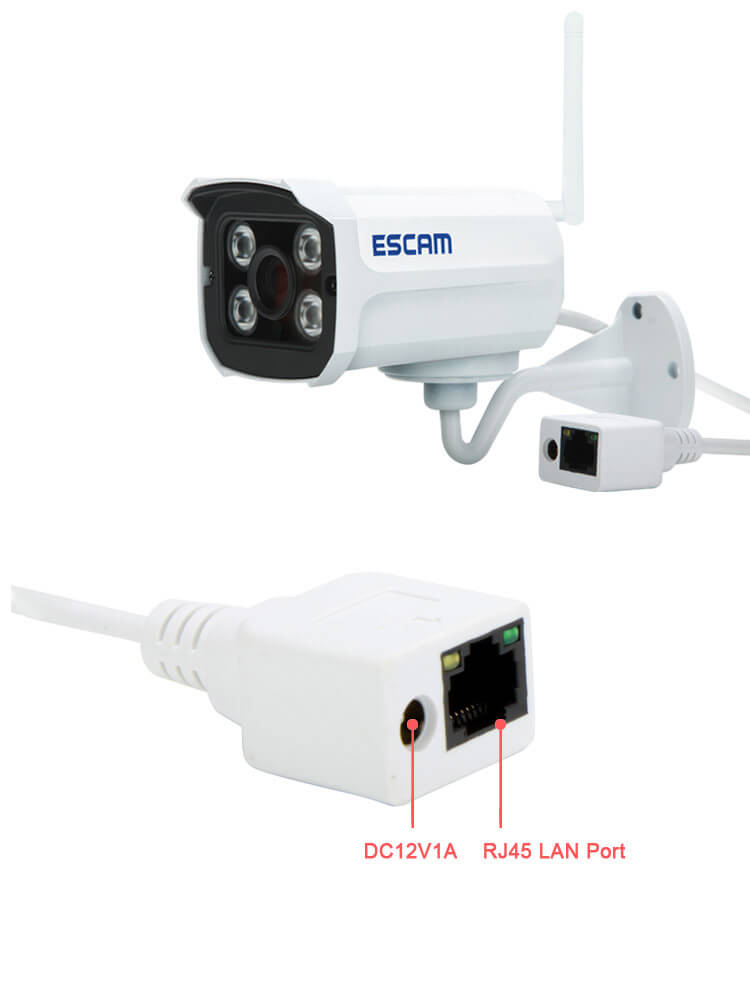

Network |
Ethernet RJ-45 (10/100Base-T) |
WiFI |
N/A |
Protocol |
TCP/IP , UDP , RTP , RTSP , RTCP , HTTP , DNS , DDNS , DHCP , FTP , NTP , PPPOE , SMTP , UPNP ONVIF ONVIF Ver. 2.2 |
Max. User Access |
10 users |

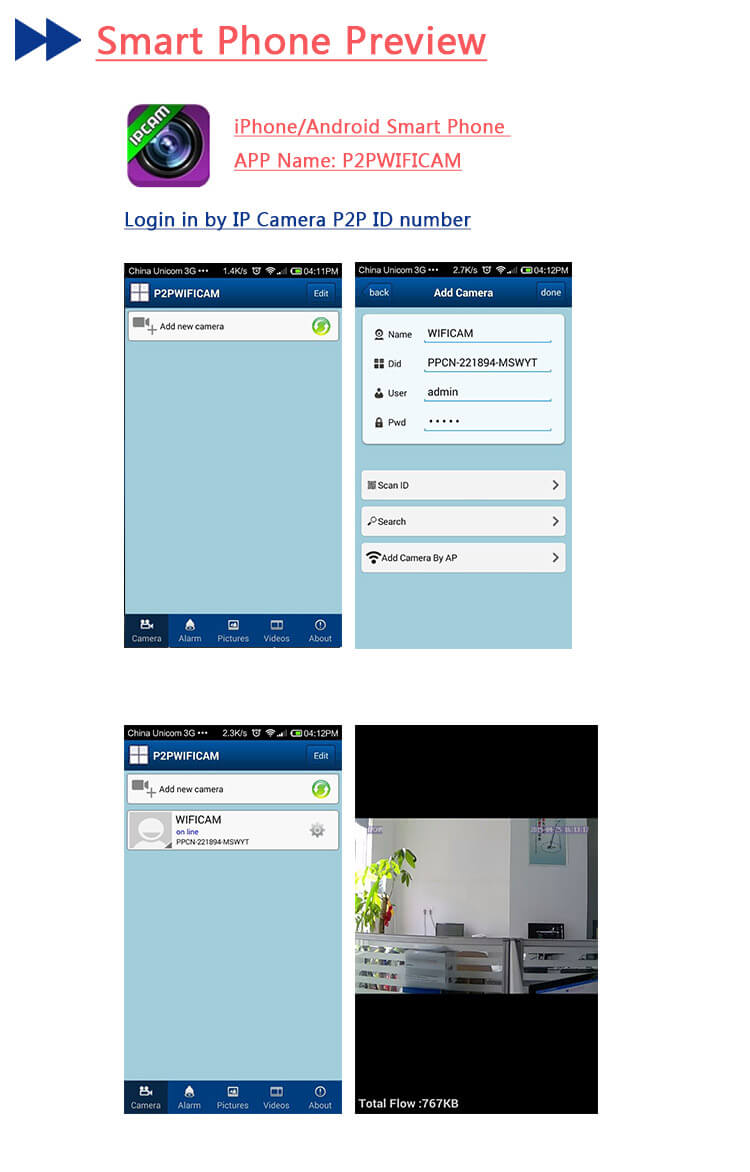

Smart Phone |
iPhone, iPad, Android |
Wireless protocols |
(-W) 802.11b/g/n, 150Mbps ,supports WEP,WPA,WPA2 |
Memory Slot |
N/A |
Power Supply |
DC12V |
Power Consumption |
<6W |
Working Environment |
-10°C~+60°C, 10%~90% |
Ingress Protection |
IP66 |
Vandal Resistance |
N/A |
Dimensions & Weight (Main Product) |
Product Dimension |
107 mm (L) * 68 mm (W) * 60mm (H) |
Product Weight |
0.25KG |

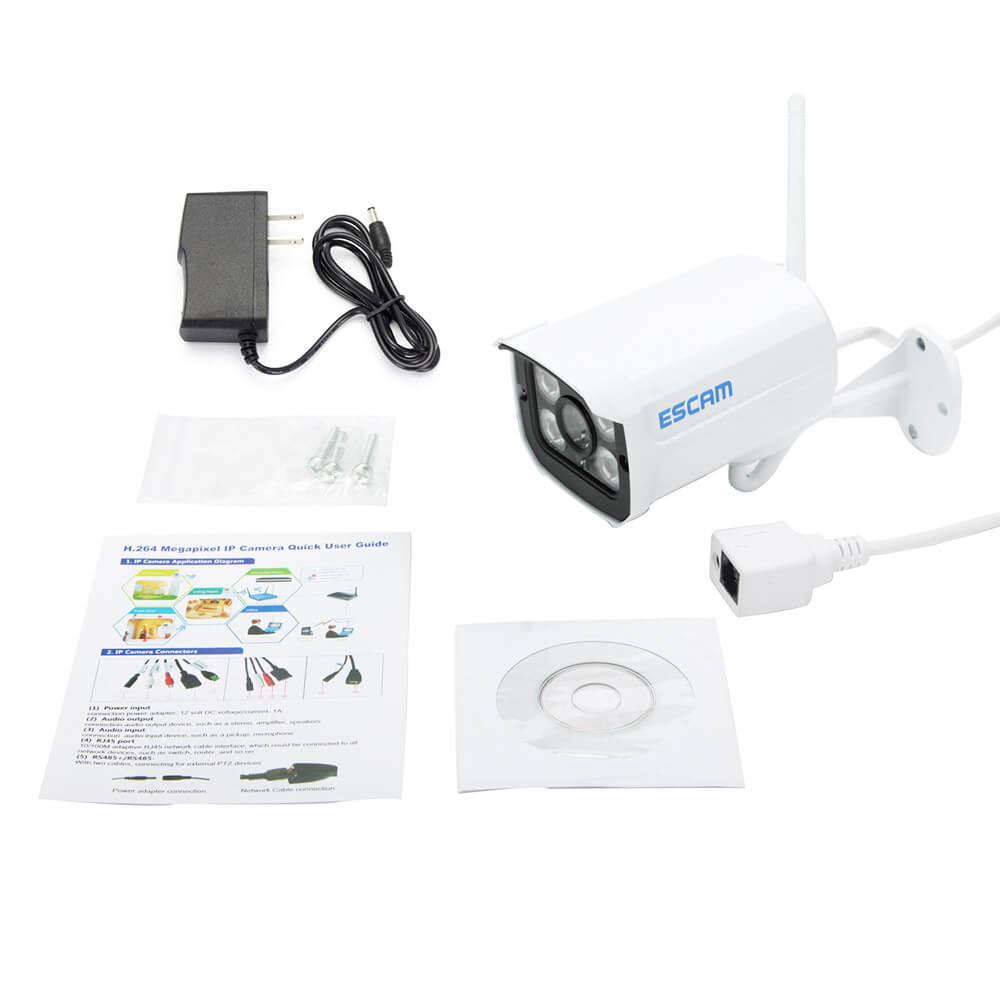

Package Contents |
1 x ESCAM Security Camera |
1 x Power Supply |
1 x English Manual |
1 x Pack of screws |
