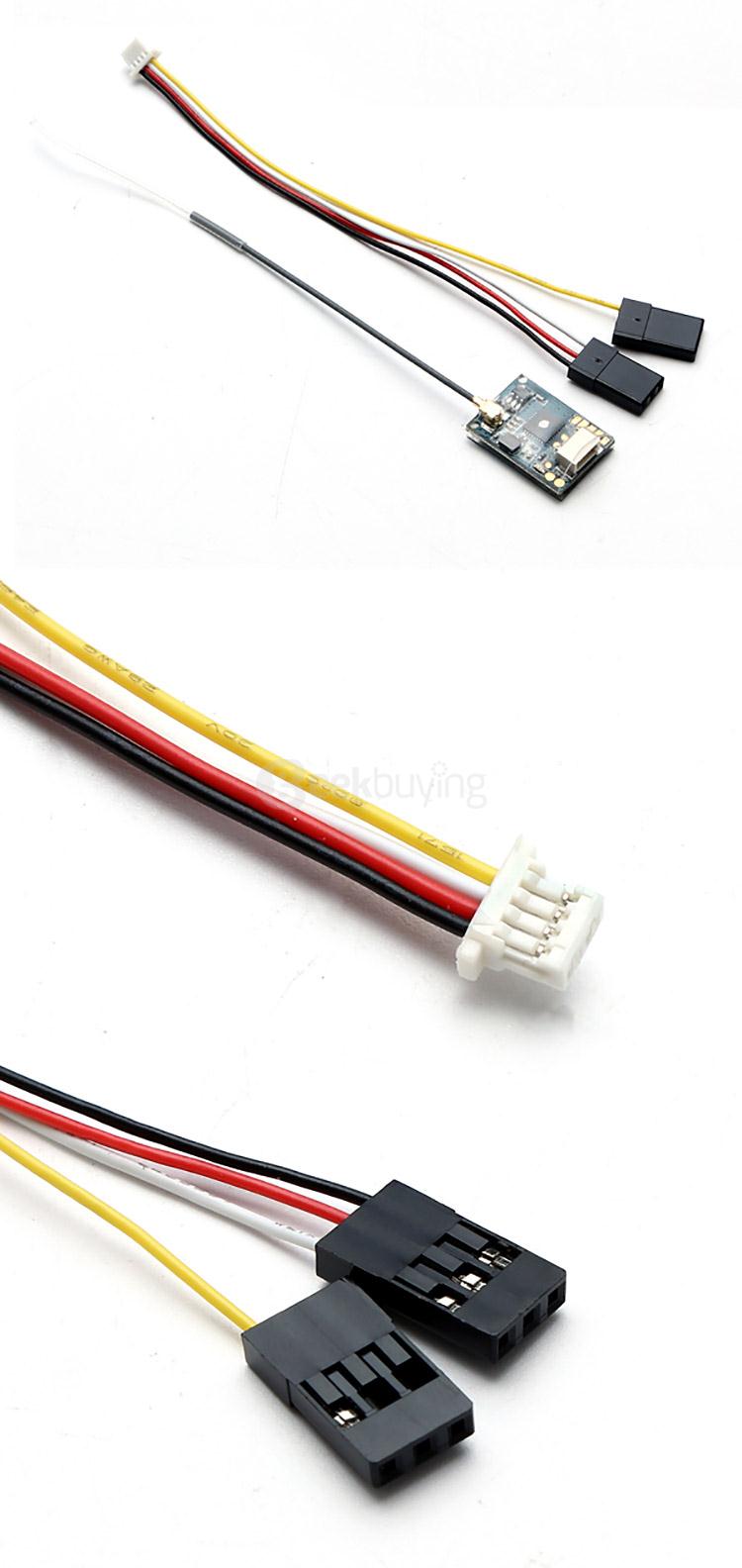

Flysky FS-A8S 2.4G 8CH Mini Receiver with PPM i-BUS SBUS Output

Item Code: 373253 Write a review
Price:
  • 15.99
Reg. Price:
  • USD 21.87   Save: 27%

12item(s) added

View Cartor Continue Shopping>>
QTY :
Add to Cart
Bulk order rebate
25010

Shipping: in 2-7 business days FREE SHIPPING

jb_year Ask a question Price Match

  • Description
  • Reviews
  • Q&A
  • Support & Firmware

Highlights

The FS-A8S is a compact 1-way receiver designed for multi-rotor aircraft.

It uses the AFHDS 2A(Automatic Frequency Hopping Digital System) protocol, supports standard PPM output and has i-BUS support for up to 18 channels.

Specification

General Brand Name:Flysky
Item Name:FS-A8S Receiver
Channels: PPM 8CH, i-BUS 18CH
Model type: Multi-rotor
Frequency range: 2.408-2.475GHz
Band width: 500KHz
Band number: 135
RX Sensitivity: -92 dBm
2.4GHz system: AFHDS 2A
Modulation type: GFSK

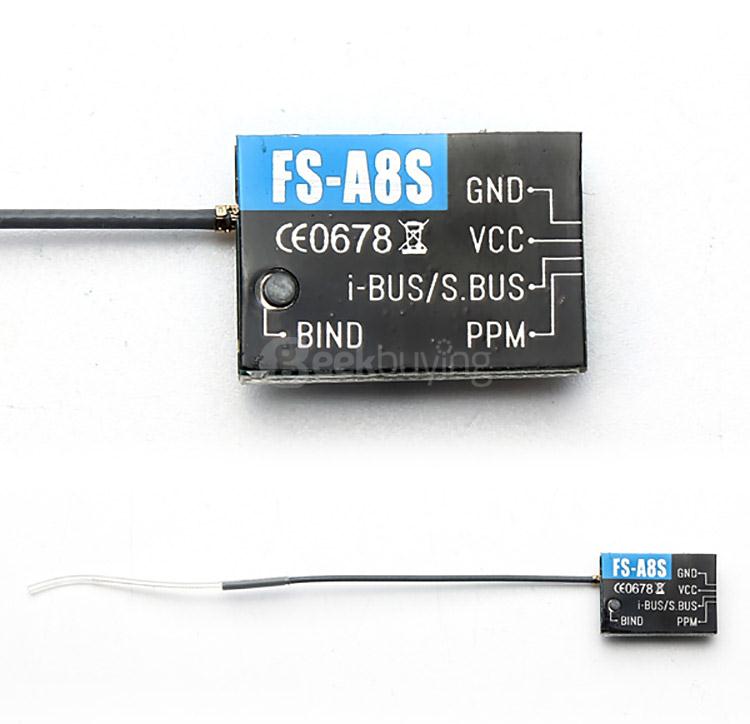

DSC port: PPM/i-BUS/S.BUS
Transfer method: FHSS
Data output: 1.5mm*3 Pin  PPM/i-BUS/S.BUS
Antenna length: 26mm (Not including brass contacts)
Input power supply: 4.0-8.4V
Display method: LED
No ground interference ( Transmitting and receiving 1 m from the ground): >300m
Working current: 40mA
Each channel data: depend on the transmitter
Channel delay: <15mS
Certificate: CE0678, FCCID: N45ZA8S00
Dimensions&Weight Size: 20*14*5.3mm
Weight: 1.2g
Package Contents 1 X Flysky FS-A8S 2.4G 8CH Mini Receiver

373253373253373253373253373253

Be the first to Upload A Photo of this product!
Be the first to Upload A Video of this product!
Customer Reviews
Overall Customer Reviews Rating:
( Based on 0 Customer Reviews )
0% Good Reputation Rate
5 star: (0)
4 star: (0)
3 star: (0)
2 star: (0)
1 star: (0)
Write A Review
Be the first to Write A Text Review of this product!
Questions & Answers
Support & Firmware

 Flysky FS-A8S User Manual: Click here
