Highlights
- Compatible with FASST 2.4GHz Air Systems (7CH Mode/Multi Mode)
- SB port is compatible with Futaba S.BUS servos and FrSky S Bus compatible servos
- With RSSI output
- Two selectable failsafe setting options (use native failsafe on radio side or set failsafe on TFR8SB side)
- S.BUS servos/S Bus compatible servos channel setting channel setting on TFR8SB
- Improve sensitivity and stability
- Wider and higher operating temperature range, suitable for all kinds of models
- Firmware upgradeable
Specification
General | |
---|---|
Type | Receiver |

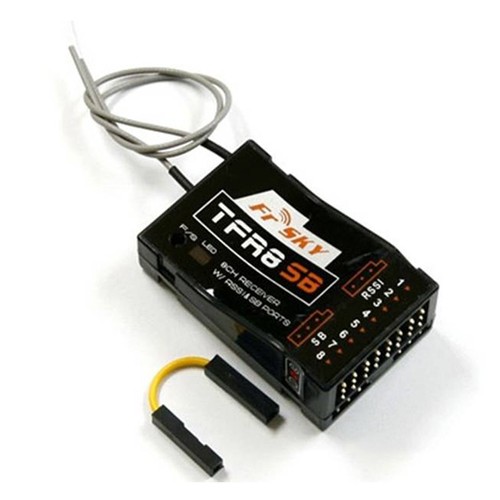

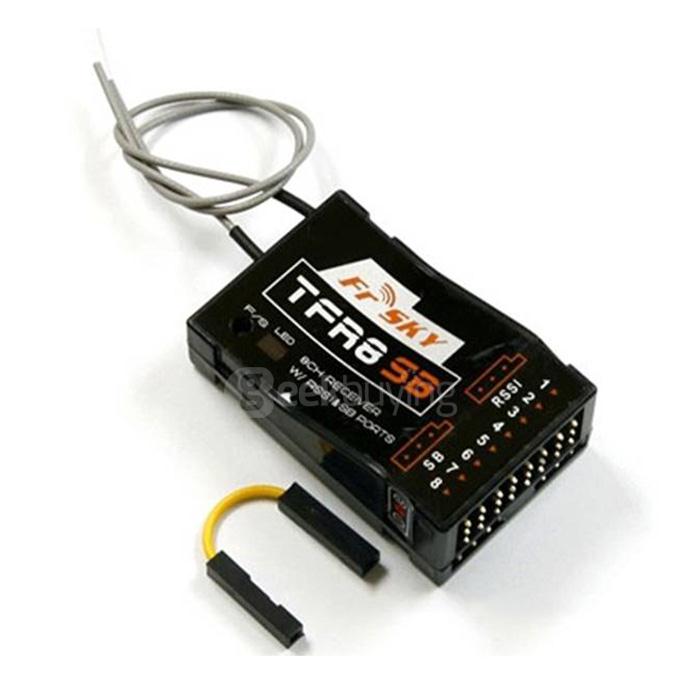

Model | Frsky TFR8SB |
Operating Voltage Range | 3.5~10V |
Number of Channels | 8/16CH |
Operating Temperature Range | -10 ~ 80 Degrees |
Servo Frame Rate | 14ms (FS – Normal Speed Mode) 7ms (HS – High Speed Mode) |
Dimension/Weight | Dimension: 44.5*27.5*17mm Weight: 11.5g |
Compatible | FASST 2.4G Air Systems(7CH Mode/Multi Mode):6EX, 7C, TM-7, TM-8, T8FG, T10C, TM-10, T10CG, T12Z, T12FG, TM-14, T14MZ, etc. Compatible with Futaba and FrSky S.Bus servos |
Note | Be sure that when using battery or regulated output from ESC, the capacity must meet the usage conditions of servos |
Package Contents | |
1*Receiver |
