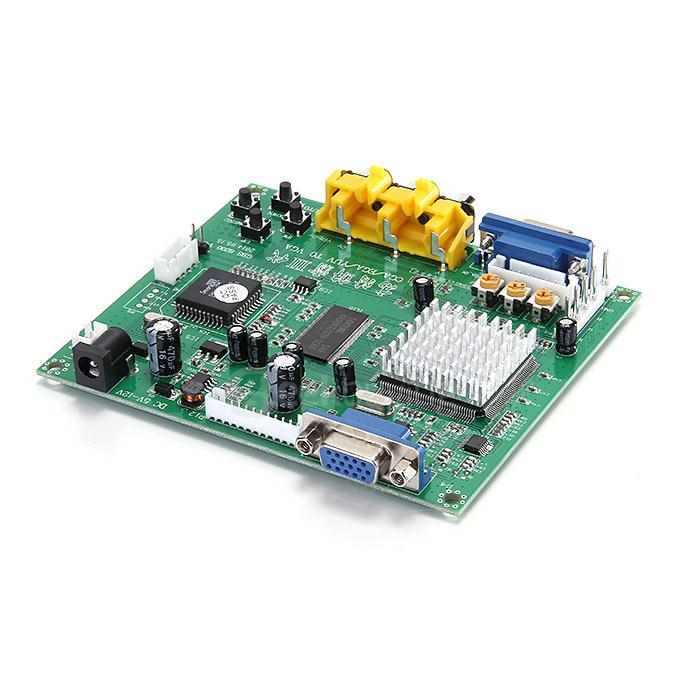

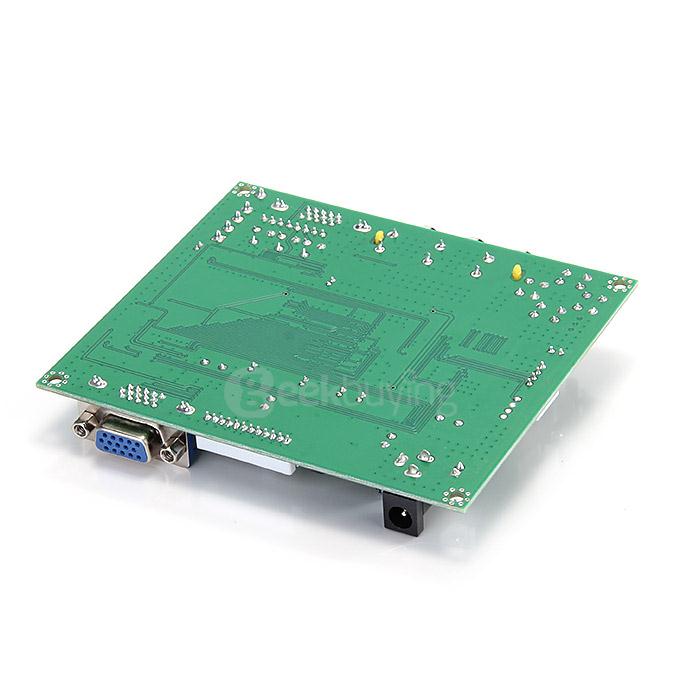

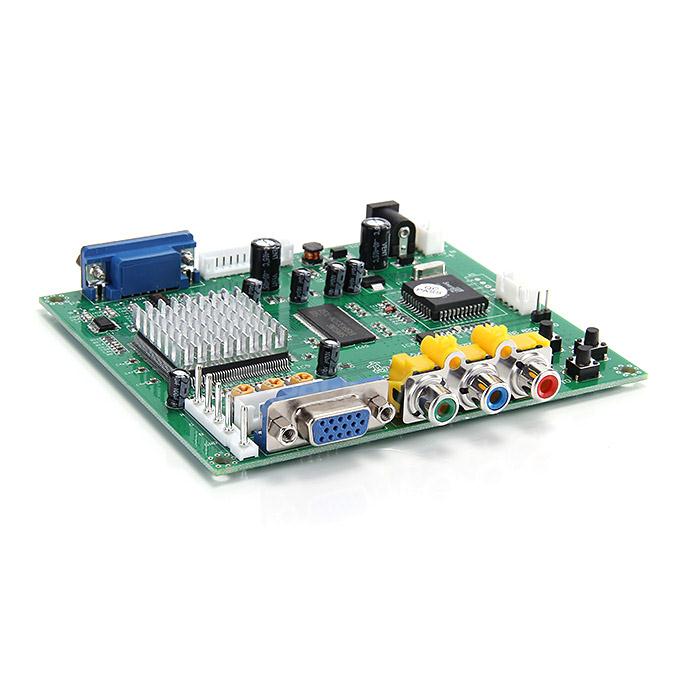

GBS-8200 CGA/EGA/YUV To VGA Converter Platine Board Auf VGA Output

Item Code: 351344 Write a review
Price:
  • 23.89
Reg. Price:
  • USD 46.40   Save: 49%
Option:

12item(s) added

View Cartor Continue Shopping>>
QTY :
Add to Cart
Bulk order rebate
93744

Shipping: in 2-7 business days FREE SHIPPING

jb_year Ask a question Price Match

  • Description
  • Reviews
  • Q&A

Highlights

  • Latest & official GBS-8200 HD-Converter Board
  • Supports CGA/EGA/VGA/YUV Component Signal Input
  • Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768)
  • CGA/EGA/VGA signal auto scan (15KHz, 24KHz, 31KHz)
  • YUV Component signal auto scan (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p)
  • On Screen Display (English and Chinese)
  • Supports image position control & image zoom control
  • True digital 24-bit A/D converter for true 16.7-million color conversion
  • Supports ALL types of VGA monitors (CRT, LCD, PDP, Projector, etc)

Specification

General
Type CGA/EGA/YUV To VGA Converter
Model GBS8200
Quantity 1 Piece
Menu

“MENU” open OSD menu, and enter

 “UP”    up and increase

“DOWN/AUTO” down and reduce

Press this key: auto scan CGA/EGA signal

Press this key over 5 second and release: reset system

** (this operation is invalid when you open OSD menu)

“SW”    switch input signal Ypbpr/RGBS/RGBHV

** (this operation is invalid when you open OSD menu)

“Clamp sp” & “Clamp” please don’t adjust this button, except the monitor has black item or picture discoloration.

For more functions control, please refer to OSD to operate

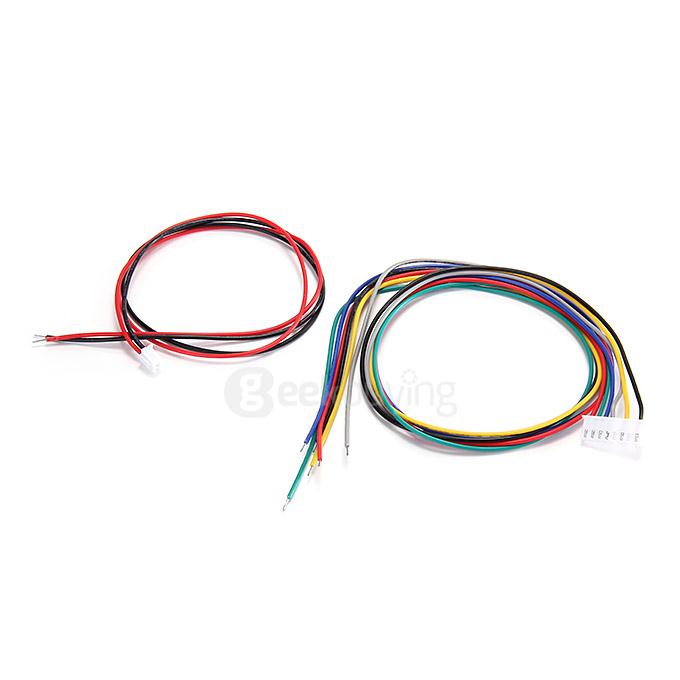

Package Contents
1* Converter board GBS-8200
1* 2P power supply wire
1* 8P signal wire
Input Power 5VDC +-0.5v (2A) P7 or P9
Input signal
CGA/EGA
14.5kHz - 16.5kHz
23.5kHz - 25.5kHz
30.5kHz - 32.5kHz
Auto scan
P3 or P11 or P10
RGBHV
30.5kHz - 32.5kHz
Auto scan
P10 or P11
VGA
30.5kHz - 32.5kHz
Auto scan
P10 or P11
Ypbpr
480p,576p,720p,1080p
Auto scan
P2
Ycbcr
480i,576i,720i,1080i
Auto scan
P2
Output signal
VGA
640*480,800*600
1024*768,1360*768
P4 and P13
User controls Input Switch, Image Zoom, Image Position,
Output Resolution ,R\G\B gain adjust.
Menu Key
R\G\B VR
