General |
Brand: HGLRC
Item Name: XJB F310 Flytower
Weight: 6g
Usage: for 65mm-130mm Frame Kit

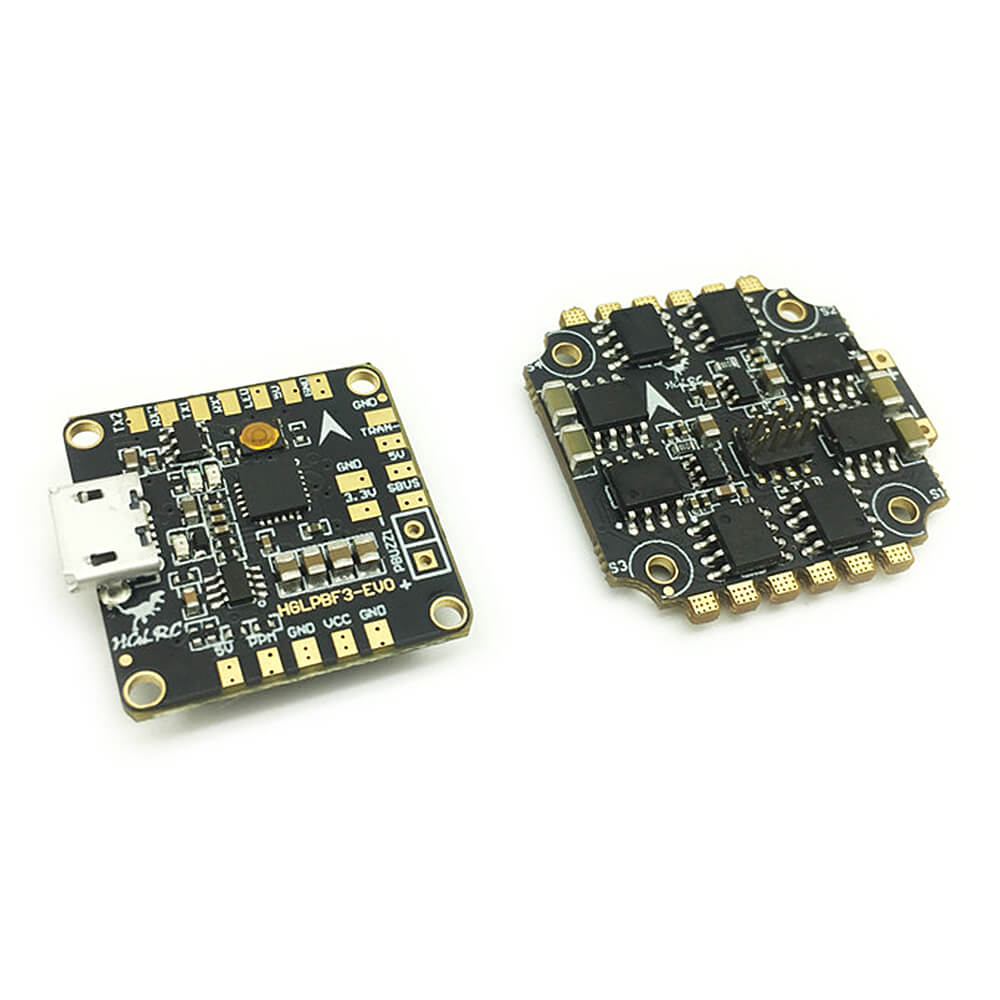

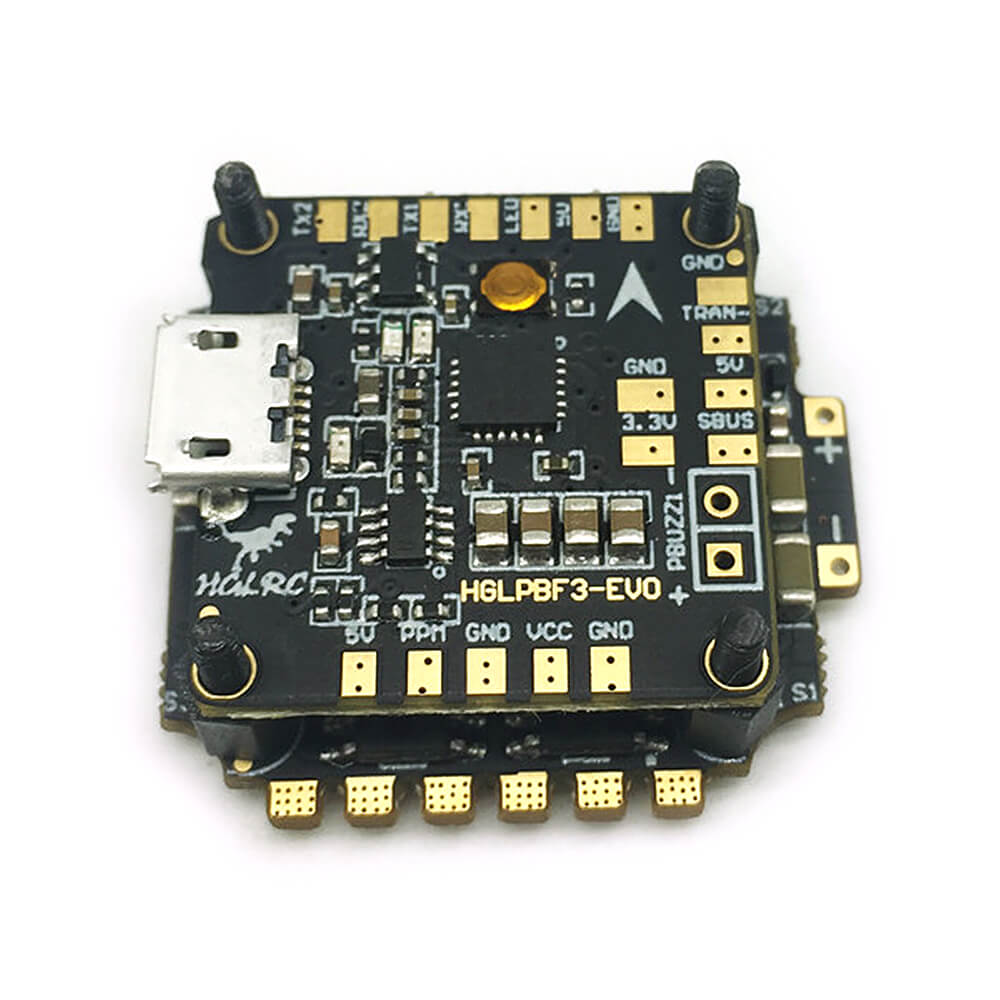

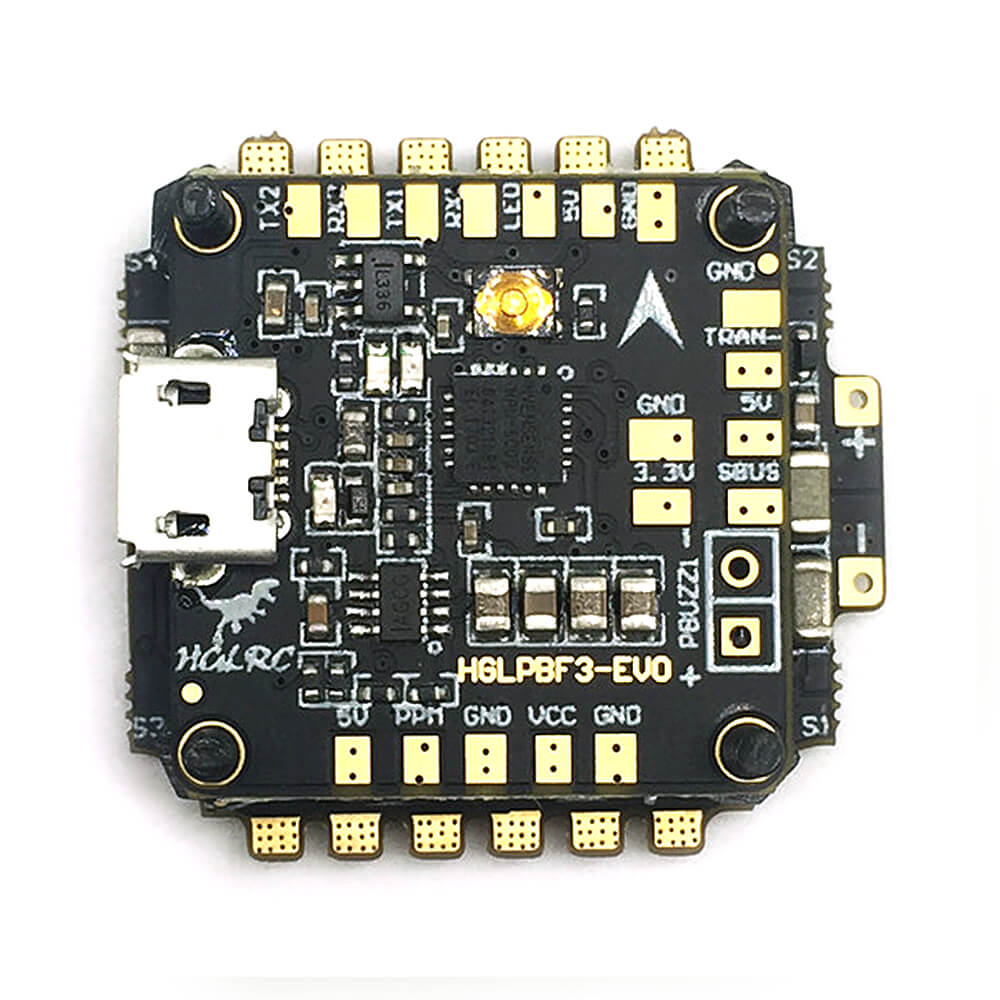

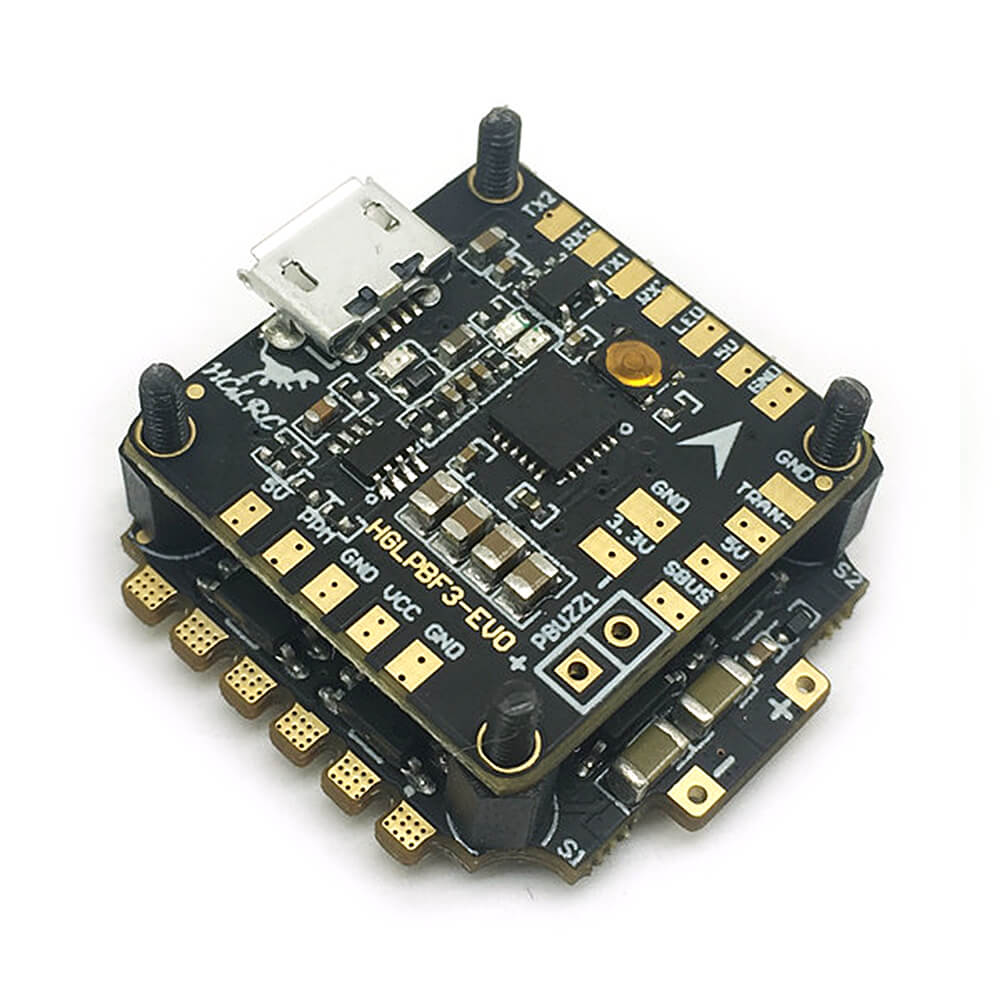

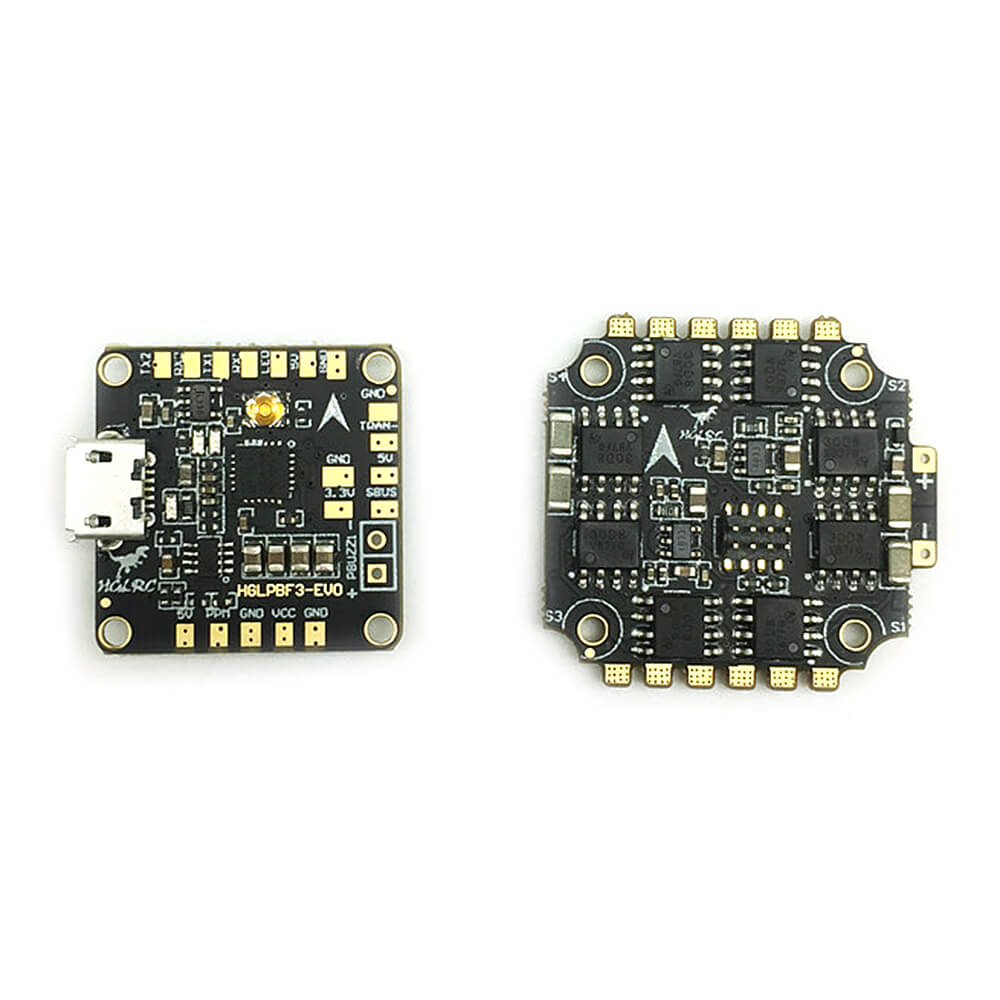

6DOF PBF3 EVO Flight Control Board ( D-Shot Version):
MPU: MPU6000
CPU: STM32F3CCT6, Flash 256K.
Input Voltage: 2-6S Lipo
BEC Output: 5V@3A
Size: 23x23mm board, 20mm mounting holes (M2)
Weight:2.3g
Firmware: BF3.15 Firmware
Built-in RC/LC filter
Support Subs/PPM/DSMX receiver
-6Dof version, without Barometer and Compass
10A 2-3S Blheli_S BB2 4 in 1 ESC:
Input Voltage: 2-3S Lipo battery
Constant Current: 10A
Peak Current: 30A (10S)
BEC Ouput: NO
Firmware: BLheli_S 16.5
Size: 27x22mm (main board)
30x27mm ( including pad)
Installing Hole: 20x20mm
Weight: 4.2g
CPU: SILABS EFM8BB2 48MHZ
MOS Tube: TOP QUALITY MOSFET
Firmware: Betaflight 16.5
Support Damped Mode, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, forward and reverse
|
