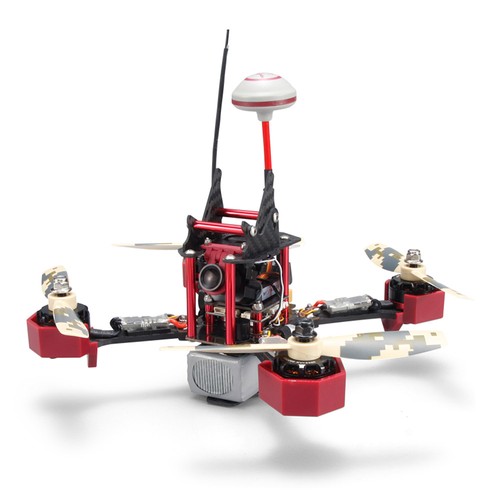

JJRC JJPRO-P200 5.8G 48CH Raceband FPV With Skyline32 CMOS 800TVL Camera RC Racing Drone ARF

Item Code: 369613 Write a review
Price:
  • 215.99
Reg. Price:
  • USD 393.14   Save: 45%
Option:

12item(s) added

View Cartor Continue Shopping>>
QTY :
Add to Cart
Bulk order rebate
57208

Shipping: in 2-7 business days FREE SHIPPING

jb_year Ask a question Price Match

Price for all: USD 234.86

You Save:USD -18.87

Original price : USD 215.99

  • Description
  • Reviews
  • Q&A

Highlights

RaceBand VTX CAM

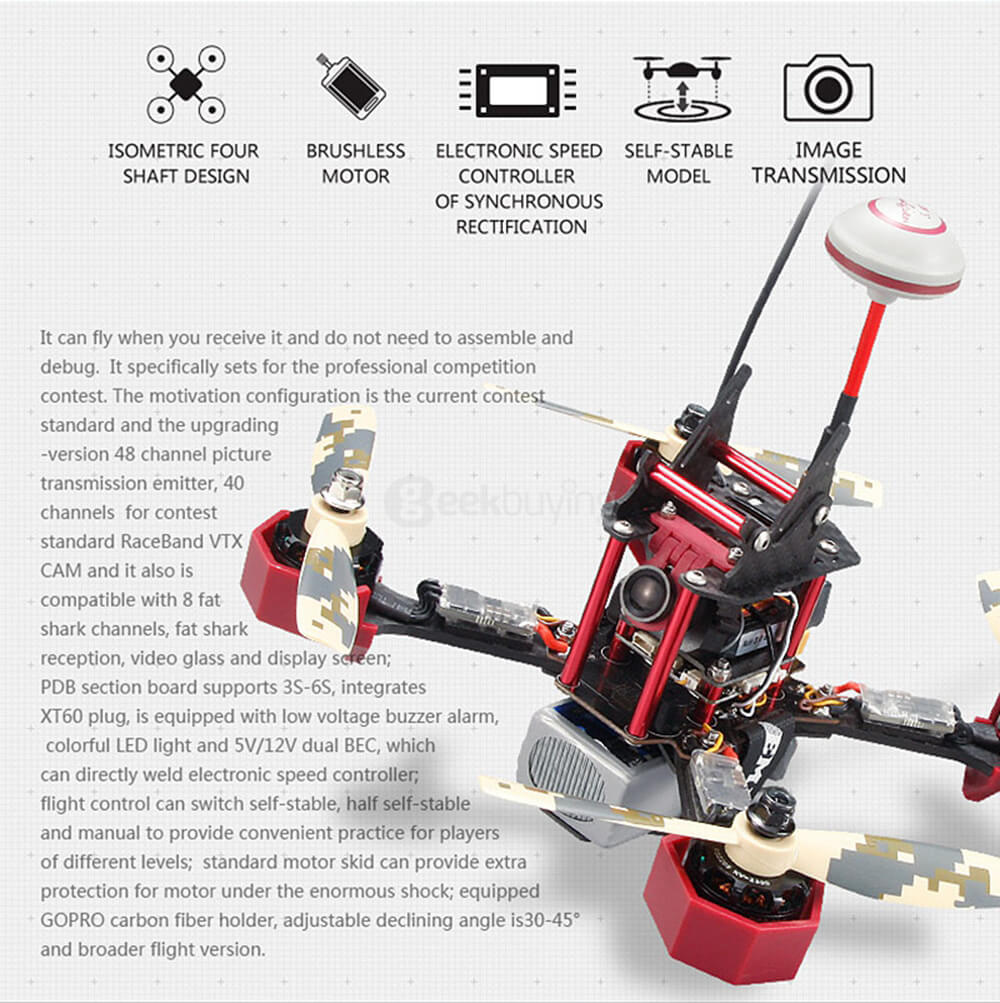

Designed for professional competitions, adopts standard motor, RaceBand VTX CAM, compatible with 8 Fatshark channels, transmitter, goggles and display.

PDB

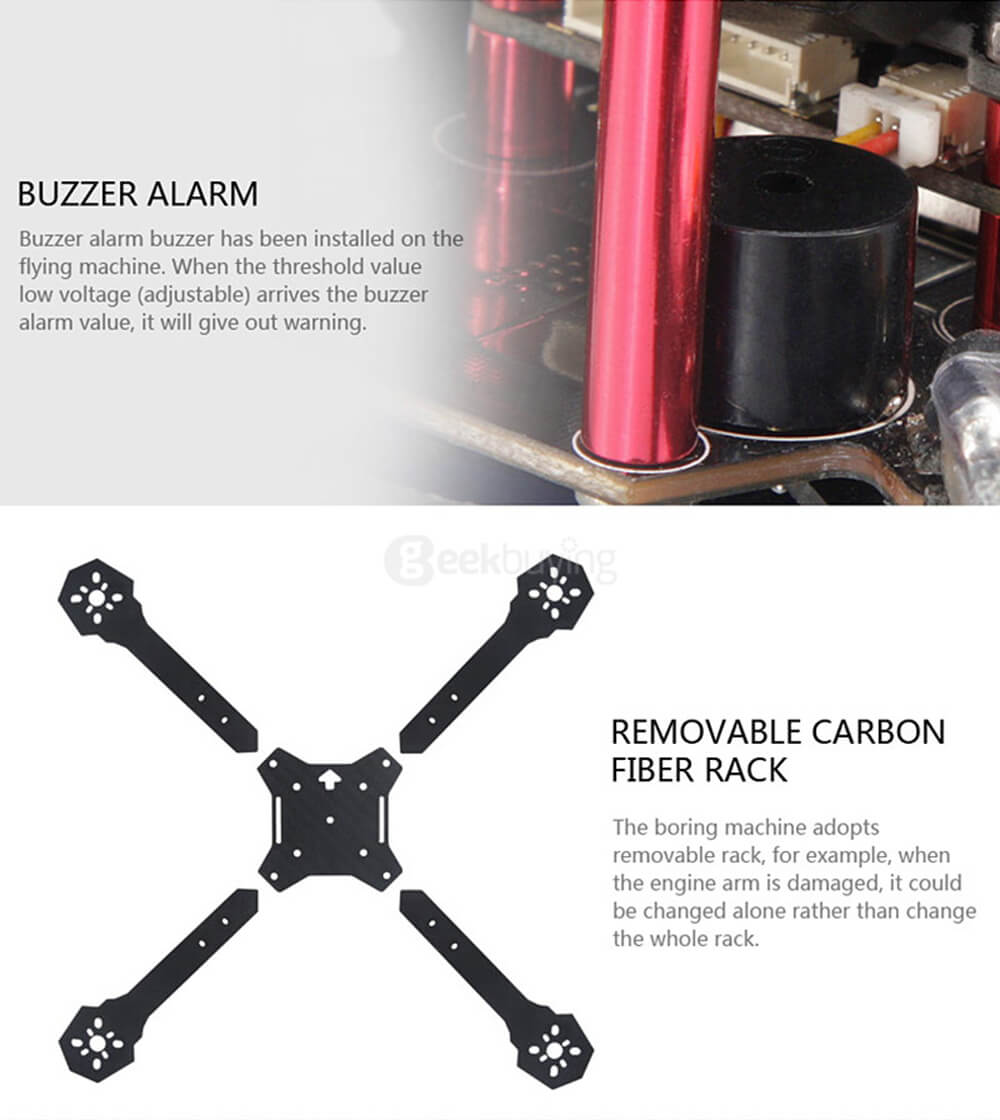

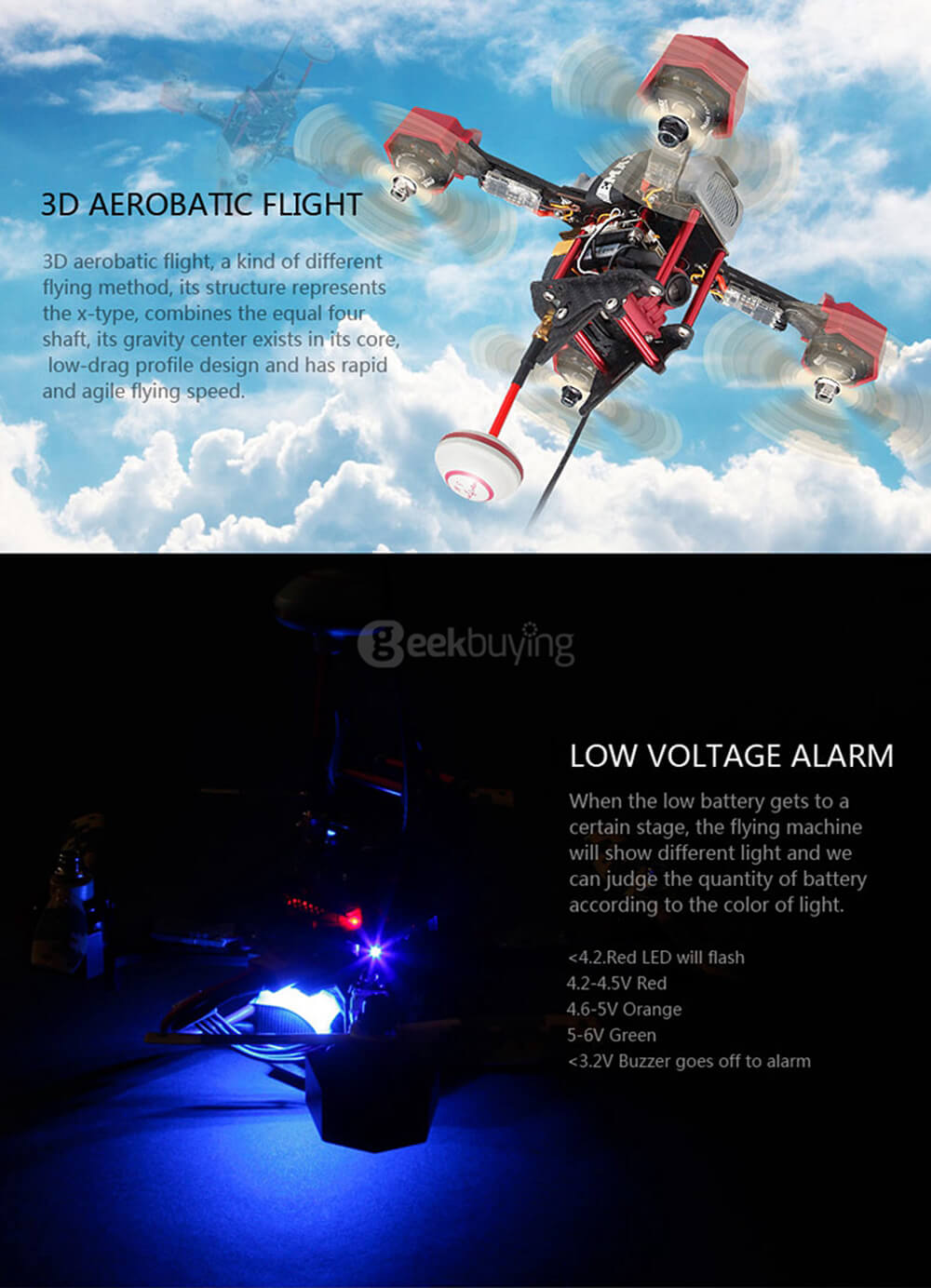

PDB supports 3S-6S, integrates XT60, low volatage alarm, LED lights, 5V/12V double circuit BEC, the ESC can be soldered directly.

Emax Skyline32 Acro

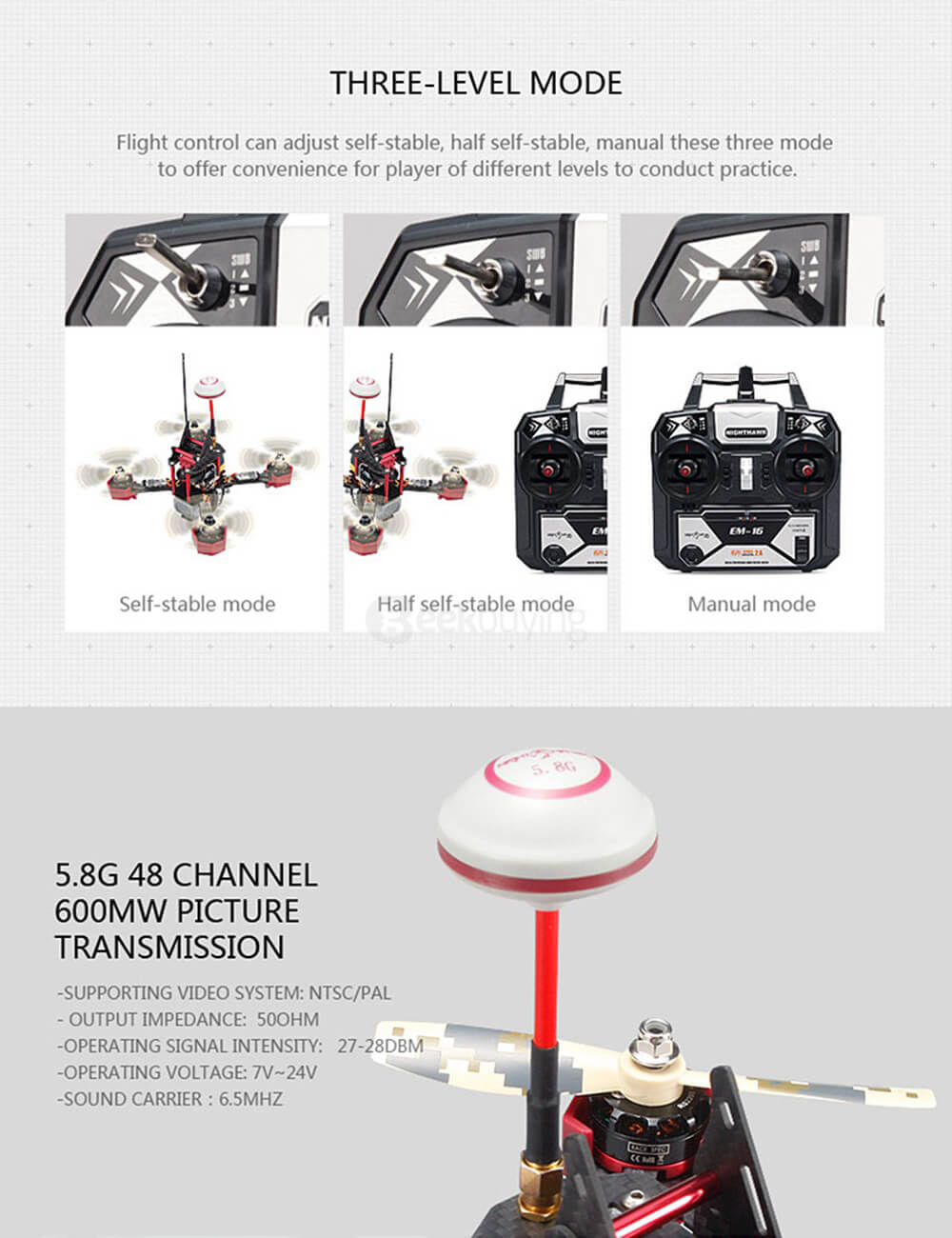

Emax Skyline32 Acro flight controller supports manual mode, angle mode, horizon mode, head-holding mode, head-free mode to adapt to players of different proficiency levels.

Motor Dock
Equipped with motor dock to protect the motor against external impact.

GOPRO Holder

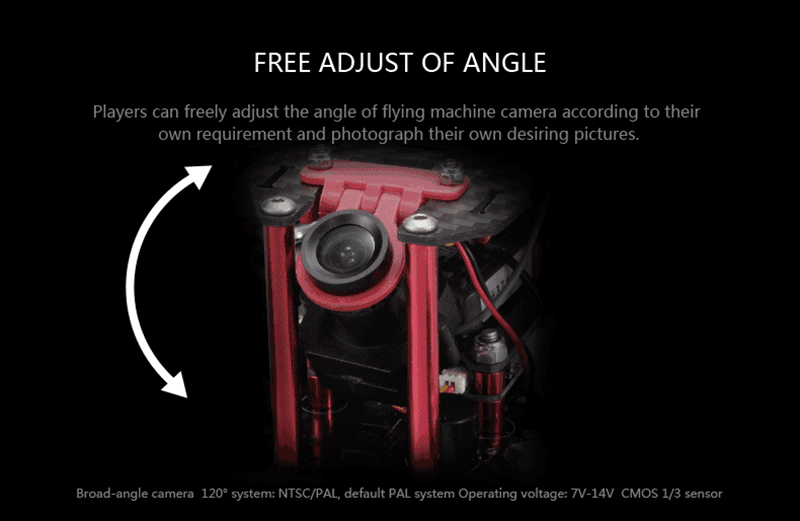

Includes GOPRO carbon fiber holder with adjustable tilt angle from 30-45°, wider field of vision.

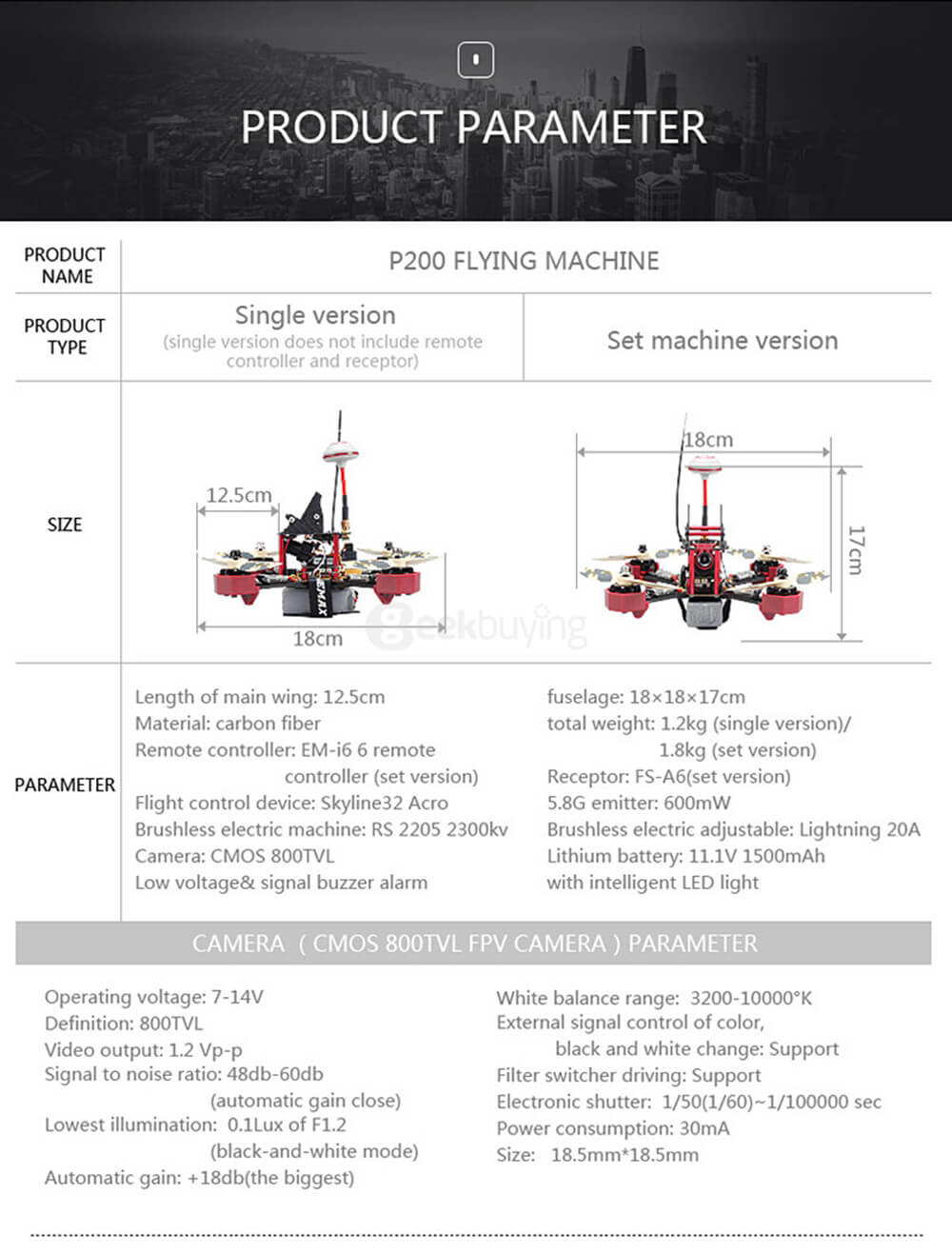

Specification

General
Brand JJPRO
Model P200
Quantity 1 Piece
Specification
Battery

3S 11.1v 1500mAh 30C

XT60 Plug

Size:70*35*22mm
Weight:113g

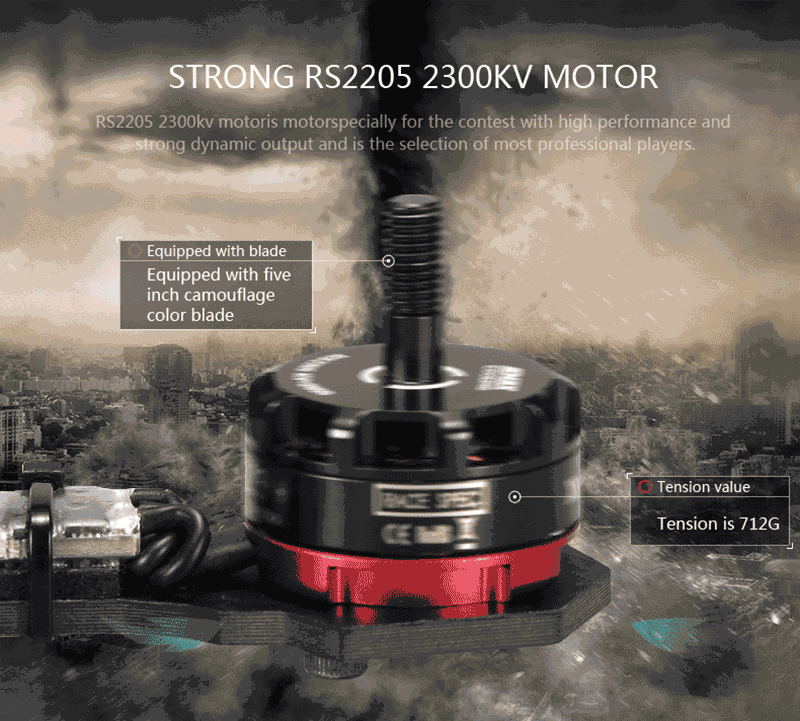

Motor

Brands: Emax
Model: RS2205

KV:2300
MAX Thrust:1024G

Length: 31.7MM
NO.OF Cell:3-4S

Diameter: 27.9MM
Framework: 12N14P

Shaft:M5
Propeller:5-6 inch

Weight: 30G

ESC

Brand:Emax

Model: Lightning 20A
Continuous Current:20A
Instantaneous Current(10S):30A
BEC: No
Input Voltage: 3-4S
MCU: F396
Weight: 5.5G
Size(without plug): 24.5x12.5x5mm

Power Output: 50Ohm
RF Impedance: 27-28dBm
Operating Voltage: 7V-24V
Audio carrier: 6.5MHz

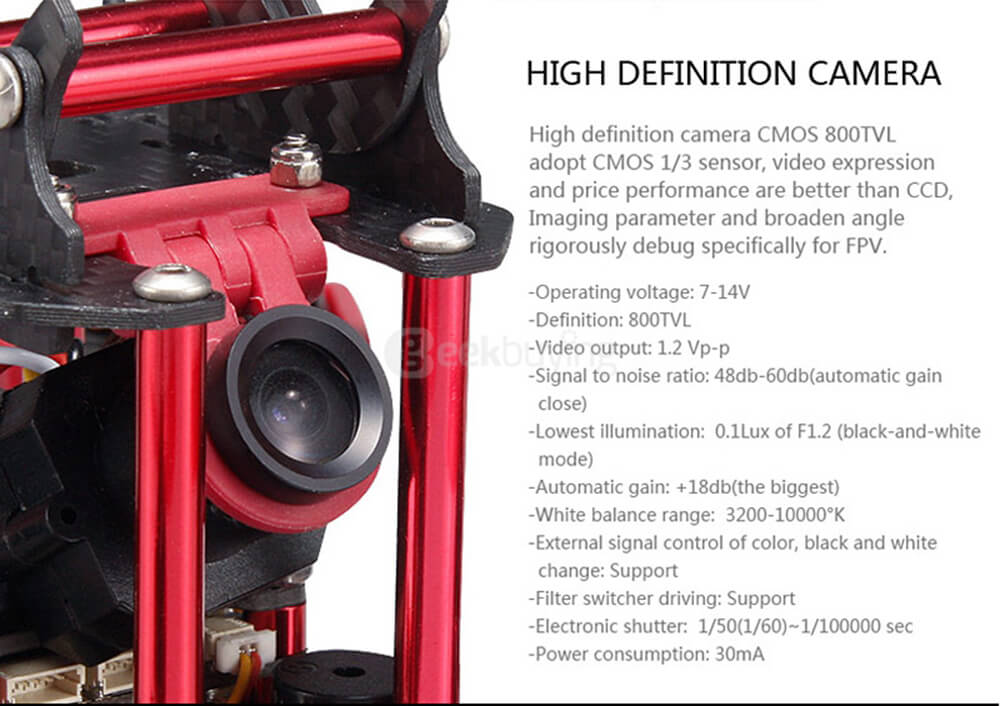

Camera

Resolution: 800TVL

Operating Voltage: 7-12V
Image Sensor: 1/3 CMOS
Power consumption: 30mA 12
Lens: 2.2mm
Min.illumination: 0.1Lux/F1.2
Electronic Shutter Speed: 1/50(1/60)~1/100000 sec
Angle: 120°diagonal FOV, 80°horizontal FOV
Signal System: NTSC/PAL(default PAL)
Video Output:1.2Vp-p
External Signal Control Black & White Shift: Support
Filter Switch Drive: Support
Size:18.5mm*18.5mm

Flight controller Emax Skyline32 Acro
Product Specifications: 35x35x5mm
Weight: 4.5g
Dimensions & Weight (Main Product)
Dimension Wheelbase: 200mm
Weight: 134g
Main board: 3.5mm
Take off Weight: 351g
Weight(with box) 1.8KG
Package Contents
1 x JJPRO P200 Frame Kit
1 x Skyline32 Acro Flight Controller
4 x RS2205 2300kv Motor
4 x Lightning 20A ESC
1 x 3S 11.1V 1300mAh 30C Battery
1 x 800TVL Camera

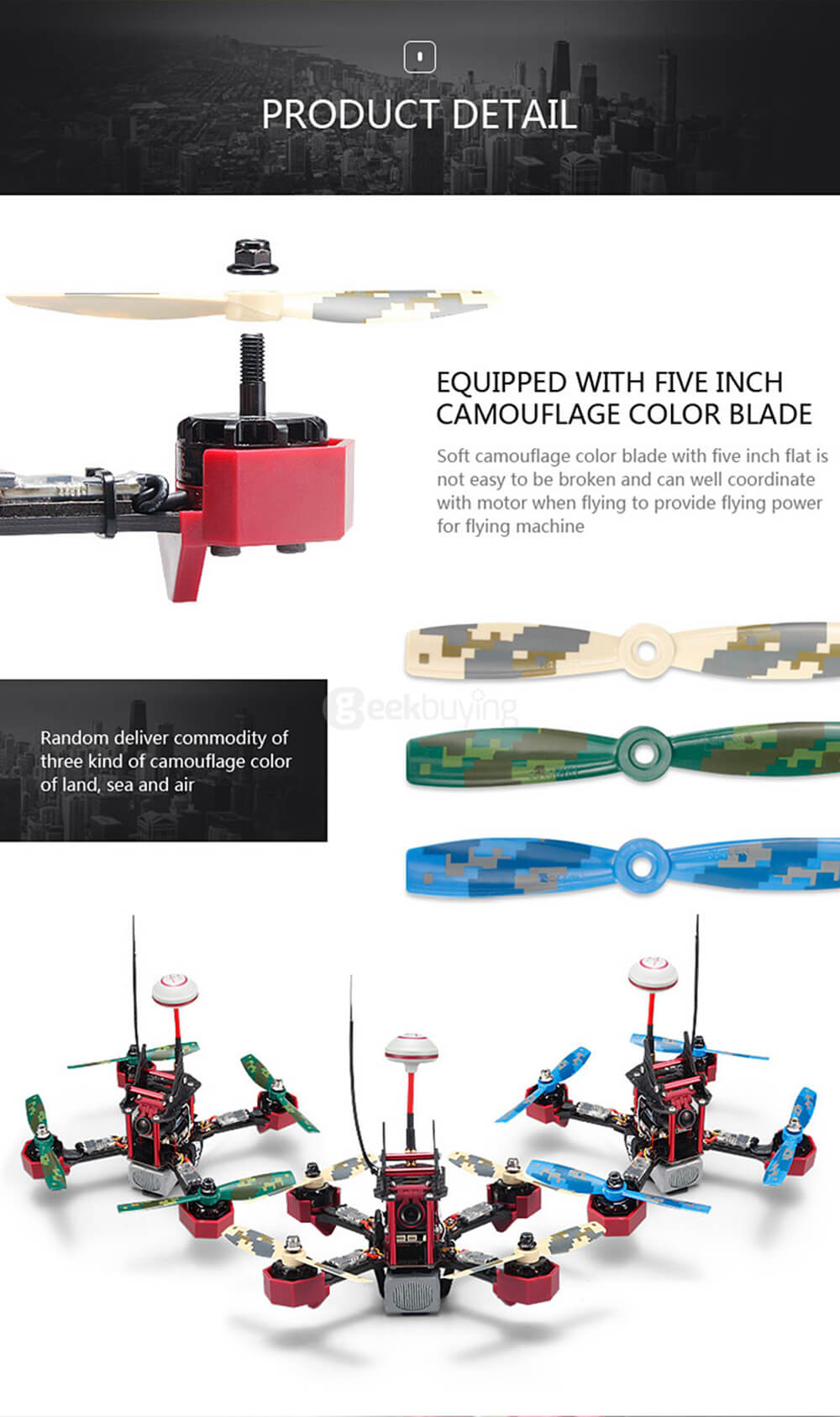

8 x 5045 Propeller (4*CW 4*CCW Random Color)
4 x Red Motor Base
1 x Power Connector
1 x Camera Mount
1 x Bracket for Gopro
1 x Antenna
1 x Charger
1 x Manual
