Highlights
- In line with GB / T 13978-92 DMM general technical conditions
- In line with GB4793.1-1995 (IEC-61010-1) Safety requirements for electronic measuring instruments
- Belong to two pollution, over-voltage standard CAT III 600V
- Clamp head lighting function
- Automatic / manual range
- Data Retention
- Max / Min measurement
- Diode test
- Off test
- Full range overload protection
- The maximum jaw opening size: Φ26mm
- Automatic shutdown / background light
- Overmolding chassis,
- With data retention and the relative value of the test and peak hold
- 6,000 words display with analog bar graph 42
Specification
| Specification | Range | MS2009A | MS2109A |
| DC Voltage | 600mV/6V/60V/600V | ±(0.8%+2) | |
| 200mV/2V/20V/200V | ±(1.0%+2) | ||
| 600V | ±(0.7%+2) | ||
| AC Voltage | 6V/60V/600V | ±(1.0%+5) | |
| 2V/20V/200V | ±(1.2%+5) | ||
| 600V | ±(0.8%+3) | ||
| DC Current | 60A/600A | ±(3.0%+6) | |
| AC Current | 2A/20A | ±(3.0%+10) | |
| 200A | ±(2.5%+10) | ||
| 600A | ±(1.5%+5) | ||
| 60A/600A | ±(2.5%+6) | ||
| Resistance | 200Ω/2KΩ/20KΩ/200KΩ/2MΩ | ±(1.2%+2) | |
| 20MΩ | ±(2.0%+5) | ||
| 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ | ±(1.2%+2) | ||
| Capacitance | 40nF/400nF/4µF/40µF/400µF/4000µF | ±(4.0%+5) | |
| Frequency | 0~10 MHz | ±(1.5%+5) | |
| Duty Cycle | 0.1%~99.9% | ±(3.0%) | |
| Temperature(°C/°F) | -20°C~1000°C | ±(2.0%) | |
| -4~1832°F | ±(2.0%) | ||
| Size | 205 x 70 x 35mm | ||
| Weight | 275g | ||

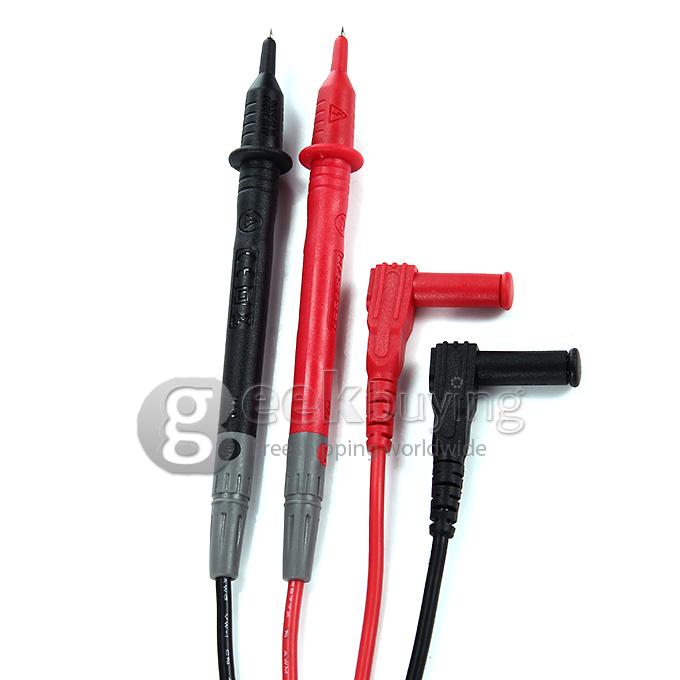

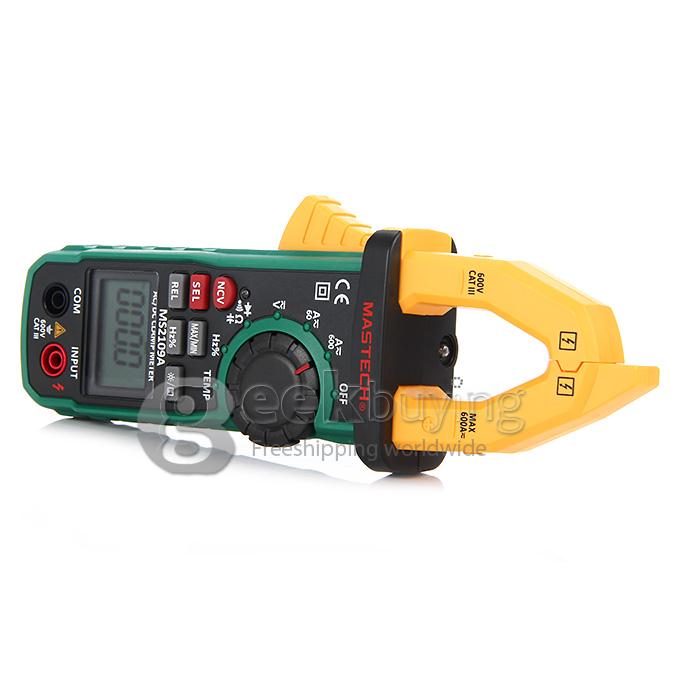

| Package content | 1 x MS2109A Digital Clamp Meter 1 x Carrying Case 2 x Test Leads 1 x User manual |
