Highlights

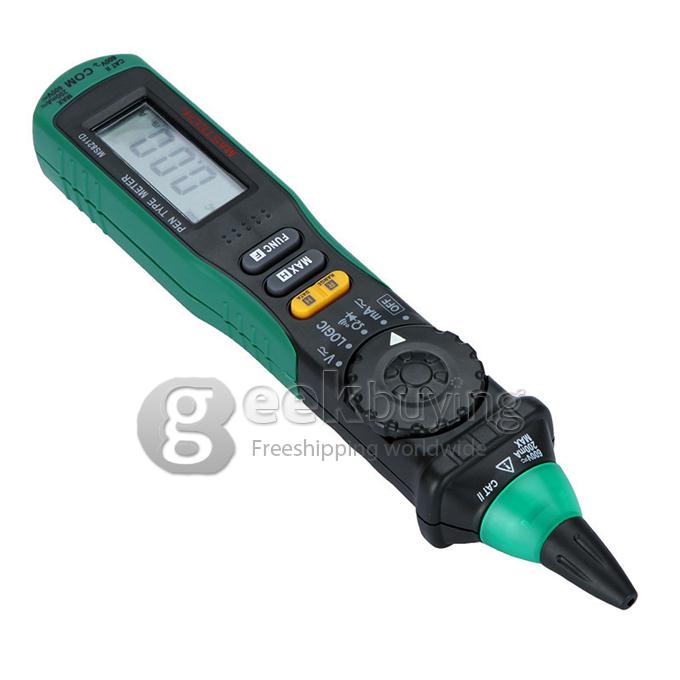

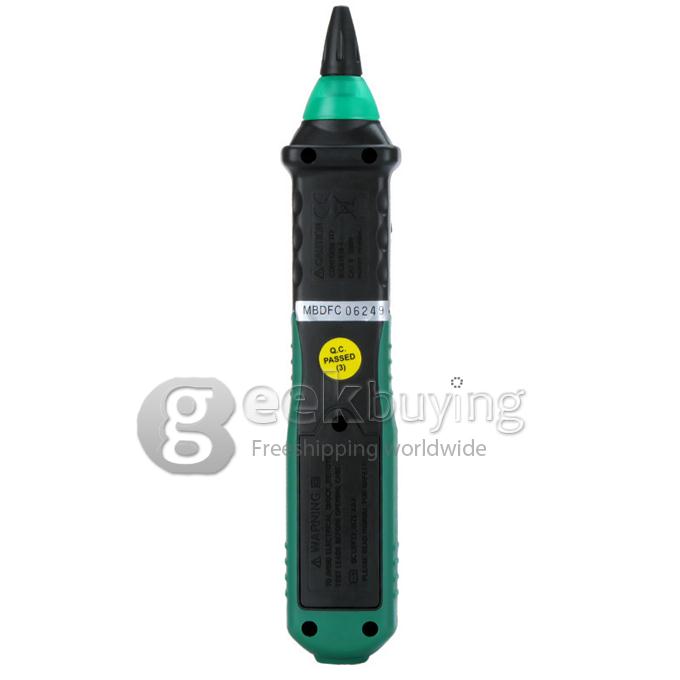

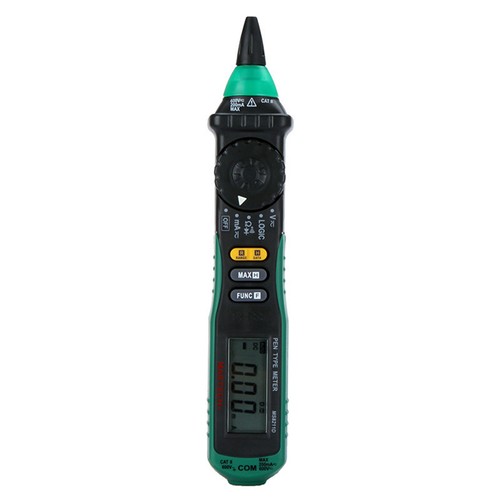

- - Pen-type design and Autoranging
- - Test AC/DC voltage and current, resistance
- - Retractable tip design
- - Diode check and continuity test
- - Data Hold and MAX hold
- - This meter is a portable professional measuring instrument with handsome LCD easily reading
- - Single operation of a transform switch makes measurement convenient. Overload protection and low battery indication are provided, this meter is ideal for use in the fields, workshop, school, hobby and home applications.
- - This meter has function of auto range and manual range
- - This meter has function of auto power off
- - This meter is with the functions of data hold and maximum value measure and hold
- - When using, it can show ranges engineering unit enunciators measuring results
|
Specification |
Range |
|
|
|
|
|
|
DC Voltage |
200mV/2V/20V/200V/600V |
|
|
AC Voltage |
200mV/2V/20V/200V |
|
|
|
600V |
|
|
DC Current |
20mA/200mA |
|
|
AC Current |
20mA/200mA |
|
|
Resistance |
200Ω |
|
|
|
2KΩ/20KΩ/200KΩ/2MΩ |
|
|
|
20MΩ |
|
|
Feature |
||
|
Display |
|
|
|
Auto Ranging |
|
|
|
Manual Ranging |
|
|
|
Logic Level Test |
>3.5V: high level; <3.5V: low level |
|
|
APO |
Auto Power off |
|
|
Diode |
2.7V |
|
|
Continuity Buzzer |
<50Ω |
|
|
MAX |
Maximum value hold |
|
|
Data Hold |
|
|
|
Retractable tip |
Retractable tip for safe storage |
|
|
General |
||
|
Power Supply |
2×1.5 AAA Batteries |
|
|
Product Size |
208mm×38mm×29mm/ 8.2”×1.5”×1.1” |
|
|
Product Weight |
110g/0.2lb |
|
|
Category |
CAT.III 600V |
|
What's in the box?
- 1 x Test Lead
- 1 x Test Clip
- 2 x Batteries
- 1 x Instruction Manual
