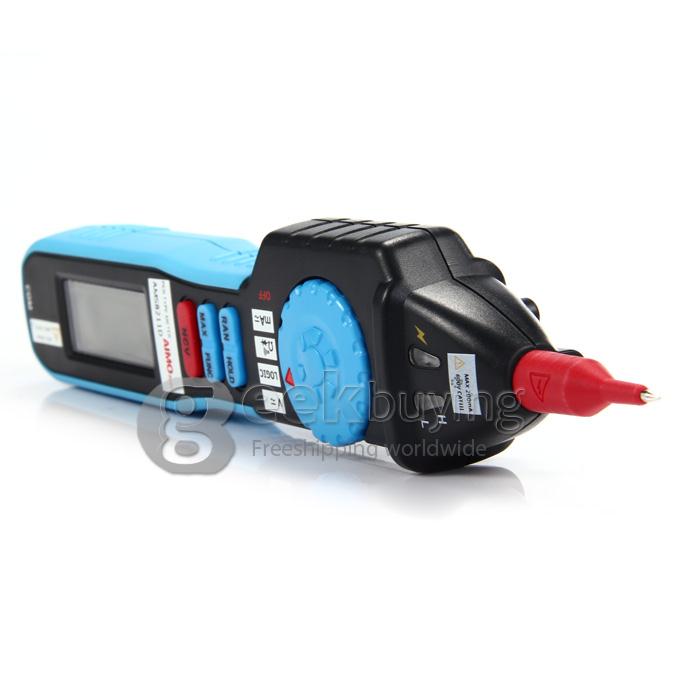

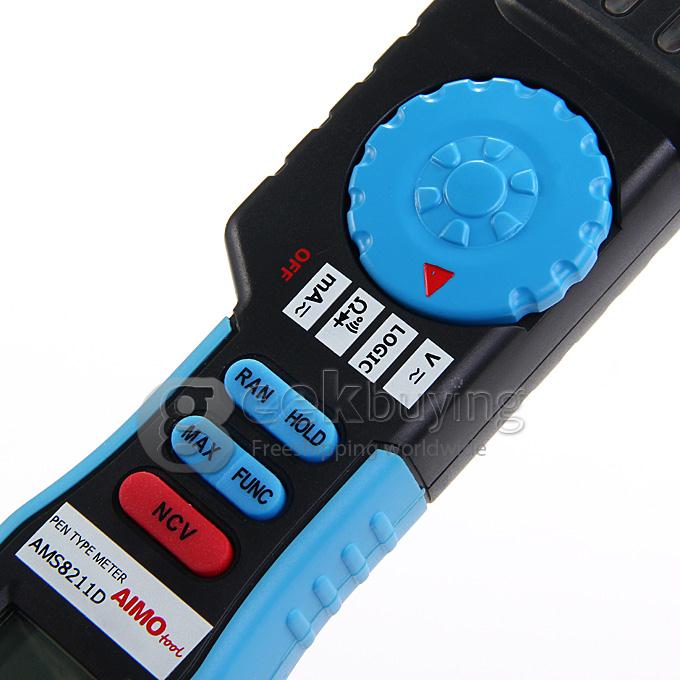

Mastech MS8211D Pen-type Digital Multimeter Manual Auto Range Logic Level Test Auto-ranging Current Measurement

Item Code: 341018 Write a review
Price:
  • 31.69
Reg. Price:
  • USD 41.07   Save: 23%

12item(s) added

View Cartor Continue Shopping>>
QTY :
Add to Cart
Bulk order rebate
71

Shipping: in 2-7 business days FREE SHIPPING

jb_year Ask a question Price Match

  • Description
  • Reviews
  • Q&A

Highlights

  • Display: 2000 counts
  • Pen-type design
  • Auto Ranging and Manual Ranging
  • Test AC/DC voltage and current, resistance
  • Logic Level Test >3.5v : High Level; <3.5v : Low Level
  • Auto Power Off
  • Retractable tip design
  • Diode check and continuity test
  • Data hold and Maximum Value Hold

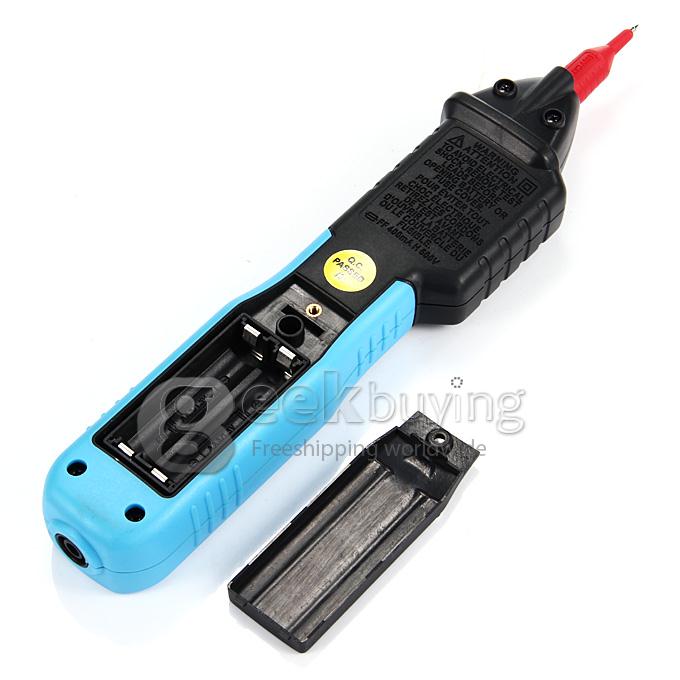

  • Power supply: 2 x 1.5AAA Batteries
  • Product Size: 208mm x 38mm x 29mm/8.26" x 1.5" x 1.1"
  • Product Weight: 102g/0.22lb
  • Safety Rating: CE ETL CAT.II600V RoHS
  •

Specification

General
Brand Mastech
Model MS8211D
Quantity 1 Piece
Color Blue + Black
Material Plastic
Specification
Display 20mm LCD
Operating temperature

0~40 Celsius Degree, 32~122 Fahrenheit

(<80% RH, <10 Celsius Degree non-condensing)

Storage temperature -10~50 Celsius Degree, 14~122 Fahrenheit (<70% RH, battery removed)
Max. voltage between terminals & earth 600V DC or AC
Max. displayed value  1999
Polarity indication "-" indicates negative polarity.
Over-range indication Display "OL"
Sampling time Approx. 0.4 second
Auto power off time 15 min.
Power supply 2 x 1.5AAA Batteries (not included)
Safety Rating CE ETL CAT.II600V RoHS
Dimensions & Weight (Main Product)
Dimension 208mm x 38mm x 29mm
Weight 115g

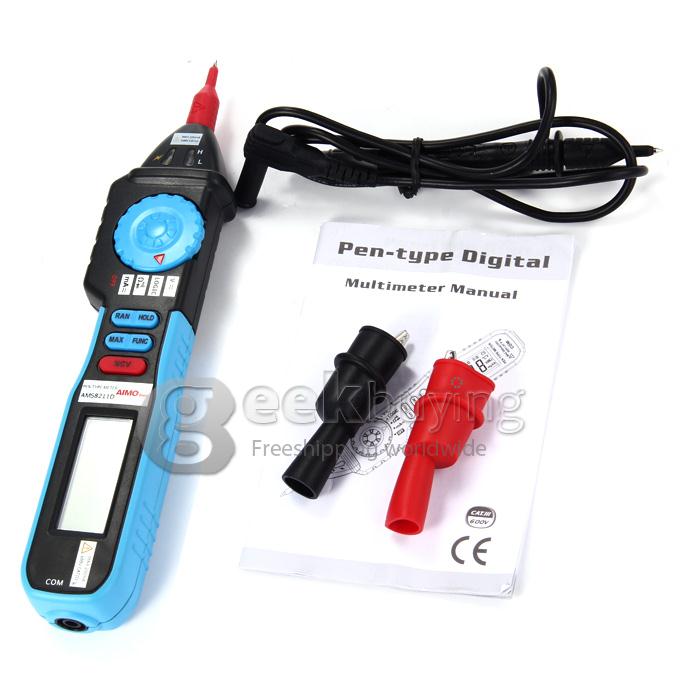

Package Contents
1 x MS8211D auto-ranging digital multimeter

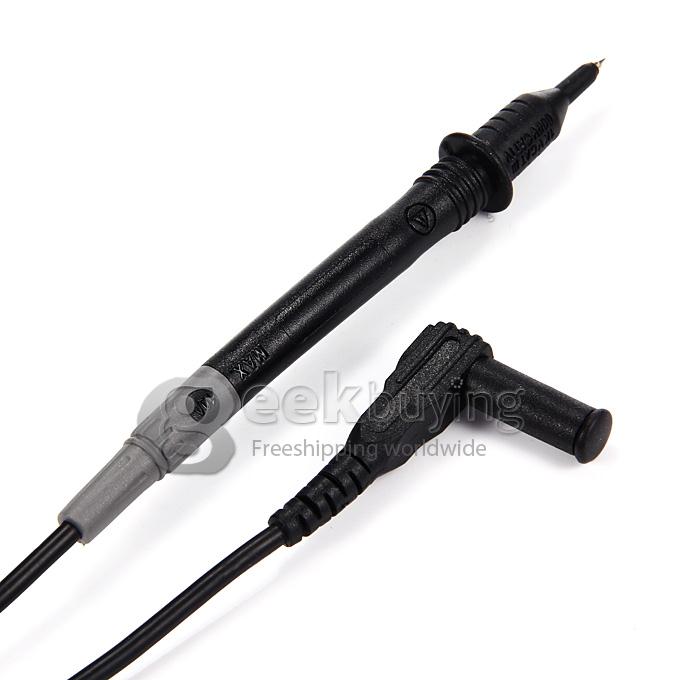

1 x Test lead
1 x Test clip
1 x Test Wire
1 x User Mannal
1 x Bag



Specifications Range Accuracy
DC Voltage 200mV/2V/20V/200V/600V ±(0.7%+2)
AC Voltage 200mV/2V/20V/200V ±(0.8%+3)
600V ±(1.0%+3)
DC Current 20mA/200mA ±(1.5%+3)
AC Current 20mA/200mA ±(2.0%+3)
Resistance 200Ω ±(1.0%+3)
2KΩ/20KΩ/200KΩ/2MΩ ±(1.0%+1)
20MΩ ±(1.0%+5)
