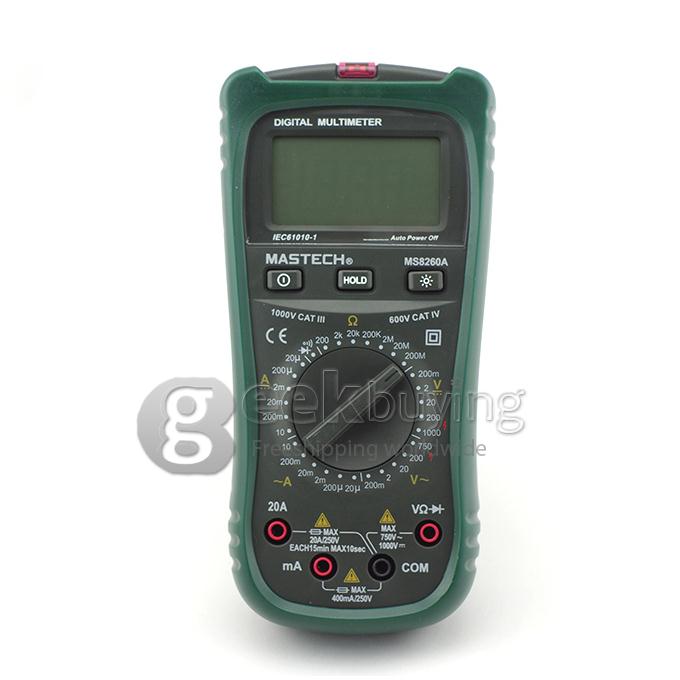

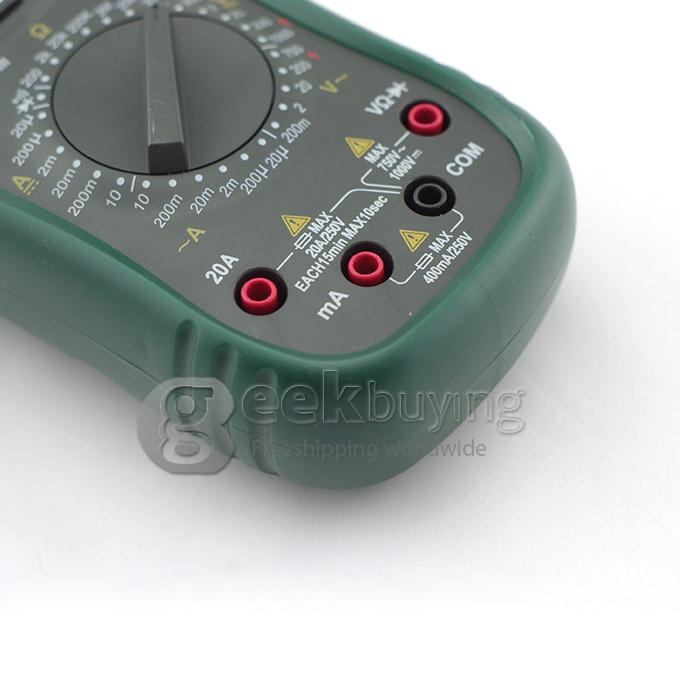

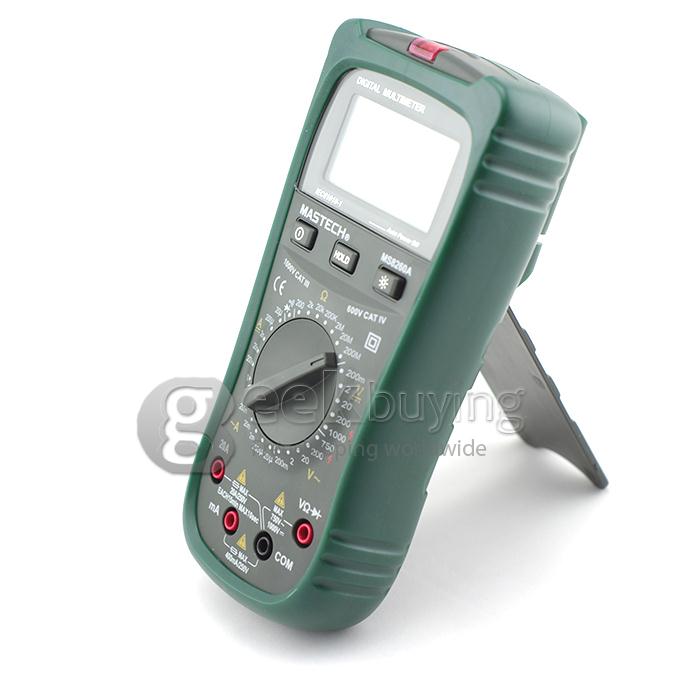

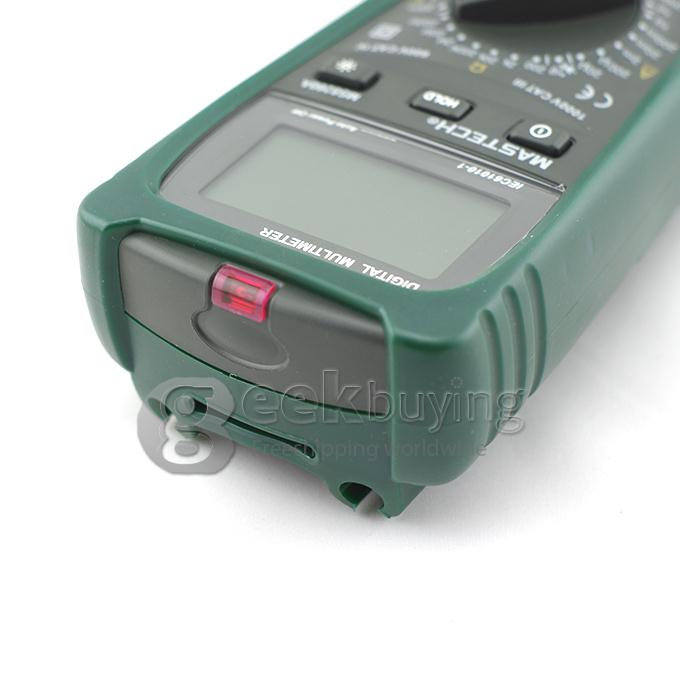

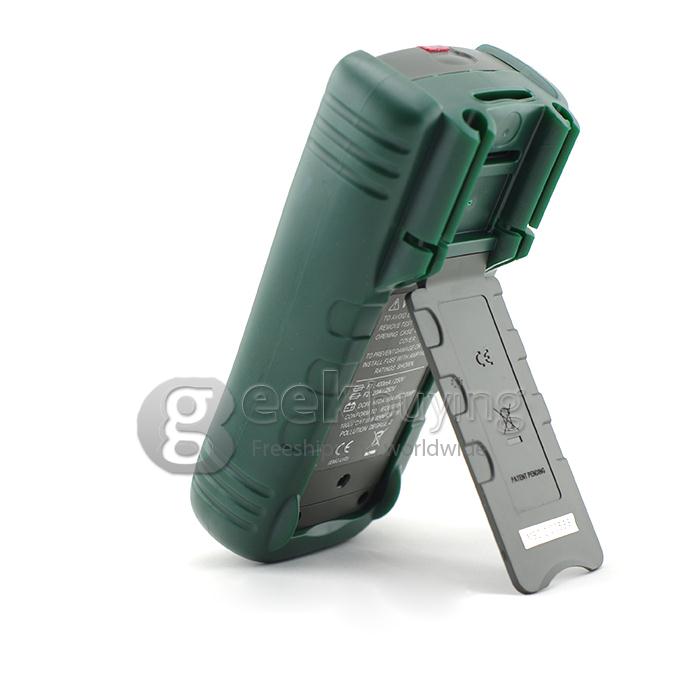

Mastech MS8260A Digital Multimeter DMM VOLT STICK Detector

Item Code: 323683 Write a review
Price:
  • 36.99
Reg. Price:
  • USD 52.38   Save: 29%

12item(s) added

View Cartor Continue Shopping>>
QTY :
Add to Cart
Bulk order rebate
16734

Shipping: in 2-7 business days FREE SHIPPING

jb_year Ask a question Price Match

  • Description
  • Reviews
  • Q&A

Highlights

  • Built-in non-contact AC voltage sensor with flash warning ( > 110V AC)
  • Auto power off
  • Data hold
  • Back-lit 3 1/2 digit LCD display
  • Low battery indication
  • Polarity indication

Specification

The Mastech MS8260A is a fully featured digital multimeter with all the functions you may need for your daily usage. Its 30-range rotary switch covers 8 different functions including AC/DC voltage and current, resistance, diode check, continuity test and transistor check. Designed for measuring low voltage and current, this meter has a range from 0 to 200 mV for voltage measurement with a resolution of 0.1 mV, for current, the lowest range is from 0 - 20 µA with a resolution of 0.01 µA. This meter also has a built-in non-contact sensor for detecting AC voltage greater than 110 volts.



  • DCV: 0 - 200mV - 2V - 20V - 200V ± 0.5% - 1000V ± 0.8%
  • ACV: 0 - 200mV ± 1.2% 0 - 2V - 20V - 200V ± 0.8% - 750V ± 1.2%
  • DCA: 0 - 20µA ± 2.0% 0 - 200µA - 2mA - 20mA ± 0.8% 0-200mA ± 1.5% 0 - 10A ± 2.0%
  • ACA: 0 - 20µA ± 2.0% 0 - 200µA - 2mA - 20mA ± 1.0% 0-200mA ± 1.8% 0 - 10A ± 2.0%
  • R:0 - 200 - 2k - 20k - 200k - 2M ± 0.8%, 0 - 20M ohm ± 1.0% - 200M ohm ± 5.0%
  • Audible continuity: < 30 ohm;
  • hFE: 0 - 1,000
  • Diode test: 1 mA , 2.8V;
  • Battery: 9Vx1, NEDA 1604/6F22 (NOT INCLUDED)
  • Size: 7 1/2" X 3 1/2" X 2";
  • Weight: 340g / 13 Oz



323683323683323683323683323683323683

What's in the box?

  • 1 x MS8260A Multimeter
  • 1 x Manual
  • 1 x sets Test Leads
