Matek 8 Bit WS2812B RGB 5050 Highlight LED for Naze32 CC3D

Item Code: 368188 Write a review
Price:
  • 5.79
Reg. Price:
  • USD 13.51   Save: 57%

12item(s) added

View Cartor Continue Shopping>>
QTY :
Add to Cart
Bulk order rebate
153

Shipping: in 2-7 business days FREE SHIPPING

jb_year Ask a question Price Match

  • Description
  • Reviews
  • Q&A

Highlights

  • Built-in controller chip, only need an IO port to control multiple LED.
  • Chip built-in shaping circuit,signal distortion is not cumulative, stable display.
  • Trichromatic 256 brightness adjustment, scan frequency is not less than 400Hz / S.
  • Serial connection-level interface, through a signal line to finish receiving and decoding data.
  • Both ends have interfaces (DIN DOUT) that can be cascaded
  • Will show the flight control lock / unlock,left and right aileron, brake, throttle, alarm and other status.

Specification

General
Type LED
Voltage About 5V
Ports Digital

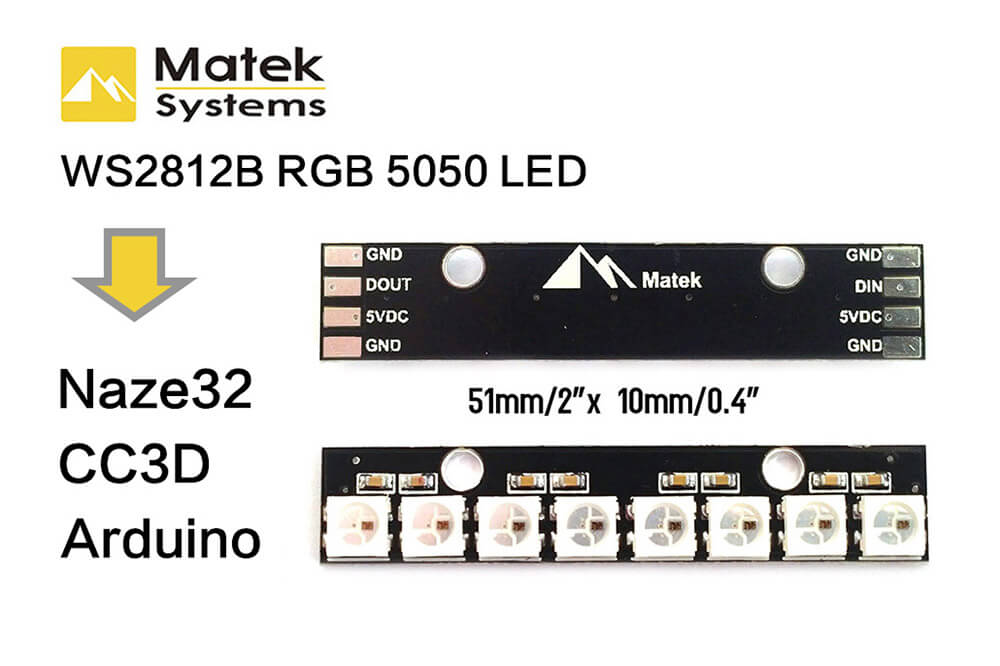

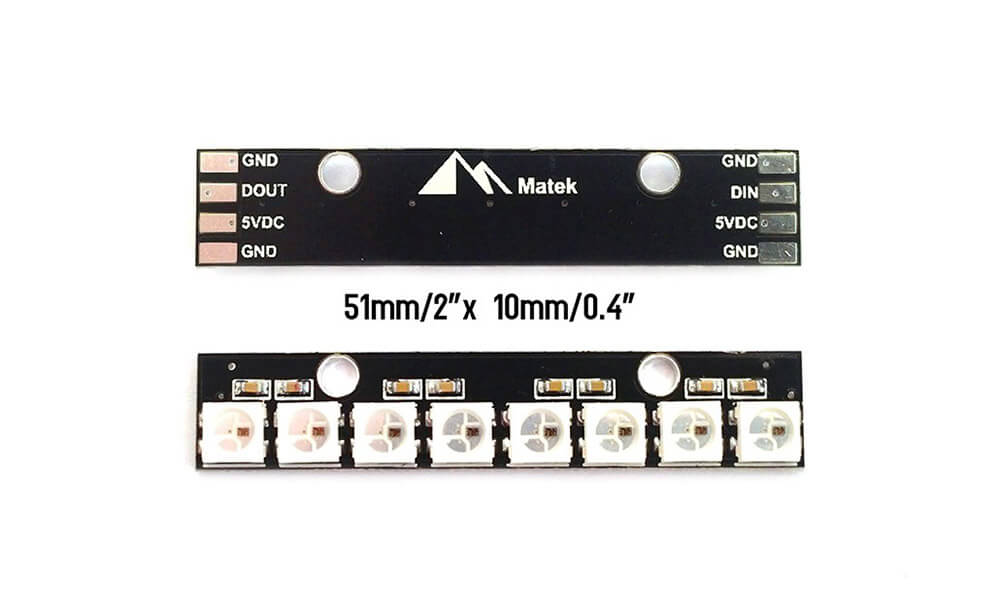

Size 51x10mm
Compatible AVR, Arduino,Naze32 / CC3D Flight Control
Note

If it is used for Naze32 or CC3D flight control,it need to brushed CleanFlight, and using PPM receivers.

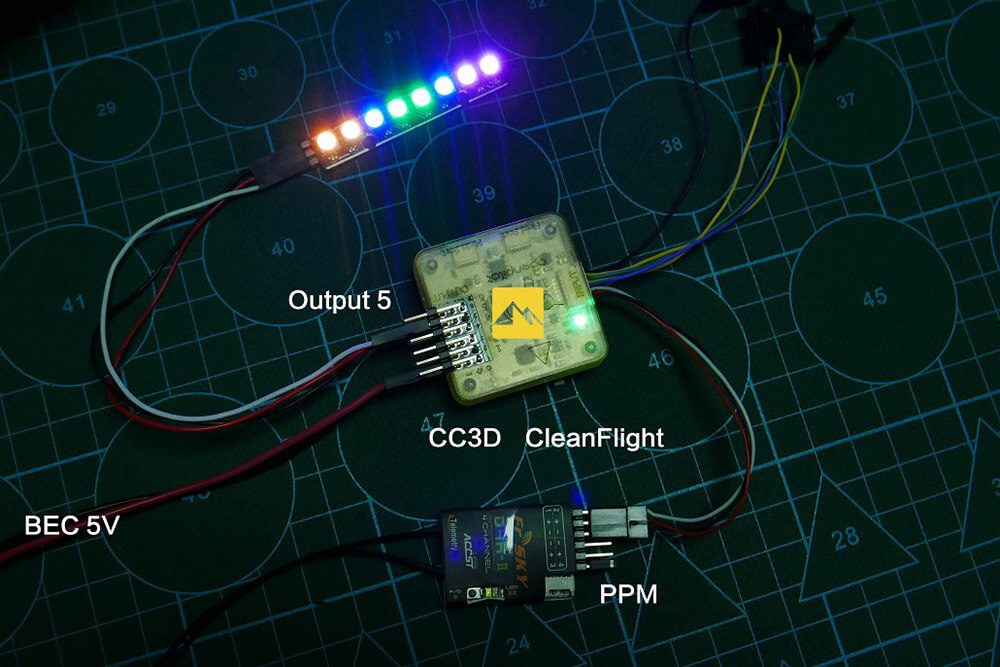

CC3D flight controller notes:
CC3D need to brushed CleanFlight firmware.
Using PPM / SBUS receiver, you don’t use PWM receiver.

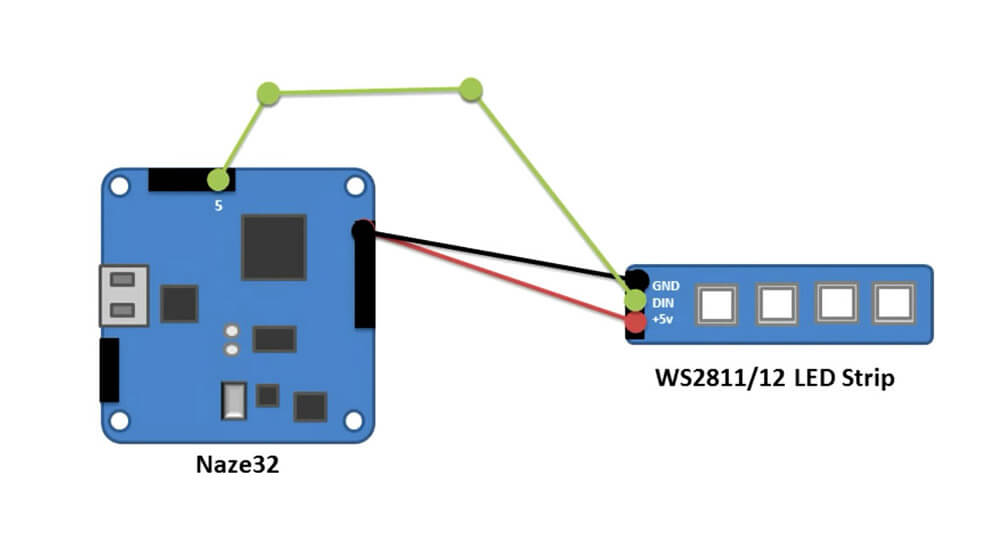

GND 5V DIN behind the lights should connected to CC3D fifth row - + S of the motor output side.
Choosing PPM receiver in the CF's assistant software configuration,then choose LED_STRIP options.
Finally into the CF assistant software LED Strip Page to setup various states.

Package Contents
1x WS2812B RGB 5050 LED
