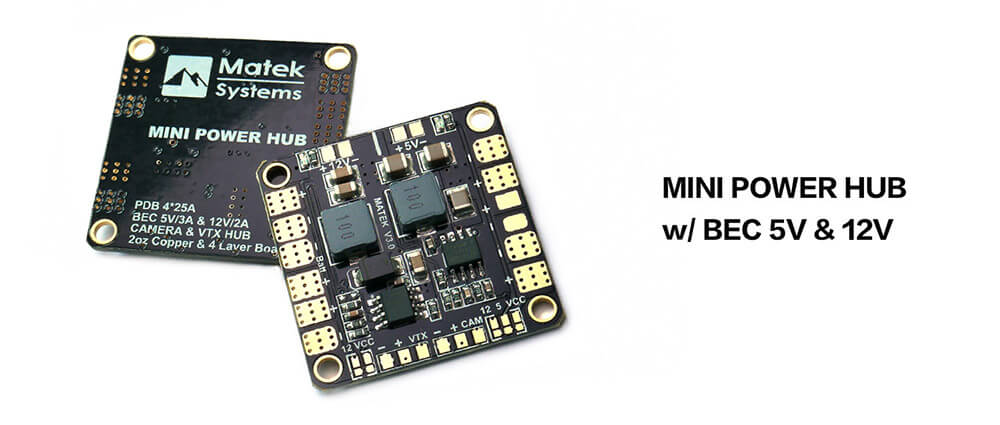

Highlights

  • The Mini POWER HUB has been engineered to provide the highest possible performance and reliability in a 36*36mm &
  • 4 layers PCB. The HUB distributes power from a battery pack to 4 ESCs, as well as providing synchronised & regulated
  • DC outputs for powering cameras, servos, video transmitters, LEDs, etc. Batteries may range from 3S to 6S LiPo.
  • The HUB also features convenient solder bridge of various voltage for camera & video TX.

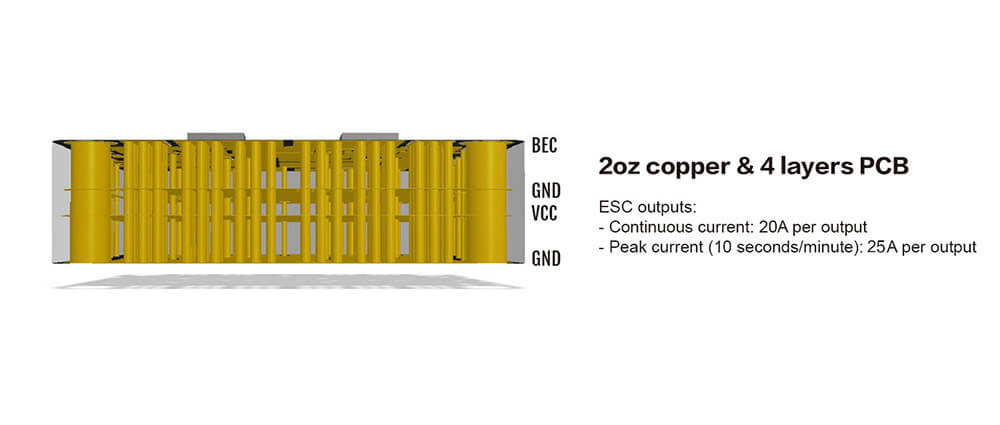

  • 2oz copper & 4-layers PCB.
  • ESC & Battery solder tabs in pairs.
  • Solder Bridges of various voltage for Camera & VTX.
  • 5V & 12V Output LED indicators & Short circuit tolerant.
  • 2oz copper & 4-layers PCB.

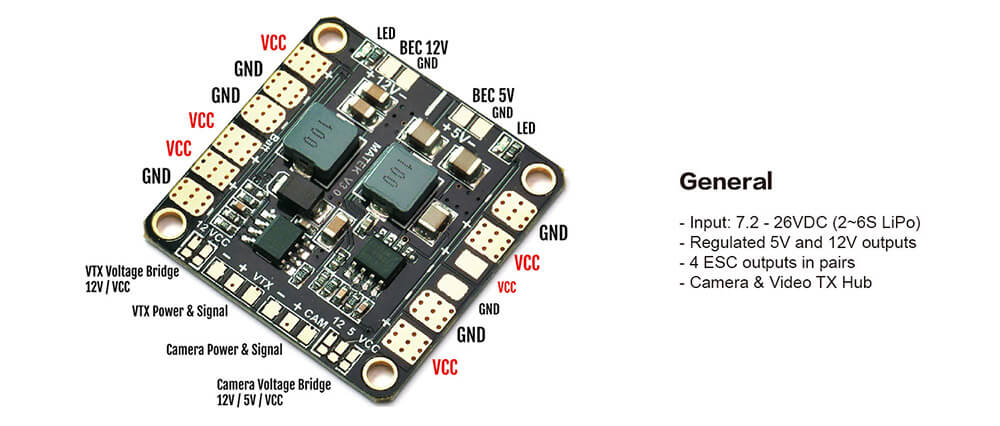

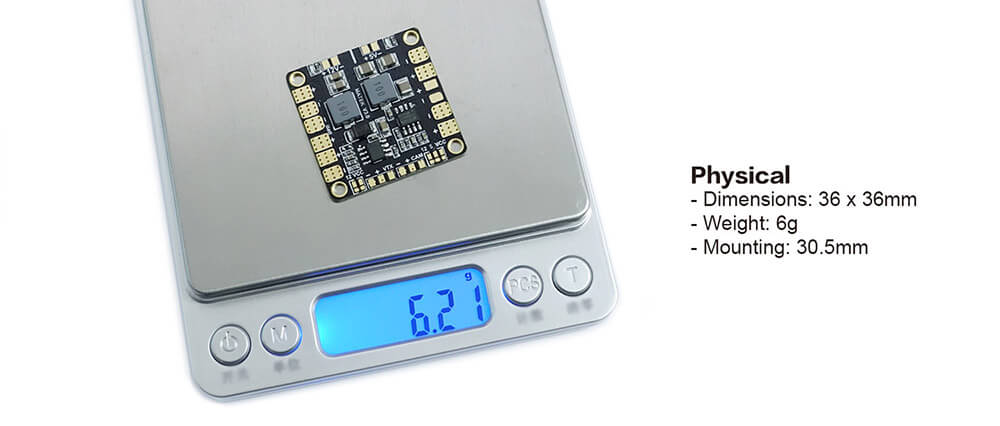

Specification

General
Type Power Distribution Board
General specs Input voltage range (2S-6S operation): 7.2 - 26VDC
Regulated 5V and 12V outputs
LED power indicators ( 5V & 12V outputs )
4 ESC outputs
ESC outputs Continuous current: 20A per output
Peak current (10 seconds/minute): 30A per output

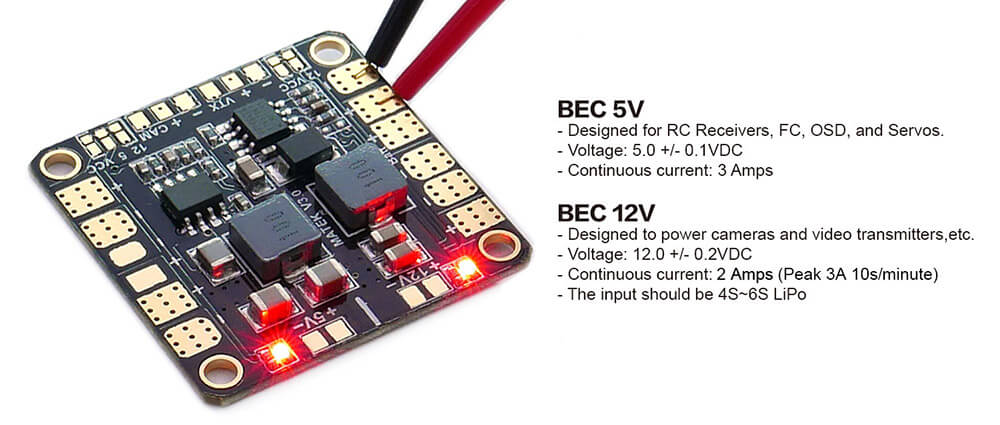

BEC 5V outputr

Designed for RC Receivers, Flight controllers, OSD, and Servos.

Voltage: 5.0 +/- 0.1VDC
Continuous current: 3 Amps
Short-circuit tolerant (10 seconds/minute) LED (indicates voltage is in regulation, within 10%)

BEC 12V output

The battery should be 4S~6S LiPo
Standard output designed to power cameras and video transmitters,etc.
Voltage: 12.0 +/- 0.2VDC
Continuous current: 2 Amps (Max.3A 10s/minute)
Short-circuit tolerant (10 seconds/minute)
LED (indicates voltage is in regulation, within 10%)

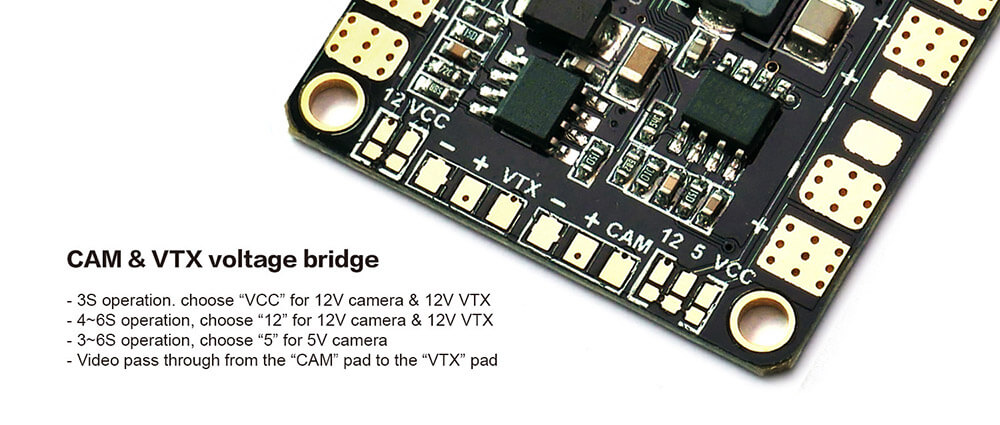

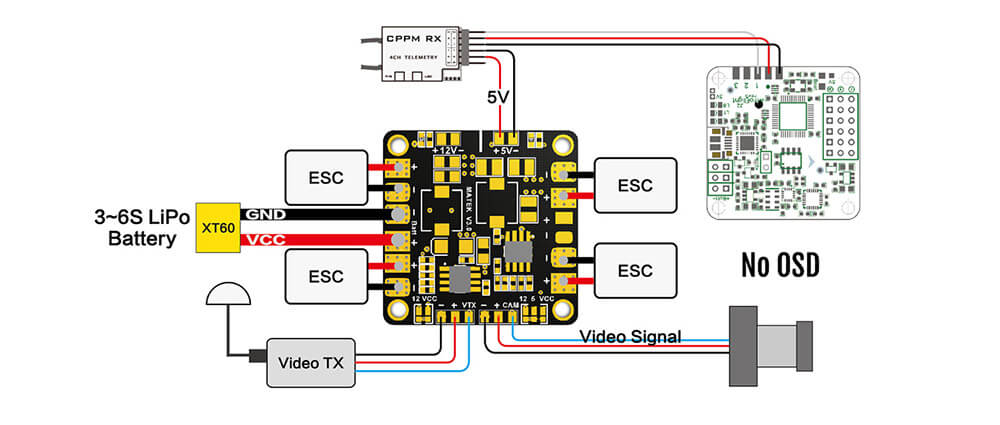

CAM & VTX voltage bridge 3S operation. choose “VCC” for 12V camera & 12V VTX,  VCC=Battery Voltage.
4~6S operation, choose “12” for 12V camera & 12V VTX
3~6S operation, choose “5” for 5V camera

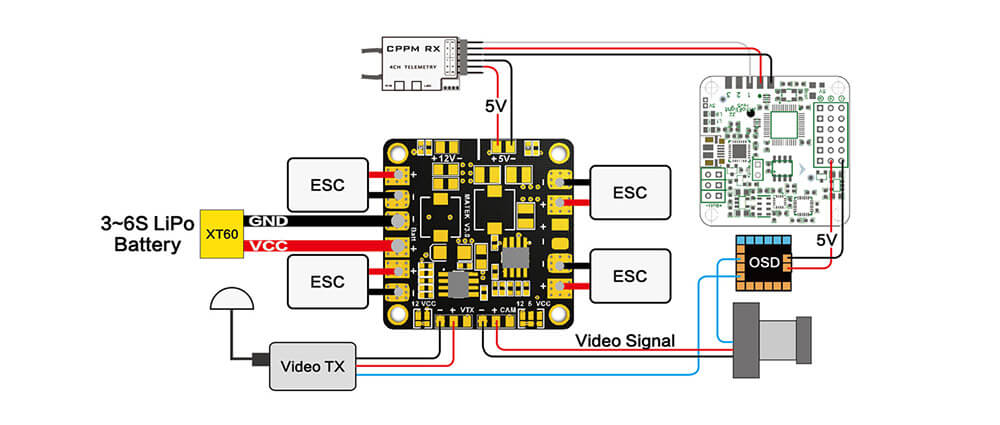

Video pass through from the “CAM” pad to the “VTX” pad
Compatible FPV Multicopter
Package Contents
1 x Matek Mini Power Distribution Board
