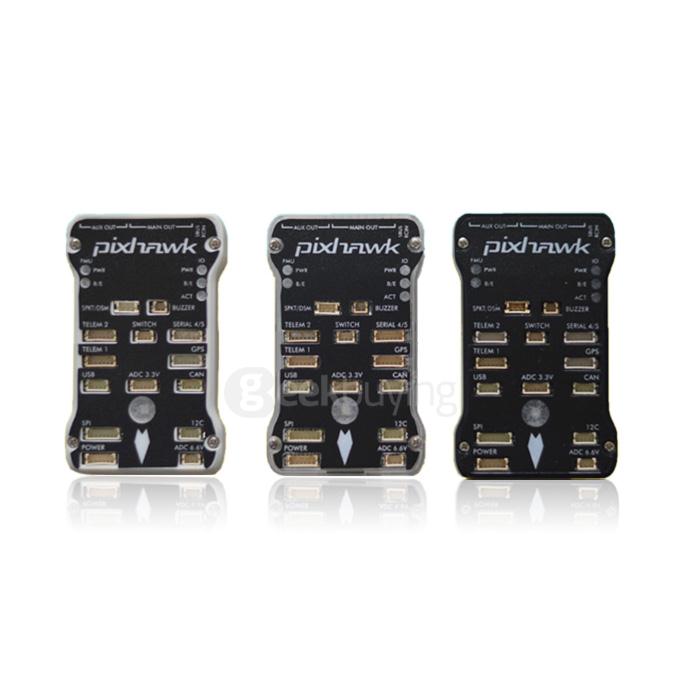

New Pixhawk PX4 Autopilot PIX 2.4.6 32Bits APM Flight Controller

Item Code: 355007 Write a review
Price:
  • 98.89
Reg. Price:
  • USD 245.31   Save: 60%

12item(s) added

View Cartor Continue Shopping>>
QTY :  Sold Out
Bulk order rebate
9

Shipping: in 2-7 business days FREE SHIPPING

jb_year Ask a question Price Match

  • Description
  • Reviews
  • Q&A

Highlights

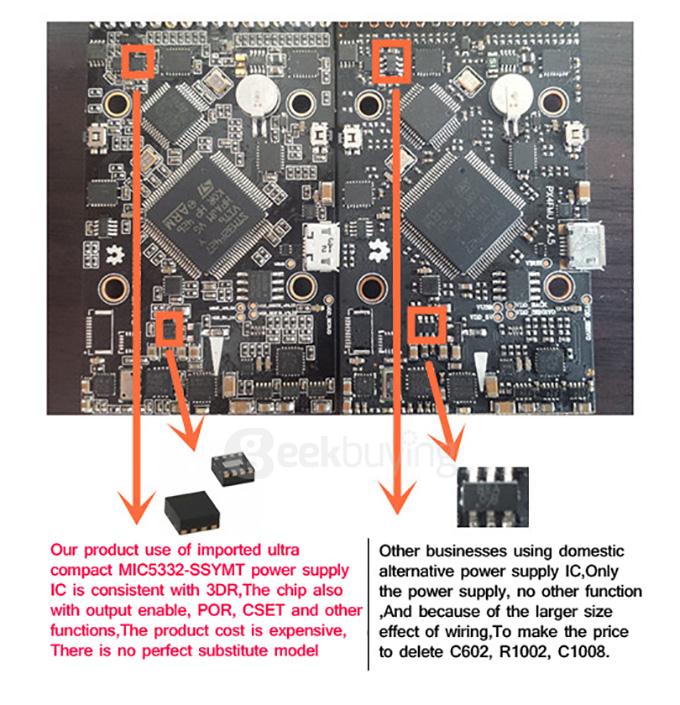

  • Improvencents on v2.4.5(added the second PMEG2005CT and 350ma ResettableFuse)
  • strict accordance with PX4 2.4.6 Schematic
  • Redeveloped and optimized circuit without changing any components
  • Build in certificate and could use Official MissionPlanner and ECLIPSE for firmware upgrade without clone prompt
  • We supply the bootloader in the SD card in case of emergency
  • Optimized original case with Polyester cabonate and white transparent black available

Key Features

  • 168 MHz / 252 MIPS Cortex-M4F
  • 14 PWM / Servo outputs (8 with failsafe and manual override, 6 auxiliary, high-power compatible)
  • Abundant connectivity options for additional peripherals (UART, I2C, CAN)
  • Integrated backup system for in-flight recovery and manual override with dedicated processor and stand-alone power supply (fixed-wing use)
  • Backup system integrates mixing, providing consistent autopilot and manual override mixing modes (fixed wing use)
  • Redundant power supply inputs and automatic failover
  • External safety switch
  • Multicolor LED main visual indicator
  • High-power, multi-tone piezo audio indicator
  • microSD card for high-rate logging over extended periods of time

Specification

General
Type Flight Controller
Processor 32bit STM32F427 Cortex M4 core with FPU
168 MHz
256 KB RAM
2 MB Flash
32 bit STM32F103 failsafe co-processor
Sensors

ST Micro L3GD20 gyroscope
ST Micro LSM303D 14 bit accelerometer / magnetometer
MEAS MS5611 barometer
InvenSence MPU6000 accelerometer/ gyroscope
Interfaces 5x UART (serial ports), one high-power capable, 2x with HW flow control
2x CAN (one with internal 3.3V transceiver, one on expansion connector)
Spektrum DSM / DSM2 / DSM-X® Satellite compatible input
Futaba S.BUS® compatible input and output
PPM sum signal input
RSSI (PWM or voltage) input
I2C
SPI
3.3 and 6.6V ADC inputs
Internal microUSB port and external microUSB port extension
Power System and Protection  Ideal diode controller with automatic failover
Servo rail high-power (max. 10V) and high-current (10A+) ready
All peripheral outputs over-current protected, all inputs ESD protected
Notice This product will  go through some adjustments and improvements.The above pictures are for reference only, please prevail in kind
Package Contents
1* PX4 V2.4.6 Flight board
1*Teflon safety switch
1*Buzzer
1*Original cover
