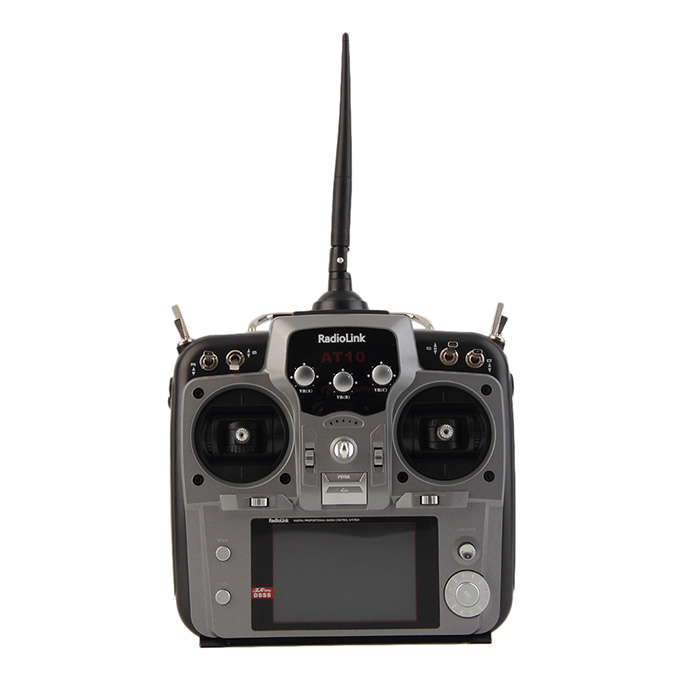

RadioLink AT10 10CH Transmitter Mode 2

Item Code: 356178 Write a review
Price:
  • 162.99
Reg. Price:
  • USD 415.94   Save: 61%

12item(s) added

View Cartor Continue Shopping>>
QTY :
Add to Cart
Bulk order rebate
94019

Shipping: in 2-7 business days FREE SHIPPING

jb_year Ask a question Price Match

  • Description
  • Reviews
  • Q&A

Highlights

  • Multiple function remote control system,including helicopter,airplane and slider three type flying machine and five models,cover almost every popular model,you can fly any model by this radio.

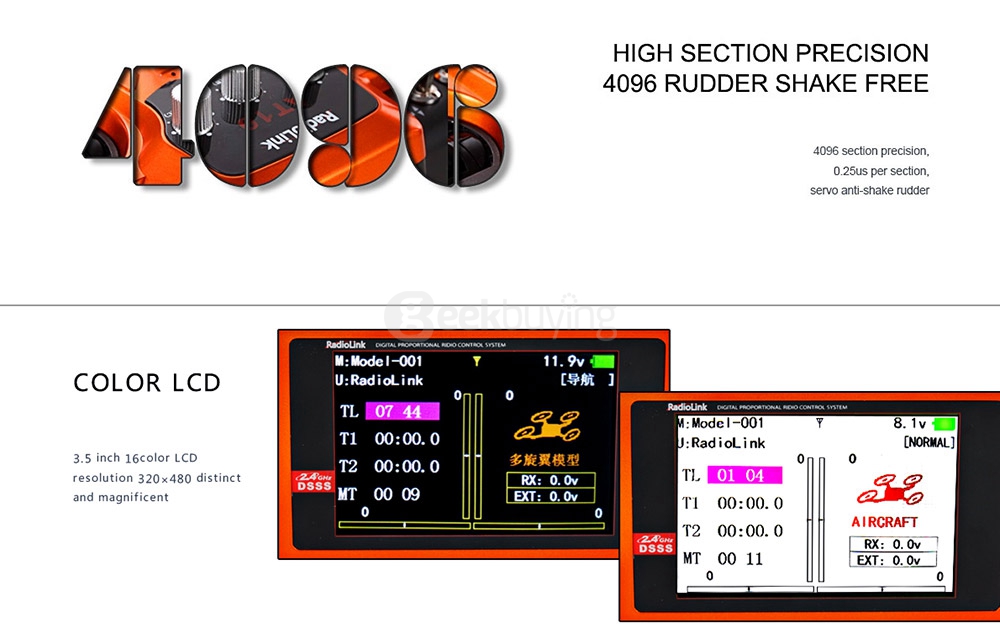

  • 3.5 inch colorful screen 320*480 resolution,clear display menu and graphs.
  • Great control distance: 1.1km on the ground,2km in the sky.
  • Expansion feedback module,users can get plane details in real time.
  • Make very setting clear and exactly output result.
  • Fast response time only 3ms to the operation,faster then the other transmitter 20ms,even ten channels also let you feel it.
  • High channel resolution reaches 4096,0.25us per resolution let all the servos keep tranquil.
  • Strong anti-jumping,DSSS(Direct sequence spread spectrum) technology.
  • Unbelievable price, high quality as supper bland, and more exactly, faster response, higher resolution,one and the only one anti-jumping DSSS technology.really worthy to have it.
  • Specifications:
  • Frequency: 2.4GHz ISM band (2400MHz~2485MHz);
  • Modulation mode: QSPK;
  • Channel bandwidth: 5.0MHz;
  • Spread spectrum: DSSS;
  • Adjacent channel rejection: >38dBM;
  • Transmitter power: <100mW(PCB testing);<20dBm(3 meter air testing);
  • Operating Voltage: 8.6~15V;
  • Operating Current: <95mA;
  • Control distance: 800 meters ground;
  • Channel: 10 Channel,8~10 channel are customizable;
  • Compatible model: Include all 120 degree and 90 degree swashplate helicopter,all fix wing and glider,five flying model;
  • Simulator model: under the simulator
  • Package size: 33 * 26 * 12cm / 13 * 10.2 * 4.7in
  • Note: Transmitter is Model 2 (Left Hand Throttle)

Specification

General
Type Transmitter
Model RadioLink AT10
Frequency 2.4GHz ISM band (2400MHz~2485MHz)
Modulation Mode QSPK
Channel Bandwidth 5.0MHz
Spread Spectrum DSSS
Adjacent Channel Rejection >38dBM
Transmitter Power <100mW(PCB testing);<20dBm(3 meter air testing)
Operating Voltage 8.6~15V
Operating Current <95mA
Control Distance 800 meters ground
Channel 10 Channel,8~10 channel are customizable
Compatible Include all 120 degrees and 90 degrees swashplate helicopter,all fix wing and glider,five flying model
Package Contents

1 * RadioLink AT10 10CH Transmitter(Mode 2)

1 * R10D 10Ch Receiver
1 * PRM-01 Voltage Return Module
1 * 4Pin Connector
1 * Manual
