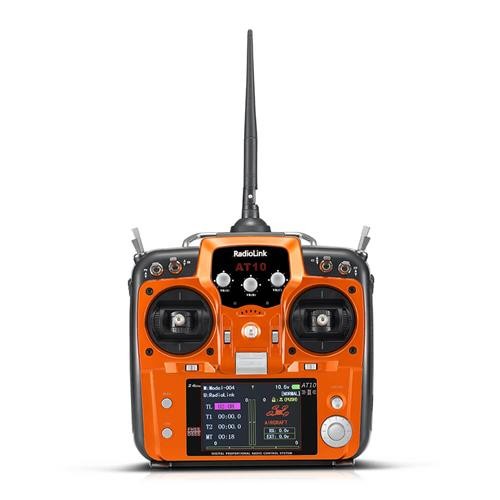

Radiolink AT10II 2.4G 12CH DSSS&FHSS Transmitter with R12DS Receiver Mode 2 - Orange

Item Code: 380514 Write a review
Price:
Reg. Price:
  • USD 159.99   Save: 19%
Option:

12item(s) added

View Cartor Continue Shopping>>
QTY :
Add to Cart
Bulk order rebate
0

Shipping: in 2-7 business days FREE SHIPPING

Ask a question Price Match

  • Description
  • Reviews
  • Q&A

Highlights

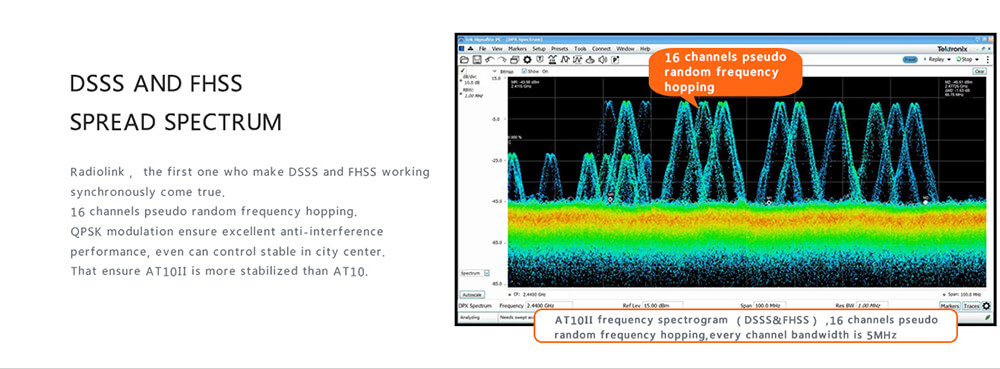

DSSS And FHSS Spread Spectrum

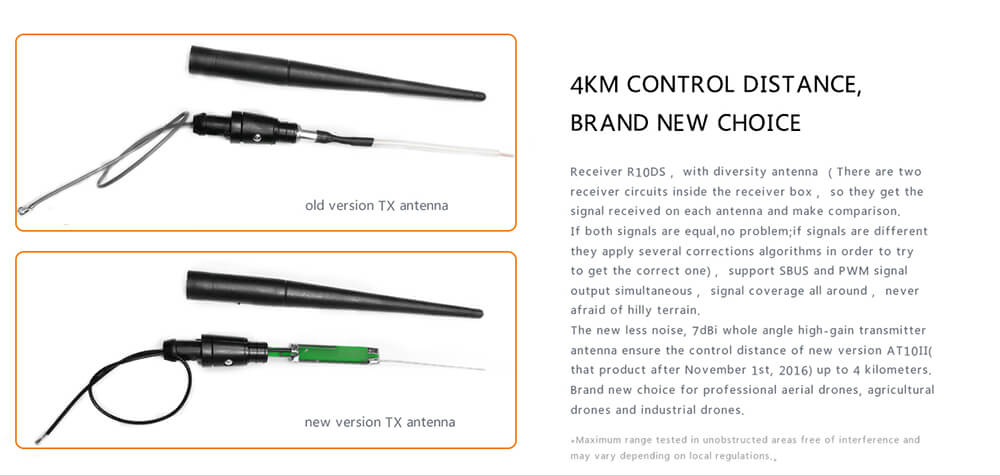

4KM Control Distance Brand New Choice

More Stabilized,More Faster

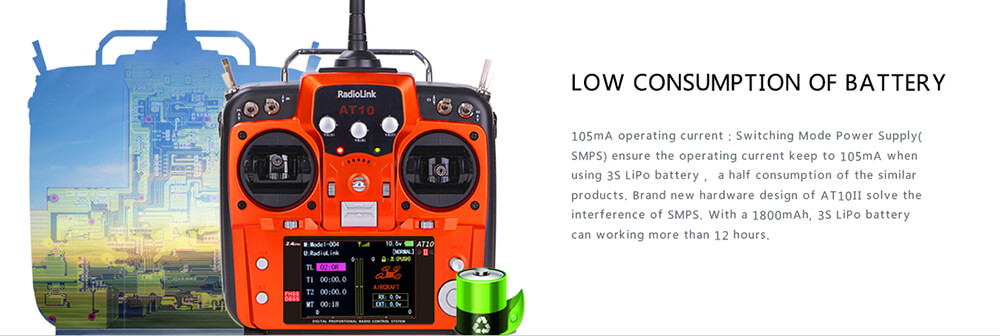

Low Consumption Of Battery

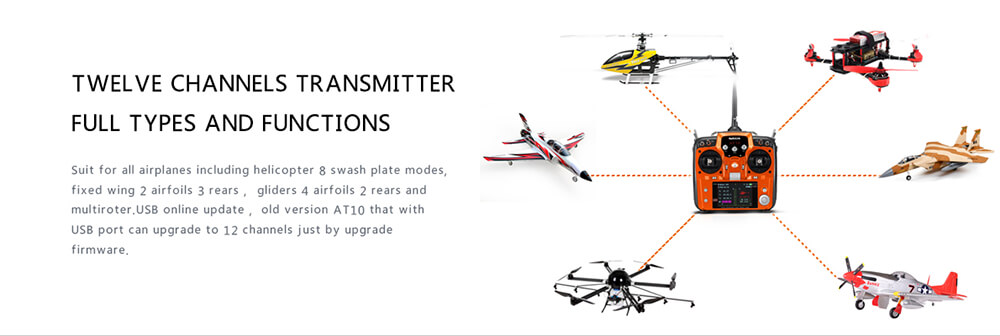

Twelve Channels Transmitter Full Types And Functions

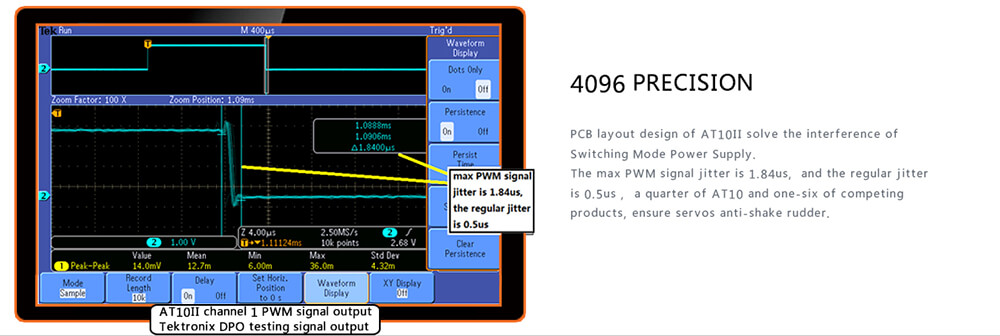

4096 Precision

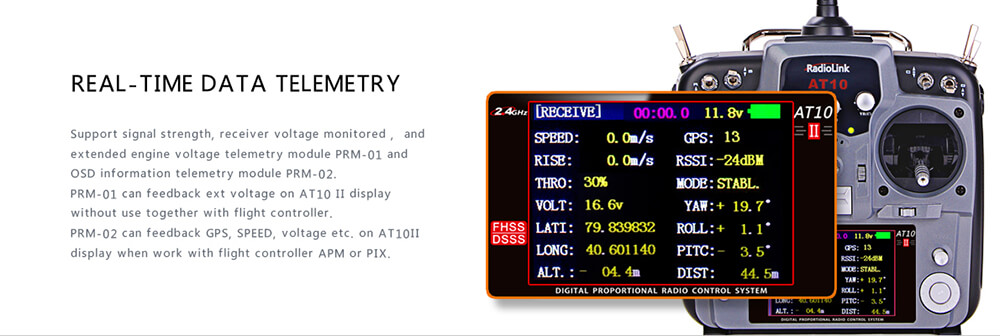

Real-time Data Telemetry

SBUS,PPM And PWM Support

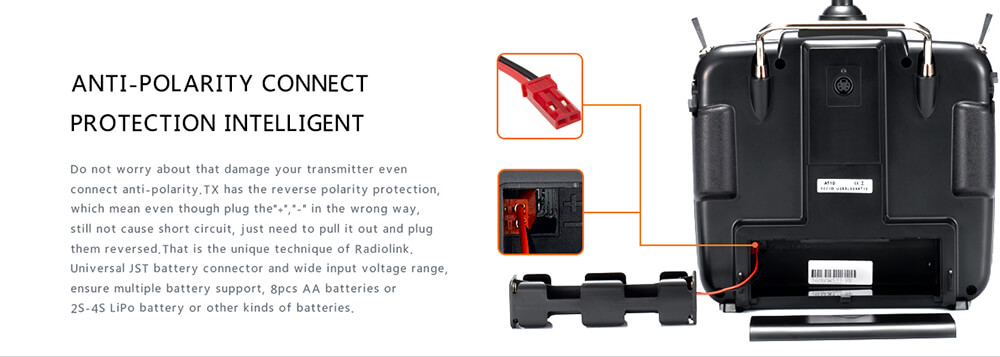

Anti-Polarity Connect Protection Intelligent

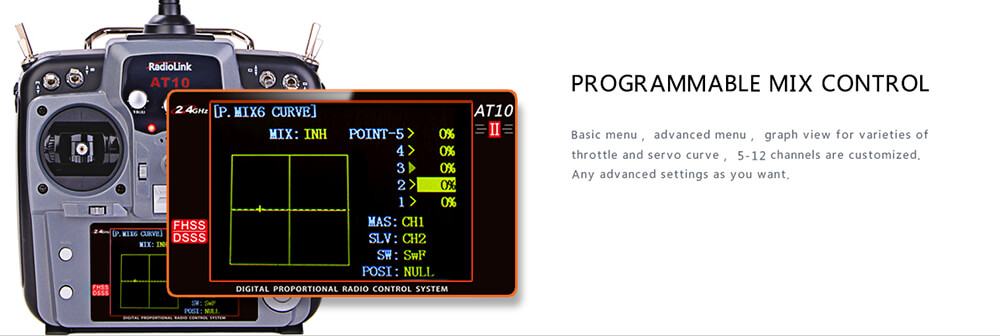

Programmable Mix Control

USB Upgrade

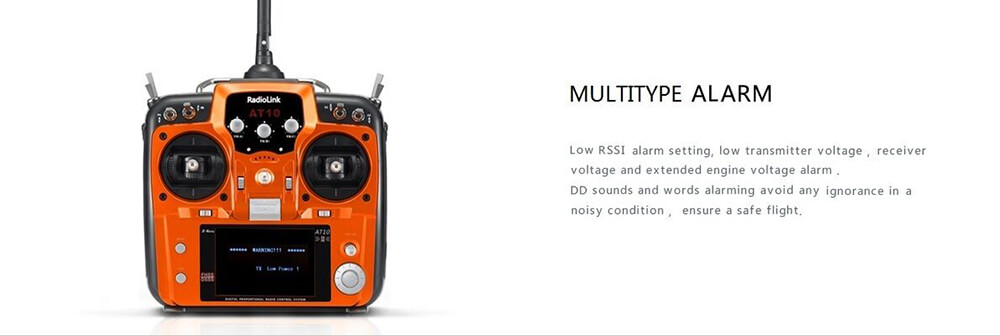

Multitype Alarm

Two signal working mode of R12DS:

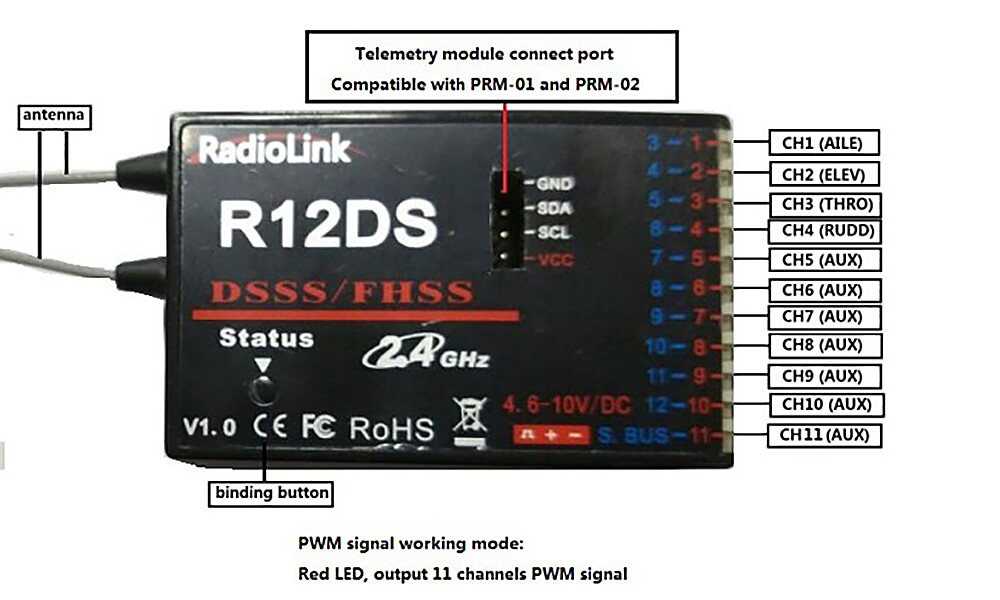

(1)PWM signal output working mode: red LED indicates PWM signal output, 11 channels Totally.

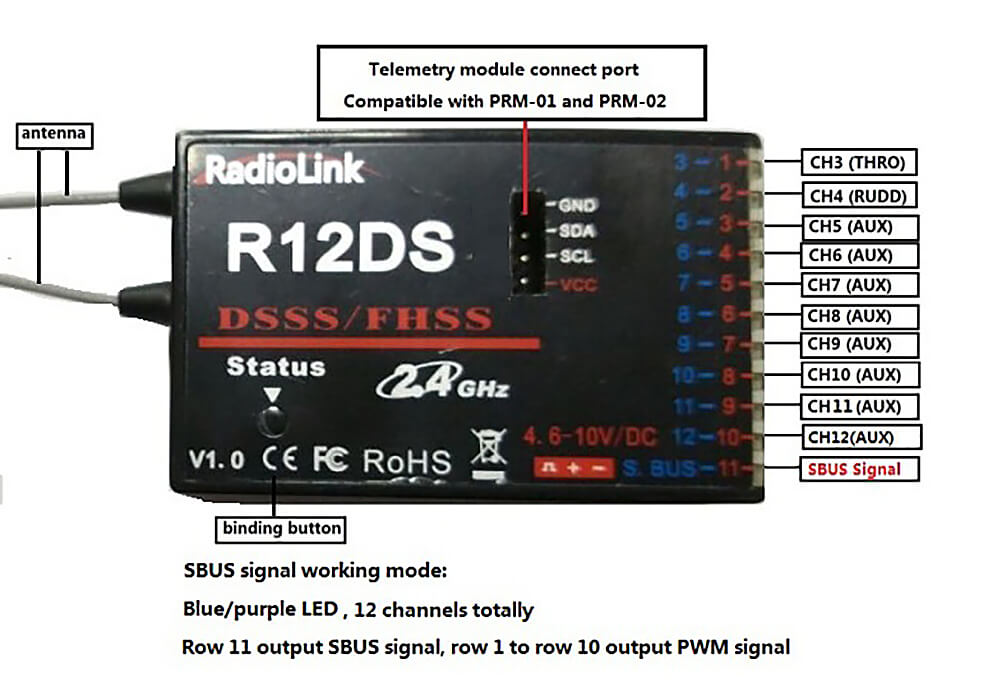

(2) S-BUS signal output working mode: blue/purple LED indicates S-BUS signal output, 12 channels totally.

S-BUS and PWM signal working at the same time. S-BUS signal channel(3 pin of row 11) output 12 channels S-BUS signal, PWM signal channels(3 pin of row 1 to row 10) output CH3 to CH12 PWM signals, but 12 channel in total. How many PWM signal channels you can use depends on how many S-BUS signal channels you have used(e.g: you have use 4 S-BUS signal channels, then you have 8 PWM signal channels to use).

How to match code with transmitter:

1. Put the transmitter and the receiver close to each other within 1 meters.

2. Turn on the transmitter, then power on the R12DS.

3. Connect CH3 of R12DS to ESC.

4. There is a black button on the R12DS, use a thin stick press the button twice in two seconds, receiver light starts blinking, after about blinking 8 times, match code success and receiver signal LED always on.

Radiolink AT10II 2.4G 12CH DSSS&FHSS Transmitter with R12DS Receiver Mode 2 - OrangeRadiolink AT10II 2.4G 12CH DSSS&FHSS Transmitter with R12DS Receiver Mode 2 - OrangeRadiolink AT10II 2.4G 12CH DSSS&FHSS Transmitter with R12DS Receiver Mode 2 - OrangeRadiolink AT10II 2.4G 12CH DSSS&FHSS Transmitter with R12DS Receiver Mode 2 - OrangeRadiolink AT10II 2.4G 12CH DSSS&FHSS Transmitter with R12DS Receiver Mode 2 - OrangeRadiolink AT10II 2.4G 12CH DSSS&FHSS Transmitter with R12DS Receiver Mode 2 - OrangeRadiolink AT10II 2.4G 12CH DSSS&FHSS Transmitter with R12DS Receiver Mode 2 - OrangeRadiolink AT10II 2.4G 12CH DSSS&FHSS Transmitter with R12DS Receiver Mode 2 - OrangeRadiolink AT10II 2.4G 12CH DSSS&FHSS Transmitter with R12DS Receiver Mode 2 - OrangeRadiolink AT10II 2.4G 12CH DSSS&FHSS Transmitter with R12DS Receiver Mode 2 - OrangeRadiolink AT10II 2.4G 12CH DSSS&FHSS Transmitter with R12DS Receiver Mode 2 - OrangeRadiolink AT10II 2.4G 12CH DSSS&FHSS Transmitter with R12DS Receiver Mode 2 - OrangeRadiolink AT10II 2.4G 12CH DSSS&FHSS Transmitter with R12DS Receiver Mode 2 - OrangeRadiolink AT10II 2.4G 12CH DSSS&FHSS Transmitter with R12DS Receiver Mode 2 - OrangeRadiolink AT10II 2.4G 12CH DSSS&FHSS Transmitter with R12DS Receiver Mode 2 - OrangeRadiolink AT10II 2.4G 12CH DSSS&FHSS Transmitter with R12DS Receiver Mode 2 - Orange

Specification

General Brand Name: RadioLink
Color: Orange
Item Name: AT10II transmitter with receiver
AT10 IITransmitter Frequency :2.4GHz ISM band (2400MHz to 2485MHz)
Channel :12 Channel,5-12 Channels are customized
Modulation Mode :QPSK
Channel Bandwidth :5.0MHz
Spread Spectrum :DSSS,FHSS
Adjacent Channel Rejection :>38dBM
Transmitter Power :<100mW (20dBm)
Operating Current :<105mA
Operating Voltage :7.4~15V
Control Distance :up to 4km,the actual control distance depends on the flying environment
Simulator Mode :Under the simulator model the transmitter action turn off, change to power saving model
Screen  :16 colorful screen
                Size:78 x 52mm
                320*480 pixel
Compatible Model :Include all 120 degree and 90 degree swashplate helicopter,all fix wing and glider, five flying model.
Size :18 x 9.5 x 22cm
Weight :0.95kg
R12DS Receiver

Frequency :2.4GHz
Channels: 12 channels: output 12 channels signal, support S-BUS and PWM signal output synchronously.
Working voltage: 4.8-10V
Working current: 38-45mA(input voltage: 5V)
Size: 50*31.5*14.5 MM
Weight: 14g
Control range: about 4 kilometers air(Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).

Package Contents 1 X Radiolink AT10 II Transmitter
1 X R12DS Receiver
1 X PRM-01 module
1 X Manual
