Highlights
- 1/4" 1.0 Megapixel CMOS SensorMax image Resolution 1280*720@25fps.
- H.264 Main Profile @ level 3.0 coding, Real time H.264 dual-stream encoding, resolution, frame rate, bit rate adjustable.
- Support Color/BW mode converting, IR-CUT Filter.
- Build in Motion Detection, support alarm linkage.
- Support Plug-and-Play, including PC surveillance platform and mobile client, Easy to remote.
- Integrated ONVIF standard, Compatibility with third-party ONVIF platform software.
- IP66 Rated Waterproof, Outdoor use.
- Support multiple record mode(Timed record, Motion Detection Record, Alarm Record).
Model | IPCC-H03 |
Hardware | |
Processor | HI3518C |
Sensor | 1/4" 1.0 Megapixel CMOS Sensor |
Lens | 4mm lens |
IR LED | 36 IR LEDs, IR Distance 10~20M |
Day/Night | IR-CUT |
Min. Illumination | 0.5lux; 0 lux with IR on |
Max S/N Ratio | 50dB |
Video | |
Compression | H.264 |
Image | main stream: 1280x720@1-25fps |
sub stream: 640x360@1-25fps | |
320x180@1-25fps | |
Bit Rate | 128~4096kbps, Supports CBR/VBR |
Image Control | Hue, saturation, brightness, contrast, exposure |
Auto Image Control | AE, AWB |
Audio | |
Compression | G.711-A |
Bit Rate | 64kbps/128kbps |
Talkback | support |
Network | |
Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, FTP, UPNP |
Compliance | ONVIF 2.1(1.02 backward compatible) |
PC Client and Browser | ISS, IE6.0 and above |
Mobile Phone | Iphone, ipad, Android |
WIFI Encryption | WAP, WAP2 |
LAN | 1 RJ45 10M/100M Ethernet port |
General | |
Working Temperature | -10℃~ +55℃ |
Working Humidity | |
Protection Level | IP66 Rated Waterproof |
Power Supply | DC 12 V/1A |
Power Consumption | Maximum 6w |
Dimensions | 50*45*150mm |
Weight | 1.0kg |
Approvals | CE , FCC, RoHS |

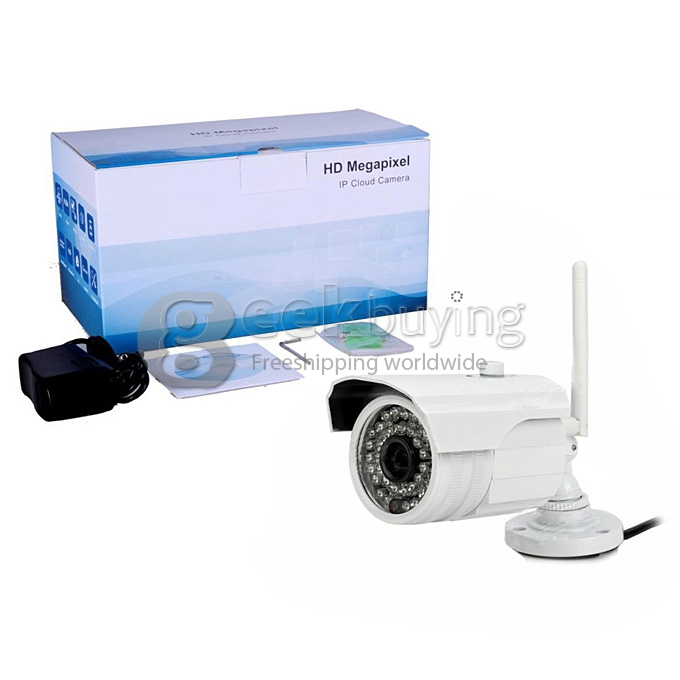

What's in the box?
- 1 x IP Camera
- 1 x Power Adaptor
- 1 x CD
- 1 X Bag of Screw
