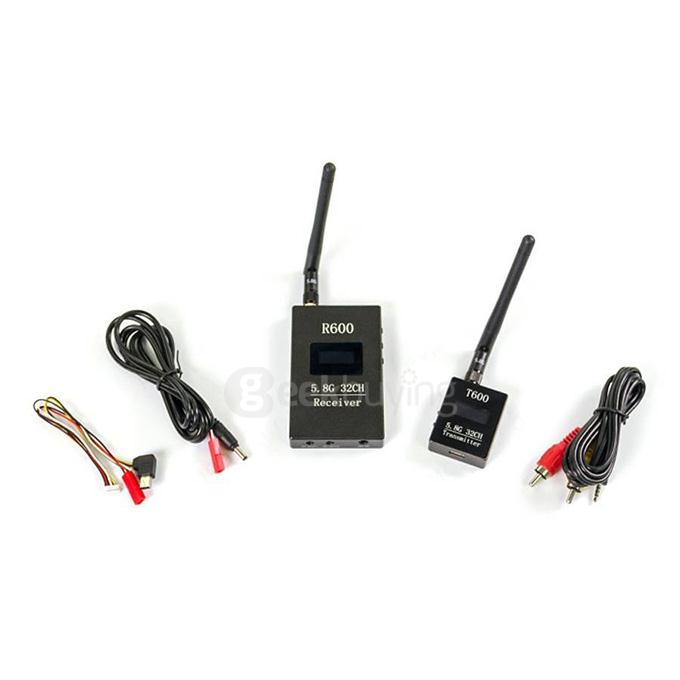

Skyzone T600 R600 5 8Ghz 600mW 32CH A V FPV Transmitter Receiver TX RX Set

Item Code: 358062 Write a review
Price:
  • 96.09
Reg. Price:
  • USD 161.31   Save: 40%

12item(s) added

View Cartor Continue Shopping>>
QTY :
Add to Cart
Bulk order rebate
88867

Shipping: in 2-7 business days FREE SHIPPING

jb_year Ask a question Price Match

  • Description
  • Reviews
  • Q&A

Highlights

  • 32 Channel, 4 frequency band wireless receiving
  • 2 Buttons for channel and band exchange individually
  • 2 number display, timely locate the current receiving frequency and band
  • When power on, storage memory shows channel and frequency of the last time.
  • Two-way video and audio signal output(video: PAL, NTSC, CECAM Audio: 6.5MHz)
  • 5dB sensitivity gain more than normal receiver
  • Wide dynamic power supply(7-24V)
  • Newly LOED display, can show the current working state correctly
  • Auto search, can find the needed channel by one press

Specification

General
Type Transmitter Receiver
T600 Transmitter Frequency: 5.8G
Channel:  32CH
Connector : SMA
Video Format: NTSC/PAL
Output Impedance: 50 Ohm
Output Power: 26-27dBm
Operating Voltage: 7-24V
Supply Current: 220mA
Operating Temp.: -10-8 Degrees
Video Brand Width: 0-8MHz
Audio Carrier Frequency: 6.5MHz
Video Input Impedance: 75 Ohm
Audio Input Level: 0.5-2.0 Vp-p
Audio Input Impedance: 10K Ohm
Weight: 25g
Dimension: 35 x 45 x 13mm
R600 Receiver Frequency: 5.8G
Channel: 32CH
Connector: SMA
Receiving Sensitivity: -95dBm
Receiving Frequency: ISM 5.8GHz 32CH
Power Supply Voltage: DC 7-26V
Supply Current: 130mA
RF Input Matching: 50ohm SMA
Video Output Voltage: 1.0Vp_p 75Ω
Audio Output Voltage: 1.0Vp_p 10KΩ
Dimension: 95 x 54 x 15mm
Weight: 100g
Frequency: CH and FR Form FR1(A) 5865M,5845M,5825M,5805M,5785M,5765M,5745M,5725M;
FR2(R) 5658M,5695M,5732M,5769M,5806M,5843M,5880M,5917M;
FR3(E) 5705M,5685M,5665M,5645M,5885M,5905M,5925M,5945M;
FR4(F) 5740M,5760M,5780M,5800M,5820M,5840M,5860M,5880M
Package Contents
1 x Receiver
1 x Transmitter
2 x Cable
2 x Antenna
