Tarot 5.8G FPV 600MW Image Transmission Receiver Set TL300N

Item Code: 354967 Write a review
Price:
  • 69.99
Reg. Price:
  • USD 110.33   Save: 37%

12item(s) added

View Cartor Continue Shopping>>
QTY :
Add to Cart
Bulk order rebate
93090

Shipping: in 2-7 business days FREE SHIPPING

jb_year Ask a question Price Match

  • Description
  • Reviews
  • Q&A

Highlights

  • TAROT developed 32 frequency points! 600mw 5.8g image transmission system with super mini size and light weight design, especially for current small-scale multicopters.32 frequency points is compatible with conventional frequency to provide one-way video signal, two-way audio signals long-distance transmission, besides, it also provides 5V 1A power output (can be used for image overlay, video cameras power supply. Be sure to check the voltage and current ahead in order to avoid burn-related equipment), its transmitter weight is only 8.3g (excluding antenna).

Specification

General
Brand Tarot
Model TL300N
Quantity 1 Piece
Specification
Transmitter Weight: 8.3G (without antenna)
Dimension: 21 x 33 x 7.5 mm
Working Frequency: 5645-5945MHz
Channel: 4 bands / 32 channel
Channel selection:5-DIP switch
Output Power: 27.5 dbm (600mw)
Input Voltage: DC 7-26V (2-6S)
Output Voltage: 5V 1A
Antenna Adaptor: RP SMA Female 50Ω
Working Temperature: -10 ~ 60 degrees
Frequency: FM

Receiver
Weight: 10.9 G (without antenna)
Dimension: 28 x 46 x 40 mm
Working frequency: 5645-5945 MHZ
Channel: 4 bands / 32 channels
Channel selection:5-DIP switch
Receiving Sensitivity: -85 dbm
Input Voltage: DC 7-26V (2-6S)
Antenna Adaptor: RP SMA Female 50Ω
Working Temperature: -10 ~ 60 degrees
Frequency: FM/PLL
Output: 2.5mm 4 pins AV output
Power input: 3.5mm (exterior) 1.3 mm (interior) DC
Note 1.Install the antenna before connecting the power to avoid further damage
2.Choose proper working frequency and tune the receiver to the same frequency. Please refer to the channel list
3.Do not touch the surface of transmitter while operating. It is normal the surface is getting hot
4.The input voltage range is between 7-26V (2-6S), do not overload the working voltage
5.The output voltage is 5V1A. Please confirm the current and voltage of the camera

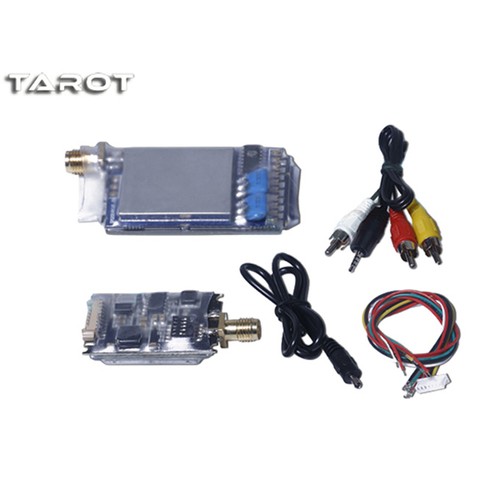

Package Contents
1x TX5832-600M audio and video transmitter
1x RX5832 audio and video receiver
1x 7P color strip cable
1x 3.5MM power cable
1x 2.5MM audio and video cable
1x Manual
