Tarot MT1806 KV2280 Self-Locking Brushless Motor CW TL300H1

Item Code: 354991 Write a review
Price:
  • 12.99
Reg. Price:
  • USD 22.72   Save: 43%
Option:

12item(s) added

View Cartor Continue Shopping>>
QTY :
Add to Cart
Bulk order rebate
38

Shipping: in 2-7 business days FREE SHIPPING

jb_year Ask a question Price Match

  • Description
  • Reviews
  • Q&A

Highlights

  • Tarot 1806-2280KV self-locking brushless motor is suitable for Tarot Mini 200(TL200A/TL200B) and Tarot Mini 250(TL250A/TL250B) quadcopter frame.Tarot has optimized 1806 brushless motors, so that its center of gravity is lower, more in line with multicopter design requirements.
  • MT1806 brushless motor using 0.20mm ultra thin high efficiency silicon,which can make motor with low heat, efficiency higher characteristic.Propeller mounting base and motor cover integration processing, one threaded shaft motor cover, can be directly installed clip (axis native folder structure) their concentricity can be the best guarantees.Motor cover active mat with efficient design to achieve lower operating temperatures which means higher productivity.

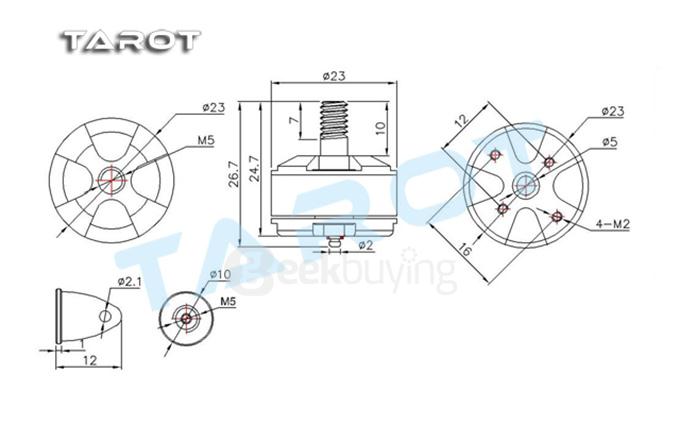

  • MT1806 brushless motor with dynamic balance of performance, each motor prior to shipment are subject to high precision dynamic balance measuring instrument, to ensure stability while the motor is running. Motor mounting as sets of mounting holes (holes as shown in figure), rack mounting your compatible on the market mainstream, traditional motor retains the look and consistency, high loft coil to a protective effect.

Specification

General
Type CW Motor
Model TL300H1
Propeller Prop Diameter:5mm
Propeller: 5 inch clover prop TL300E
Stator Stator Diameter:18mm
Stator End Thickness:6.0
Stator End Quantity:12
Power Supply 2-3S
Non-load Current 0.4A-0.7
Max Thrust 460g
Interphase Resistance ≤4mΩ
Rotate Speed 2280KV ± 5%
Size Motor Outer Diameter:23mm
Axis Diameter:2mm
Motor Length:26.5mm
Motor Weight:18g
Notice Please read the instructions in detail before assembly. Non-professionals are supposed to assemble it under guidance of professionals.
Package Contents

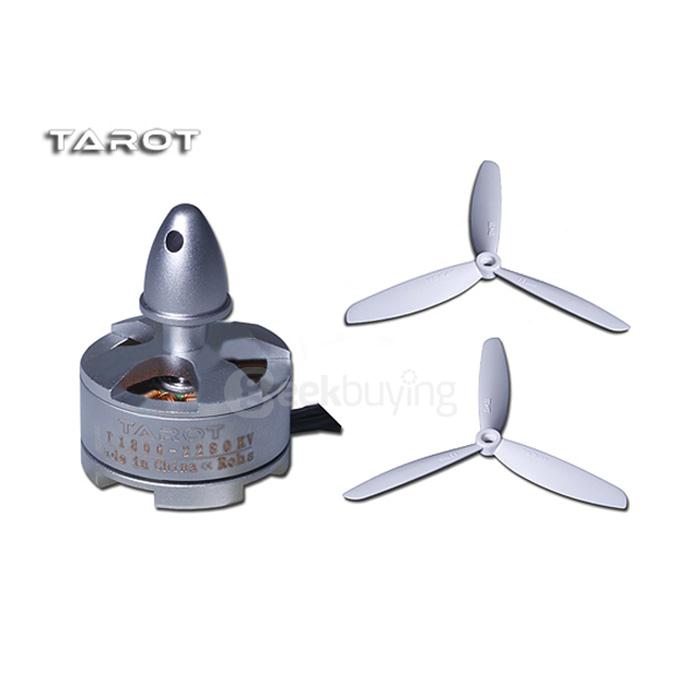

1x MT1806-2280KV CW motor
1 x 5 inch clover prop TL300E pair
