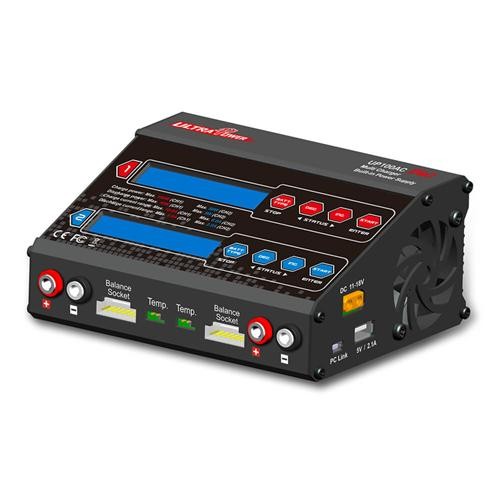

- The UP100AC DUO charger is a twin AC/DC charger with 100W and 50W power.
- The output power base on the principle of channel 1 + channel 2 = 100Watt.
- If only one channel is used, the output power come from channel 1 can approach to MAX. 100 watt, channel 2 can approach to MAX. 50 watt.
- If both channels are used, the output power of channel 1 equals 100 watt minus output power of channel 2.
- Start channel 2 while channel 1 is using fully 100 watt,the output power of channel 1 will be reduced accordingly. Each channel is capable of charging all types batteries.
|General||Item brand: Ultra Power
Item num: UP100AC DUO
Input voltage: AC 100-240V / DC 11.0-18.0V
Charging power: Max. 100W(CH1); Max. 50W(CH2)
Discharge power: Max. 50W(CH1); Max. 5W(CH2)
Charging current: 0.1-10A(CH1); 0.1-6A(CH2)
Discharge current: 0.1-5A(CH1); 0.1-2A(CH2)
LiIo/LiPo/LiFe: 1-6 series
NiCd/NiMH: 1-15 cells
Pb Battery: 2V-20V (1-10cells)
Balance current: 300mA/cell
Battery data memory: 10 profiles
|Dimensions&Weight||Weight: 714g / 1.6 lb
Size: 143 * 115 * 63mm / 5.6 * 4.5 * 2.5in
|Features||Optimized operating software.
Balancing individual cells for battery discharging.
Adaptable to various type of lithium battery.
Three USB ports, 5V/2.1A for iPad, mobile phone, digital cameras, etc.
Fast and storage mode of lithium battery.
Re-peak mode of NiMH/NiCD battery.
Terminal voltage control(TVC).
LiPo battery meter.
Automatic charging current limit.
Temperature Threshold (temperature probe is not included).
Processing time limit.
|Package Contents||1x UP100AC DUO 100W balance charger
1x Power supply cable
4x Charge connect cable
1x User Manual
