Optimized Operating Software
UP120AC DUO features the AUTO function that set the feeding current during the process of charging or discharging. Especially for lithium batteries, it can prevent the overcharging which may lead to an explosion. It can disconnect the circuit automatically and alarm once detecting any malfunction. All the programs of this product were controlled through two way linkage and communication, to achieve the maximum safety and minimize the trouble. All the settings can be configured by users!
Balancing Individual Cells For Battery Discharging
During the process of discharging, UP120AC DUO can monitor and balance each cell of the battery individually. Error message will be indicated and the process will be ended automatically if the voltage of any single one cell is abnormal.
Adaptable to Various Type of Lithium Battery UP120AC DUO is adaptable to various types of lithium batteries, such as LiPo, LiIon and the new LiFe series of batteries.
Fast and Storage Mode of Lithium Battery Purposes to charge lithium battery varies, 'fast' charge reduce the duration of charging, whereas 'store' state can control the final voltage of your battery, so as to store for a long time and protect useful time of the battery.
1 to 5 cyclic and continuous process of charge>discharge or discharge > charge is operable for battery refreshing and balancing to stimulate the battery's activity.
Re-Peak Mode of NiMH/NiCD Battery
In re-peak charge mode, the charger can peak charge the battery once, twice or three times in a row automatically. This is good for making certain the battery is fully charged, and for checking how well the battery receives fast charges.
The charger can store up to 10 different charge/discharge profiles for your convenience. You can keep the data pertaining to program setting of the battery of continuous charging or discharging. Users can call out these data at any time without any special program setting.
Terminal Voltage Control(TVC)
The charger allows user to change the end voltage.
LiPo Battery Meter
The user can check battery's total voltage, the highest voltage, the lowest voltage and each cell's voltage.
Delta-peak sensitivity for NiMH/NiCd battery: The automatic charge termination program based on the principle of the Delta-peak voltage detection. When the battery's voltage exceeds the threshold, the process will be terminated automatically.
Automatic Charging Current Limit
You can set up the upper limit of the charging current when charging your NiMH or NiCd battery, it is useful for the NiMH battery of low impedance and capacity in the 'AUTO' charging mode.
The charging capacity is always calculated as the charging current multiplied by time. If the charging capacity exceeds the limit, the process will be terminated automatically when you set the maximum value.
The battery's internal chemical reaction will cause the temperature of the battery to rise. If the temperature limit is reached, the process will be terminated. (This function is available by connecting optional temperature probe, which is not included in the package.)
Processing Time Limit
You can also limit the maximum process time to avoid any possible defect.

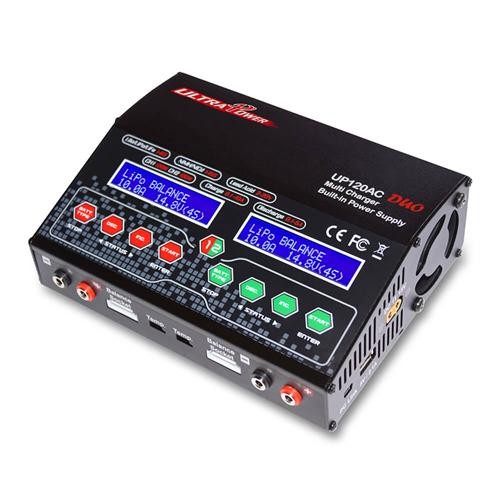

Item:UP120AC DUO Charger
Input voltage:AC 110V or 220V, DC 11.0-18.0V
Charge/Discharge Power: Max. 120W/10W (CH1), Max. 100W/10W (CH2)
Charge/Discharge Current: 0.1-10.0A/0.1-5.0A
Balance Current: 300mA/cell
LiIo/LiPo/LiFe cell count: 1-6 series
NiCd/NiMH battery cell count: 1 - 15cells
Pb battery voltage:2V-20V (1-10cells)
Battery data memory: up to 10 data
|Package Contents||1 x Ultra Power UP120AC DUO Charger (Included cables like pictures)|
