Highlights
VStarcam is a video doorbell that allows you to know who's at your door whether you're at home, at work or on the go. When a visitor presses the button. It sends you push notification so you open APP. And you can see, hear and speak to the person at your door from select iOS and Android mobile devices. Wifi Doorbell Camera replaces your current doorbell.
- 1.7mm Lens, H.264 CMOS 1.0MP
- Support Onvif RTSP protocol, triple stream

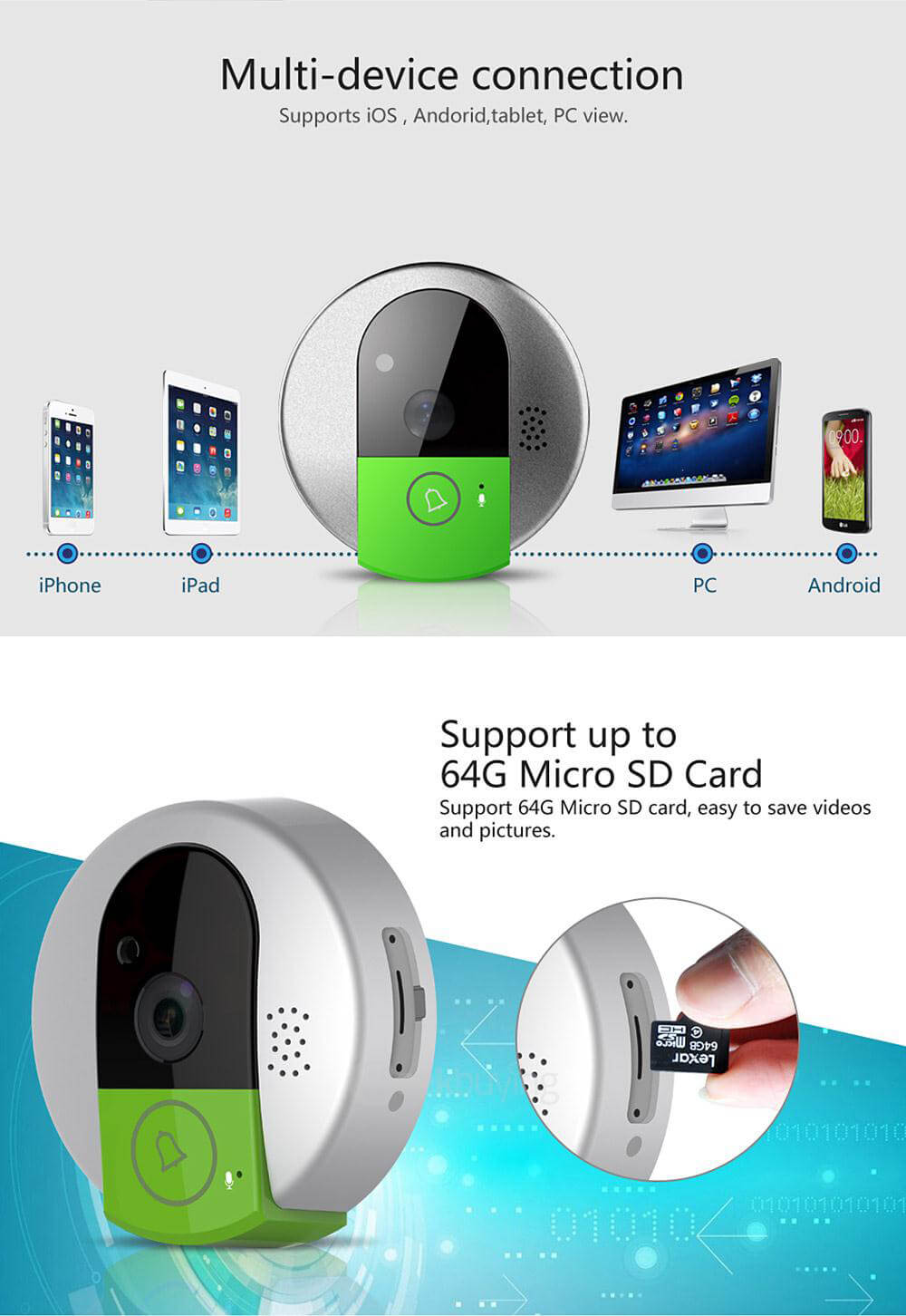

- Support up to 64G Micro SD card memory
- Built-in IR-CUT, 5m IR distance, Two Way Audio

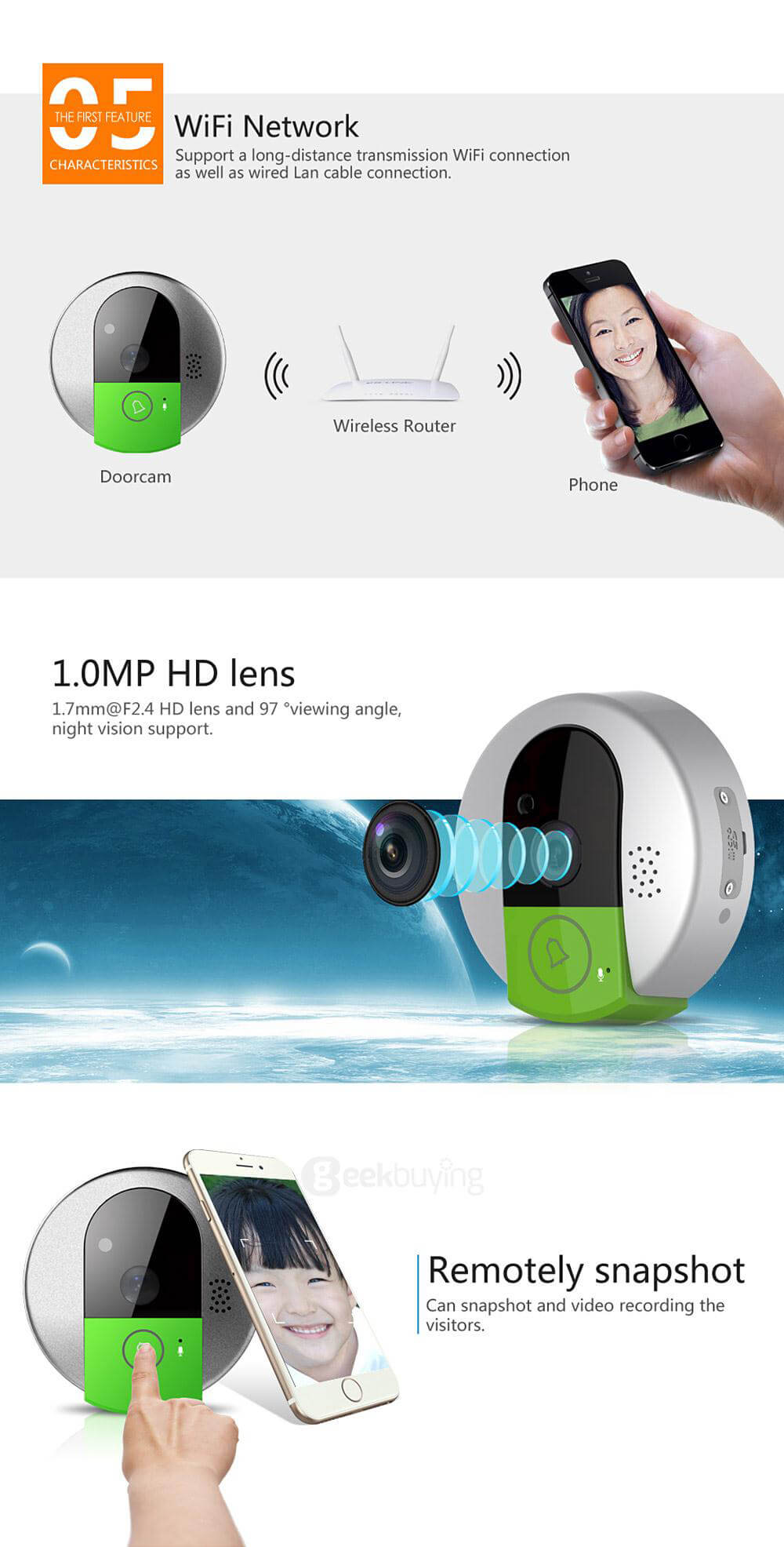

- AP Hotspot, Wifi Connection
- Micro USB Jack, 5V/2A
- Video phone call with visitor
- Motion detection recording, doorbell button trigger recording
- APP push notification
- IP camera sim card 3g
Specification
| General | |||||||
|---|---|---|---|---|---|---|---|
| Description | Product name | Doorcam | |||||
| Mode | C7895WIP | ||||||
| Features | Make Video phone call with visitors, and short time recording, known visitor information without door open. |
||||||
| System | OS | Embedded Linux OS | |||||
| System security | Three-level user authority management | ||||||
| Online visitor | Support up to 4 online visitors simultaneously | ||||||
| DDNS | Built in free DDNS | ||||||
| Processor | Hi processor, built in ARM926 @Max. 440MHz and high-speed video co-processor. | ||||||
| Collection | Image sensor | 4-inch 720p progressive scan CMOS sensor | |||||
| Sensor | support AWB,AGC,BLC | ||||||
| Sensor size | 3.84mm×2.16mm | ||||||
| SNR | ≥39dB | ||||||
| Minimum illumination | 0.8Lux/F1.4(colourful model ),0.3Lux/F1.(B&W mode) | ||||||
| Lens/viewing angle | 1.7mm@F2.4/96.96˚ | ||||||
| Night vision | Dual IR-CUT Filter auto switch, 1pcs 850nmΦ28mil super power LED,5m IR distance. | ||||||
| IR-Control | IR turned on: night vision view enabled, infrared Ray, ICR auto detect. IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode. |
||||||
| Video | Compression standard | H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline | |||||
| Video coding process | Multi stream:720P/24fps+VGA/30fps+QVGA/30fps+720P @1fsJPEG capture | ||||||

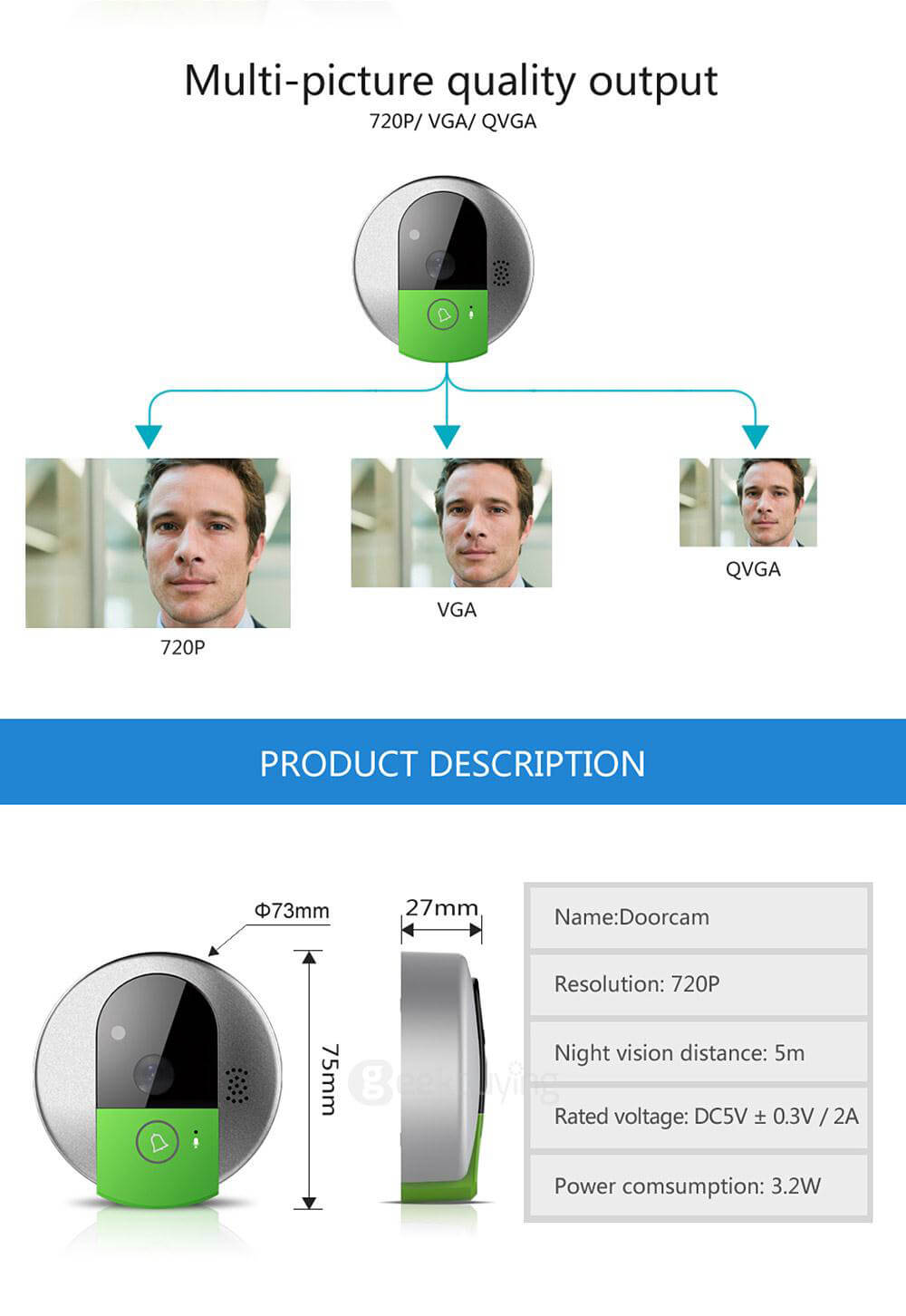

| Resolution | 720p/VGA/QVGA | ||||||
| Bit Rate | CBR/VBR, output bit rate range:128~4096kbps | ||||||
| Frame rate | 30fps/25fps(720p) | ||||||
| Image adjustment | Brightness,Contrast, Saturation are adjustable. | ||||||
| Audio | Input | 1 Channel Internal -48dB microphone | |||||
| Output | Internal speaker(8Ω1W) | ||||||
| Sampling frequency/ bits wide | 8KHz/16bit | ||||||
| Compression standard / bit rate | ADPCM/32kbps | ||||||
| Network | Protocol | TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P,etc. | |||||
| WiFi | 802.11b/g/n | ||||||
| Network security | one key congratulation | ||||||
| Wireless Connection | AP hotspot | ||||||
| Record | Recroding mode | motion detection recording, doorbell button trigger recording | |||||
| Storage | SD card storage | ||||||
| Physical indicators | Rated Voltage | DC5V±0.3V/2A | |||||
| Power supply | Mciro USB interface ,power supply 5V / 2A | ||||||
| Power consumption | Rated power:3.2W(IR on ) | ||||||
| Working temperature | Temperature: -10 ~ 50 ºC, Humidity <95% | ||||||

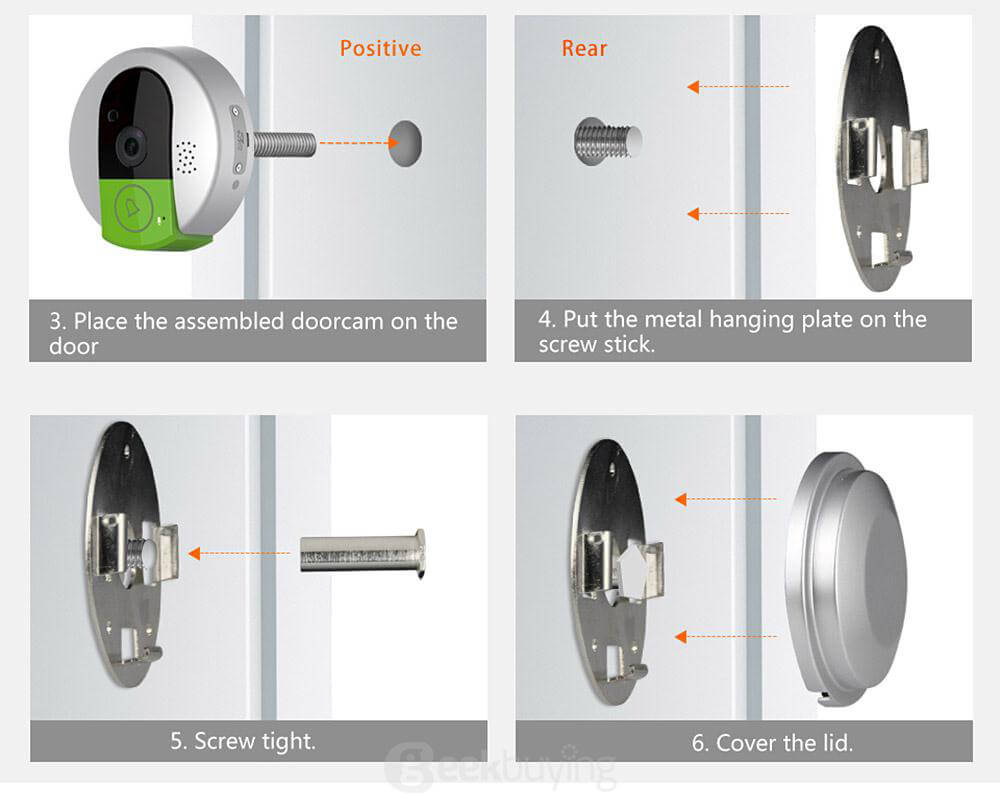

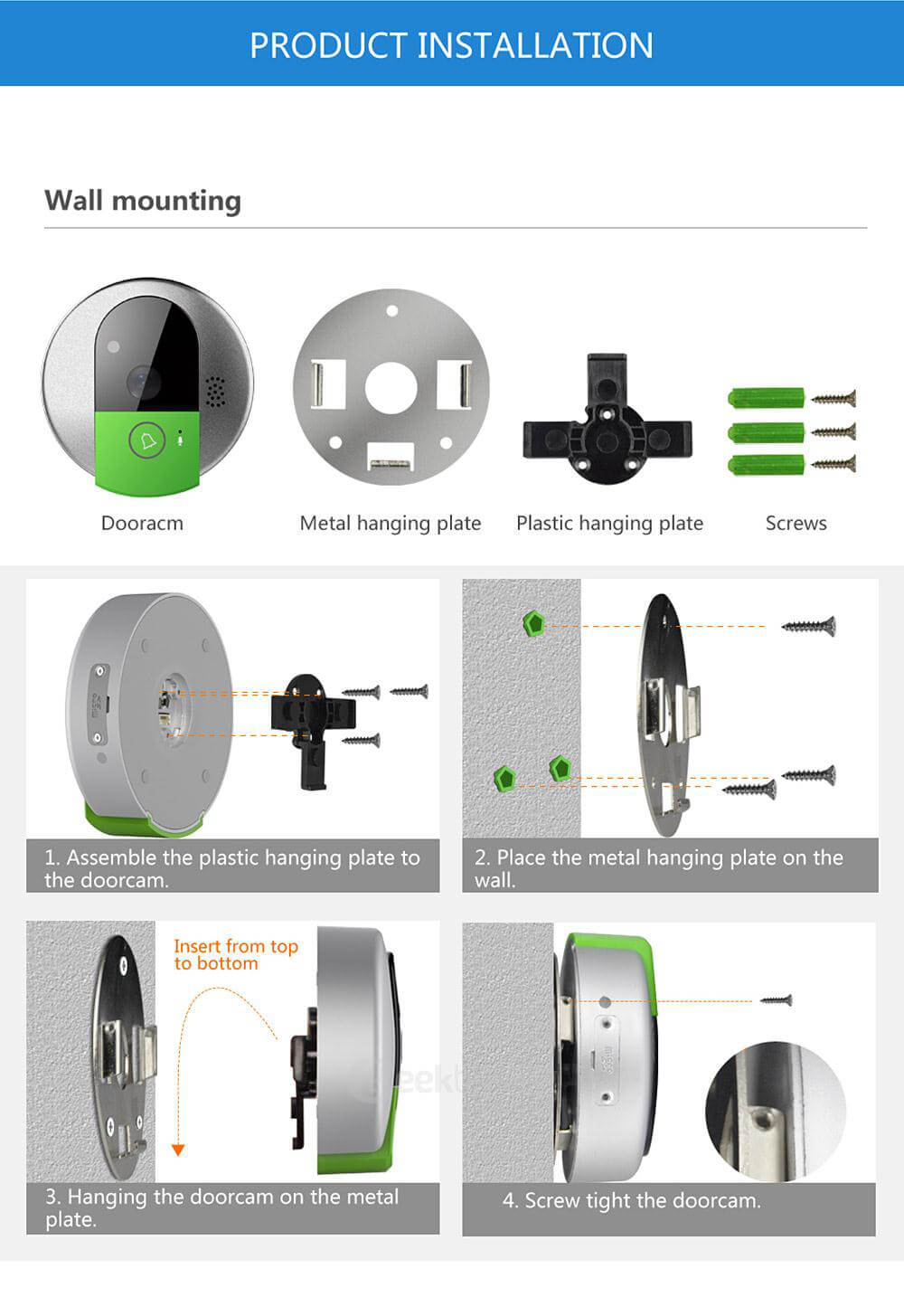

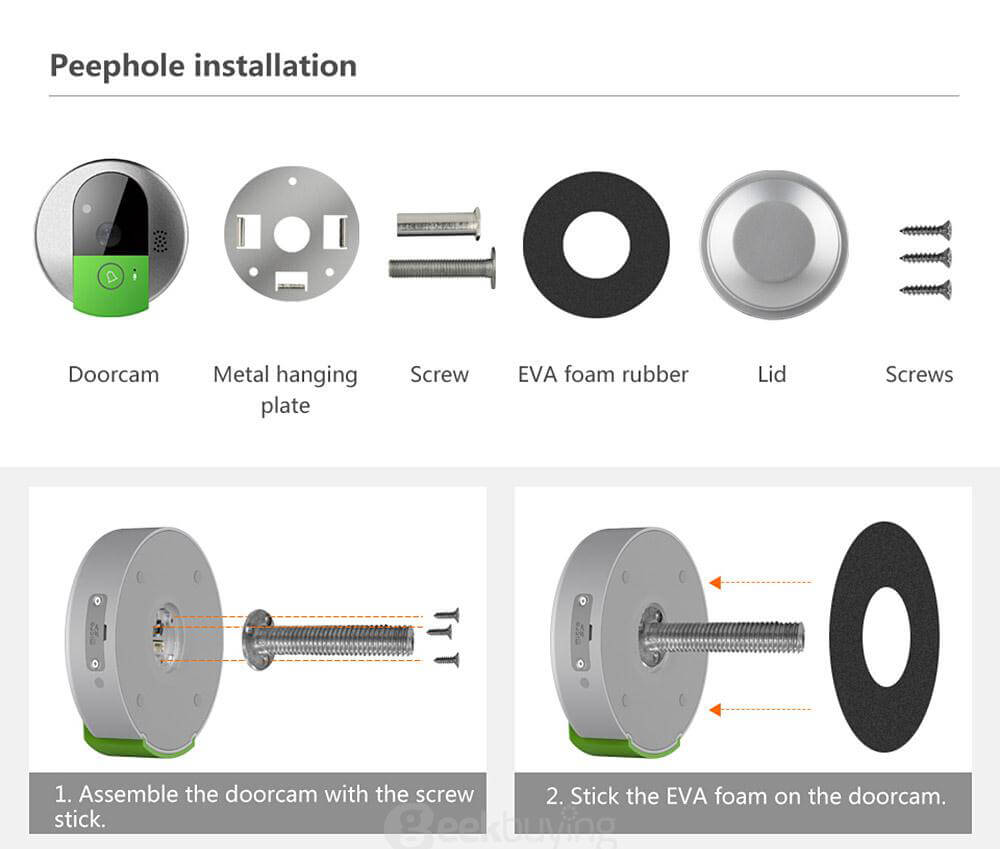

| Installation | Peephole installation for indoor , wall mounting installation for front door. | ||||||
| Housing material | ABS plastic | ||||||
| Note:Only for reference | |||||||
What's in the box?
- 1 x Doorbell
- 1 x User Manual
- 1 x Installation screws
- 1 x Retail Packaging Box with VStarcam Logo
