Highlights
- 10800P FHD IP camera, better picture quality, further vision

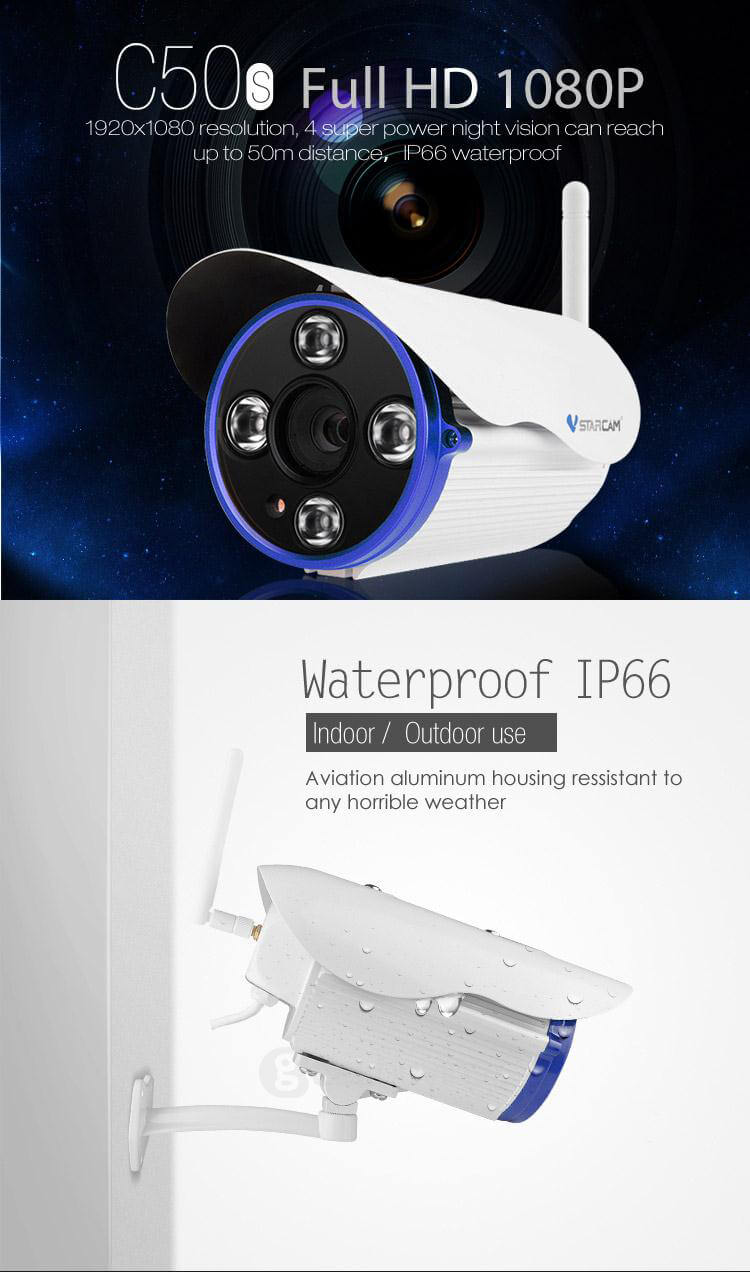

- IP66 waterproof no matter windy, raining or sand storming

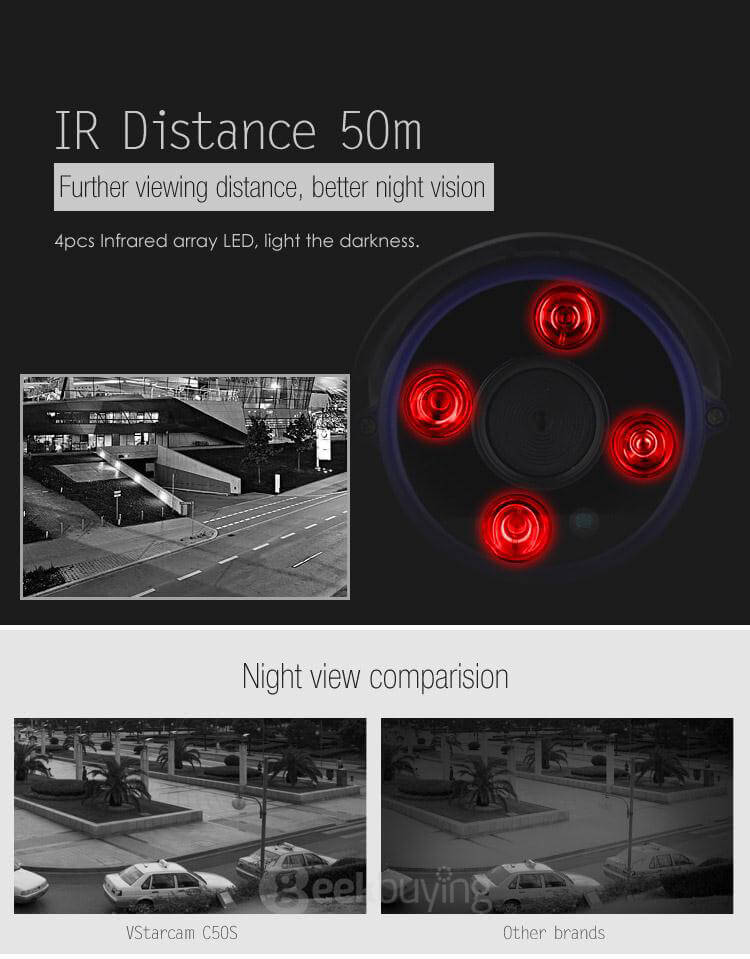

- IR distance 50m and better night vision
- High performance Hi3516C chip

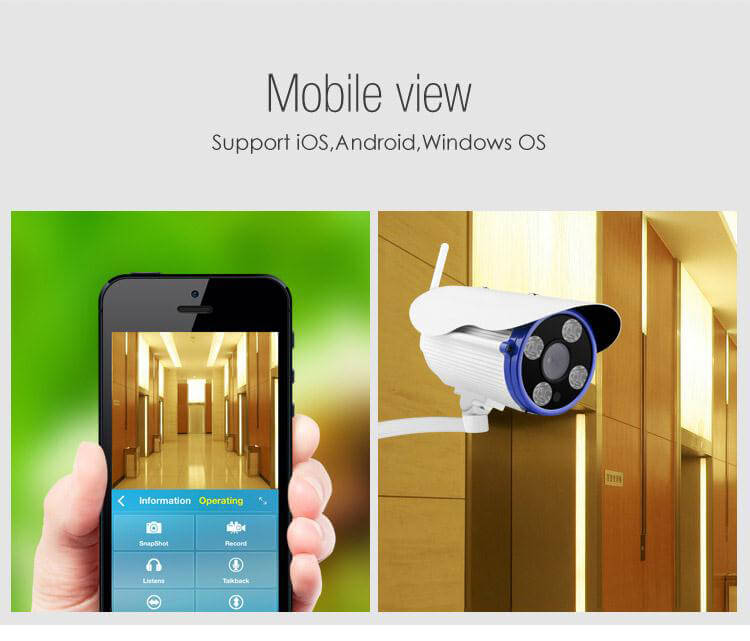

- Support iOS, Android and Windows
- 4 protection system guard to prevent information leakage
- Multi-stream viewing simultaneously:1080P/25fps+720P/25fps+VGA/25fps
- H.264 video compression
- Built-in IR-CUT core module, better surveillance effect
- IP67 waterproof no matter windy, raining or sand storming
- Support ONVIF 2.0, RTSP protocol
- Wi-Fi/802.11/b/g/n,support dynamic IP
- Note :it just support 640*480 in firefox,goole chorome.It will be 1960*1080P in IE browser.
Specification

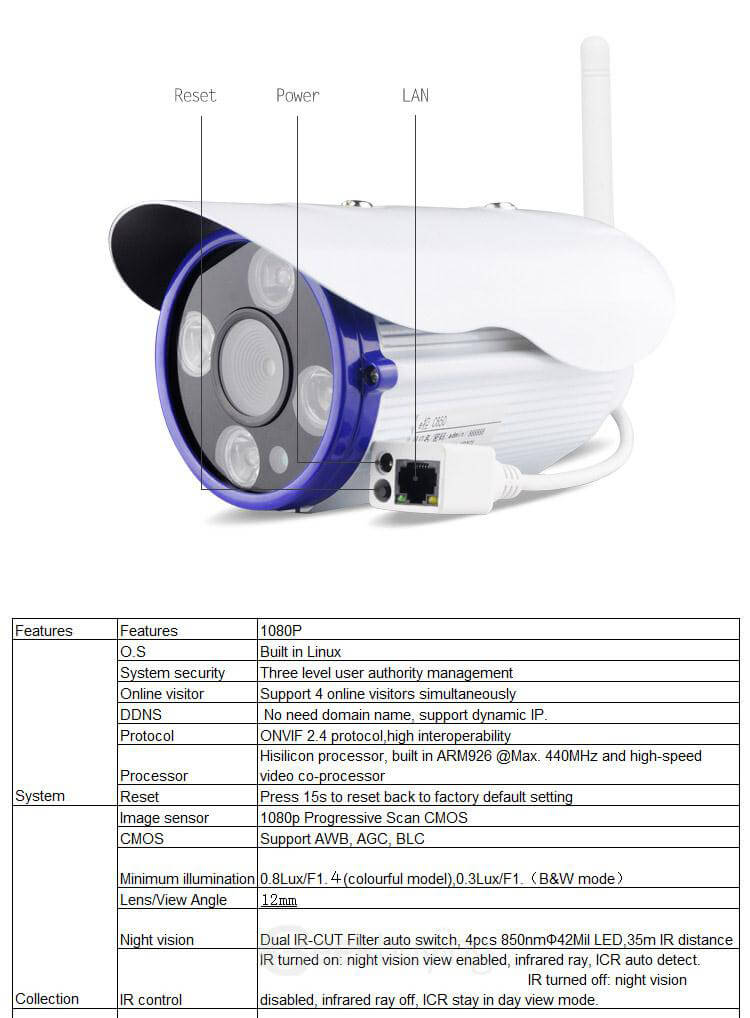

General | |||||||
---|---|---|---|---|---|---|---|
Features | Features | 1080P | |||||
System | O.S | Built in Linux | |||||
System security | Three level user authority management | ||||||
Online visitor | Support 4 online visitors simultaneously | ||||||
DDNS | No need domain name, support dynamic IP. | ||||||
Protocol | ONVIF 2.4 protocol,high interoperability | ||||||
Processor | Hisilicon processor, built in ARM926 @Max. 440MHz and high-speed video co-processor | ||||||
Reset | Press 15s to reset back to factory default setting | ||||||
Collection | Image sensor | 1080p Progressive Scan CMOS | |||||
CMOS | Support AWB, AGC, BLC | ||||||
Minimum illumination | 0.8Lux/F1.4(colourful model),0.3Lux/F1.(B&W mode) | ||||||
Lens/View Angle | 12mm | ||||||
Night vision | Dual IR-CUT Filter auto switch, 4pcs 850nmΦ42Mil LED,35m IR distance | ||||||
IR control |
IR turned on: night vision view enabled, infrared ray, ICR auto detect. IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode. |
||||||

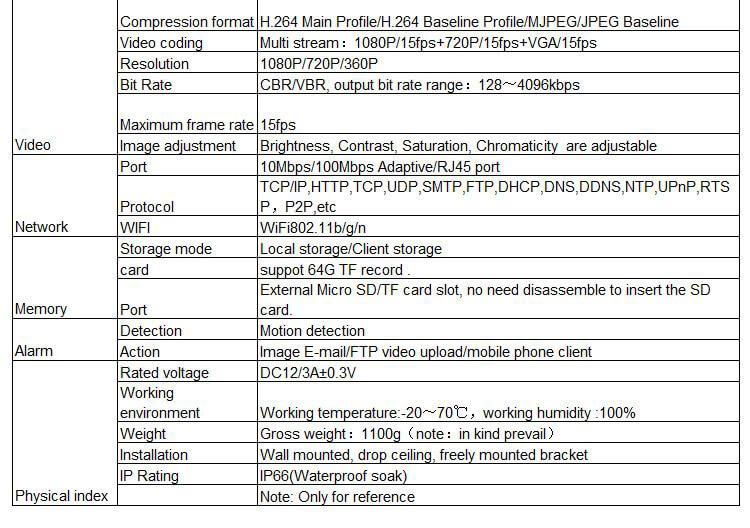

Video | Compression format | H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline | |||||
Video coding | Multi stream:1080P/15fps+720P/15fps+VGA/15fps | ||||||
Resolution | 1080P/720P/360P | ||||||
Bit Rate | CBR/VBR, output bit rate range:128~4096kbps | ||||||
Maximum frame rate | 15fps | ||||||
Image adjustment | Brightness, Contrast, Saturation, Chromaticity are adjustable | ||||||
Network | Port | 10Mbps/100Mbps Adaptive/RJ45 port | |||||
Protocol | TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P,etc | ||||||
WIFI | WiFi802.11b/g/n | ||||||
Memory | Storage mode | Local storage/Client storage | |||||
card | suppot 64G TF record . | ||||||
Port | External Micro SD/TF card slot, no need disassemble to insert the SD card. | ||||||
Alarm | Detection | Motion detection | |||||
Action | Image E-mail/FTP video upload/mobile phone client | ||||||
Physical index | Rated voltage | DC12/3A±0.3V | |||||
Working environment | Working temperature:-20~70ºC,working humidity :100% | ||||||
Weight | Gross weight:1100g(note:in kind prevail) | ||||||

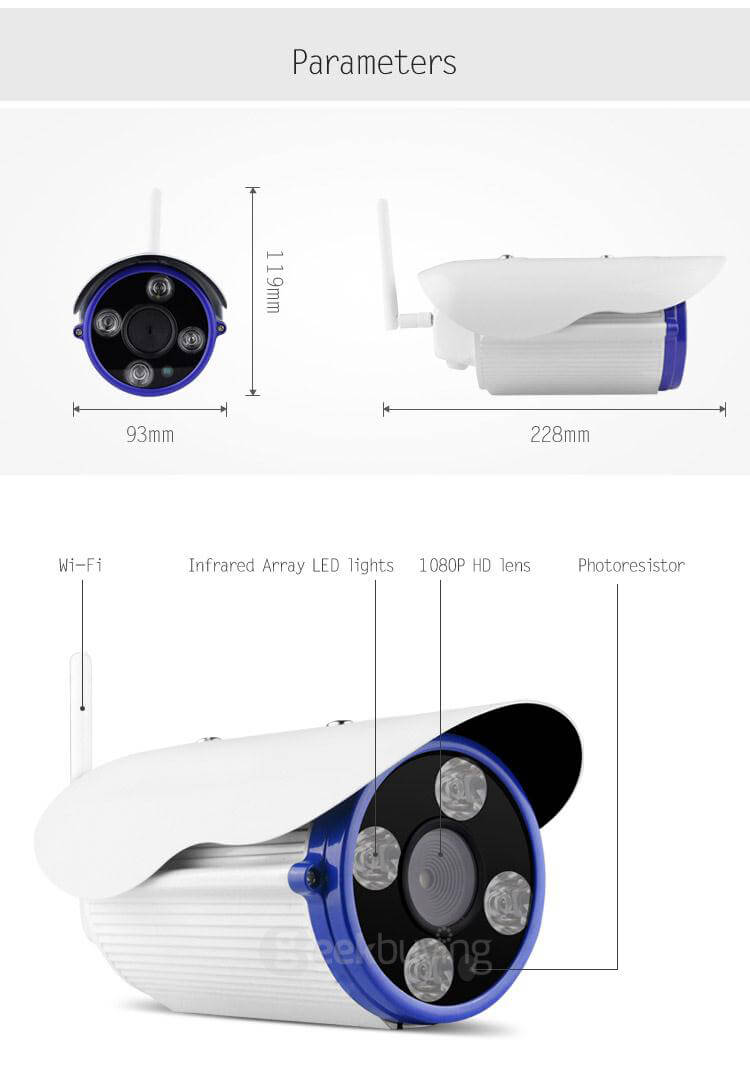

Package size | 200x179 x120mm (L×W×H) | ||||||
Installation | Wall mounted, drop ceiling, freely mounted bracket | ||||||
IP Rating | IP66(Waterproof soak) | ||||||
Note: Only for reference |
What's in the box?
- 1 x VStarcam C50S IP Camera
- 1 x Power Adapter
- 1 x English User Manual
- 4 x Screw
