Highlights
H.264, 3516C, 2.0 Megapixel. 1080P.

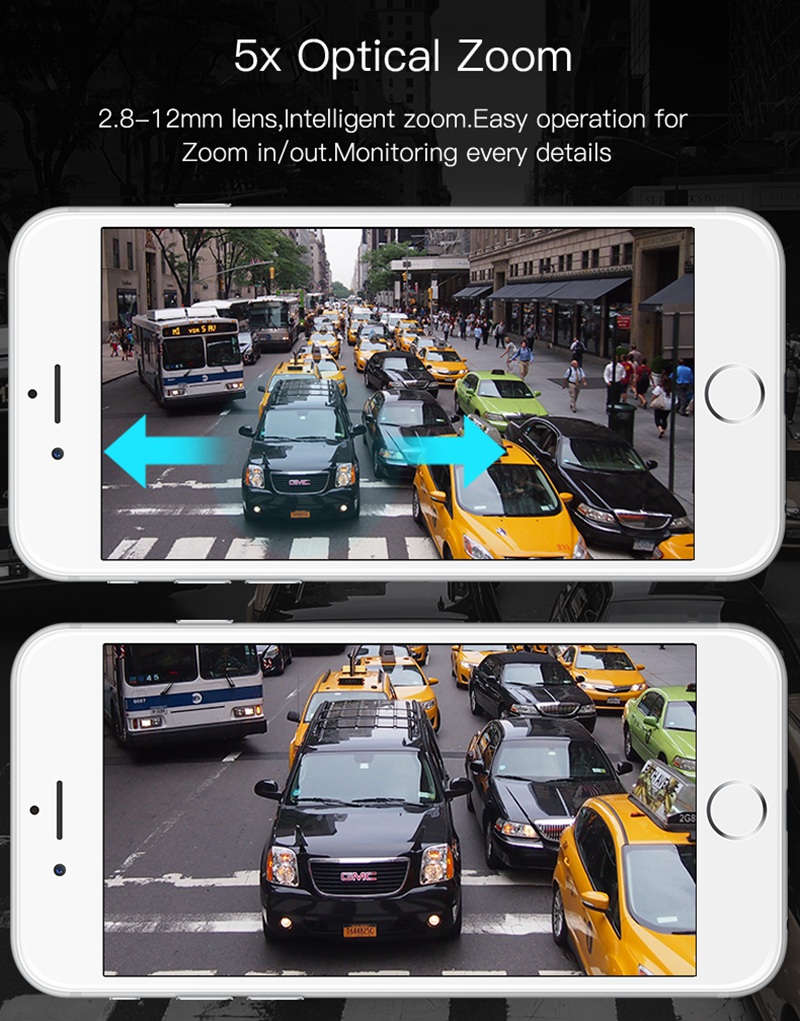

Lens 2.8-12mm, 5 optical zoom
Wi-Fi/802.11/b/g/n, RJ45 interface, PC CMS to control multi-cameras.
Motion detection, email alert, FTP upload
Support Video Mask and Special Area Dection
12 languages APP & WEB UI, Firefox, Safari, Google,IE browser
Built-in IR Cut,No Color Cast.
P2P, PNP: Plug&play, Support QR code scanning to view on Iphone and android Mobiles
Specification
| General | Brands:Wanscam |
| Model: HW0054 | |
| Ssystem | System Security:Supports there-level account, password, user authority management. |
| OS:Embedded Linux OS | |
| Processor:Hi3516C | |
| P2P (Free):No need to preset camera, Offer free P2P(ZZZZ-xxxxxx-xxxxx), Plug&play, Support QR code scanning to view | |
| Onvif Protocol:Support ONVIF Protocol | |
| Multi-device function:Support 12 language remote surveillance, record, alarm, wifi setting etc. | |
| PC client:Support remote multi-devices monitor, record, alarm etc;Support windows and mac os | |
| Cell Phone View:Self R&D APP, Support Iphone,Android smart Phone | |
| TF Card Record:Support max 128GB, | |
| Lens | Lens Type:2.8-12MM |
| IR-CUT:Build-in IR CUT, no color cast,auto switch when IR on | |
| Video | Image Compression:H.264/MJPEG |
| Sensor:1/2.7" Progressive Scan 2MP CMOS | |
| Video Parameters:Brightness, Contrast,Saturation,Exposure,sharpness can be adjusted | |
| Image Frame Rate:50Hz:25fps/60HZ:30fps (1920×1080) | |
| First Stream:1080P(1920×1080),720P(1280x720) | |
| Second Stream:VGA-(640x352),(320x176) | |
| Audio | Compression format:G.711(G.711 Default) |
| Audio In:Built in Mic,also external supported | |
| Audio Out:Built in Speaker,also external supported | |
| Night Vision | Night Visibility:3 array Led lights,night vision is up to 50m |
| Lux:IR ON 0 LUX | |
| Pan/Tilt | Preset:Support 8 Preset Positions |

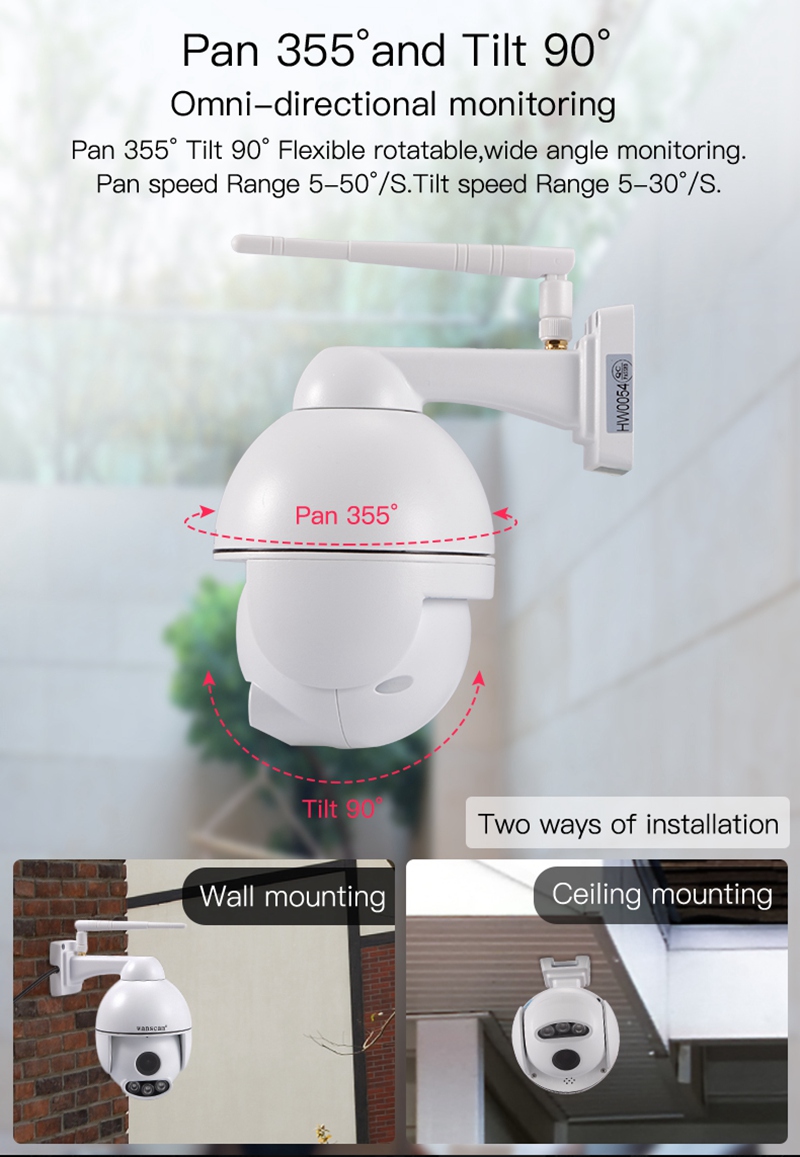

| Rotation Angle:Pan:355°, Tilt: 90° | |
| Rotation Speed:Pan: Speed Range 5-50°/ S; Tilt: Speed Range 5-30°/ S; | |
| Alarm | Motion Detect:Support 4 Independent detection areas(Sensitivity can be adjustd 1-100) |
| Alarm Action:Support Email Photo Alert,Snapshot and Record uploaded to FTP | |
| Network | Ethernet Interface:One 10/100Mbps RJ-45 |
| Supported Protocol:TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP etc. | |
| Online Visitor:Support Max 6 visitors at the same time (First Stream:3 visitors;Second Stream:3 visitors) |
|
| IP Mode:Dynamic IP address, static IP address(DHCP) | |
| Online Visitor:Support Microsoft Win XP/Win7/Win8/ win10/Mac OS. | |
| Browser:Support Internet Explorer 8.0-11.0, FireFox,Google Browser | |

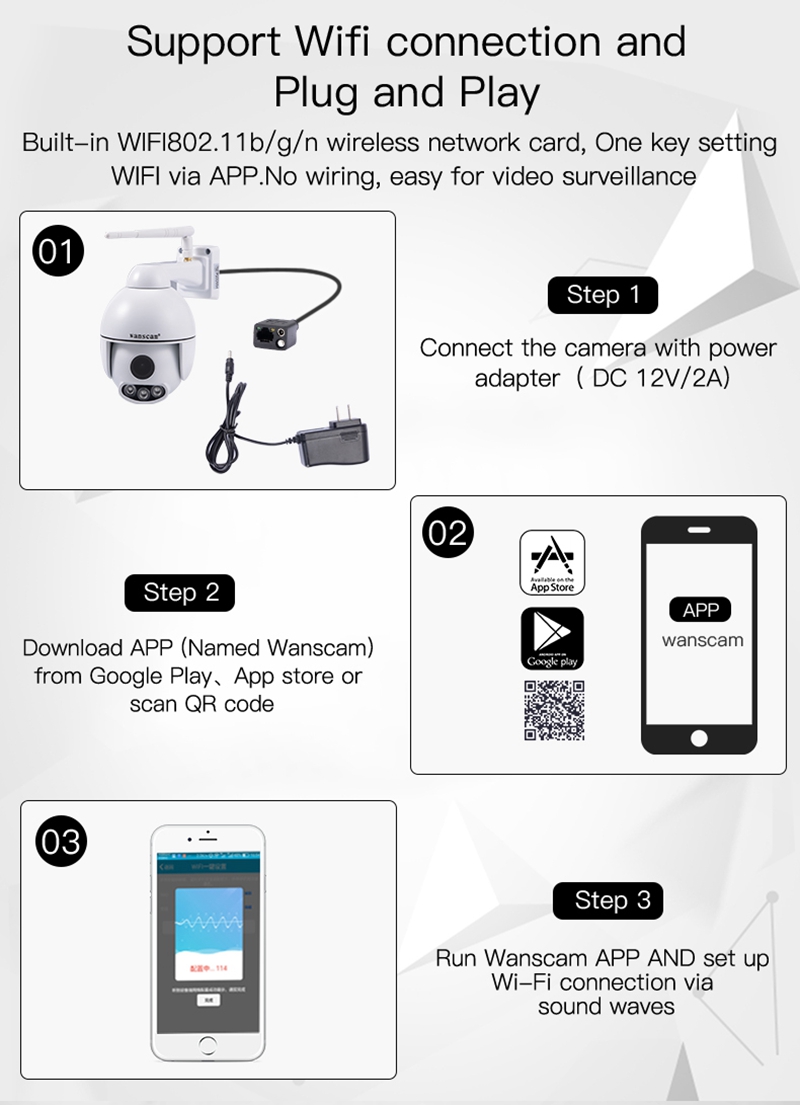

| One key setting Function:Support one key setting function connect WIFI | |
| Wireless Standard:WIFI, 802.11b/g/n | |
| Others | OSD:Support the OSD name, date and time info superposition(Open/Off) |
| Product Type:Cartoon Robot/ Indoor use | |
| Power:DC12V/2A | |
| Working Temperature:-10~50 °C | |
| Working Humidity:95% RH | |

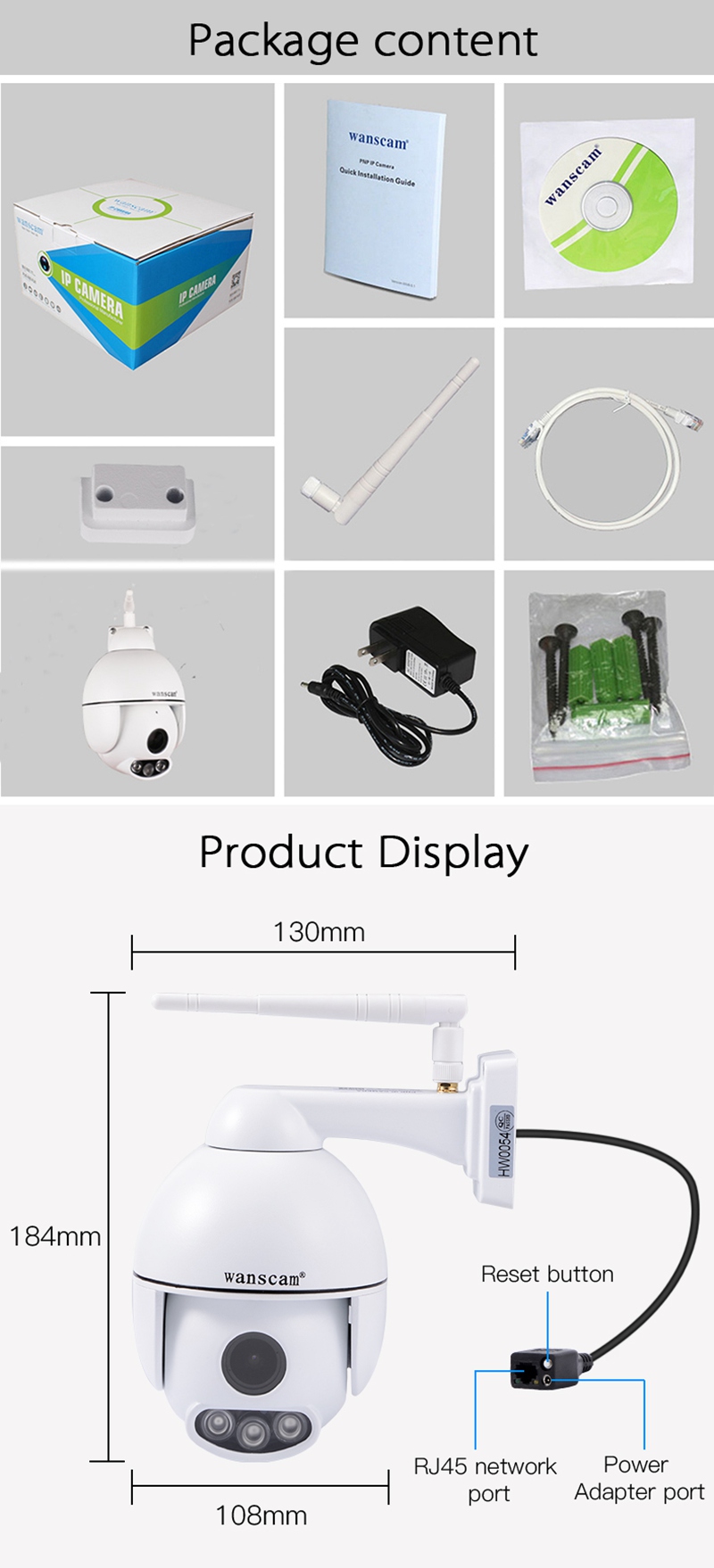

| Size:Item:184*130*108mm (HxW); Packaging: 203*203*134mm (LxWxH) | |
| Weight:N.W.: 886.5g G.W.: 1.24kg(Note:Actual Weight Final) | |
| Accessories:Adaptor,Screws*3,Paper specifications,1m Ethernet Cable*1 |
