Highlights
- 4 wired and 6 wireless defence zones

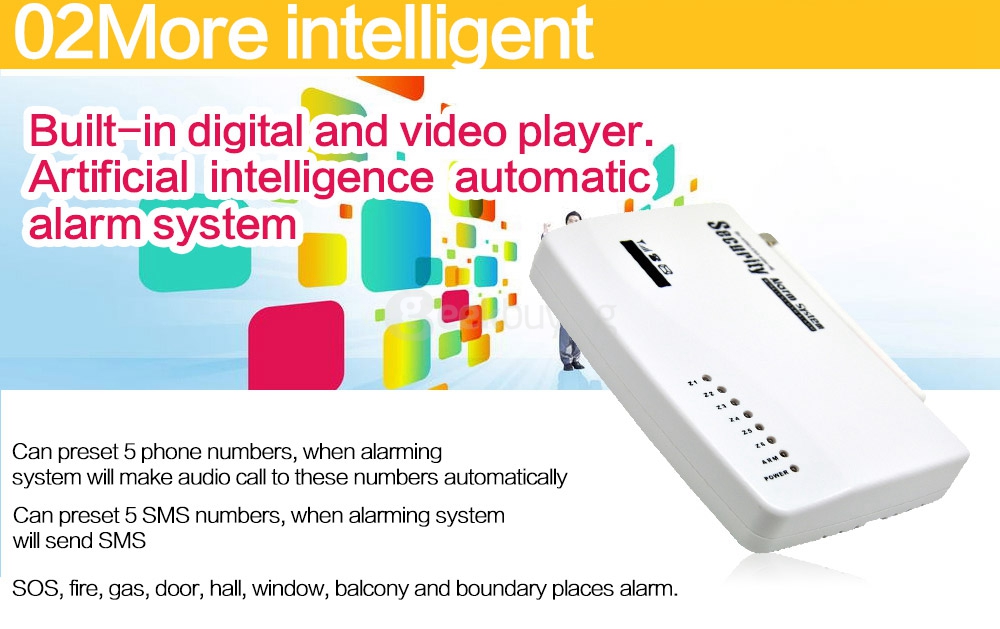

- Can preset and store 6 voice phones and 3 message phones
- Remote two-way intercom, Built-in intercom speaker
- Telephone (mobile phone) remote control programming
- SMS remote control preset arm,disarm the main panel
- SMS alarm content can be changed
- 3 groups of timely arm and disarm
- 2 groups reply to timely control the home appliances open or close
- Can connect wireless siren(Option)
- 10-second automatic message recording
- Built-in intelligent English message
- Alarm locking memory and information clear for easy checking

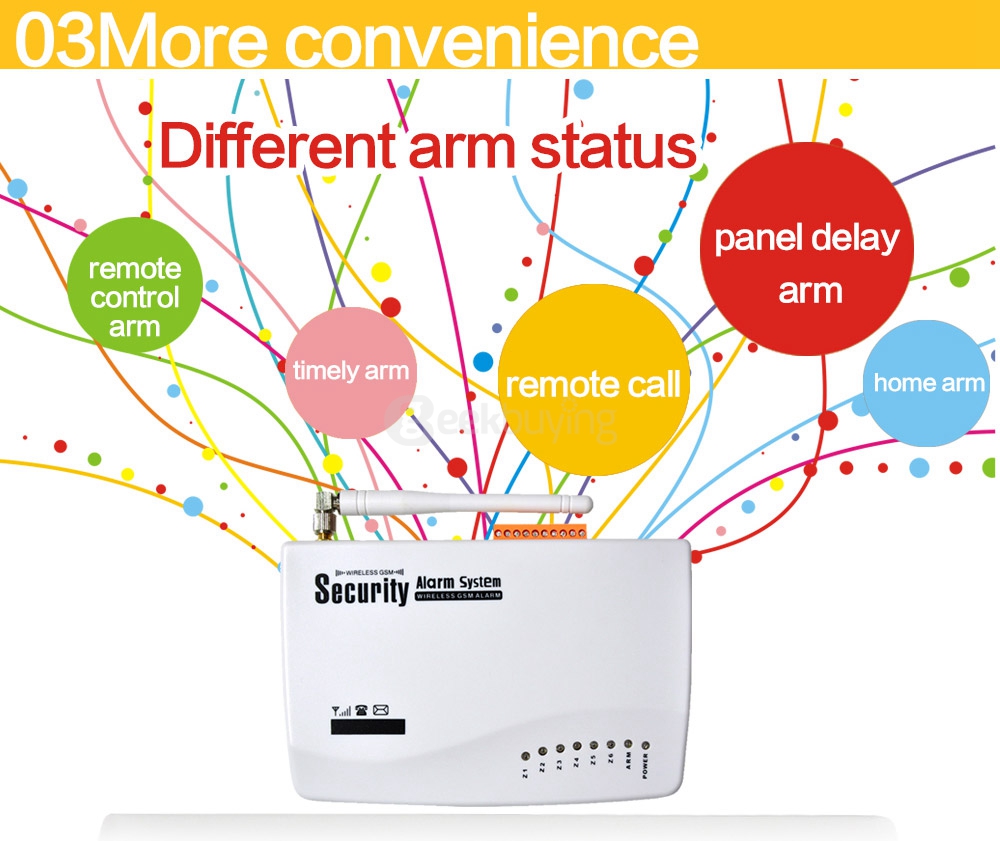

- One-key-control function:Out Arm, Home Arm, Remote Arm
- Wireless intelligent learning encoding and comply additional accessories
- Arm, disarm, monitor and intercom by remote calling the alarm unit
- Real-time, delay,24 hours, bypass defense zones programming function
- Built in NI-HI rechargeable battery is available to provide power supply nearly 5hours automatically after power off
- Main unit anti-tamper and low-voltage detecting function
Specification
| General | |||||||
|---|---|---|---|---|---|---|---|

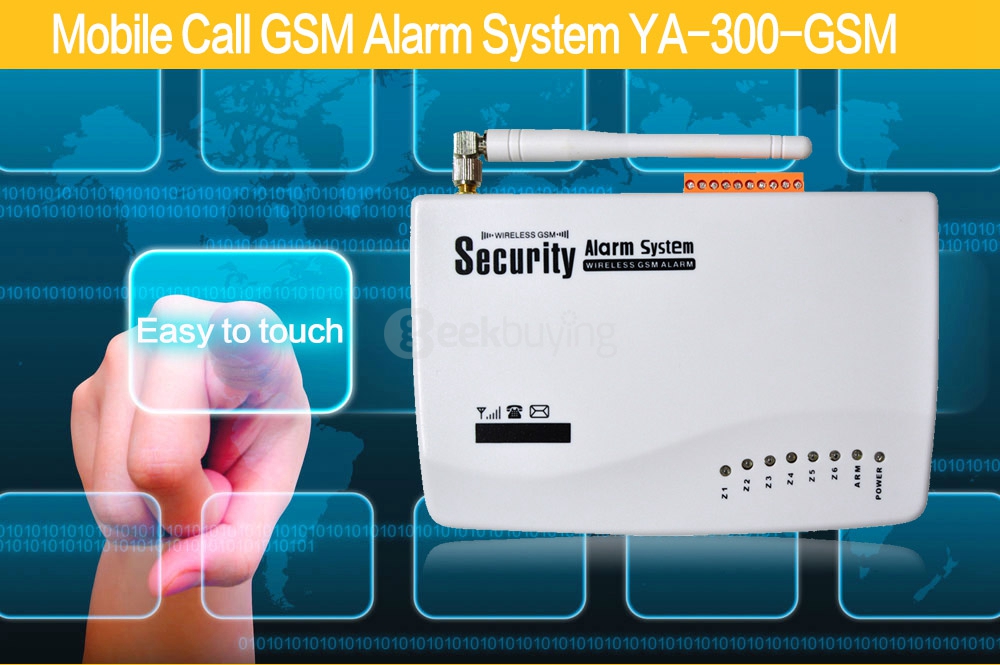

| Model | YA-300-GSM | ||||||
| Quantity | 1 Piece | ||||||

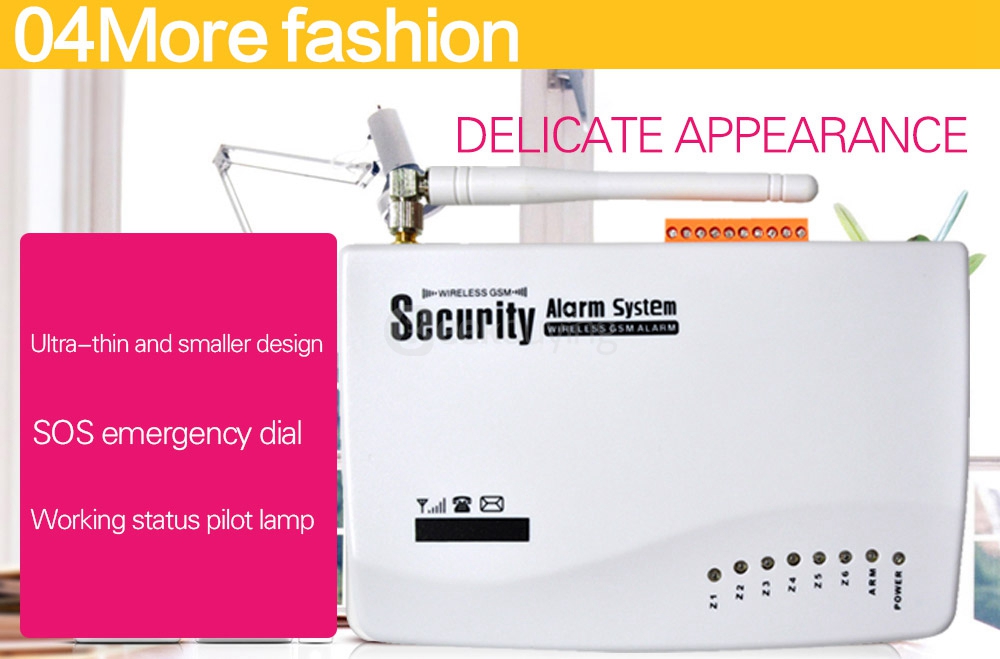

| Alarm keypad/Control Unit (GSM alarm with Power Adapter) | |||||||
| Input Voltage | DC 12V / 1.2A | ||||||
| Standby Current | < 55mA | ||||||
| Alarming Current | < 450mA | ||||||
| Wireless Frequency | 433.92MHz, 2262/4.7MΩ | ||||||
| GSM Frequency | 900 / 1800 / 1900MHz | ||||||
| 4 Kinds of Power Plug | US/Euro/UK/AU Plug, We will ship out the right one that match your country. | ||||||
| Back-up Battery | Last 4 hours when power cut off | ||||||
| Siren | Only support one wired siren OR more wireless sirens but with same transmitter | ||||||
| Wireless Gap Detector (Door / Window Contact) | |||||||
| Power Supply | DC12V/23A Battery | ||||||
| Static Current | ≤20 mA | ||||||
| Transmission Current | ≤15mA | ||||||
| Transmission Frequency | 433MHZ ± 0.5MHZ | ||||||
| Transmission Distance | About 30m with one barrier | ||||||
| Internal Distance | 15 mm | ||||||
| Working Condition | Temperature -10 degree ~ + 40 degree | ||||||
| Humidity | ≤ 90% rh | ||||||
| Battery Life Time | About 6 months | ||||||

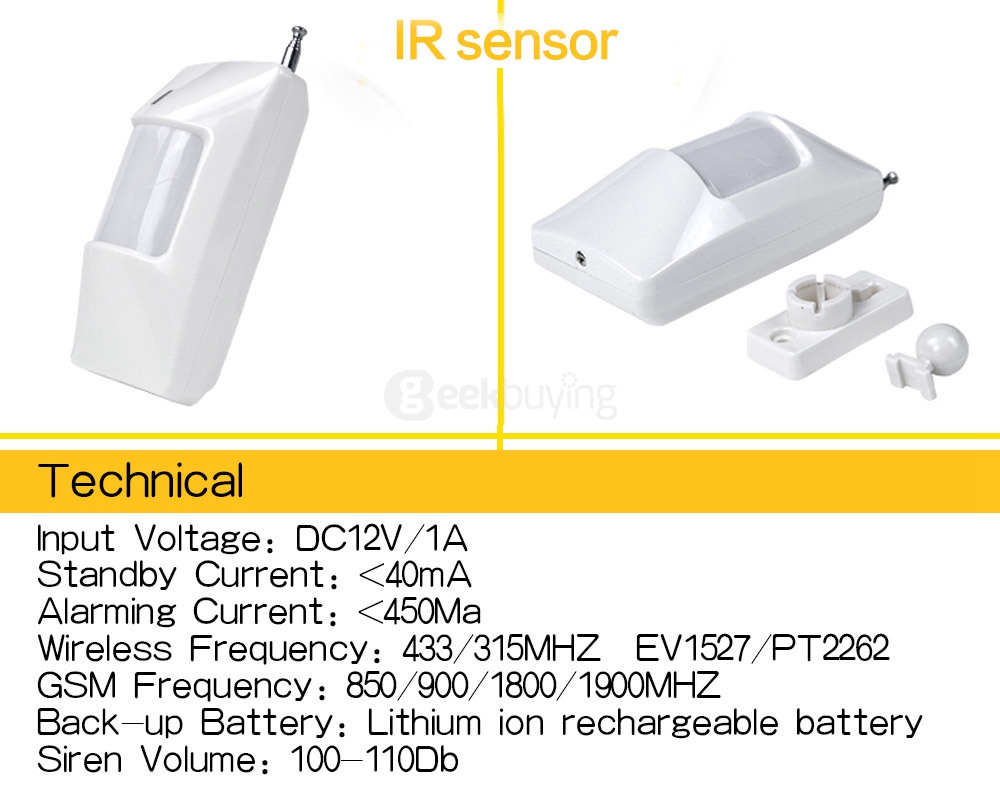

| Wireless P.I.R Motion Detector | |||||||
| Power Supply | DC9V (6F22 battery) | ||||||
| Transmission Current | ≤20mA | ||||||
| Static Current | ≤10mA | ||||||
| Wireless Frequency | 433MHZ ± 0.5MHZ | ||||||
| Transmission Distance | About 30m with one barrier | ||||||
| Detective Speed | 0.3 - 3m/s | ||||||
| Detective Distance | 5 - 12m | ||||||
| Detective Range | Horizontal 110°, Vertical 60° | ||||||
| Battery Life Time | About 6 months | ||||||
| Working Condition | Temperature -10 degree ~ + 40 degree | ||||||
| Humidity | ≤ 90 rh | ||||||

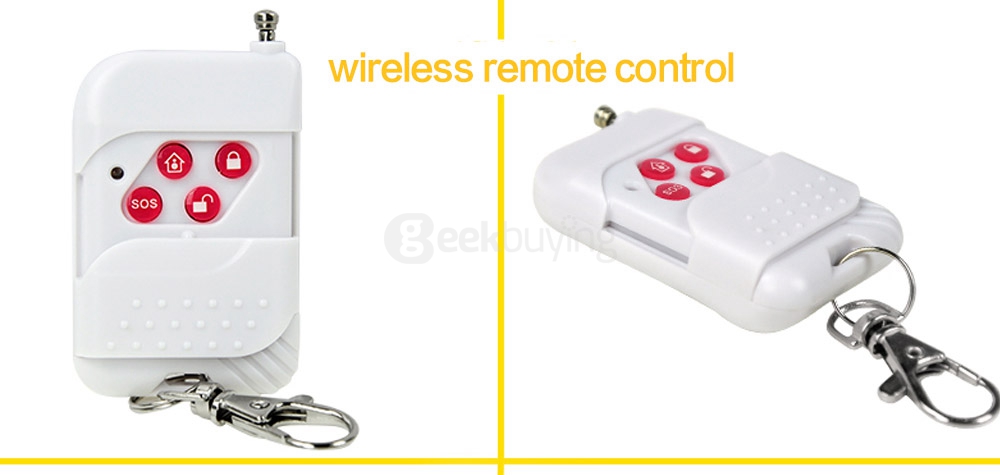

| Remote Control (Keyfobs) | |||||||
| Static Current | 0 | ||||||
| Emission Current | ≤15 mA | ||||||
| Transmission Frequency | 433MHZ ± 0.5MHZ | ||||||
| Emission Speed | T≤1 second | ||||||
| Emission Distance | About 30 meters | ||||||
| Working Condition | Temperature -10 degree ~ + 40 degree | ||||||
| Humidity | ≤ 90 rh | ||||||
| Battery Life Time | About 6 months | ||||||
What's in the box?
- 1 x Keypad/Control Unit (without gsm sim card)
- 1 x Door/Window Sensor
- 1 x Motion Detector
- 2 x Remote Control

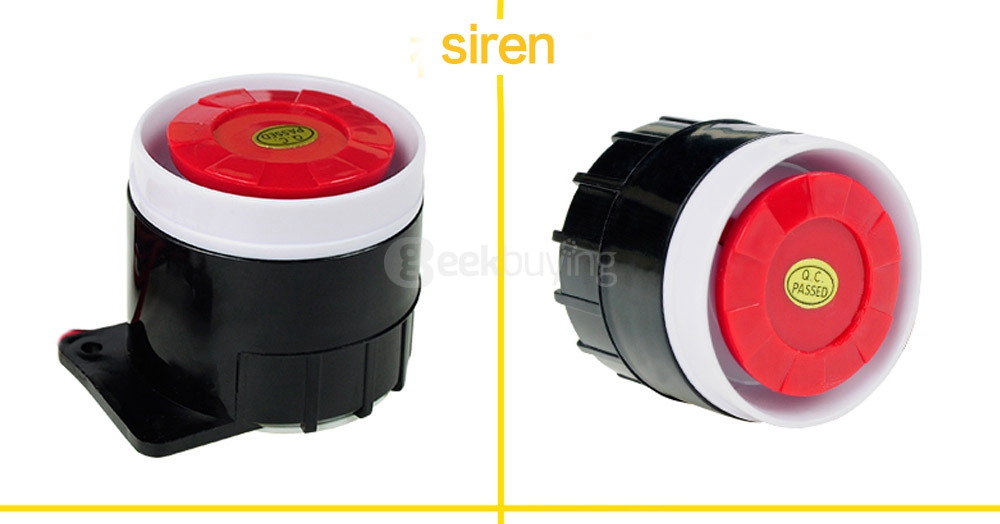

- 1 x Wired Siren
- 1 x Power Adapter
- 1 x English Manual
