- YN468II With Metal Hotshoe stand, improved button design, equiped with standard PC port for synchronous firing
- Circuit design: Integrated Gate Bipolar Transistor (IGBT)
- Flash adjustment: TTL auto flash or manual 8 level (1/128~1/1) light quantity output control with 0.3 stop increment
- Suitable for: Canon 60D 50D 40D 30D 500D/T1i, 450D/Xsi, 400D/Xti, 350D, 550D, 1000D
- Flash mode: TTL / M / Multi / S1 / S2; Zoom range: Auto, 24, 28, 35, 50, 70, 85mm
Improvements in this 2nd generation YN-468 II of this top-selling flash unit aim at the weak spots of the 1st gen model YN-468, our engineers are paying attention to what our customers are saying.
Here are the upgraded features:

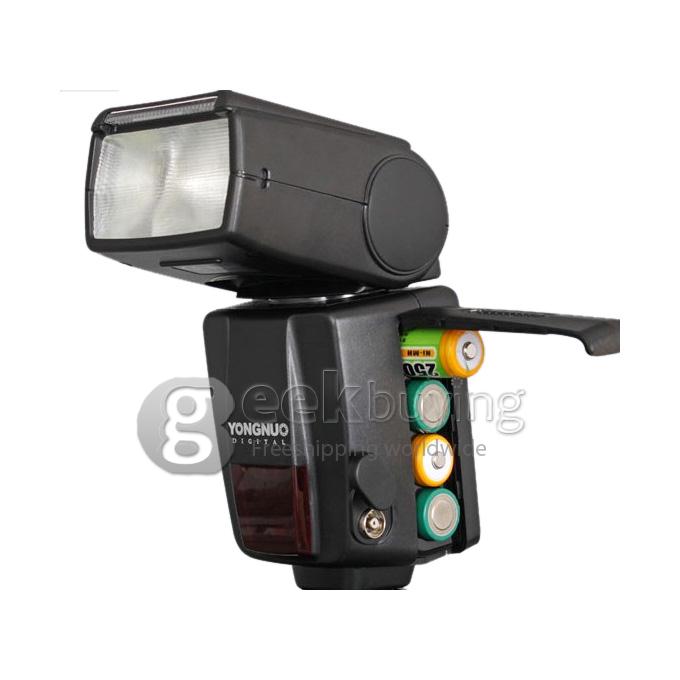

a) Improved New Battery Compartment
The 4 batteries are now all in a row with a latch that flips open. This looks like a much better design now, no more acrobatics required for a battery exchange.

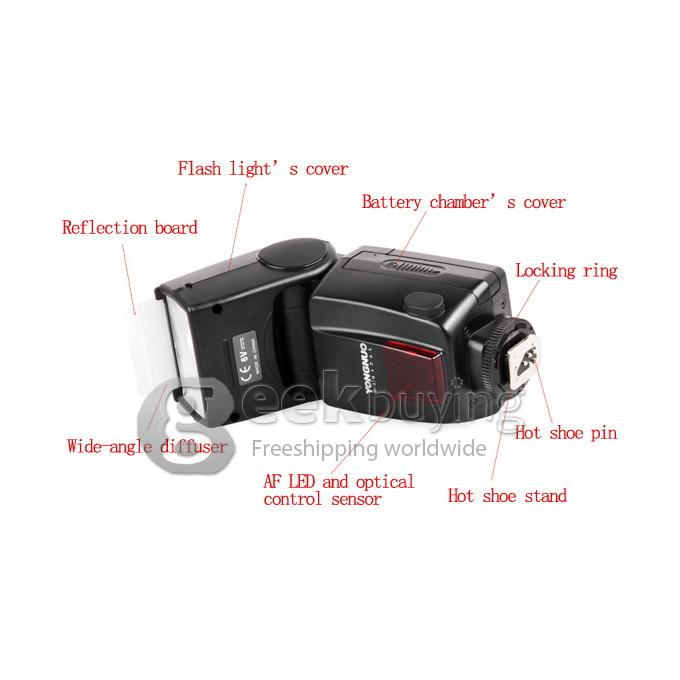

b) Improved Optical Slave Sensor ( Located on the front side of the flash, underneath the red plastic screen )
"S1" mode --- it is used with manual flash or Studio flash.
"S2" mode --- it is designed for digital TTL flash. The special thing about this mode is the ability for detect the ingnore the tiny pre-flashes sent out by digital TTL systems before the shutter actually opens.
The range is a little longer and the sensitivity is better than the 1st generation.
c) Improved (Laser) AF Assist Light
With the much improved AF assist light of YN-468 II, it can help the camera find focus in darkness, and there's a bright red pattern projected now which helps much better with low-contrast subjects althoug it's still limited to the center AF field.
Our engineers also moved away from a simple LED but use a laser-based system which explains the clearness of the pattern, as well as the high range of the beam.

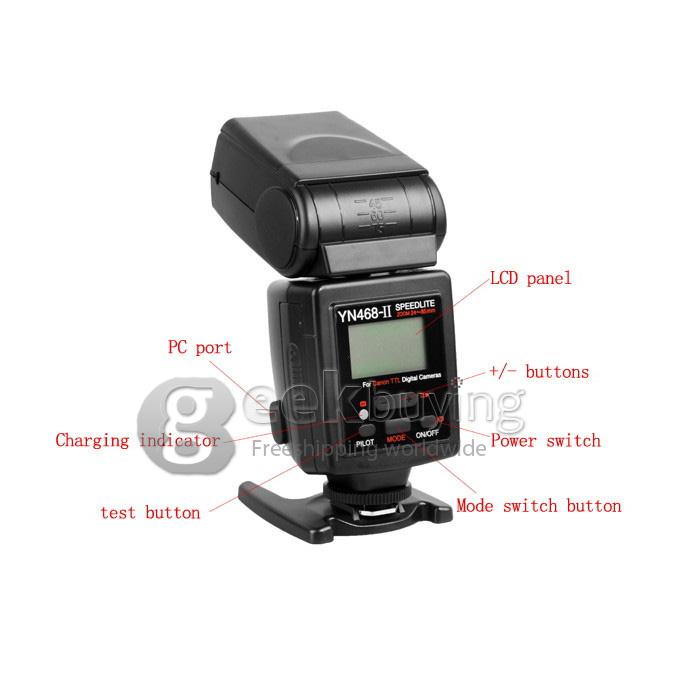

d) PC Sync Port
We built a PC sync port in the side of the YN-468 II, you can not only trigger the flash through the flash foot, or with the optical slave modes, but aslo through a PC Sync Cable.
e) Improved Buttons Design
It is sensitivity and better feeling to control.
1) TTL mode
The metering system of this camera will detect flash illumination reflected back from the object so as to automatically control flash output in this mode.
In this E-TTL mode, you can also make compensation of flash brightness with the " Output contral knob" within the range of ±3 ev, with the precision of 1/3 ev. ( Only with this feature the camera-flash combination can give you correctly exposed flash photographs automatically.)
E-TTL can be set on the flash although the display just says ?TTL?, but it works with E-TTL I and also E-TTL II camera bodies.
2) Auto Zoom
The flash speedlite will move forward and backward with the changes of lens focus to suit different illumintion zones when it is mounted on the camera which supports E-TTL Function, the zoom range is 24mm - 85mm.
You also can set the focus position for the light head manually by pressing the mode swithc button + Power button.

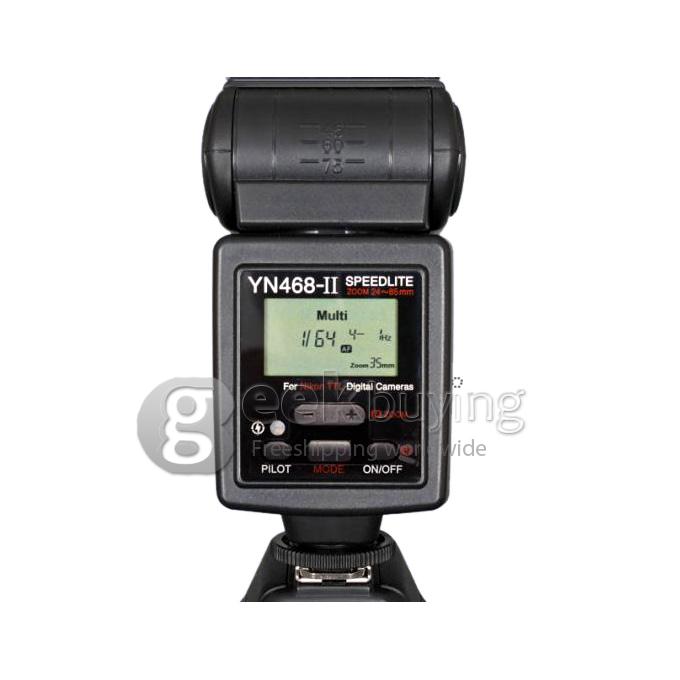

3) Multi Mode
It's the strobeflash mode, the flash light will output the power, flash frequency and time flash you have set.
4) M mode
You can set flash luminance as per your favorite, luminance level will be displayed by luminance indicator. When taking photos, you only require setting the flash luminance, adjust the camera and press the shutter, the flash light will flash under the camera synchronous signal.
5) S1 Mode
It will work with the first work of the master flash synchronously in this mode, with the result consistent with the use of radio slave. ( When you use this mode, your master flash should be set at manaul flash, the TTL flash system with pre-flash function and the red-reduction function with multiple flashes should not be used.)
6) S2 Mode
It is very similar to S1 mode, but it can support the master flash in TTL mode. In particular, if S1 mode can not have correct and synchronous flash with the inbuilt flash, you can try to use S2 mode.
a) Multi-Lamp Lighting Application
b) Exposure Bracketing ( FEB)
c) Use Wide-angle Diffuser
d) Rear-curtain Sync
e) FE Lock (This function can only be available when your camera supports it, for the setting of FE lick, refer to your camera manaul)
f) Application of AF LED
g) Exposure Compensation
h) Feflection Flash
i) Use Reflection Board to take photos
|Flash Mode||TTL / M / Multi / S1 / S2|
|Circuit design||Insulated Gate Bipolar Transistor (IGBT)|
|Zoom Range||Auto, 24mm, 35mm, 50mm, 70mm, 85mm|
|Vertical rotation angle||-7~90 degree|
|Horizontal rotation angle||0~270 degree|
|Power||4 X AA size Batteries ( Alkaline or Ni-MH are usable)|
|Lighting times||100 - 1500 times (with AA alkaline batteries)|
|Recycle Time||less than 3s ( AA alkaline cell used)|
|Flash Duration||1/800S - 1/20000S|
|Flash Control||TTL auto flash or manual level 8 light quantity output contral with 0.3 stop increment|
|Dimensions||60 x 72 x 172mm(extended state)|
FEB, FEC, FEL, Automatic zooming, Rear-curtain Sync
Canon 7D, 60D, 50D, 40D, 30D
Canon 600D/T3i, 500D/T2i, 500D/T1i, 450D/Xsi, 400D/Xti, 350D, 1100D, 1000D
(NOT suitable for Canon 1Ds, 1D, 5D, 5DII Series, because it may have Vignetting at the corners)
You can use this flash with Yongnuo flash Trigger RF-602, RF-603, CTR-301 P
What's in the box?
- 1 x YN-468 II Flash Speedlite with Metal Hot Shoe
- 1 x Mini Stand
- 1 x Flash Diffuser cover
- 1 x Manual
