Laser technology is increasingly used in modern industry, from fine craft engraving to cutting of large metal structures, laser equipment is favored for its precision and efficiency. Selecting the right laser power is essential to ensure processing quality, efficiency and cost-effectiveness. This blog will provide you with a comprehensive guide on how to choose the best laser power for your application.
Laser Power Basics
Laser power, measured in watts, determines the laser equipment’s ability to cut materials of varying thicknesses. Different applications and material properties require different laser powers. For example, cutting paper may require only 10W of power, while cutting hard metal may require over 6000W.
How Laser Cutting Machines Work
The working principle of home laser cutting machines is based on laser technology, which uses highly concentrated beams of light to precisely cut or engrave a variety of materials. Here are the detailed steps of the working process of home laser cutting machines:
Laser generation
- The laser cutting machine contains a laser generator inside, which is usually a tube containing a special gas (such as carbon dioxide).
- The gas in the tube is excited by an electric current, generating laser light.
- For some types of laser cutting machines, such as fiber laser cutting machines, the laser medium may be doped optical fiber.
Laser focusing
- The generated laser beam is guided and focused by a series of mirrors and lenses.
- The laser beam is focused to a very small point, and the temperature of this point is very high, enough to melt or vaporize the material.
Computer numerical control (CNC) system
- Home laser cutting machines are usually equipped with a CNC system, which means that the movement of the laser head is controlled by a computer program.
- The user designs the pattern or enters the cutting path in the software, and the software sends these instructions to the CNC system.
Cutting Process
- The laser head moves along a predetermined path, and the focused laser beam ablates or melts the designed shape on the material.
- An exhaust system is usually used to remove the molten material and fumes from the cutting area, keeping the work area clean and protecting the laser head from contamination.
Assist Gas
- An assist gas (such as oxygen or nitrogen) is usually blown through the laser head during the cutting process.
- This gas helps blow away the molten material, increase cutting speed, and reduce slag and oxidation.
Cutting accuracy
- The accuracy of the laser cutting machine depends on the quality of the laser beam, the stability of the machine, and the accuracy of the control system.
- A high-precision laser cutting machine can cut complex designs with smooth edges.
Operation safety
- Because the laser beam is very powerful, home laser cutting machines must be equipped with safety features such as protective shields and emergency stop buttons to protect users from laser injuries.
Material compatibility
- Home laser cutting machines are generally suitable for cutting lightweight materials such as wood, acrylic, leather, paper, and some plastics.
- High-powered machines can also cut thin metals, but home machines are usually low-powered and not suitable for cutting thick metals.
Home laser cutters are usually designed to be more compact and easier to operate than industrial models, and are more affordable, making them suitable for small studios, schools, maker spaces, and individual hobbyists. Although they may not have the same power and cutting capacity as industrial models, they are sufficient for non-commercial use.
Factors Affecting Laser Power
Laser type
- Different types of lasers (such as CO2 lasers, fiber lasers, YAG lasers, etc.) have different power output characteristics and applicable materials.
Power of the laser generator
- The rated power of the generator directly determines the maximum output power of the laser engraver, which affects the cutting capacity and speed.
Beam quality
- Beam quality, usually expressed as M² value, affects the focusing ability and cutting accuracy of the laser. The better the beam quality, the more concentrated the energy distribution and the better the cutting effect.
Working distance
- The distance between the laser head and the surface of the material affects the focusing degree of the beam, which in turn affects the power density.
Focusing system
- The quality and adjustment accuracy of the focusing lens or reflector affect the focusing of the laser beam, which in turn affects the power.
Material properties
- Different materials have different absorption and reflection capabilities for lasers, which affects the required laser power.
Cutting speed
– The speed of laser cutting affects the interaction time between the laser and the material during the cutting process, which affects the required power.
Auxiliary gas
- The type of auxiliary gas used (such as oxygen, nitrogen, etc.) and the airflow will affect the cutting efficiency and the required laser power.
Cutting head configuration
- The design and maintenance of the cutting head will also affect the efficiency of laser power delivery.
Power supply and cooling system
- A stable power supply and an effective cooling system are essential to keep the laser running in optimal condition.
Operating parameter settings
- The laser power, speed and other related parameters set by the user directly affect the effect of laser cutting.
Maintenance status of the machine
- Regular maintenance and cleaning can ensure the optimal performance of the laser components and avoid power degradation.
Environmental factors
- Conditions such as temperature, humidity and dust in the working environment may also affect the performance of the laser.
The service life of the laser
- Over time, the performance of the laser may gradually decline and need to be checked and replaced regularly.
Understanding these factors is essential to the correct selection and use of laser cutting machines, and they can help users optimize the cutting process, improve efficiency and finished product quality.
Types of Laser Cutting Machine Power

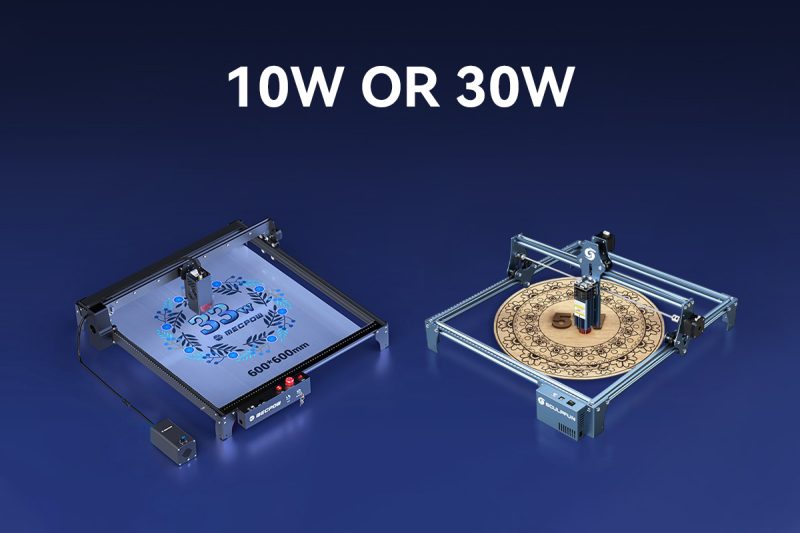

Low-power lasers (10W – 100W)
- These lasers are suitable for basic cutting and engraving tasks, such as cutting thin cardboard, wood, leather, and some thin plastics.
- They are also suitable for fine engraving work, especially non-metallic materials.
Medium-power lasers (100W – 300W)
- Medium-power lasers can handle thicker materials, such as medium-thick acrylic sheets, thin metal sheets, and some composite materials.
- They provide better cutting speed and efficiency while still maintaining relative safety of operation.
Medium-to-high power lasers (300W – 500W)
- Lasers in this power range can cut thicker metals and harder materials, such as thick acrylic, wood, and light metals.
- They are generally used for more professional small projects and prototyping.
High-power lasers (500W – 1000W)
- While 500W to 1000W lasers are less common in home environments, they can provide faster cutting speeds and deeper cutting depths.
- These lasers are suitable for professional applications that require high-power output, such as metal processing, but require more safety measures and expertise.
When choosing a small laser cutting machine for home use, you need to consider the following factors:
- Safety: High-power lasers may require more stringent safety measures, including protective covers, emergency stop buttons, and proper ventilation systems.
- Material compatibility: Different laser powers are suitable for different materials, so you need to choose the right power based on the type of material you plan to cut or engrave.
- Cost-effectiveness: The higher the power, the higher the cost of the laser engraving machine. Home users need to find a balance between budget and needs.
- Operational complexity: High-power lasers may require more complex operation and maintenance, which may not be suitable for all home users.
In general, the power type of a small laser engraver for home use should be selected based on the user’s specific needs, budget, and safety considerations.
Choosing the Right Laser Cutter Power
Every application requires a certain laser power. Here are some general guidelines for ideal uses for different laser cutter power ranges:
10W – 100W: For engraving and cutting thin materials such as paper, cardboard, and thin plastics.
100W – 500W: For cutting thicker materials up to 1/4 inch thick, such as wood, acrylic, and metal.
500W – 2000W: For cutting thick materials such as metal up to 1 inch thick.
2000W – 6000W or more: For cutting thick materials such as metal over 1 inch thick or industrial-scale cutting applications.
The Relationship between Laser Engraver Power and Speed
There is a direct relationship between the power and speed of a laser engraving machine. The power of a laser cutting machine determines the energy output of the laser beam, which in turn directly affects the speed of cutting or engraving. The following is a detailed explanation of the relationship between power and speed:
Power and cutting speed
- The higher the power, the greater the energy of the laser beam, and therefore the faster it can cut the material. High-power lasers can provide more energy per unit time, which speeds up the cutting process.
- For example, a 500W laser cutter will generally cut faster than a 100W laser cutter because it can provide more energy to melt or vaporize the material in the same amount of time.
Material thickness
- The thickness of the material will also affect the relationship between power and speed. For thicker materials, higher power is required to achieve the same cutting speed.
- If the power is insufficient, the cutting speed will be reduced because the laser beam takes longer to penetrate the material.
Material type
- Different materials have different absorption and reflection capabilities for lasers, which affects the relationship between power and speed. For example, metals generally require higher power than non-metallic materials to achieve the same cutting speed.
- Some materials may be more sensitive to a specific wavelength of the laser beam, so at the same power, the cutting speed may be different.
Cutting quality
- An increase in cutting speed may sacrifice cutting quality. If the cutting speed is too fast, it may result in an uneven cutting edge or slag.
- Therefore, a balance needs to be found between power and speed to achieve both fast and high-quality cutting.
Operating parameters
- Operating parameters, such as the height of the cutting head, the type and flow of auxiliary gas, also affect the relationship between power and speed.
- For example, using the appropriate auxiliary gas can increase the cutting speed because it helps blow away the molten material and reduce the heat-affected zone.
Machine maintenance
- The maintenance status of the laser cutting machine also affects the relationship between power and speed. If the machine is not properly maintained, it may cause a drop in power, thereby reducing the cutting speed.
In summary, there is a direct relationship between the power and speed of the laser engraving machine, but this relationship is affected by many factors. Users need to choose the appropriate power and speed according to the specific cutting needs and material characteristics to achieve the best cutting effect.
Common Misconceptions about Laser Cutting Machine Power
More power is always better: This is not always the case. The choice of a power cutter must be based on the material surface that needs to be cut.
Higher power means faster cutting speed: Technically, there is no relationship between power and faster cutting speed, but they need to be adjusted according to the desired needs.
High-power lasers can cut materials of any thickness: Each material and each laser engraving machine has a specified thickness range.
Safety Measures When Using a Laser Cutter
Safety is one of the most important considerations when using a laser cutter. Here are some key safety measures:
Use protective glasses
Always wear protective glasses that meet laser safety standards to protect your eyes from laser radiation.
Closed work environment
- When using a laser cutter, make sure there is an enclosed work area to prevent the laser from accidentally shining on people or other objects.
Emergency stop button
- Make sure the laser cutter is equipped with an emergency stop button to quickly cut off the laser in an emergency.
Proper ventilation
- Laser cutting may produce smoke and harmful gases, so a good ventilation system is required to remove these gases.
Avoid looking directly into the laser beam
- Never look directly into the laser beam, even through optical instruments, as this may cause serious eye damage.
Follow the operator’s manual
- Carefully read and follow the operator’s manual of the laser cutter to understand all safety features and operating limitations.
Safety of children and pets
- Keep children and pets away from the working area of the laser cutting machine to prevent them from accidentally coming into contact with the laser.
Fire prevention measures
- Prepare firefighting equipment, such as fire extinguishers, in case of fire during laser cutting.
Material handling
- Be careful when cutting flammable materials and ensure that there is enough space to prevent sparks from starting a fire.
Machine maintenance
- Regularly maintain the laser engraving machine to ensure that all parts are working properly, especially the laser tube and reflectors.
Training and education
- Provide proper training and education to all personnel who operate the laser cutting machine to ensure that they understand safe operating procedures.
Avoid laser reflection
- Do not work on surfaces that may reflect lasers, as reflected lasers are equally dangerous.
Cleanliness of the work area
- Keep the work area clean and avoid accumulation of debris to reduce the risk of fire.
Comply with local regulations
- Comply with local laser safety regulations and guidelines to ensure the safe use of laser equipment.
Avoid overexposure
- Avoid prolonged exposure to lasers, even low-power lasers can cause damage to the skin.
By following these safety measures, the risks when using a laser engraving machine can be greatly reduced, ensuring the safety of the operator and the surrounding environment.
