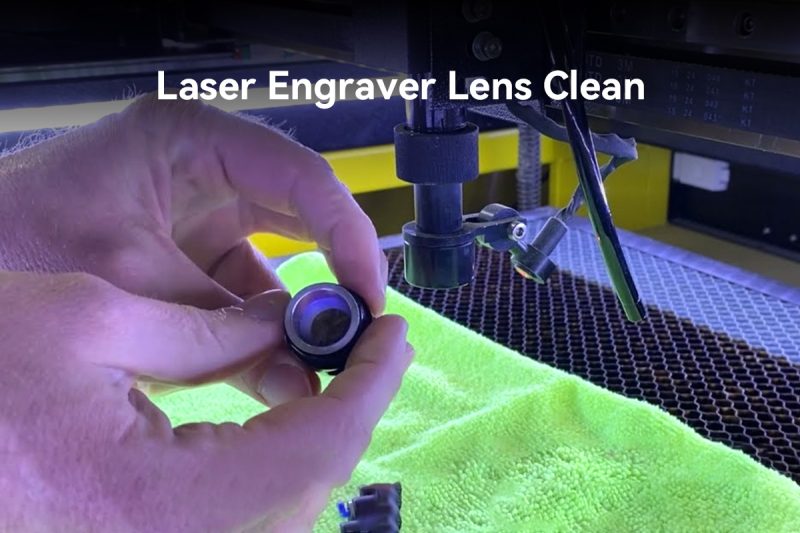

Lens Cleaning
Laser engraving machine lens cleaning is an important maintenance step to ensure the best performance of the machine and extend the life of the lens. Here are some key steps and precautions for cleaning the lens:
Precautions
- Before removing the protective lens, ensure that the area around the cutting head protective lens window is clean to prevent dust from entering the cutting head.

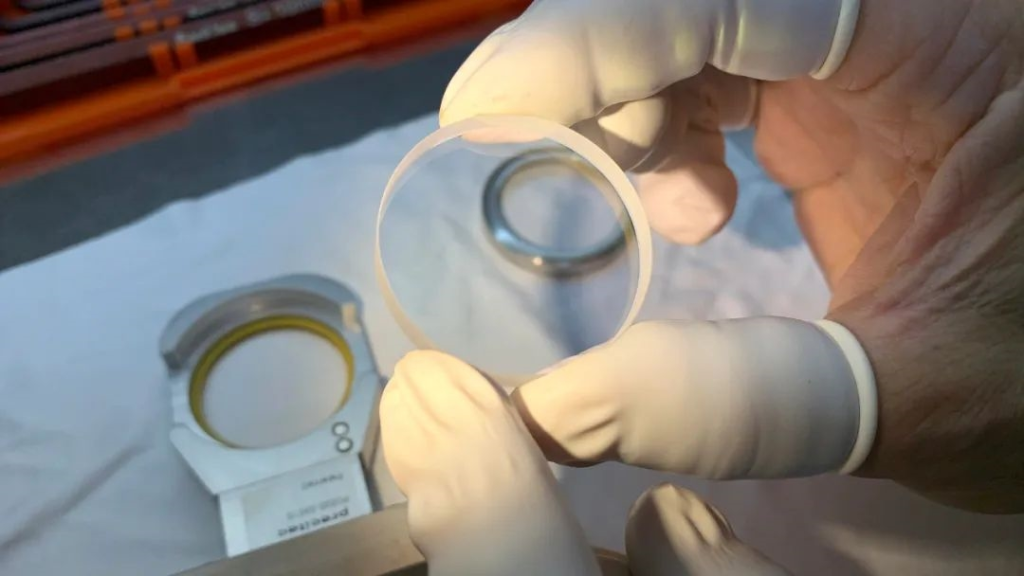

- Do not install the lens with bare fingers, wear powder-free finger cots or rubber/latex gloves.
- Do not touch the film layer and mirror surface when picking up the lens, hold the edge of the lens, and place the lens on the lens cleaning paper.
- Avoid talking above the lens and keep all contaminants away from the working environment as much as possible.
Cleaning steps
- Mild pollution (dust, fiber particles): Use an air bag or cleaning air to blow away the contaminants scattered on the surface of the lens.
- Mild contamination (stains, fingerprints): Wet the lens paper with acetone or special cleaning fluid, gently pull the lens paper across the mirror surface, and wipe repeatedly until the mirror surface is clean.
Lens cleaning
- Use lens paper to hold up the lens and install it on the lens holder, repeat several times until the mirror surface is clean and there is no dust and oil on the lens surface.
- Blow dry with a balloon in the air.
- Do not touch the lens with your hands during installation, let alone blow with your mouth.
Reflector cleaning
- Open the lens in the lens paper with the lens facing up (or operate directly on the machine with the optical path adjusted).
- Install the lens to the lens holder, do not touch the lens with your hands, let alone blow with your mouth.
- Wet the lens paper with cleaning fluid, gently pull the lens paper across the mirror surface.
- Wipe repeatedly until the mirror surface is clean.
Special precautions
- Try to operate in a dust-free environment when cleaning the lens.
- Avoid using air ducts in the workshop because they usually contain a lot of oil and water.
- Do not rub back and forth, and do not let it be scratched by sharp objects, because the surface of the lens is coated with an anti-reflective coating, and damage to the coating will greatly affect the laser energy output.
Following the above steps and precautions, you can effectively clean and maintain the lens of the home laser engraver, ensuring the stability of the machine and the quality of cutting and engraving.
Common Causes of Lens Damage
Pollution and dust
The lens is easily stained with dust or other contaminants, which will cause laser loss or lens damage. After long-term use, especially when engraving organic materials, there is a lot of smoke and dust, and the lens will be polluted, affecting the laser power, lens life and engraving effect.
Improper cleaning
Using rough materials or improper cleaning methods may damage the coating on the lens surface, causing laser energy attenuation. When cleaning, you should use a soft lint-free cloth or special lens paper to avoid touching the lens surface directly with your hands to avoid leaving fingerprints and oil stains.
Physical damage
During installation, disassembly or transportation, the lens may be broken due to collision or falling. The protective lens material is ZnSe (zinc arsenic), which is relatively brittle and afraid of falling. Be careful not to use too much force when disassembling and assembling, and do not collide with hard objects.
Environmental factors
A high humidity environment may affect the life of the machine or damage the electronic circuit, so it is not suitable to work when the relative humidity exceeds 80%. In addition, when the temperature is low, the cooling water may freeze, thereby freezing the laser.
Pollution of the laser tube emission end
If the laser tube emission end is polluted, it will also affect the reflection efficiency of the lens and the transmission efficiency of the laser.
Improper lens installation
The wrong installation direction and position of the lens may cause the laser beam to not focus or reflect correctly, affecting the engraving effect.
Lens aging
After long-term use, the lens may affect its performance due to aging, and it needs to be checked regularly and replaced in time.
In summary, correct cleaning and maintenance, avoiding physical damage, paying attention to environmental factors, and replacing aging lenses in time are the key to keeping the laser engraving machine lens in good condition.
Maintenance Precautions
Maintenance of the laser engraver lens is essential to ensure the normal operation of the machine and extend its service life. Here are some important maintenance precautions:
Regular inspection
- Regularly check the lens for dust, stains, scratches or other damage.
- Check whether the lens is firmly installed and make sure that the lens is not loose.
Proper cleaning
- Use special lens paper or dust-free cloth for cleaning, and avoid using rough materials.
- Use special cleaning fluids such as acetone or lens cleaning fluid, and avoid using detergents containing alcohol, as they may damage the lens coating.
- When cleaning, gently wipe from the center of the lens outward, and avoid wiping back and forth.
Avoid direct contact
- During operation, avoid touching the lens surface directly with your hands, as the oil and sweat on your hands may contaminate the lens.
- If you must hold the lens by hand, wear powder-free gloves.
Avoid high temperature and humidity
- Avoid placing the laser engraving machine in an environment with high temperature or high humidity, which may affect the performance and life of the lens.
Avoid direct laser exposure
- When the laser engraver is not in use, the laser should be turned off to avoid direct laser exposure to the lens for a long time, which may cause lens damage.
Proper storage
- When the laser engraver is not in use, the lens should be stored in a dry, clean environment and use a dedicated lens box or protective cover.
Avoid vibration and impact
- When transporting or moving the laser engraver, ensure that the lens is properly protected and avoid vibration and impact.
Regular replacement
- Depending on the frequency of use and environmental conditions, replace the lens regularly to maintain optimal laser transmission efficiency.
Use protective lenses
- During the engraving process, using protective lenses can reduce the direct impact of smoke and debris on the lens.
Follow the operating manual
- Follow the maintenance guidelines and recommendations in the operating manual of the laser engraver. Different models of machines may have different maintenance requirements.
Professional maintenance
- If you are not sure how to perform maintenance, you can consult a professional technician or service provider.
By following these maintenance precautions, you can ensure that the lens of your laser engraver remains in optimal condition, thereby improving work efficiency and quality.
