With the rapid development of 3D printing technology, consumer-grade Delta 3D printers have become an ideal choice for individual users and small businesses due to their compact structure, fast speed, and high precision. This article will provide you with a comprehensive guide, including the technical principles, operating procedures, maintenance, and purchasing recommendations of Delta 3D printers.
Delta 3D Printer Technology Principle
The Delta 3D printer adopts a parallel mechanical structure, and its core advantage lies in high-speed printing and high-precision molding. Unlike traditional Cartesian coordinate system printers, the Delta printer controls the position and movement of the print head through three parallel arms and a common moving platform. This structure makes the printer have faster response speed and higher printing accuracy in the Z-axis direction.

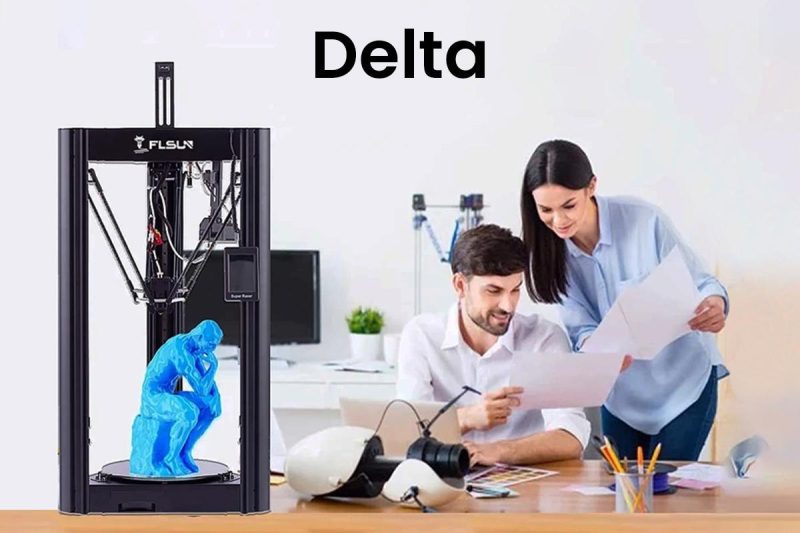

Delta 3D Printer
High-speed printing: Due to the light weight of moving parts, Delta printers can achieve high-speed printing.
Large print space: Delta printers typically have more print space than traditional XYZ structured printers.
Flexibility: The print head can move freely within the print space without being limited by a fixed axis.
Installation and Commissioning
Printer assembly: Assemble the printer according to the instructions provided by the manufacturer.
Consumables Installation: Place consumables (such as PLA or ABS) into the consumables slot of the printer.
Print baseplate calibration: Adjust the level of the baseplate and the distance from the print head to ensure that the gap between the baseplate and the print head is appropriate.
Software settings: Make corresponding software settings, such as selecting print type, adjusting print temperature and print speed, etc.
Printing parameter debugging: Adjust printing parameters, such as printing speed, printing temperature, filling density, etc., to obtain the best printing effect.
Operating Steps
Design model: Use 3D modeling software to design the model and save it as STL format.
Slicing processing: Import the STL file into the 3D printing slicing software, perform slicing processing, and generate printing paths.
Start printing: Transfer the processed file to the 3D printer and start printing according to the set parameters.
Maintenance and Upkeep
Regular cleaning: Keeping the 3D printer clean is the basis of maintenance and upkeep. After each print, the printer should be cleaned to remove residual printing materials and foreign objects.
Lubrication of slides and guides: Maintaining good lubrication of slides and guides is key to ensuring smooth operation of the printer. Regularly check for dust or foreign objects on the slides and guides, and whether lubricating oil needs to be replenished.
Ensure belt tension: The belt is an important part of the printer’s precise positioning and movement. Check that the belt tension is appropriate and adjust as needed.
Hot bed cleaning: Regularly clean the hot bed to remove residual prints and grease, which can be cleaned with a soft cloth and detergent.
Nozzle cleaning: It is important to clean the nozzles regularly to remove residual prints. You can use a dedicated nozzle cleaning tool or a fine needle for cleaning.
Purchase Advice
1. Printer type and structure
Delta 3D printers are known for their unique parallel arm structure, which provides high-speed printing and good accuracy. When choosing, consider whether the printer meets your specific needs, such as printing size, accuracy, and speed.
2. Printing materials
Different printers support different printing materials, common ones include PLA, ABS, etc. Make sure the selected printer is compatible with the printing materials you plan to use.
3. Print size
Choose the appropriate print size based on your printing needs. If you need to print larger items, make sure the build size of the printer is large enough.
4. Print accuracy
Print accuracy is crucial for the detail and smoothness of the model. If you have high requirements for print quality, choose a printer with high resolution.
5. Software compatibility
Consider the compatibility of the printer with the slicing software you are using. Different 3D printers may require different software, so choose software that is easy to operate and fully functional.
6. Price and budget
Choose a printer based on your budget. Prices range from a few hundred yuan to hundreds of thousands of yuan. Allocate your budget reasonably, taking into account the long-term operating costs of the printer, including consumables and maintenance.
7. Ease of use and technical support
For beginners, printers that are easy to operate and maintain are the first choice. Choose a brand that provides good technical support and user guides to get help when encountering problems.
8. Brand reputation
Choosing a brand with good reputation can be understood through online reviews, user feedback, and other means. Good brands usually provide more reliable products and better after-sales services.
9. Automatic leveling function
The automatic leveling function of Delta printers can greatly improve print quality and reduce the trouble of manual adjustment. Choosing a printer that supports automatic leveling can enhance the user experience.
10. Community and resources
An active user community can provide valuable technical support and creative sharing. Choose a printer with strong community support to get help when needed.
Conclusion
Consumer-grade Delta 3D printers are becoming increasingly popular among individuals and small and medium-sized enterprise users due to their unique advantages. Understanding their technical principles, operating procedures, and maintenance knowledge will help users better utilize this tool and achieve personalized manufacturing and innovation. With the continuous advancement of technology and the expansion of the market, 3D printing technology will play a more important role in the future.
