Cleaning the nozzle of a 3D printer is crucial for maintaining print quality and avoiding clogging. This article details methods and preventive measures for cleaning 3D printer nozzles to ensure a smooth printing process.
Cleaning Prevention
Regularly cleaning the nozzle is the best way to prevent clogging, especially for users who frequently replace different consumables. Some consumables have different reactions to temperature changes, especially those that mimic rubber, so replacing consumables should be done when the print head overheats to prevent material cooling.

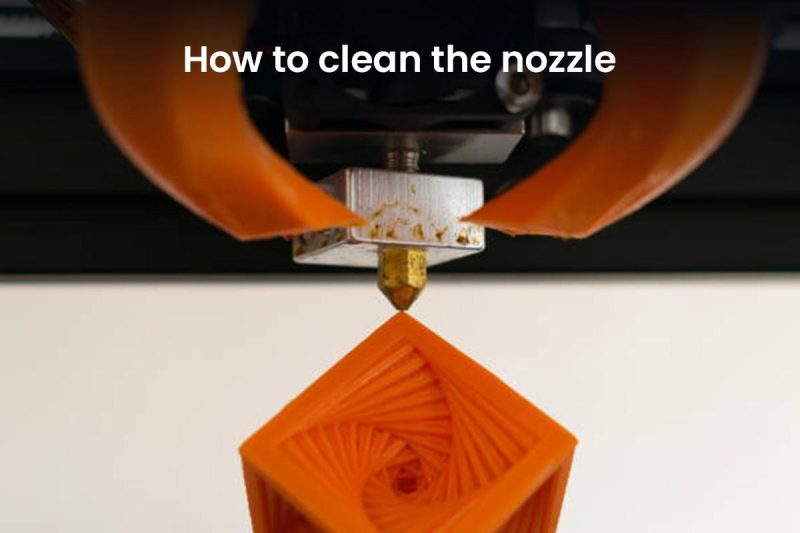

Nozzle Cleaning
Before cleaning the nozzle, it should be determined whether the nozzle is working properly. Sometimes, the material may break at the entrance of the print head, or the heating block may malfunction. To prevent nozzle failure and blockage, it is necessary to ensure that the nozzle tip and the surrounding area of the heating block are clean. The simplest cleaning method is to use a wire brush to brush the nozzle and its surrounding area, using linear motion and ensuring access from multiple directions.
Use a Needle to Solve the Blockage Problem
Nozzle blockage is usually caused by the solidification of cooled consumables inside, which prevents the consumables from being extruded. First, heat the extruder and nozzle to soften the blocked material, and then push it out with a needle. If the machine is not turned on, you can try using a hot air gun to manually heat the nozzle, and then push it out with a needle.
Use Chemical Solvents
If the above steps cannot solve the blockage problem, chemical solvents can be considered. For example, if ABS is used for 3D printing, the nozzle can be removed from the 3D printer head and placed in acetone for a few hours. Acetone will melt the material in the nozzle and allow it to be removed with a needle.
Notes
When using a wire brush for cleaning, it is important to maintain the strength of the brush, as some components may be damaged by the wire brush.
When handling hot nozzles or heating beds, make sure the printer is turned off and cooled to avoid burns and damage.
Conclusion
Regular cleaning and appropriate preventive measures can effectively extend the service life of 3D printer nozzles and improve printing quality. If you encounter nozzle blockage problems, you can try the above methods to solve them. If the problem still cannot be solved, it is recommended to consult a professional for further inspection and maintenance.
