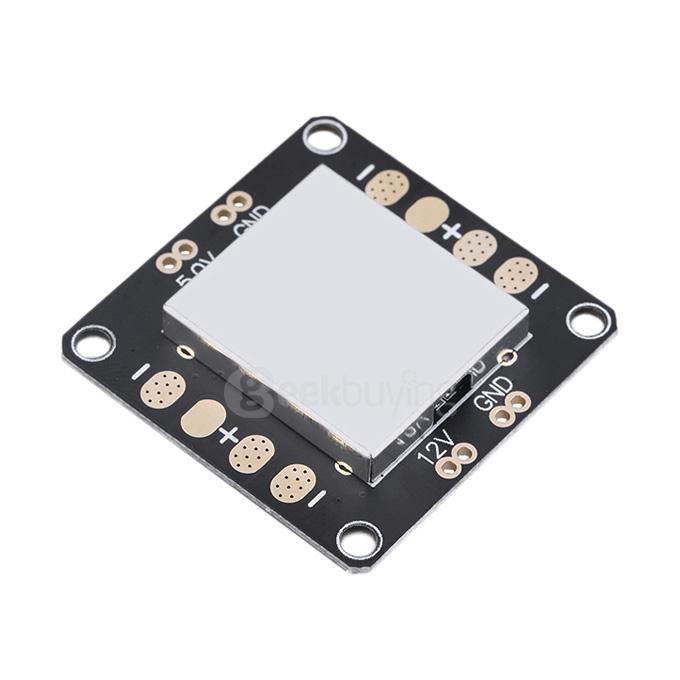

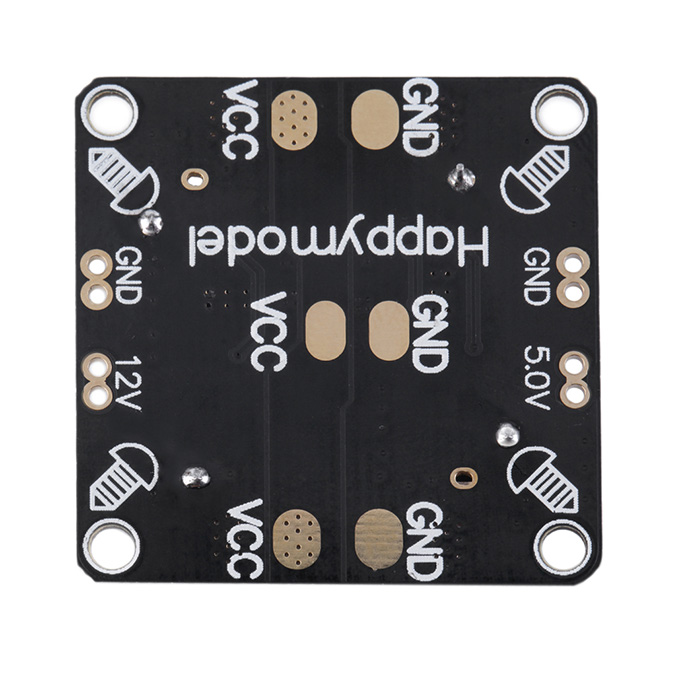

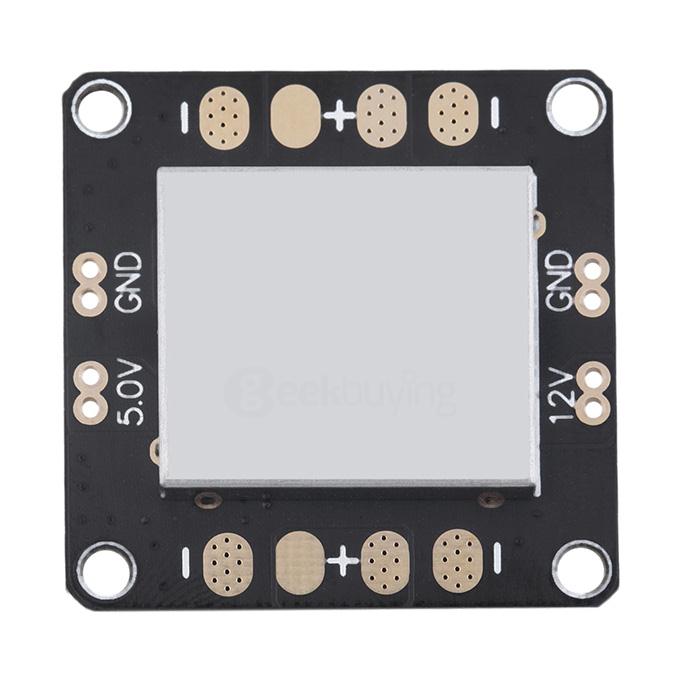

CC3D Flight Controller Power Distribution Board 5V 12V with BEC

Highlights

• Latest CC3D dedicated breakout board
• With two BEC output 5V and 12V input voltage 2-6S with the shield case
• The latest upgrade current output reaches 3A
• With a metal shield case to minimize signal interference
• CC3D distributor plate with two BEC output 5V and 12V
• Hole location and size CC3D flight control board exactly the same
• Input voltage 2-6S
• 12V BEC need input power of at least 4S, such as 3S no need to use a BEC

This sub-panels using the industry's highest standard industrial grade TI chip, and the PCB board to do a fully optimized, thicker copper increase stability, with the shield cover.DC-DC power supply itself is high-frequency switching state, when the work itself back to produce a high-frequency interference sources, plus the distance sub-panels and flight control plate is very close, there are other parts, as shown in Chuan remote control receiver These data transmission and other radio equipment, the frequency is not the same as each other will lead to mutual interference, plus rear shield cover, completely remove power to the remote receiver Fig pass interference, but also aircraft aclean, stable power supply. Choose a good power supply can be reduced or even completely eliminate the possibility of interference because the power of flight control result of bombing.

Specification
