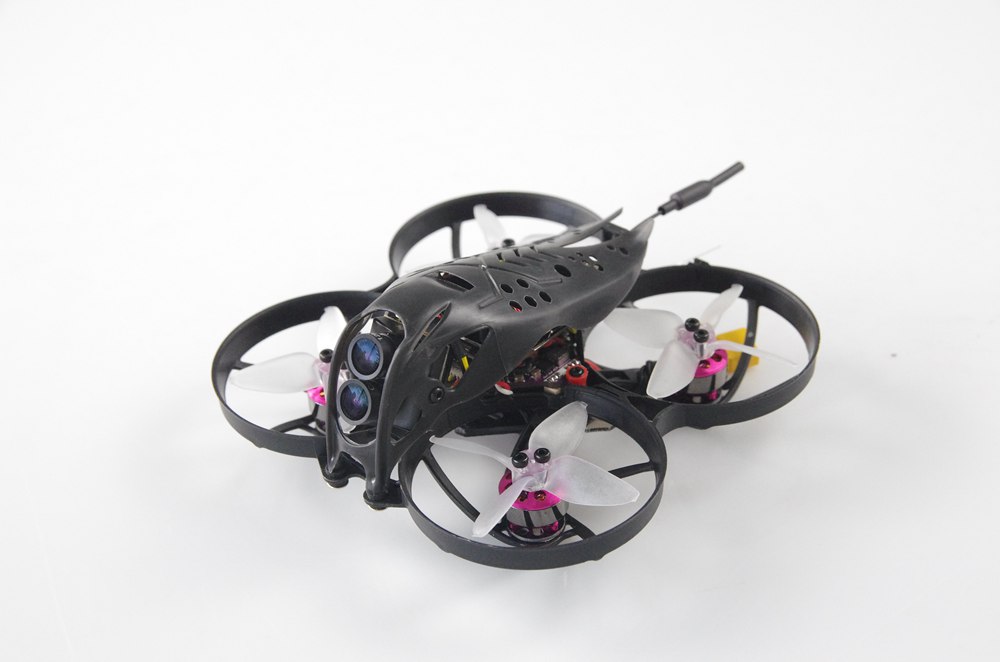

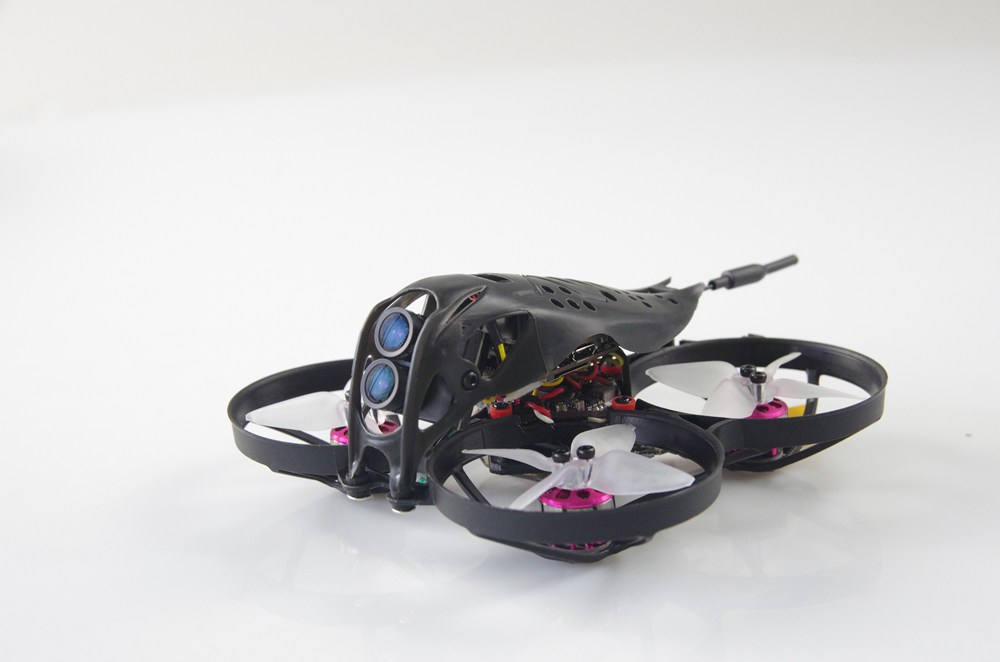

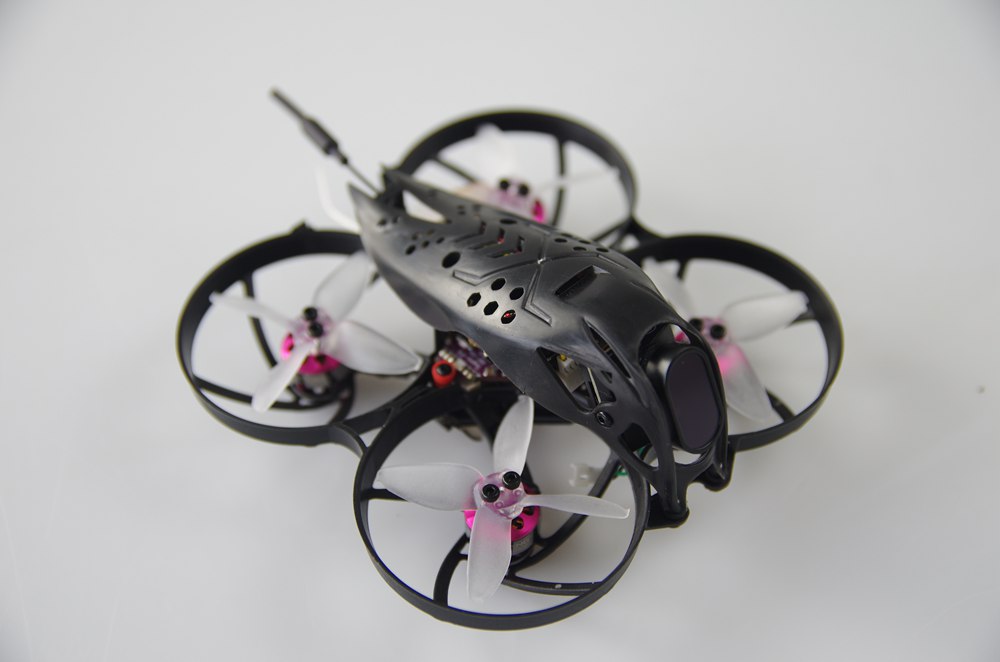

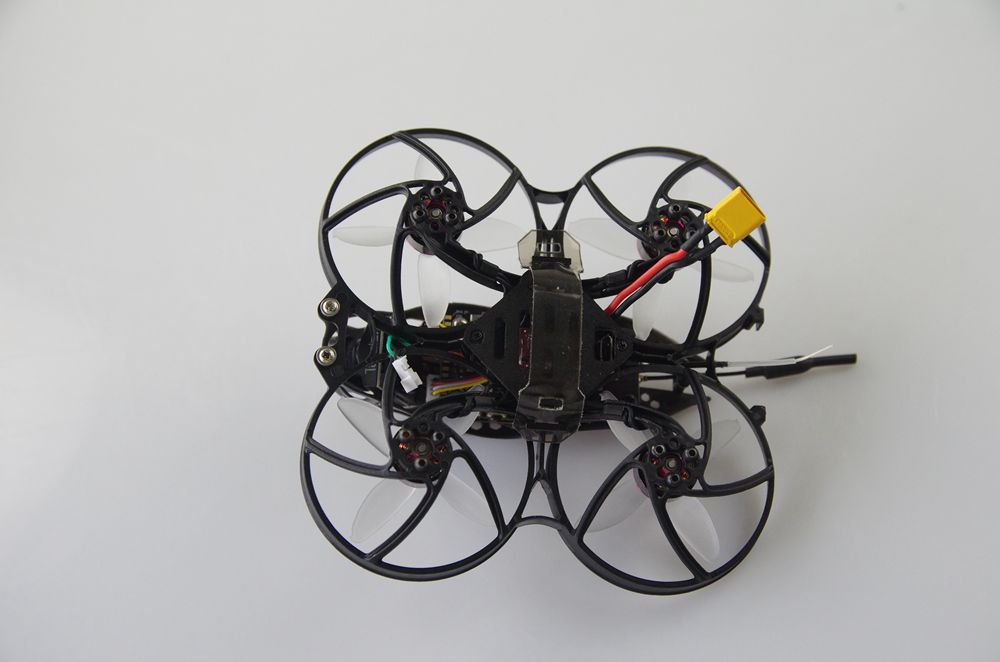

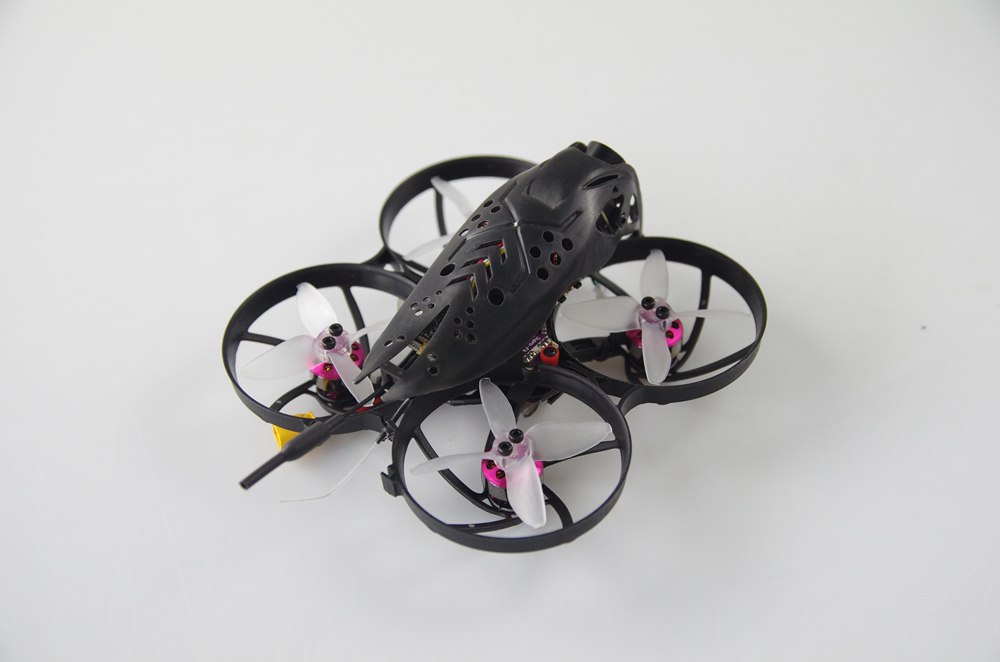

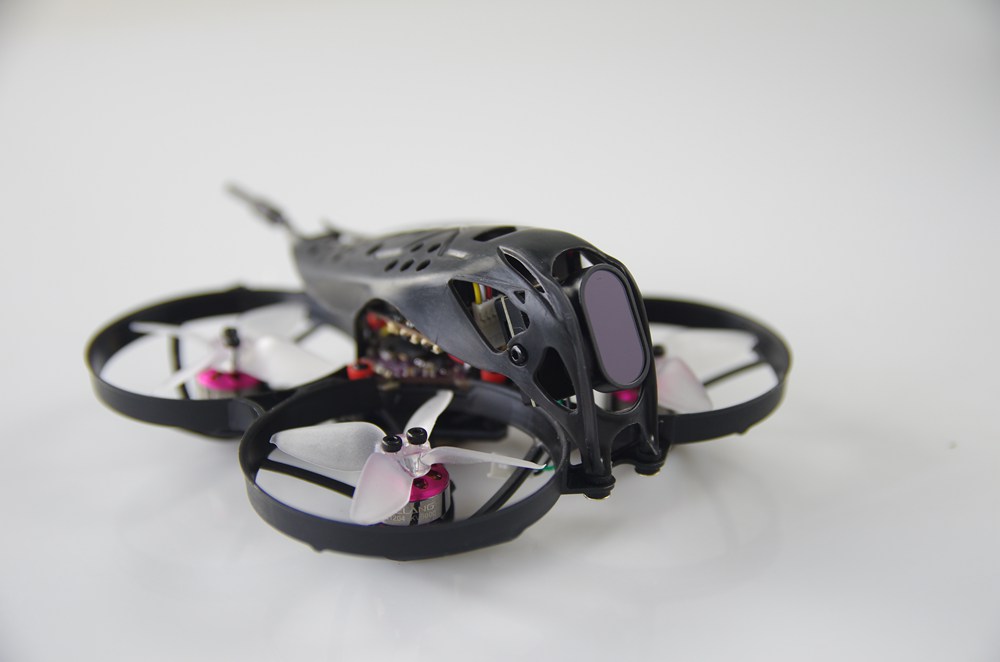

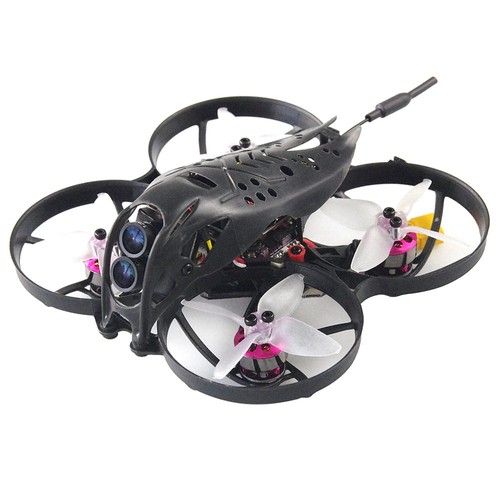

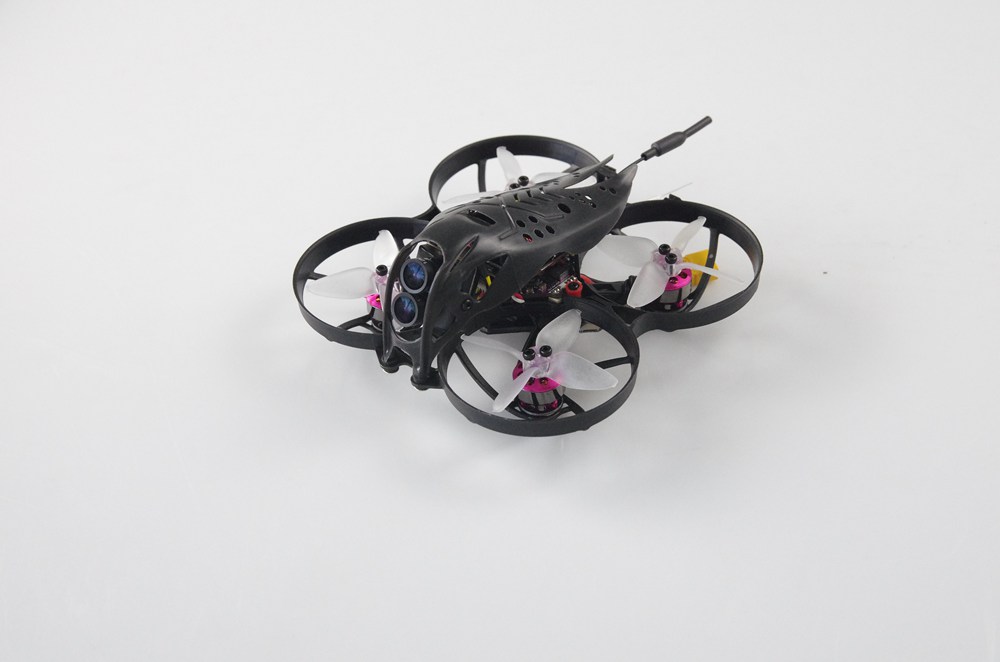

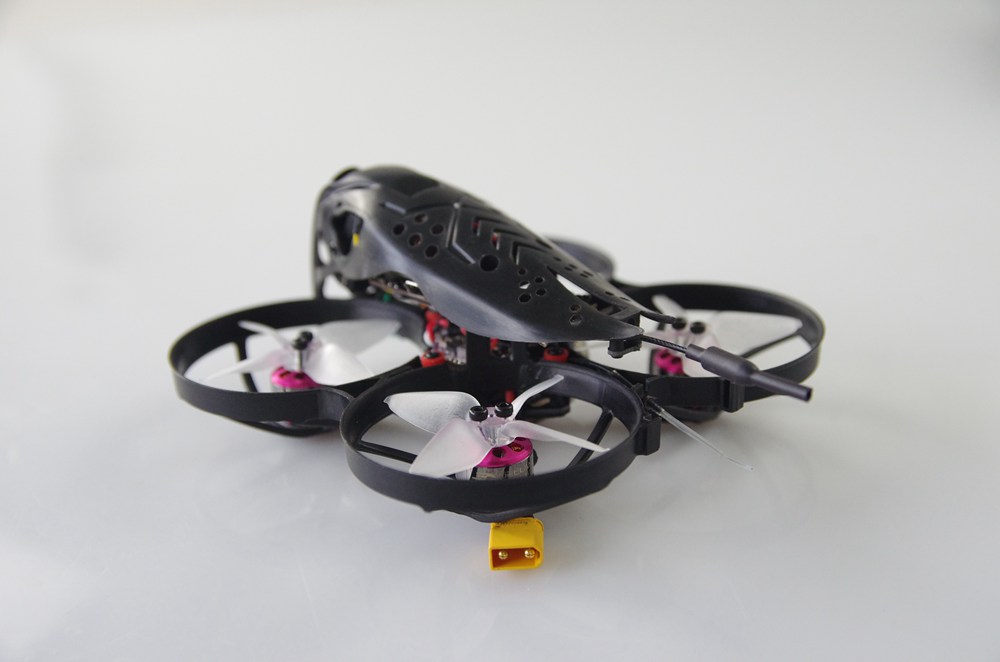

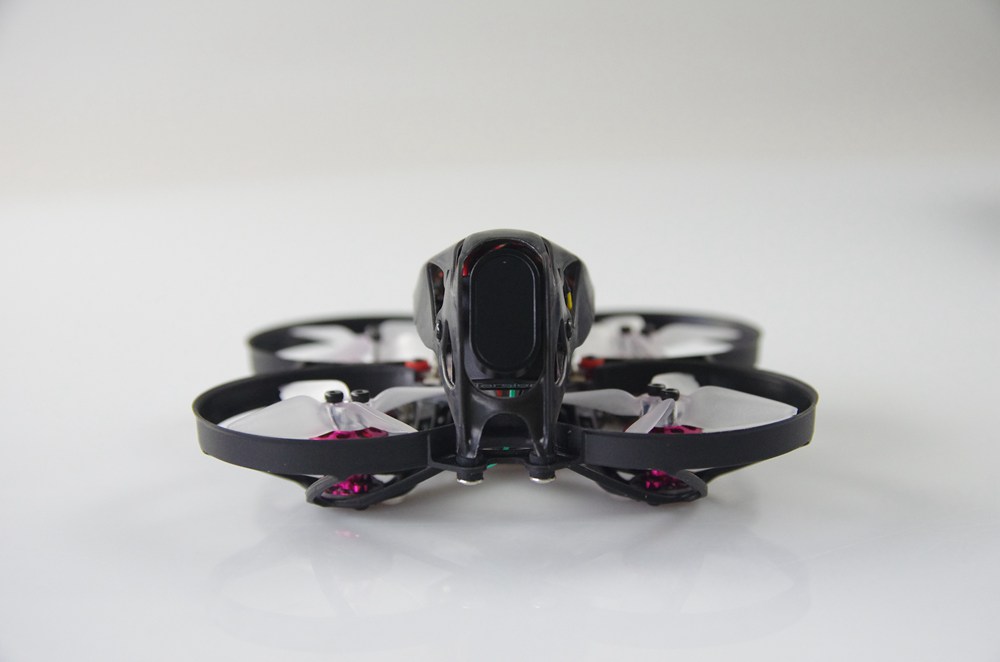

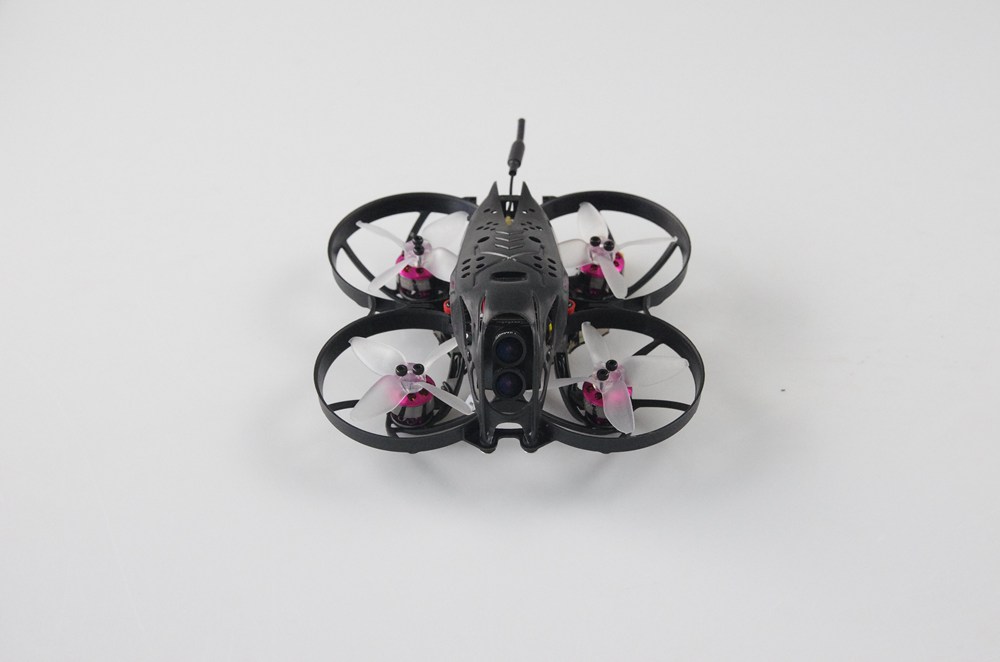

Upgraded Geelang Hobby X-UFO 85X 4K 3-4S Cinewhoop FPV Racing Drone With Supra F4 OSD 12A Caddx Tarsier V2 Cam DVR BNF

General

Brand: Geelang Hobby
Item Name: Hollywood CineWhoop
Item No.: X-UFO 85X
Color: Black

Specification

Wheelbase: 85mm
Size: 118 X 118 X 56mm
Weight: 79.2 (Without Battery)
Weight: 112.2g (With 4S 260mAh Battery)

Flight Control
Item Name: Supra F4
Version: MATEKF411 4.0.2(4.0.3)
MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board Size: 28.5 * 28.5MM
Power Supply: 2-4S battery input (DC 7-17V)
Built-in 12A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 70A
Current meter scale set to 480
Built-in 5V 2A BEC
Built-in voltage detection
Onboard 4in1 ESC MCU upgraded to EFM8BB21
Power supply: 2-4S LiPo/LiPo HV (7v/17v)
Current: 12A continuous peak 13A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: F_H_40_REV16_5.HEX
Default protocol: DSHOT600

VTX
Output power: 25-200mw switchable
Frequency: 40CH
Input voltage: 3.2V- 5.2V
Current consumption: 320mA(type)
Power switching: third gear(25mW/100mW/200mW)
Antenna: RG178s antenna
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio ready
Weight:2g

CADDX Tarsier V2 CameraFOV: 4K F2.8,FOV 160°(16:9),FPV FOV 165°(4:3)
Lens: 7G 12M
Audio: Dual Digital MIC
CPU: Dual Core Dual System
Sensor: Sony Sensor
Main Resolution: 4K/30fps 16:9
                            2.7K/60fps 4:3
                            1440P 60fps/30fps 4:3
                            1080P/90fps,60fps,30fps 16:9
                            720P 120fps 16:9
Camera Bitrate: 30Mbps/50Mbps/70Mbps
Video System: NTSC/PAL
ISO: OFF/100/200/400/800/1600
ANTI-SHAKE: Hardware
Scene Mode: Auto/Personage/Scenery/Defog
Video Encode: H.264/H.265
Image Rotate: Rotate 180°
Recording Timing Larm: OFF/1mins/3mins/5mins/10mins
FPV: Horizontal Resolution 1200TVL
TV System: NTSC & PAL(Changeable)
WDR: Super WDR
Camera OSD: Separate OSD
FC Control: Support
Input: 5-12V
SD Card: U3 Level

Receiver:(TBS Crossfire Version)
Protocol: CRSF
Official TBS transmitter compatible

Motor:
Model: GL1204 KV5000
Stator specifications: D12 * H4 0.2mm Kawasaki
Configu-ration:9N12P
Stator Diamter:12mm
Stator Length:4mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ16.0mm*15.8mm
Magent specifications: N52H
Shift specifications: 2mm High strength steel
Bearing Specifications: d2*D5*H2.5 MR52zz Japan ISC Custom made
Winding Specifications: 200Celsius Class Multiple oxygen-free copper
Weight(g): 5.8g
No.of Cells(Lipo): 3S-4S

Battery
Type: Lipo
Capacity: 260mAh
Voltage: 15.2v
Continuous Discharge Rate: 40C
Instantaneous discharge rate: 80C
Size: 52mm x25mmx11mm
Weight: 31g
Connector: XT30

Prop:
Item Name: Eamx 2035 2Inch 4-blade
Diameter: 51mm
Mounting holes: 1.5mm
Weight: 0.9g

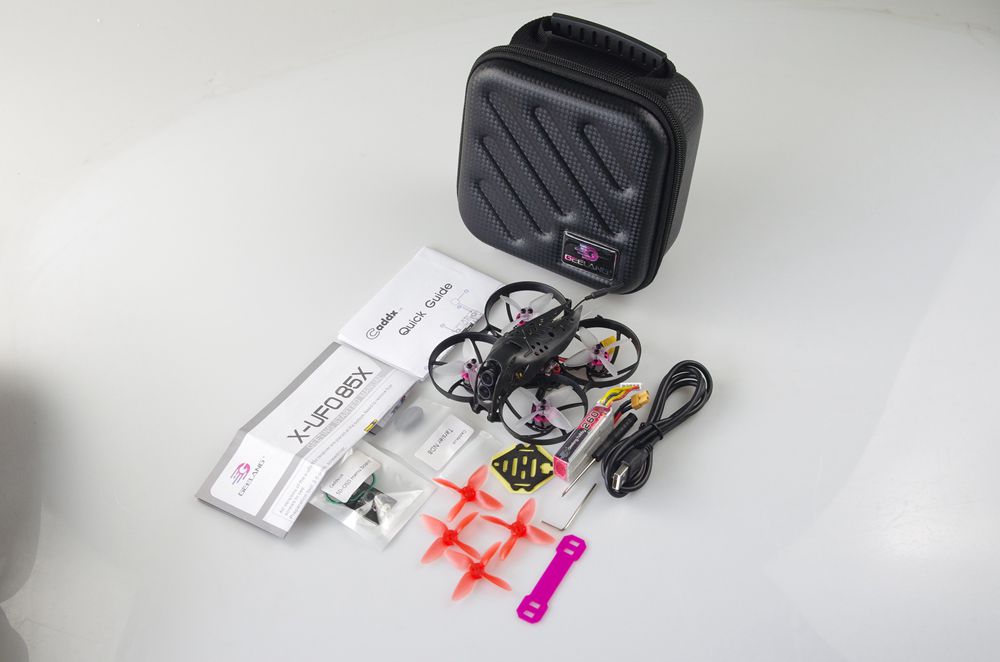

Package Contents

1 x 85X mm Frame
1 x Supra f4 with external TBS Crossfire Receiver
4 x 1204 5000KV Motor
1 x 2 Inch propeller (4cw + 4ccw)
1 x Caddx Tarsier V2 4K Camera
1 x 5.8G 40ch 25mw-200mw VTX
1 x 4S 15.2v 260mah 40C/80CBattery
1 x Propeller disassemble tool
1 x Screwdriver
1 x ND8 Filter on the camera
1 x Usb Data line
1 x Battery fixing elastic band
