Model |
T6892WP |
|
Features |
View by phone |
Support monitoring via mobile devices on line(such as iOS, Android OS) |
|
View on PC |
Support Windows system |
|
Easy operation |
Plug & Play technology. Easy operation: 1.plug the cable and power line, 2.install computer software, scan QR code to add camera. |
|
Local memory |
Support 32G TF Cards (card not included) |
|
Super client |
1,4,9,16,25,36, 64,81-channel,no user limited,centralized monitor,remote record and playback |
System |
Operation system |
Embedded Linux OS |
|
System security |
Supports account, password authority management |
|
DDNS |
Free DDNS |
Collection |
Image sensor |
1/4inch 0.3 Megapixel line by line CMOS sensor |
|
SNR |
≥50dB |
|
Minimum Illumination |
0.3Lux |
|
3A |
Auto White Balance, Auto Exposure, Automatic Gain |
|
Lens |
3.6mm/F1.2 |
Video |
Compression Format |
M-jpeg |
|
Resolution |
VGA(640×480)/ QVGA(320×240) |
|
Maximum frame rate |
0-30fps |
|
Adjustment |
Light intensity,contrast ratio,saturation level are adjustable. |
Night vision |
Nightvision |

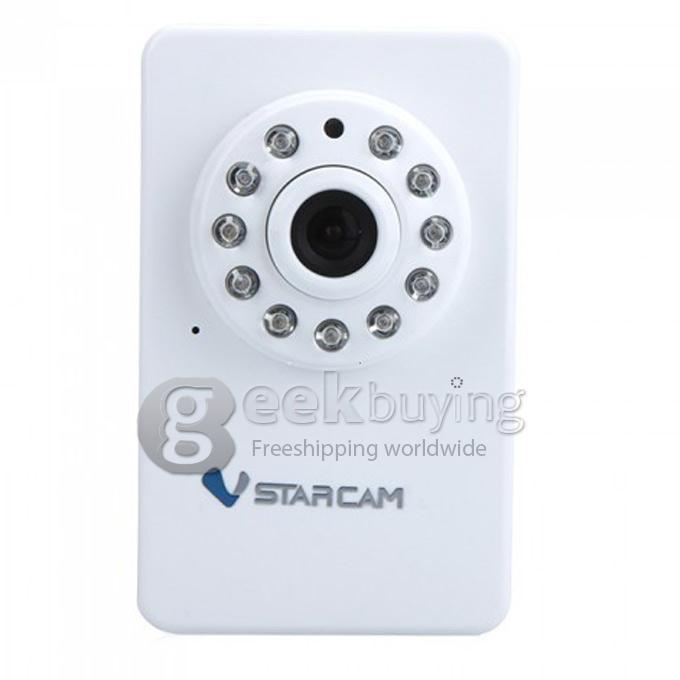

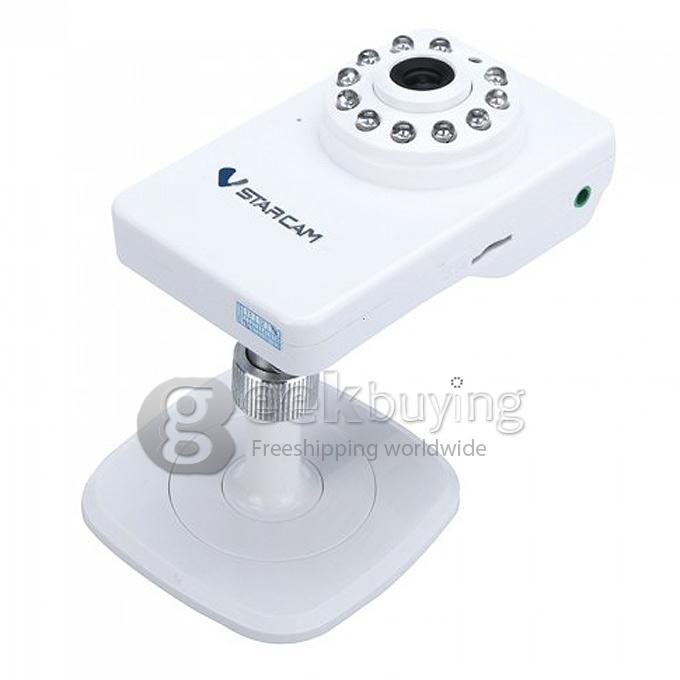

10 Φ5mm LEDs IR Distance: 10 m |
Audio |
Encode formats |
ADPCM |
|
Input |
1 Channel Internal MIC |
|
Output |
1 Channel Line out(3.5mm phone jack) |
Memory |
Memory socket |
Automatic pop-up slot for micro SD card |
|
View by micro SD Card |
Remote browsing, download of content from 32G TF card |
Network |

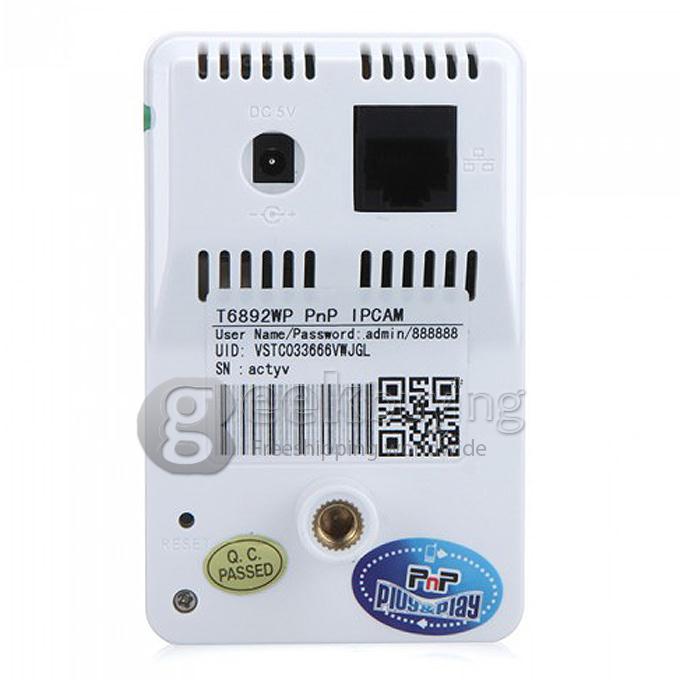

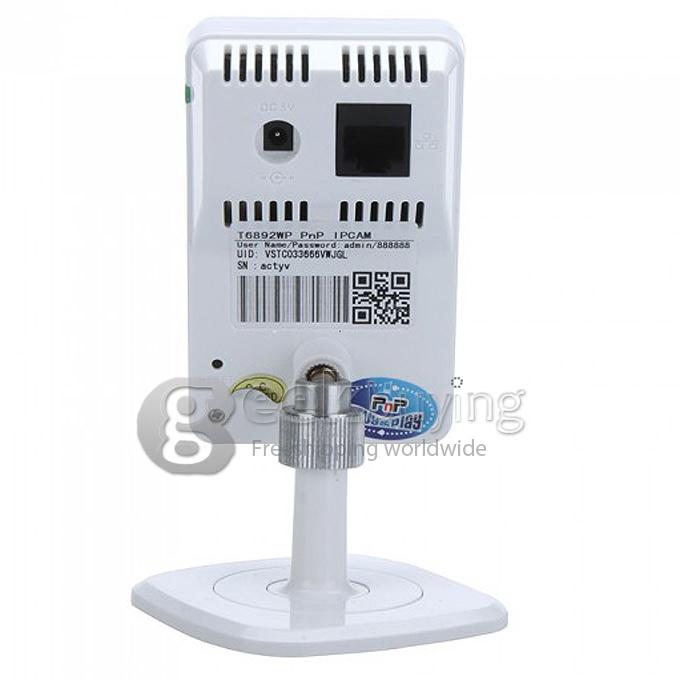

Socket |

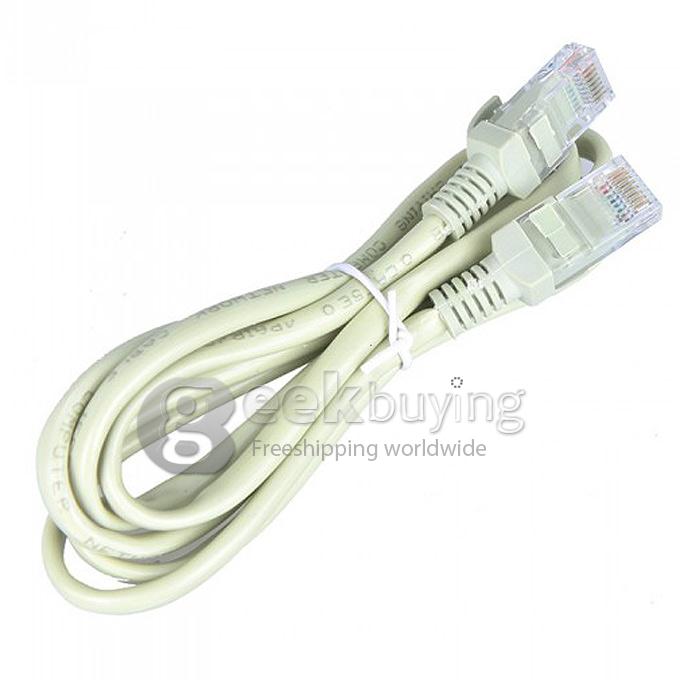

RJ-45 10/100Mb self-adaptable Ethernet slot |
|
WIFI |
WIFI 802.11 b/g/n |
|
Visitors online |
Support 4 visitors viewing on line at the same time |
Alarm |
Alarm detection |
Support motion detecting |
Language |
Chinese, Spanish, Polish, Portuguese, German, Korean,French, Japanese |
Physical index |
Power |

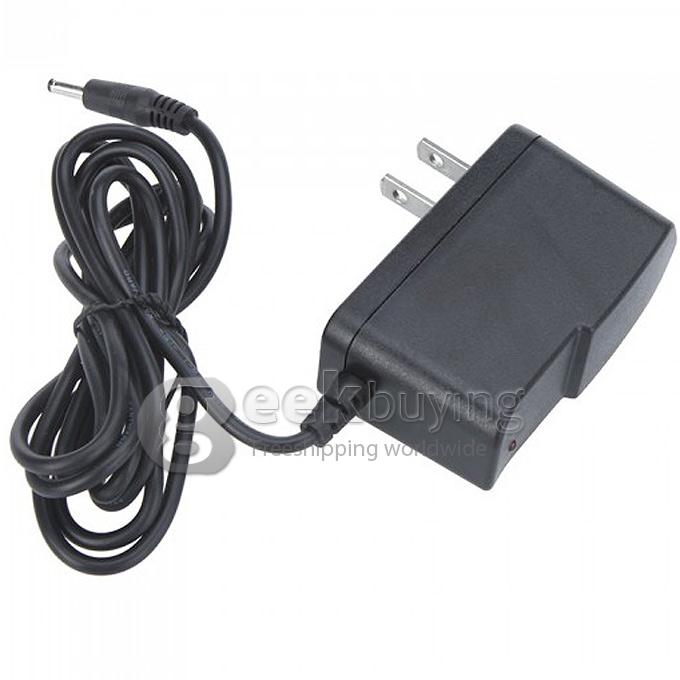

DC5V 2A |
|
Comsumption |
< 6W |
|
Temperature |
-10~50℃ |
|
Humidity |
10%-85% |
|
Camera color |
White |
|
Camera size |
Approx. 9.5 * 5.9 * 4cm/ 3.7 * 2.3 * 1.6in(L * W * Max. T) |
|
Camera weight |
80g/ 2.8oz |
|
Package size |
14.8 * 12.4 * 8.8cm / 5.8 * 4.9 * 3.5in |
|
Package weight |
320g/ 11.3oz |
