Specification
| General | Brand: SKYSTARS Item Name: Star-lord Drone Weight: 364g Propeller: GEMFAN 5052 Motor: ST2306 2600KV Recommend battery: 4-5S 1500-2200mAh(not include) |
| Frame Kit | Wheelbase: 228mm Material: 3K Carbon fiber Arm Plate Thickness: about 6mm Thickness of top plate: about 2mm Thickness of bottom plate: about 2.5mm Side Plate Thickness: 2mm Screws: YFS 12.9 class screw Weight: 118g |
| Flight Controller | Micro F4 Flight Control Board ( D-Shot Version) MPU: 6000 CPU: STM32F405RGT6 Input Voltage: 2-5S Lipo Built-in Betaflight OSD to adjust PID BEC Output: 5V@3A Size: 30.5x30.5mm board, 3mm mounting holes (M3) Weight:7g Support Subs/PPM/DSMX receiver |
| Brushless ESC | 40A 2-5S Blheli_32 4 in 1 ESC: Input Voltage: 2-5S Lipo battery Constant Current: 40A Peak Current: 50A BEC Ouput: 5V@1.2A CPU: STM32F051 BLHELI_32 firmware Size: 36x36mm (main board) Installing Hole: 30.5x30.5mm, M3 Weight: 10g MOS Tube: TOP QUALITY MOSFET Support Damped Mode, Oneshot125, Oneshot42, Multishot, Dshot150/300/600/1200, forward and reverse |
| VTX | Output power: 25mW/200mW/500mW/800mW switchable Control mode: Button OR Channel changes and Pitmode setting through PWM With a microphone, you can switch the audio flexibly BAT: 7-26V,BEC 5V-1A 310mA-800mW Video system: NTSC/PAL Antenna: MMCX Frequency: 5.8GHz 5 bands 40channels Weight: 4.2 g Dimension: 36*36*4.85mm Mounting Hole: 30.5mmx30.5mm |
| RunCam Swift Mini 2 Camera | Brand: RunCam Model: Swift Mini 2 Image Sensor: 1/3" SONY Super HAD II CCD Horizontal Resolution: 600TVL Lens: 2.1mm (M12) FOV165° Signal System: PAL/NTSC Integrated OSD: Yes One Key Scene: Personal/Lightrax/Outdoor/Indoor/Cloudy/Twilight S/N Ratio: >60dB (AGC OFF) Electronic Shutter Speed: PAL: 1/50~100,000; NTSC: 1/60~100,000 Auto Gain Control (AGC): Yes Min. Illumination: 0.01Lux@1.2F WDR: D-WDR DNR: 2DNR Day/Night: Color/Auto/B&W Power: DC 5-36V Current: 120mA@5V/60mA@12V Net Weight: 12g Dimensions: L22.3mm*W22mm*H26mm |
| Pagoda2 Antenna | Size: 25mm x 25mm Weight: 8g Gain: 1.6dbic Axial ratio: 1.0 (near perfect) Bandwidth: 5.5GHz-6.0GHz Radiation Efficiency: 95% VSWR: <=1.22 Connector: SMA Works great as both a transmitting or receiving antenna Compatible with other styles of 5.8GHz RHCP antennas |

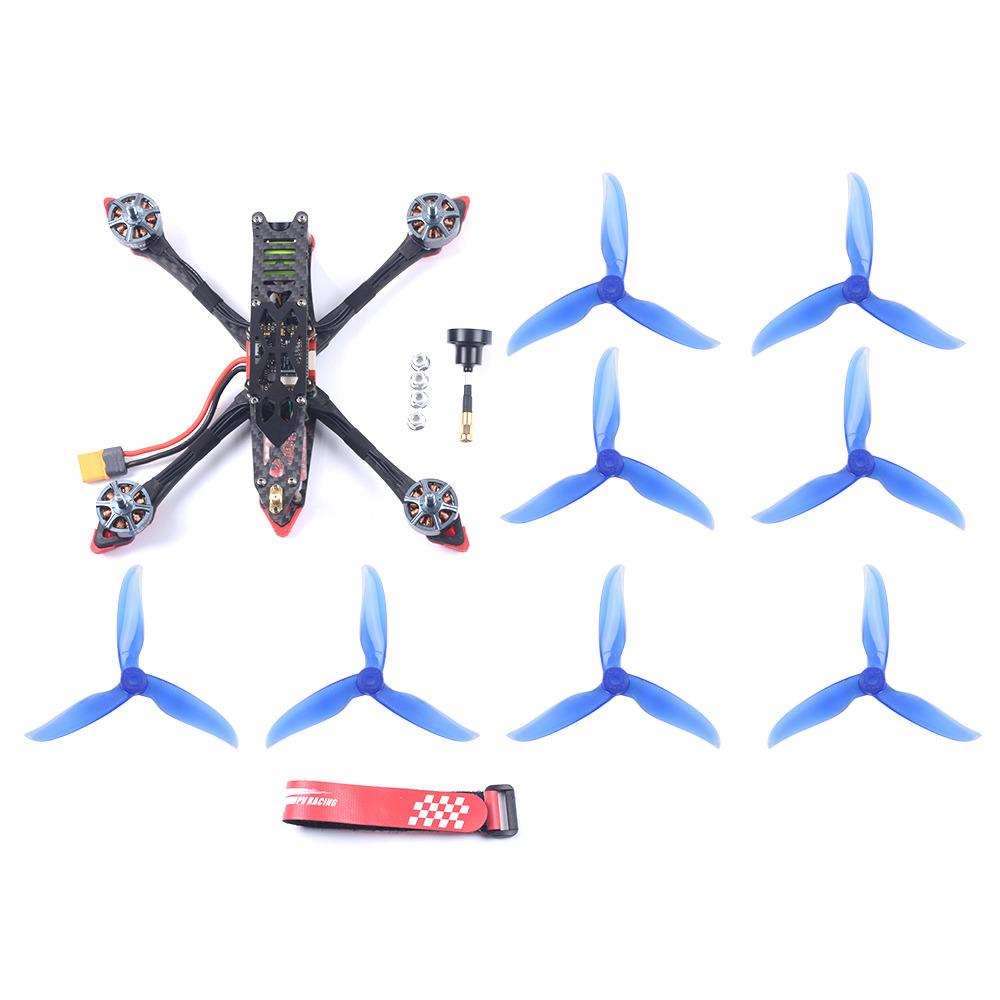

| Package Contents | 1 x Frame Kit 1 x F4 Flight Controller 1 x RunCam Swift Mini 2 Camera 1 x 25-800MW VTX 1 x 40A Blheli_32 ESC 2-5S ESC 4 x ST2306 2600KV Motor 4 x CW GF5052 propeller 4 x CCW GF5052 propeller 1 x 25MM Battery Strap 1 x Antenna |
