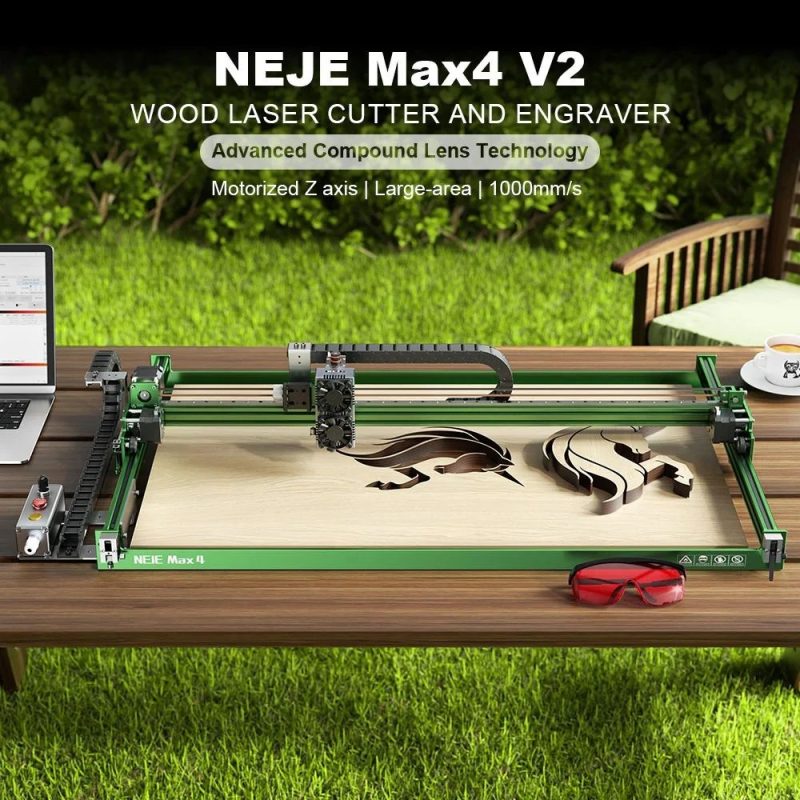

マックスではありません 4 V2 – The Next Generation Upgrade
の いいえ最大 4 V2 is the enhanced successor to the original Max 4, redesigned with a focus on improved workflow efficiency と comprehensive performance upgrades.
Key Upgrades & Innovations
Reinforced Lightweight Structure with Superior Rigidity
- Maintains a lightweight design while significantly enhancing structural rigidity.

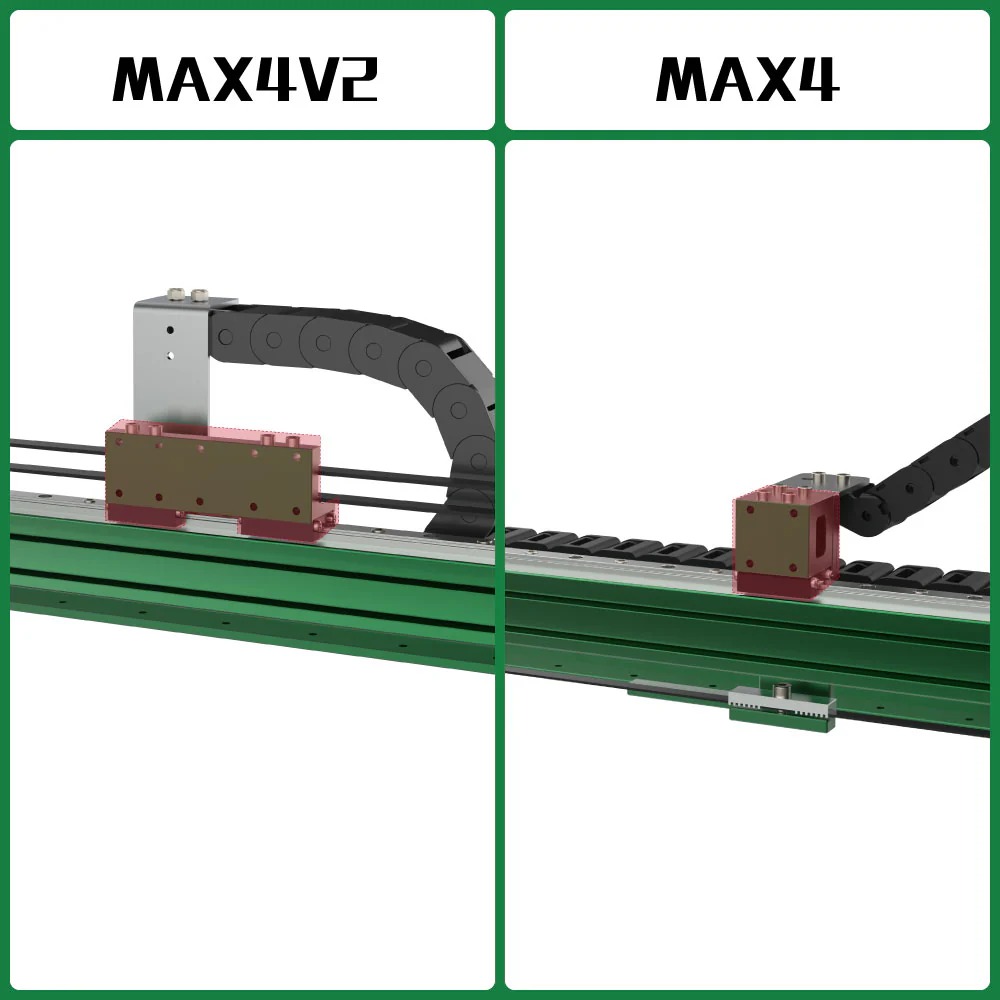

- 特徴 dual sliders for stable, high-speed scanning at 1000mm/s と 100,000 mm/s² acceleration under a 1000g load.
- Delivers flawless, wave-free performance with precise response and high repeatability, fully unlocking the potential of the E80 module.

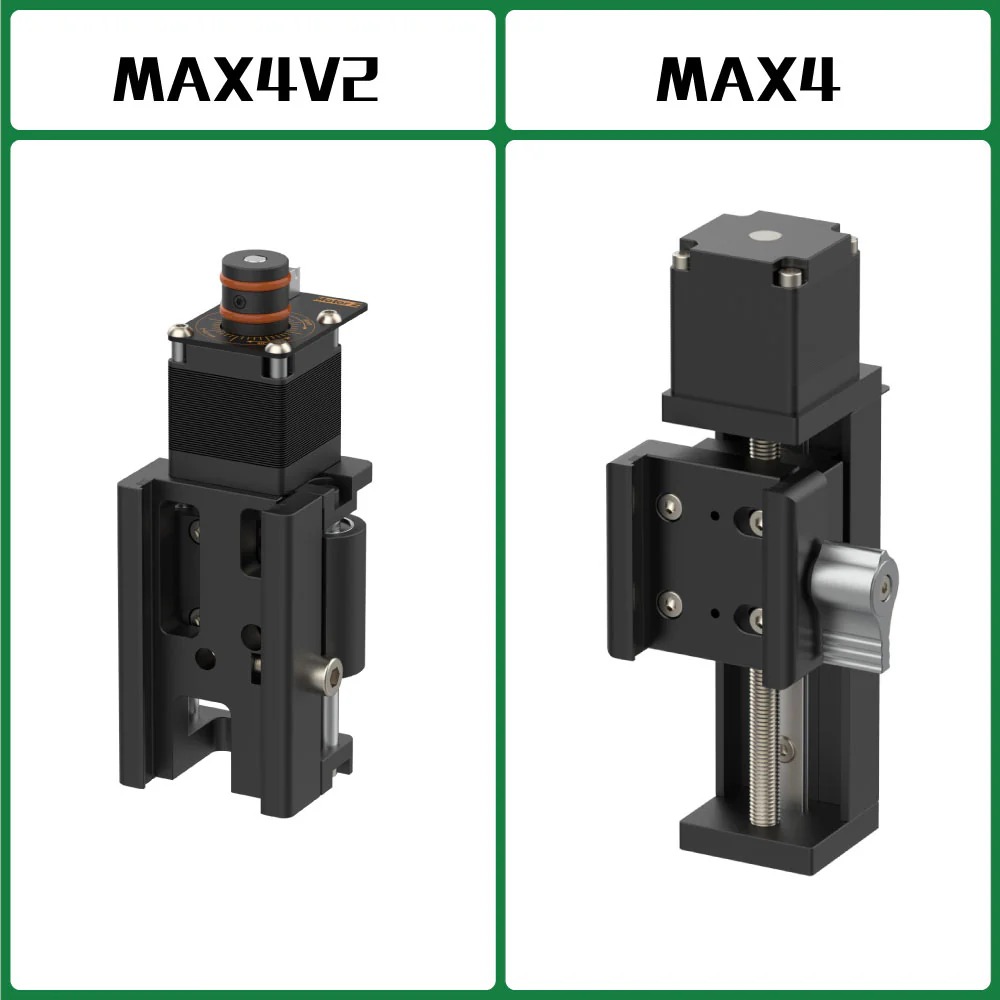

Revolutionary Z-Axis Design
- Ultra-lightweight, ultra-thin, and high-rigidity Z-axis that combines manual and motorized functions in one seamless unit.
- Enhanced anti-vibration performance for stable operation.
- Manual focus control: Rotate manually for precise focus adjustment after powering on.
- Software-defined height control: Set custom working heights for each engraving/cutting element.
- Multi-module compatibility: サポート cutting heads, pen holders, plasma cutters, CNC spindles, and more for flexible focus control on fixed platforms, improving both efficiency and safety.
Simplified Assembly Process

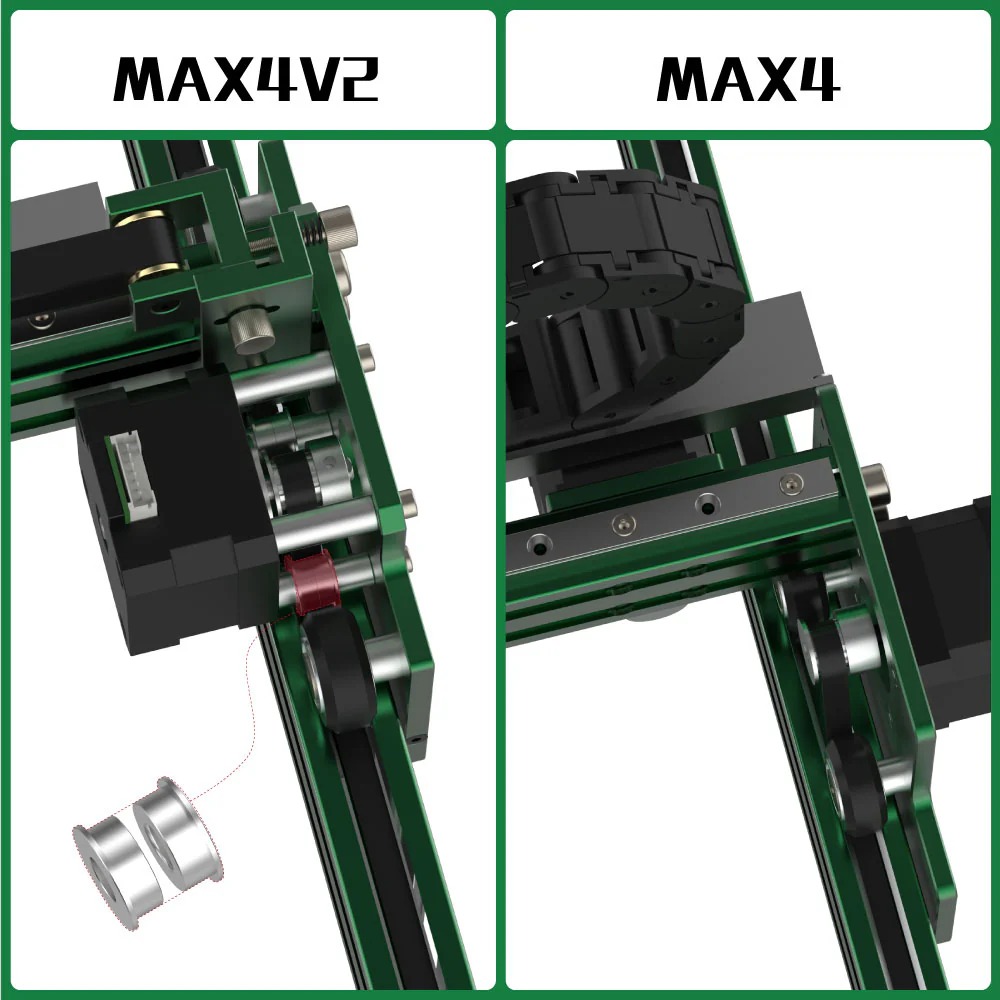

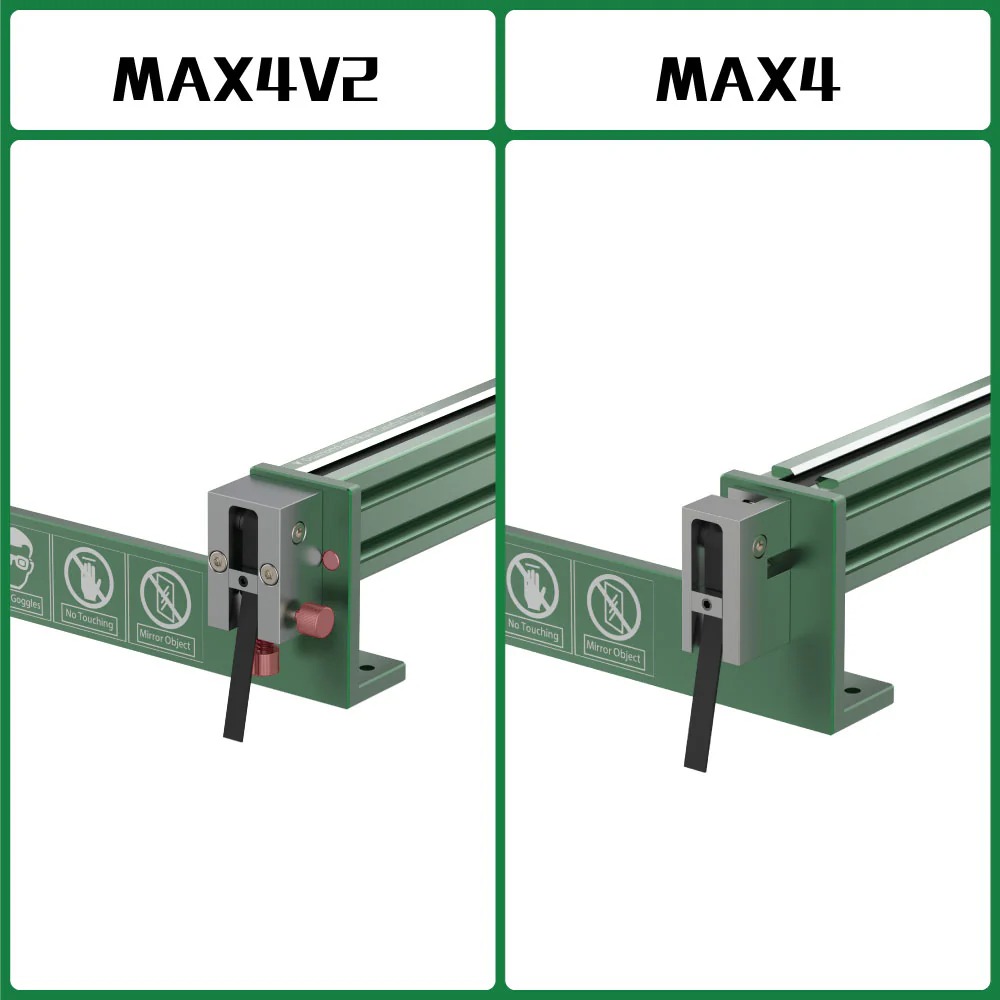

Optimized timing belt tensioner installation and adjustment method: のみ 2 screws are required for installation, and tension adjustment is simplified—just loosen the side screw and tighten it to complete the synchronization belt tensioning.
Added magnetic leveling tool on the side for convenient adjustment.

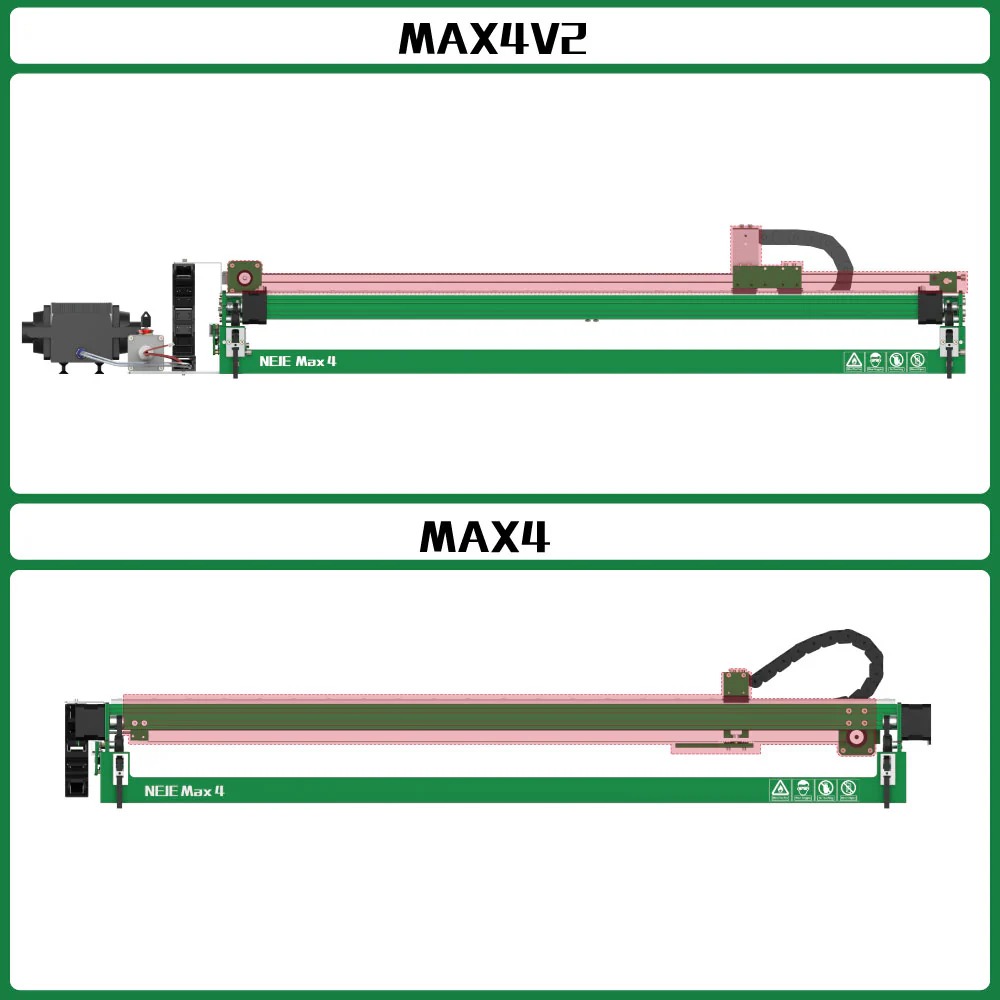

Standard High-Capacity Air Assist System.
Upgraded Control Box (Standard Included).

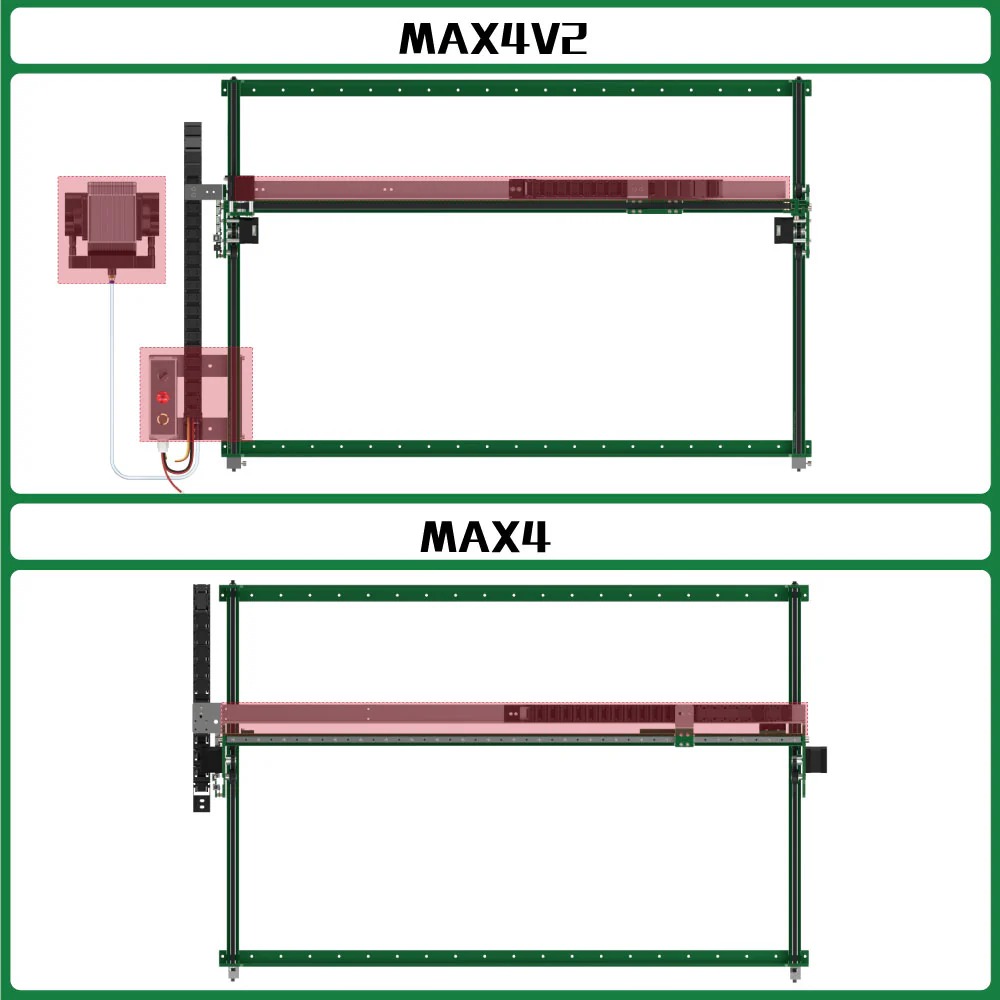

Integrated structure enables easier assembly.

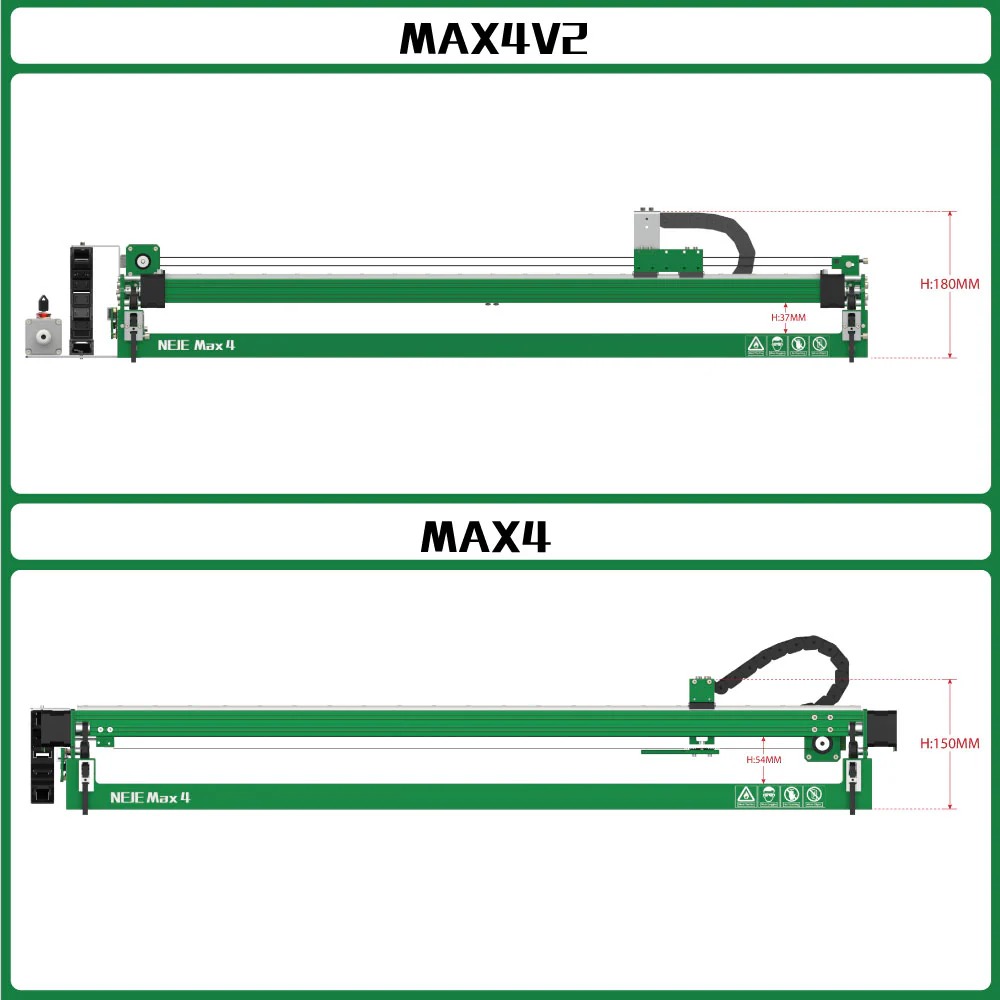

Reduced height while enhancing mechanical stability under extreme motion conditions.

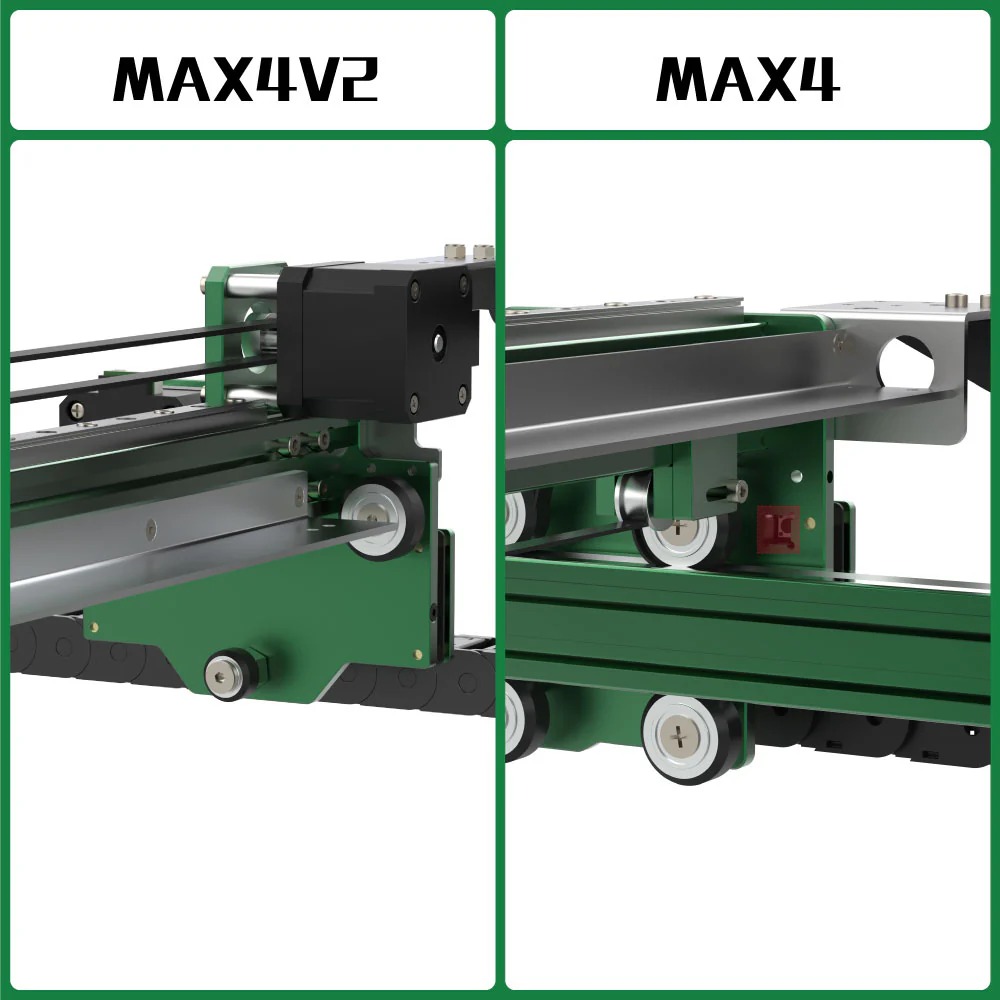

Innovative Y-axis drive design enhances timing belt wrap, using a 16-tooth timing pulley to improve step response accuracy while reducing the height of the motion module and enhancing power acceleration capability.
Adjust the timing belt position, using a 10mm width, 2GT, 16-tooth timing pulley, with a 42×42×40mm stepper motor as the power configuration.
