Highlights
- The current version of the controller is version 3.1, normally comes with the boot-loader on
- the chip and you just need to upload the firmware via micro USB.

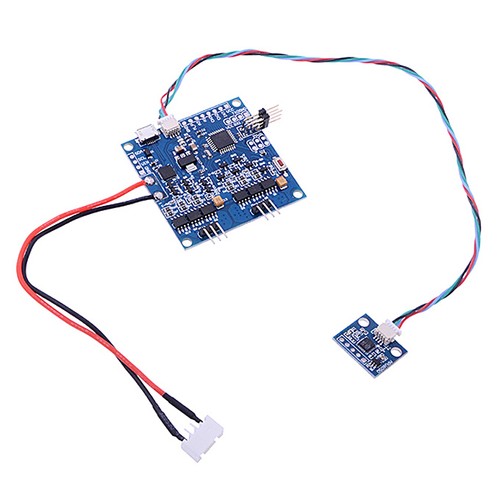

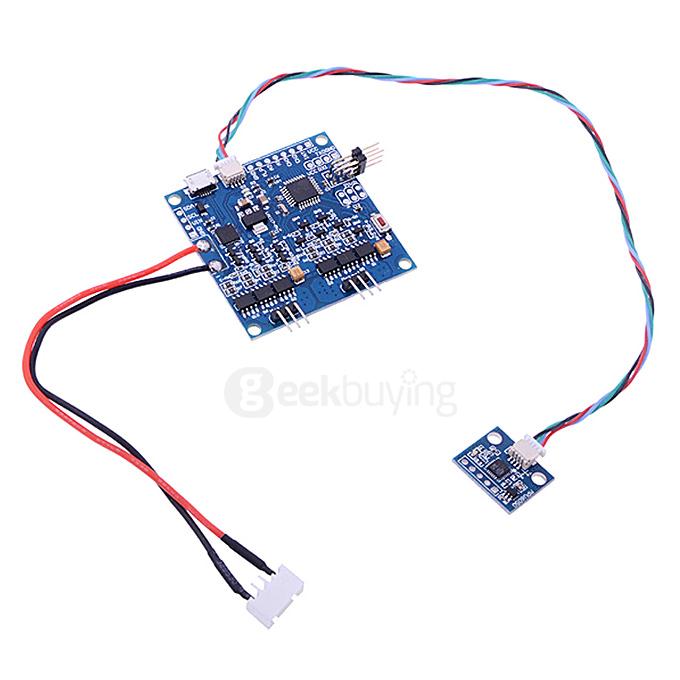

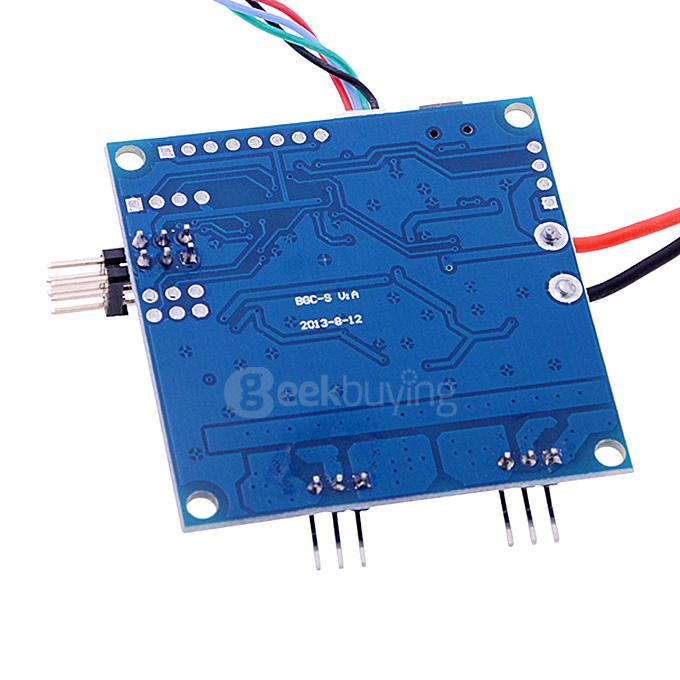

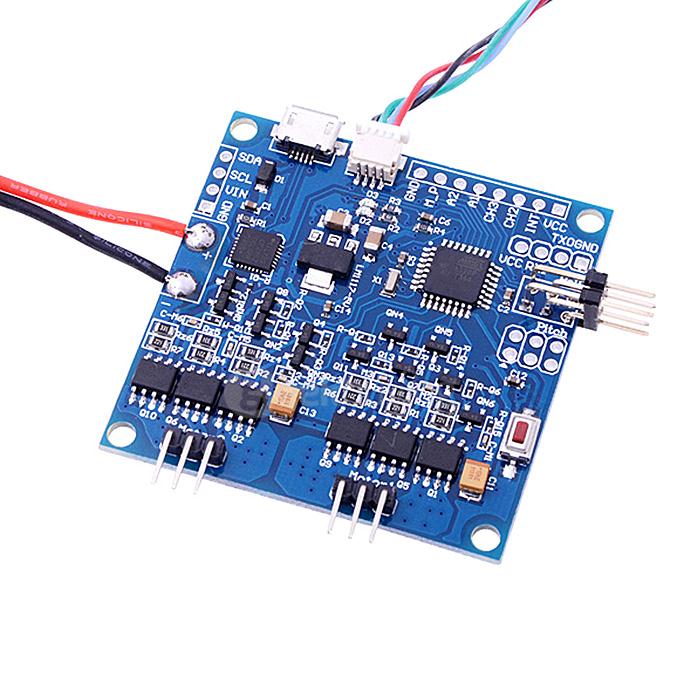

- Brushless Gimbal Controller 3.1
- Micro USB connector (no FTDI needed)
- Stabilized VBUS (USB port)
- Pin layout optimized GND, A1 and A2 GND, multi-port, 5V
- L6234 brushless motor driver
- 2 outputs for brushless motors
- 4 receiver inputs
- 6 analog inputs
- Serial port available
- Power LED (blue)
- Small LEDs on the USB
- Dimensions 50 mm x 50 mm
- Standard MK style mounting holes 45 mm x 45 mm
- 2 instead of 4 glass diodes SOT23
- 5V better stabilized
- Shifter lever on the I2C Bus (3.3V to 5V)
- Pull reduced (for better edges)

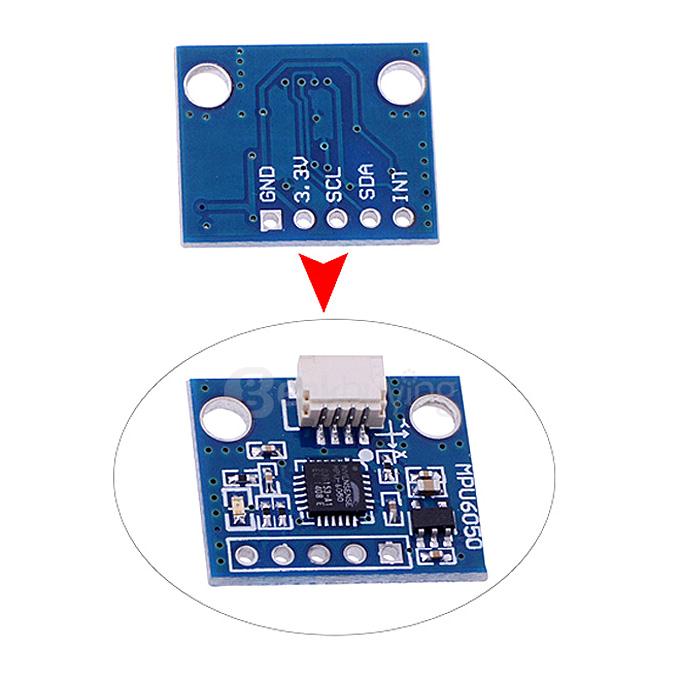

- MPU6050 3 Sensor module
Specification
| General | |
|---|---|
| Type | Gimbal Controller |
| Model | A-11 |
| Chip | MPU-6050 |
| Power Supply | 3-5V |
| Gyroscope | + 250 500 1000 2000 °/ s |
| Acceleration | ± 2 ± 4 ± 8 ± 16 g |
| Communication | Standard IIC communication agreement Chip built-in 16 bit AD converter, 16 bits of data output |
| Size | Pin Pitch: 2.54mm Size: 20.3mm x 16.5mm |
| Package Contents | |
| 1 * Brushless Gimbal Controller 3.1 | |
| 1 * MPU6050 Sensor | |
| 1 * Cable | |
