General |
Model |

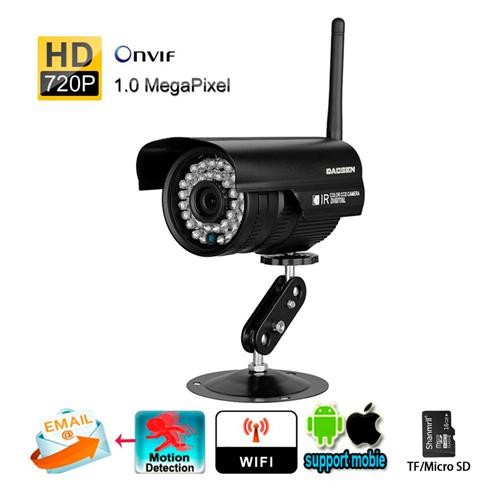

IPC-W6731 |
Item |
Household IP Camera |
Device Type |
1.0 Megapixel CMOS sensor |
Size |
1/4 inch |
Day and Night |
YES |
Min.Scene Illumination |
0.0lux |
Infrared sensitivity |
Support |
Filter |
IR-CUT |
IR-led |
36 PCS |
IR distance |
depends on camera enviroment light |
Lens |
3.6 MM |
Focus |
Fixed Lens |
Aperture |
Fixed Aperture |
Compression |
H.264 |
Picture Resolution |
Main Flow: 1280*720@30fps |
|
Minor Flow: 640*360@30fps |
Flow Type |
Dual Stream encoding |
Bit Rate |
128-8192kbps |
Bit Rate Type |
CBR/VBR |
S/N Ratio |
>50DB |
Image enhancement |
Auto White Balance,Backlight compensation,Brightness,Contrast,Saturation adjusted |
Subtitles input |
Support channel name, date/time |
Flip Config |
Up/down, Left/right |
Audio |
Two way audio |
equipment |
Built-in MIC,horn |
Audio |
one channel audio input, one channel audio output |
Audio Compression |
G.711 |
Alarm way |
Motion Detection:Configure motion detection area,detecting sensitivity is adjustable |
|
Cover alarm:The alarm sensitivity is adjustable |
Alarm processing |
The control center to monitor,Send E-mail, Log record,SD card storage etc. |
Ethernet |
Ethernet (10/100 Base-T),RJ-45 connector |
Safety |
IP address filtering,User level password protection,The user access log |
WEB Browser |
Microsoft Internet Explorer 6.0 and above,google,firefox etc. |
Software Management |
CMS |
Software intelligence function |
Motion detection,Miss object detection, Moving object tracking, counting, Retrograde motion detection, etc. |
Event action |
Files are stored to the back end equipment,Send E-mail,Send SMS,Zoom in alarm,etc |
Mobile Phone |
Support iPhone,Android |
Remote Access |
DDNS,Software,P2P |
Accessories |
Power adapter, Network cable, Stand, Operation manual, CD, Screw bag |
Power Comsumption |
DC 12V/2A |
Temperature |
-10°C——60°C |
Humidity |
10%-80% |
Weight |
0.5KG |
Camera size |
100 x 66 x 73 mm (L x W x H) |
Ingress Protection |
IP66 |
local storage |
SD Slot support maximum 64G SD Card |
