![[English Version] Original Xiaomi Router Mini AC Intelligent WiFi Dual Band Max 1167Mbps - White](http://static.gkbcdn.com/V1.4/en/images/transparent.png)
Highlights

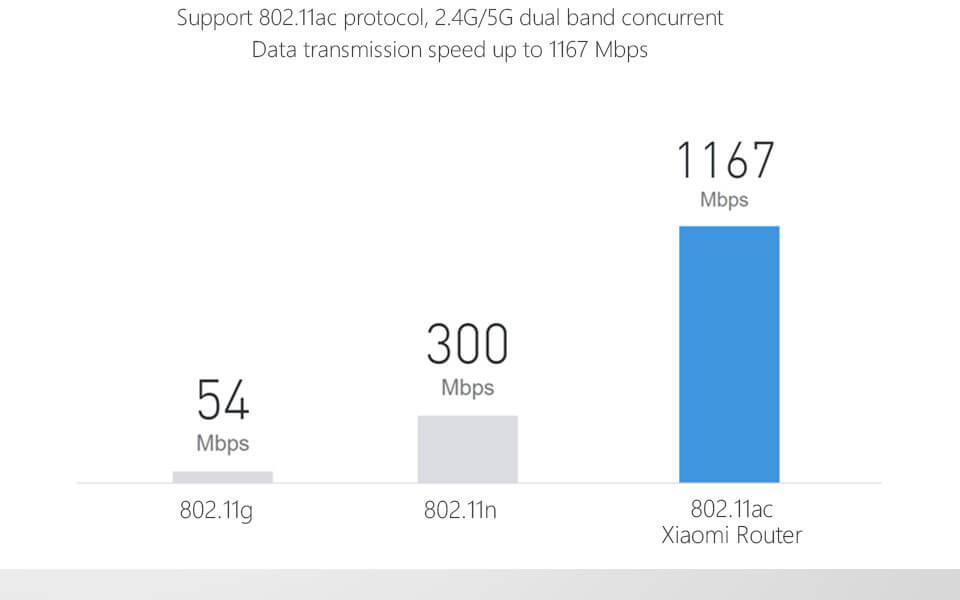

As being up to three times faster than traditional wireless routers, theoretically supporting a speed of up to 1167 Mbps.
It is also a dual-band AC 2.4GHz/5GHz router.
An intelligent home controller center to operate all the smart home appliances.
Creative, direct and swift connection.
Adjustable dual antenna angles.
Dual defense and a far safety AC router to protect your exclusive WiFi zone and etc.
It's the most cost-effective dual AC router on the planet.
3x faster than traditional router
Supporting ghost mode
Dual defense and more safety

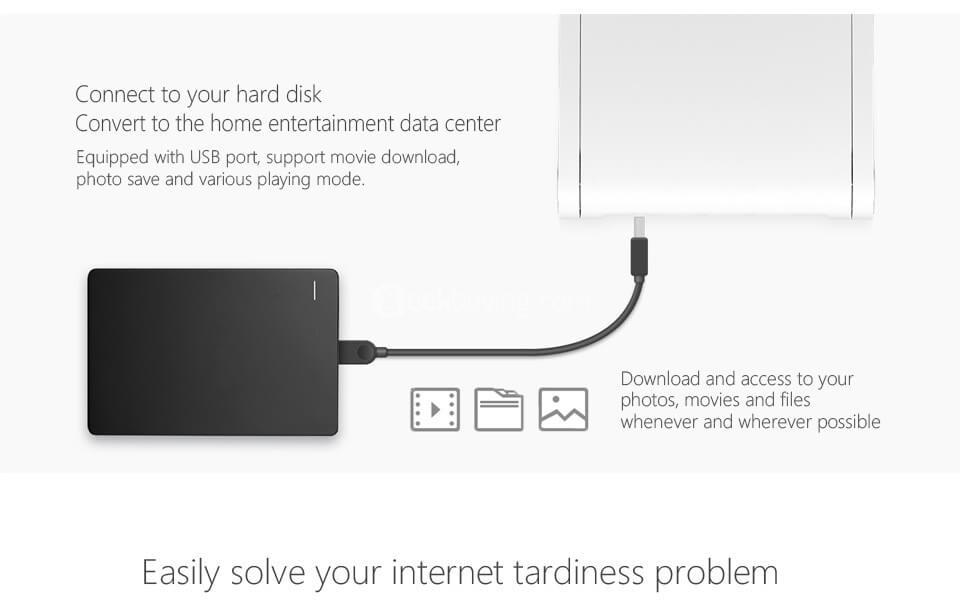

Connect router with hard disk via USB to access files
![[English Version] Original Xiaomi Router Mini AC Intelligent WiFi Dual Band Max 1167Mbps - White](http://img.gkbcdn.com/s3/d/201703/d28f7ee8-3aca-4bbe-8183-978a40108ef2.jpg)
![[English Version] Original Xiaomi Router Mini AC Intelligent WiFi Dual Band Max 1167Mbps - White](http://img.gkbcdn.com/s3/d/201703/72ed878c-0125-4975-b860-293c85f9a9b8.jpg)
![[English Version] Original Xiaomi Router Mini AC Intelligent WiFi Dual Band Max 1167Mbps - White](http://img.gkbcdn.com/s3/d/201703/073e94e4-328a-4756-bf69-510dcc922c21.jpg)
![[English Version] Original Xiaomi Router Mini AC Intelligent WiFi Dual Band Max 1167Mbps - White](http://img.gkbcdn.com/s3/d/201703/44c391b1-9d37-4556-85e1-8cdcdd570345.jpg)
![[English Version] Original Xiaomi Router Mini AC Intelligent WiFi Dual Band Max 1167Mbps - White](http://img.gkbcdn.com/s3/d/201703/dc65a3ef-6de6-40e7-ab80-078ce6eb079e.jpg)
![[English Version] Original Xiaomi Router Mini AC Intelligent WiFi Dual Band Max 1167Mbps - White](http://img.gkbcdn.com/s3/d/201703/edd13a53-e8f3-451e-9a83-f72164d6e905.jpg)
![[English Version] Original Xiaomi Router Mini AC Intelligent WiFi Dual Band Max 1167Mbps - White](http://img.gkbcdn.com/s3/d/201703/1e8f32b3-71ab-4f3b-b23b-13be07eb56d8.jpg)
![[English Version] Original Xiaomi Router Mini AC Intelligent WiFi Dual Band Max 1167Mbps - White](http://img.gkbcdn.com/s3/d/201703/63604194-8f74-47c2-8df6-3f9b8f8f2d94.jpg)
Specification
| General |
Brand:Xiaomi |
|
Hardware |
Processor : MT7620A 580MHz |

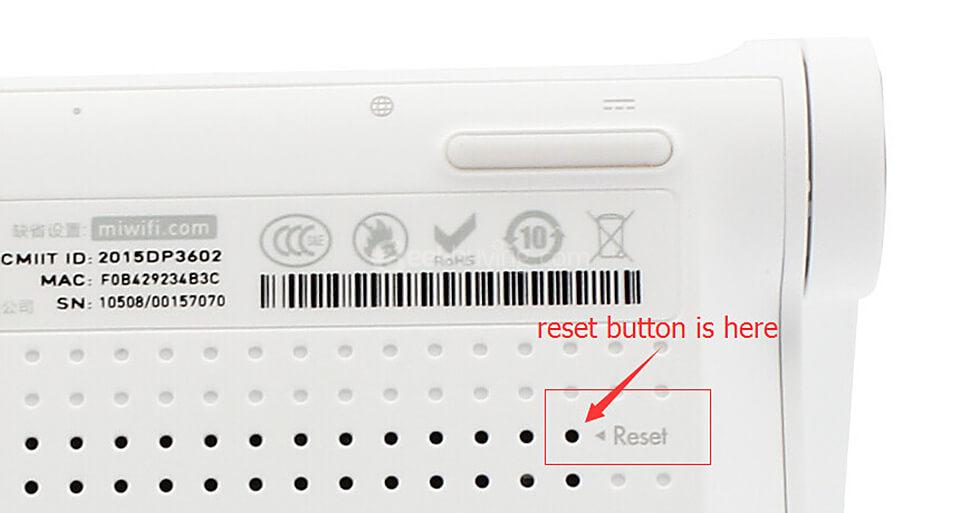

| Main Interface | A USB 2.0 interface (DC output: 5V / 1A) 2 10 / 100M adaptive LAN port (Auto MDI / MDIX) A 10 / 100M adaptive WAN port (Auto MDI / MDIX) A red / blue / yellow three -color LED A factory reset button A power input connector |
| Wireless Parameters | Concurrent dual-band 2.4GHz and 5GHz Does not support beamforming technology Radio channel 2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13 5GHz Channel: 149,153,157,161,165 5GHz DFS Channel: 36,40,44,48,52,56,60,64 Modulation 11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5 / 11Mbps) 11a / g: OFDM: BPSK (6 / 9Mbps), QPSK (12 / 18Mbps), 16QAM (24 / 36Mbps), Q64QAM (48 / 54Mbps) 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Q Rate Set : MCS0 ~ MCS15 11ac: MIMO-OFDM: BPSK, QQPSK, 16QAM, 64QAM, 256QAM. Q Rate Set : MCS0 ~ MCS9 ( supports two streams ) Receiver sensitivity 11Mbps: ≤-90dBm, 54 Mbps: ≤-72dBm, HT20 QMCS7: ≤-69dBm, QHT40 MCS7: ≤-66dBm, VHT20 MCS8: ≤-65dBm, Q VHT40 MCS9: ≤-60dBm, QVHT80 MCS9: ≤-58 dBm |
| Software | Operating System Based on the depth of customization intelligent OpenWRT router operating system MiWiFi ROM Supported Languages English Senior Management For advanced users / developers to provide root access router and provides native toolchain and SDK Wireless Security WPA-PSK / WPA2-PSK encryption, wireless access control ( black list ), SSID hiding Open Platform Currently supports video resource plugin ( Thunder cloud acceleration, Thunder movie theater , etc.), more plug-ins continue to update Management Applications Support for Web, Windows, Android, MacOS, iOS ( irregular expansion of the new management style ) |
| Protocol Standards | IEEE 802.11a / b / g / n / ac, IEEE 802.3 / 3u |
| Work Enviroment | Operating ambient temperature 0-40 ° Humidity 10% -90% RH ( non-condensing ) Storage Temperature -40-70 ° Storage humidity 5% -90% RH ( non-condensing ) |
| Package Contents | 1X Original Xiaomi Mini Router (white),1X EU plug charger (12V / 1A,3.5mm ) |
