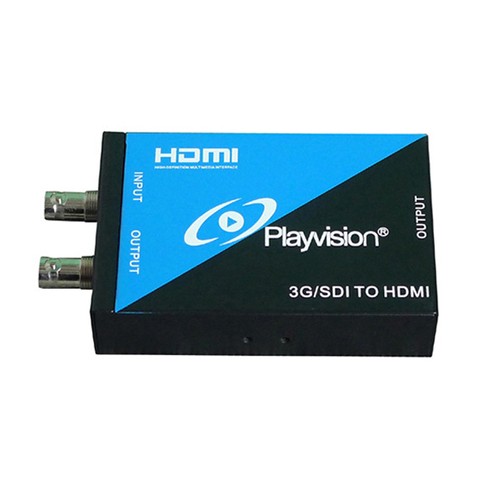

HD 1080P Turn SDI HDMI Converter Video Camera SDI to HDMI Pick Display Converter Box

Introductions

• The SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI/SDI displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays thanks to the built in HDMI converter. Furthermore, thanks to the loop-through 3G-SDI design, users are able to enjoy both SDI and HDMI displays at the same time.
  HD SDI-HDMI converter is a dedicated to single HD component serial interface (HD-SDI and 3 G-SDI) signals are converted to HDMI signal equipment. This equipment integrated SDI receiver and HDMI modulator, can easily move signals to HD SDI HDMI signal, and will with audio signal SDI separated after converting into the HDMI signals, in order to achieve sound and image synchronous transmission.

Highlight

• Support HD-SDI and 3 G-SDI
• Support the hd 1080 P @ 60 Hz
• The resolution to be automatic identification
• All the way back to the output SDI ring
• Audio and image synchronization output
• The installation is simple and convenient
• SDI: Via an hd-sdi interface is digital serial interface * digital interface) the initials. Serial interface is the data of the word and the corresponding data every bit by a single channel, the transfer of sequence interface. Because of the serial digital signal data rate is very high, in the transfer must pass before processing.
• HDMI: HDMI, High Definition Multimedia Interface (English: High Definition Multimedia Interface) is a fully digital image and sound transmission Interface can be compressed audio signal is transmitted and video signal. HDMI can be used for set-top box, DVD player, personal computer and video games, comprehensive expand machine, digital audio and television. HDMI can simultaneously transmit audio and video signals, because the audio and video signal adopted the same cable, greatly simplifying the system setup.
• Application field: Widely used in use at all levels of the SDI signal television broadcast rooms and the establishment for field, also widely used in all kinds of using HDMI light end transmission fields.

Specifications

• Video input signal: HD component serial interface (HD-SDI and 3 G-SDI) signal
• Video output signal: all the way HD-SDI output (loop back output), have a HDMI output signal (1080 P @ 60 Hz
• Input audio signal: SDI embedded
• The maximum working current: 500 mA
• Power adapter specifications: ac input (frequency 50 HZ, 60 HZ) 100 V-240 V; Output: DC 12 V / 1 A
• Working temperature: (15 + 55  ) to
• Work humidity: 5 to 90% RH (no condensation)
• Size (long * * wide high) : 100 (W) x 25 x65 (D) (H) mm
• Weight: 250 g

Connection and operation:

• 1. Will take via an hd-sdi interface of the output signal source connected to this device via an hd-sdi interface of the input.
• 2. Through a single HDMI line, the converter lose exports and terminal display device to connect.
• 3. Put the DC 5 V / 1 A power and converter joined up.

The main function characteristics:

• Properties is advanced, the input to support the current version of the most widely applied HDMI1.3, and at the same time down HDMI1.2 and HDMI1.1 and the following compatible version, the output of the highest in the industry to support the current 3 G SDI signal and 1.485 G SDI hd signal, and at the same time compatible all kinds of SD-SDI signal.
• Output effect first-class quality, satisfied radio and television broadcast machine room and non-linear editing system of the professional requirements.
• According to radio and television broadcast 24 hours continuous operation room environment, scheme from design to production process selection and components link all special emphasis on stability, which can meet the 7 days * 24 hours of operation requirements

Detail


What is in the box?

• 1X Turn SDI HDMI Converter HD Video Camera SDI TO HDMI Pick Display
• 1xEnglish Manual
