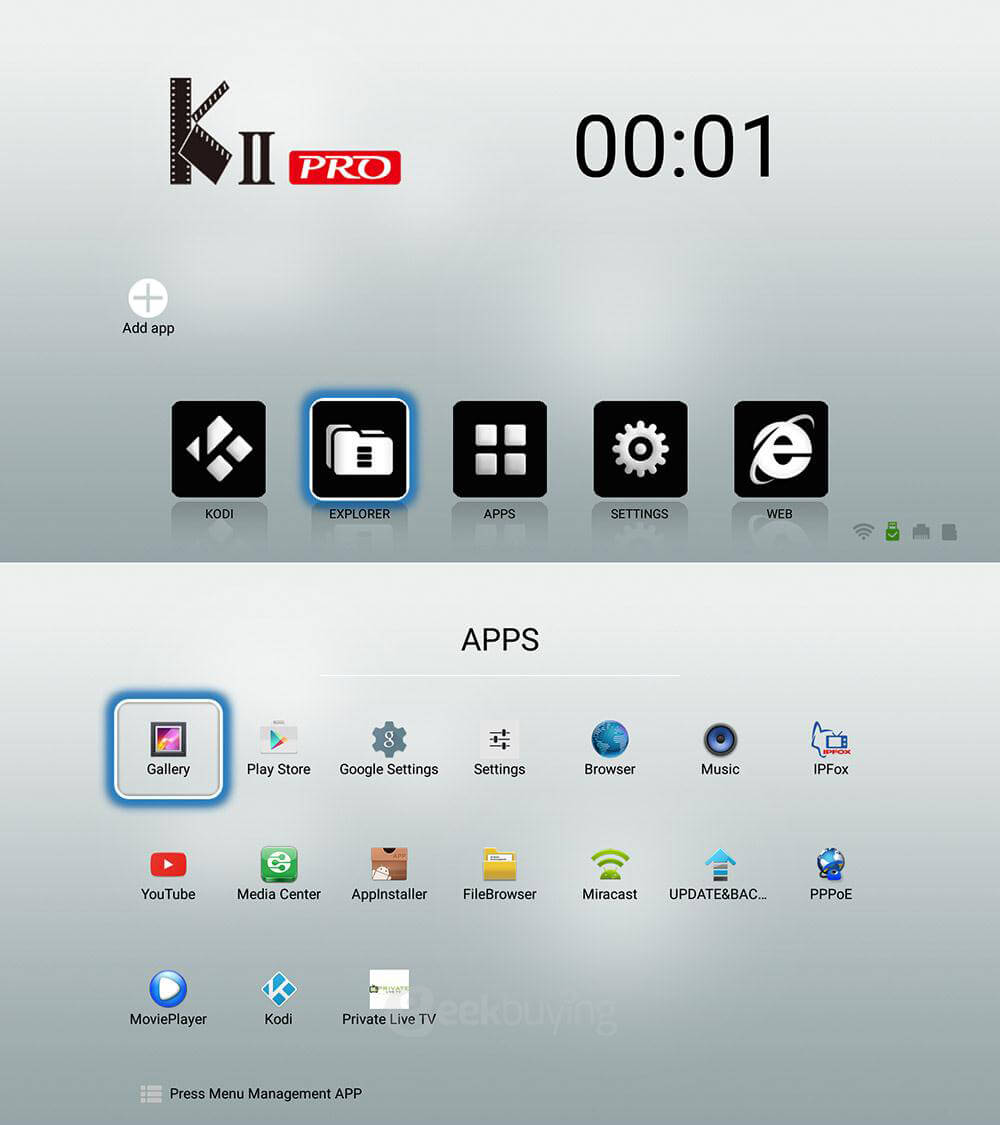

Android 5.1 OS

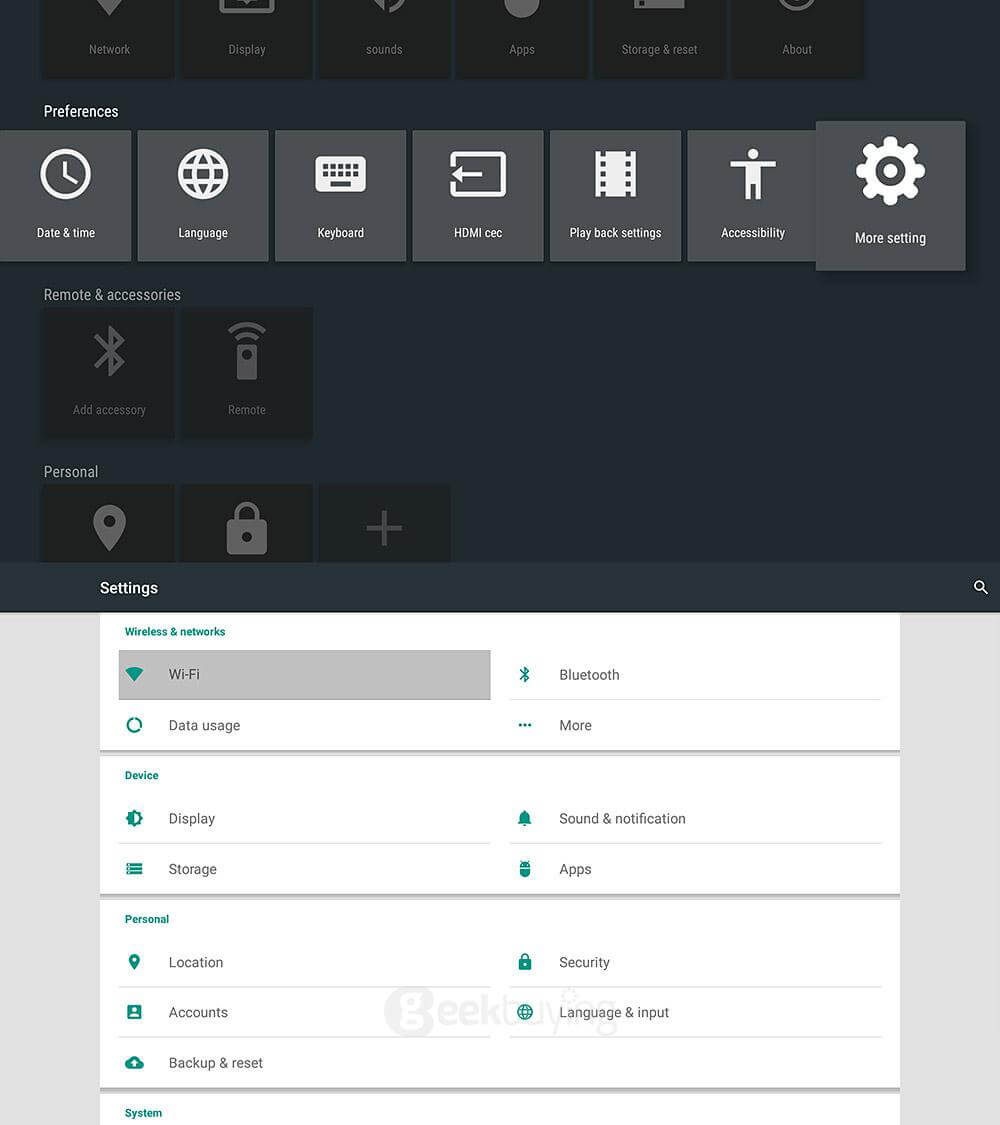

Android 5.1 OS, rapid and stable, with a redesigned user interface built around a design language known as "Material design", avails the access to over 800,000 apps including Facebook, Youtube, Picasa and more.

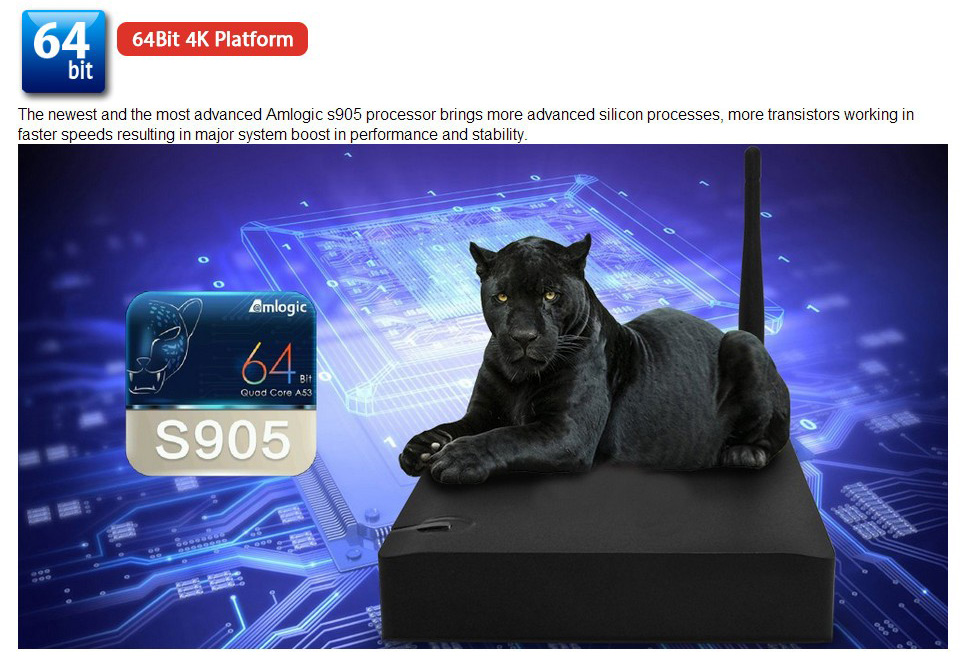

Amlogic S905, a high performing CPU running at 2,000.00 MHz Max., has 4 core(s) which results in extremely efficient multi-tasking in comparison with dual core processors.
Penta-core ARM Mali-450, a separate graphics processor dedicated to accelerate the creation of images to be outputted to a display, is structured around processing large blocks of data in parallel.
DDR3 2GB RAM, eMMC 16GB Flash
It boasts DDR3 2GB RAM, and eMMC 16GB Flash, advantageous in performance, security and reliability, ascribing to the eMMC memory, ultimately delivering a richer end-user experience.
IEEE 802.11ac, one of the wireless networking standards in 802.11 family, is developed in the IEEE Standards Association process for the purpose of high-throughput wireless local area networks (WLANs) on the 5 GHz band.
DVB-T2, the world’s most advanced DTT system, offers more robustness, flexibility and at least 50% more efficiency than any other DTT system. It supports SD, HD, UHD, mobile TV, or any combination thereof.
|Operating System||Android 5.1.1|
|CPU||Amlogic S905 Quad-core 64-bit ARM® ™-A53 up to 2GHz|
Penta-core ARM® Mali™-450
|Extended Storage||TF Card supports up to 32GB|

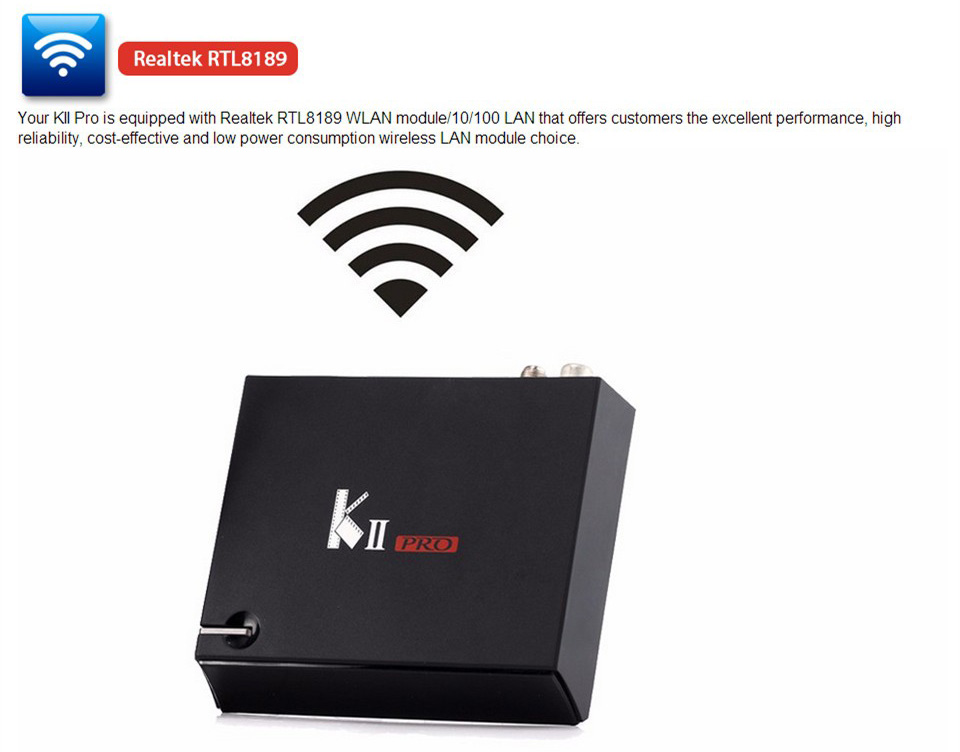

|Wifi Connectivity||IEEE 802.11b/g/n/ac|
|Video Supported||UHD 4K 60fps HW decoding, supports multiple formats including H.265 10-bit, H.264 and AVS+FHD 1080p 60fps HW encoding, supports H.264
HD MPEG1/2/4,H.265/HEVC , HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6 ,RealVideo8/9/10

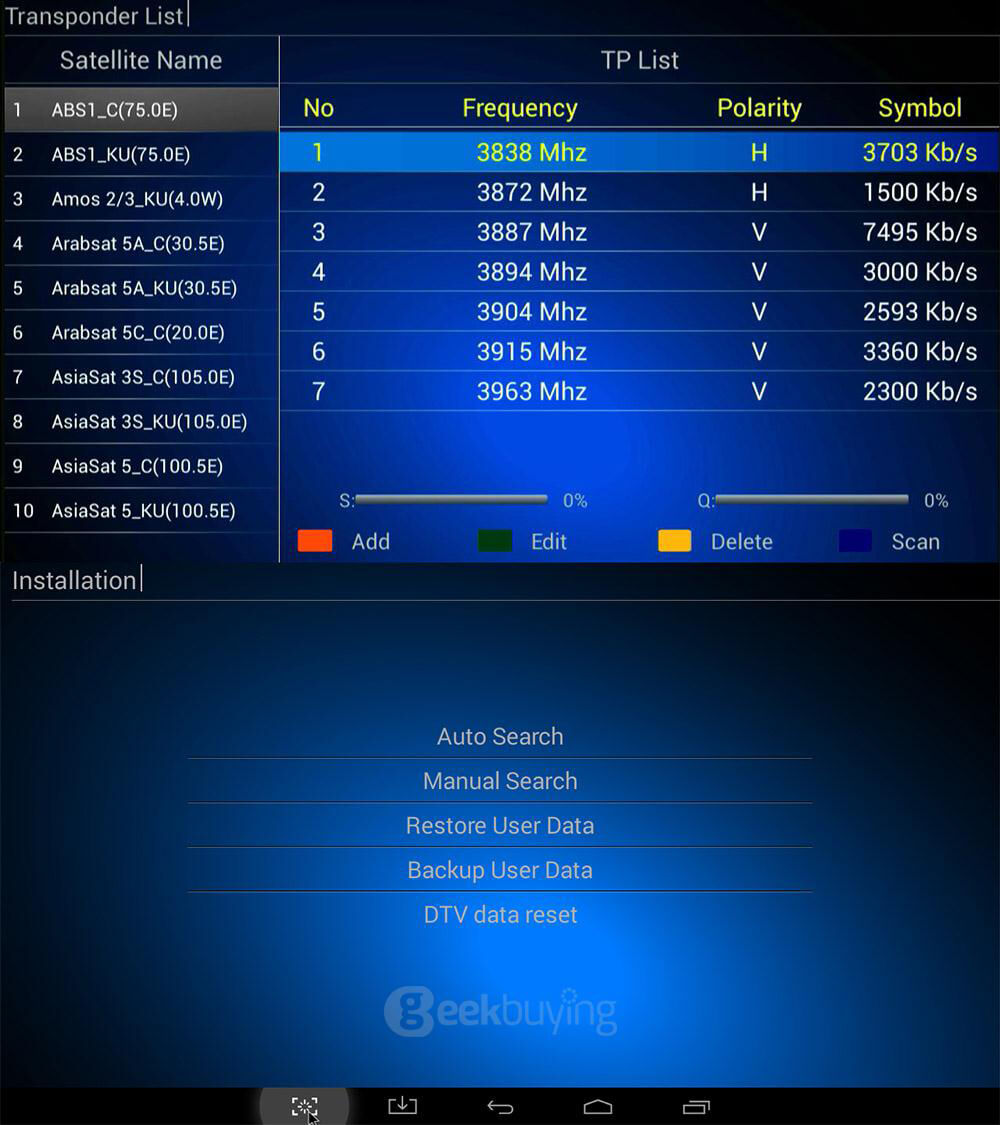

|DVB-S2||DVB-S2 system standard:ETS 302 307
Symbol Rates: QPSK,8PSK
Forward error correction rate 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10
Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates
Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35
Symbol Rates: 1- 55 Msps
Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8
Input Signal level: -84 dBm to 0 dBm (average power)
ANT. Connector:IEC TYPE F

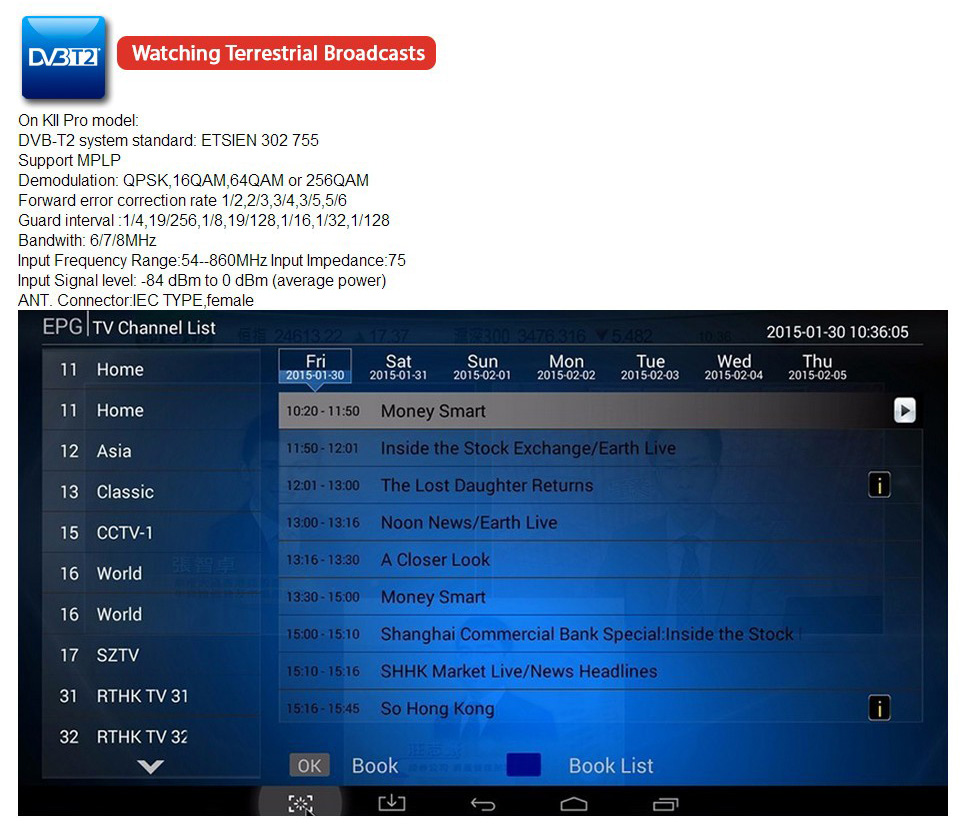

DVB-T2 system standard:ETSIEN 302 755
|HDMI Port||Standard HDMI 2.0|
|Other Interfaces||1*HDMI 2.0; 4K/2K HDMI2.0 , HDCP2.2
4*USB HOST;4 High speed USB 2.0,support U DISK and USB HDD
1*TF CARD;Micro TF Card (Maximum support 32GB)
|Network Function||Skype,Picasa,Youtube,Flicker,Facebook,Online movies,etc|
|Mourse/Keyboard||Support mouse and keyboard via USB
Support 2.4G wireless mouse and keyboard via 2.4G USB dongle
|1 x TV box|
|1 x IR remote control|
|1 x HDMI cable|
|1 x Power adapter (A right AC Adapter will be sent as your shipping country)|
|1 x User manual|
